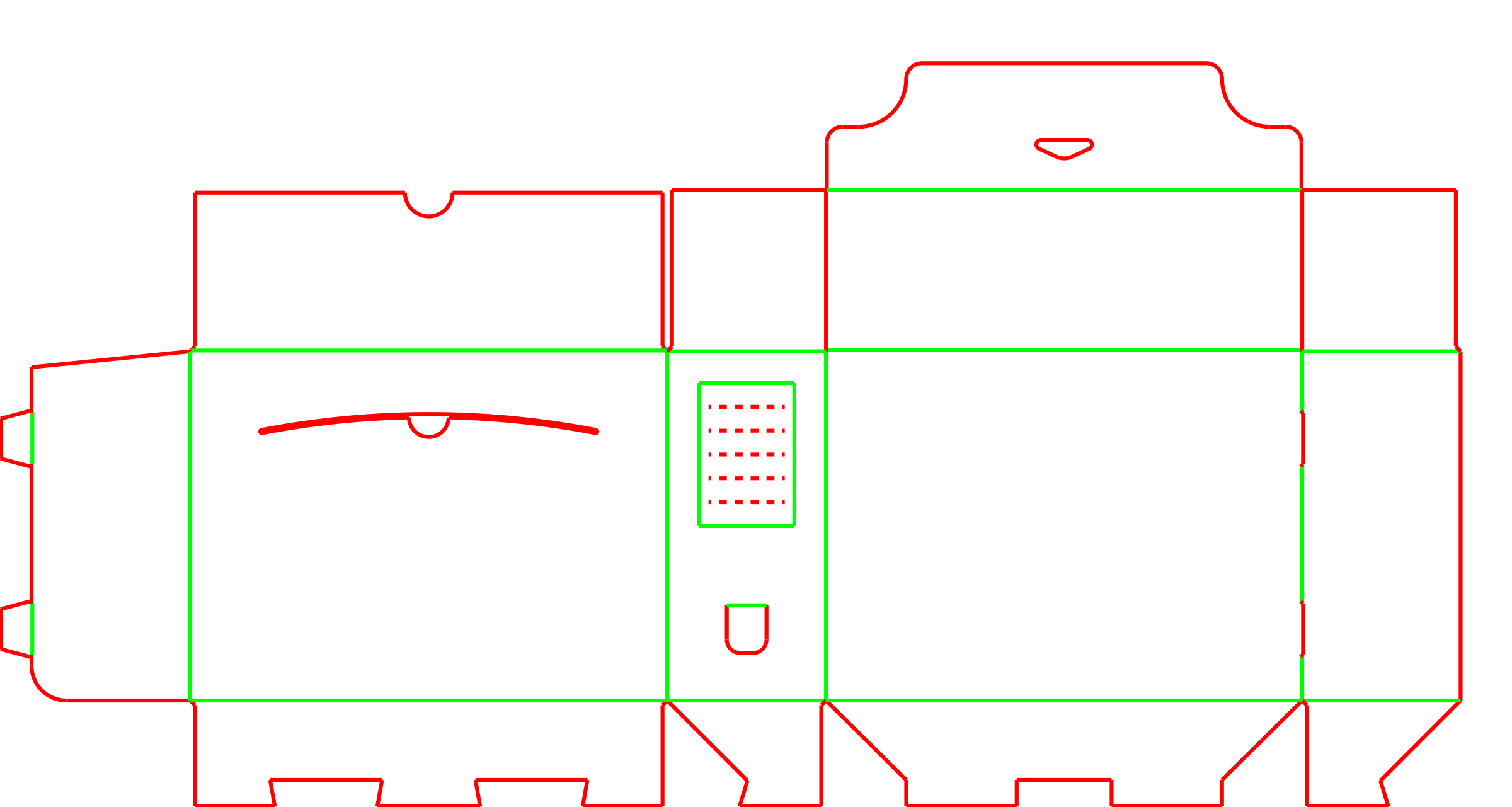

The EVF52066 is a folding carton designed for retail environments, featuring a tall back-panel header with a built-in hanger hole. It allows products to be displayed on pegboards or stand upright on shelves while keeping the contents fully enclosed.
Unlike standard tuck boxes, this design includes an inner sub-roof panel and a front-locking lid. This double-layered top provides extra dust protection and keeps the main front panel clean, while the base uses a 1-2-3 snap-lock fold that is typically assembled by hand.
The extended back panel serves as a dedicated billboard and hanging point. This makes it a natural fit for light electronics, stationery, software, or hardware kits that need high visibility on retail hooks.
Freestanding Shelf Presentation
Because the base uses a flat snap-lock design rather than an envelope fold, the box can stand upright on standard retail shelves when pegboard space is unavailable.
Software and Media Packaging
The clean front face, uninterrupted by a top tuck flap, provides a continuous canvas for cover art, making it useful for boxed software, media, or card decks.
Hardware and Component Kits
For lightweight hardware or multi-part kits, the inner sub-roof panel helps contain dust and prevents small components from pushing up against the main lid.
Fulfillment and Packing Environments
Manual Fulfillment Operations
This carton is delivered flat and is typically assembled by hand. The 1-2-3 snap-lock bottom and the multi-step top closure make it well-suited for dedicated packing stations.
Retail Rollouts and Point of Purchase
Brands launching products across mixed retail environments often use this style because it adapts to both hanging displays and traditional shelving without requiring two different box designs.
Mixed Display Environments
When a product might be placed on a counter display in one store and a wall peg in another, the flat base and sturdy header provide the flexibility to handle both setups.
When to Consider Alternative Display Boxes
Heavy Products and Tear Risk
If the product is heavy, the paperboard above the hanger hole can tear over time. For heavier items, consider a corrugated display style or a package that uses a reinforced plastic hang tab instead of a punched board hole.
Automated Packing Lines
If the packing line relies on automated cartoners, the snap-lock base and inner sub-roof panel can affect packing speed. Compare this with a straight-tuck or crash-lock carton that may be easier to run on automated equipment.
Direct-to-Consumer Mailing
For e-commerce fulfillment without an outer shipper, the exposed header can bend and the slit-lock lid may open during transit. A dedicated mailer box is often a safer choice for parcel networks.
Board, Finish, and Closure Decisions
Board Grade and Tear Resistance
The entire hanging weight of the package is concentrated at the hanger hole. Selecting a board with high tear resistance, such as Solid Bleached Sulfate (SBS), is often necessary to prevent the box from falling off the retail peg.
Outer Shippers for Parcel Transit
This box is designed for retail presentation. It usually needs a properly sized master carton or outer shipper for safe delivery to stores or direct-to-consumer fulfillment.
Print Surface on the Inner Panel
Because the inner top panel folds inward from the front wall, its underside may be visible when the consumer opens the box. Artwork layouts should account for this surface if a premium unboxing experience is required.
Packing Labor and Assembly Speed
The multi-step closure takes slightly more time per unit than a simple tuck box. This should be factored into fulfillment planning.
Header and Hanger Hole Adjustments
Header Height and Branding Area
The vertical header can be extended to provide more space for branding, product information, or promotional graphics, as long as the chosen board remains rigid enough to prevent bowing.
Hanger Hole Sizing
The width and shape of the hanger hole, often a standard euro-hole, can be adjusted to match the specific pegboard hooks used by your target retailers.
Front Window Cutouts
A window cutout can be added to the front or side panels to display the product, provided it leaves enough board around the curved slit-lock to maintain the lid's security.
Packing details
Inner Top Panel Clearances
The design includes an inner panel that folds down before the main lid is closed. This acts as a sub-roof, preventing the product from pushing up against the lid and interfering with the tuck tongue.
Additional notes
Print surface and the inner panel
Because the inner top panel folds inward from the front wall, its underside may be visible when the consumer opens the box. Artwork layouts should account for this surface if a premium unboxing experience is required.
A similar hanging box that uses a different lid tuck style, which may be easier to close depending on the board grade.
FAQs
How much weight can this box hold on a pegboard?
The hanging capacity depends entirely on the board grade and the product's weight distribution. Heavy items can tear the hanger hole or cause the header to bow. Physical testing with your actual product and chosen board is always recommended.
Does the bottom require tape or glue?
The 1-2-3 snap-lock bottom interlocks securely by hand without additional tape or adhesive. The manufacturer glues the side seam before delivering the boxes flat.
Can this box be packed on an automated line?
This specific design is generally folded by hand. The snap-lock base and the double-layered top closure are typically better suited for manual fulfillment stations.
Can I ship this directly to a customer in the mail?
Usually not on its own. The tall header is easily bent, and the front slit-lock is not secure enough for standard parcel networks. It should be packed inside a protective outer shipper.
What is the purpose of the inner top panel?
The inner panel folds down first to create a sub-roof. This adds rigidity to the top of the box, provides extra dust protection, and keeps the product from blocking the lid's tuck tongue when it inserts into the front slit.
Can the front panel have a plastic window?
Yes, a window cutout can be added to the front or side panels to display the product, provided it leaves enough board around the curved slit-lock to maintain the lid's security.
How does the front slit-lock stay closed?
The top lid features a tuck tongue that inserts into a curved slit on the front panel. The friction and tension of the curved cut hold the flap in place without needing a sticker seal for retail display.
Will the hanger hole tear over time?
Tearing is a risk if the product is too heavy for the chosen paperboard. Using a stronger board like SBS or adding a reinforced plastic hang tab can help mitigate this issue for heavier items.
Reviewing your product weight and retail shelving plans helps determine if this hanging display box is the right fit for your rollout.
