Premium and Fragile Separation Jobs
Cosmetics and high-end retail kits
The smooth folded top edge looks premium and prevents raw paper edges from scratching delicate primary packaging or labels.
Glass bottles and vials
The double-wall thickness provides superior cushioning compared to single-wall paperboard dividers, reducing the risk of breakage during transit.
Dust-sensitive environments
Folding the raw edge inward reduces paper dust, keeping the packed products cleaner during transit and unboxing.
Heavy or fragile industrial components
The double-wall board adds rigidity and separation strength, keeping heavier parts from shifting and striking each other inside the master carton.
Retail and Kit Packing Contexts
Hand-packing operations
Every piece must be folded 180 degrees before the grid is interlocked. This system relies entirely on manual assembly and is not suited for automated partition inserters.
Premium unboxing experiences
The clean, folded top edge elevates the perceived value of the kit when the consumer opens the master box, hiding the structural mechanics of the divider.
High-value multi-part kits
The buffer extensions keep individual components separated and protected from side impacts, ensuring delicate items remain secure during rough handling.
When to Consider Standard Partitions
High-speed or automated fulfillment
If you need rapid, automated insertion or want to minimize manual labor, review a standard single-wall partition that does not require pre-folding.
Heavy industrial transit
If the primary goal is sheer stacking strength for heavy bulk goods rather than presentation, a standard corrugated partition may be more practical.
Board, Caliper, and Assembly Choices
Board grade and grain direction
The material must be able to fold 180 degrees without cracking. Folding boxboard (FBB) or solid bleached board (SBB) are common choices, and grain direction must be strictly controlled.
Slot width and board caliper

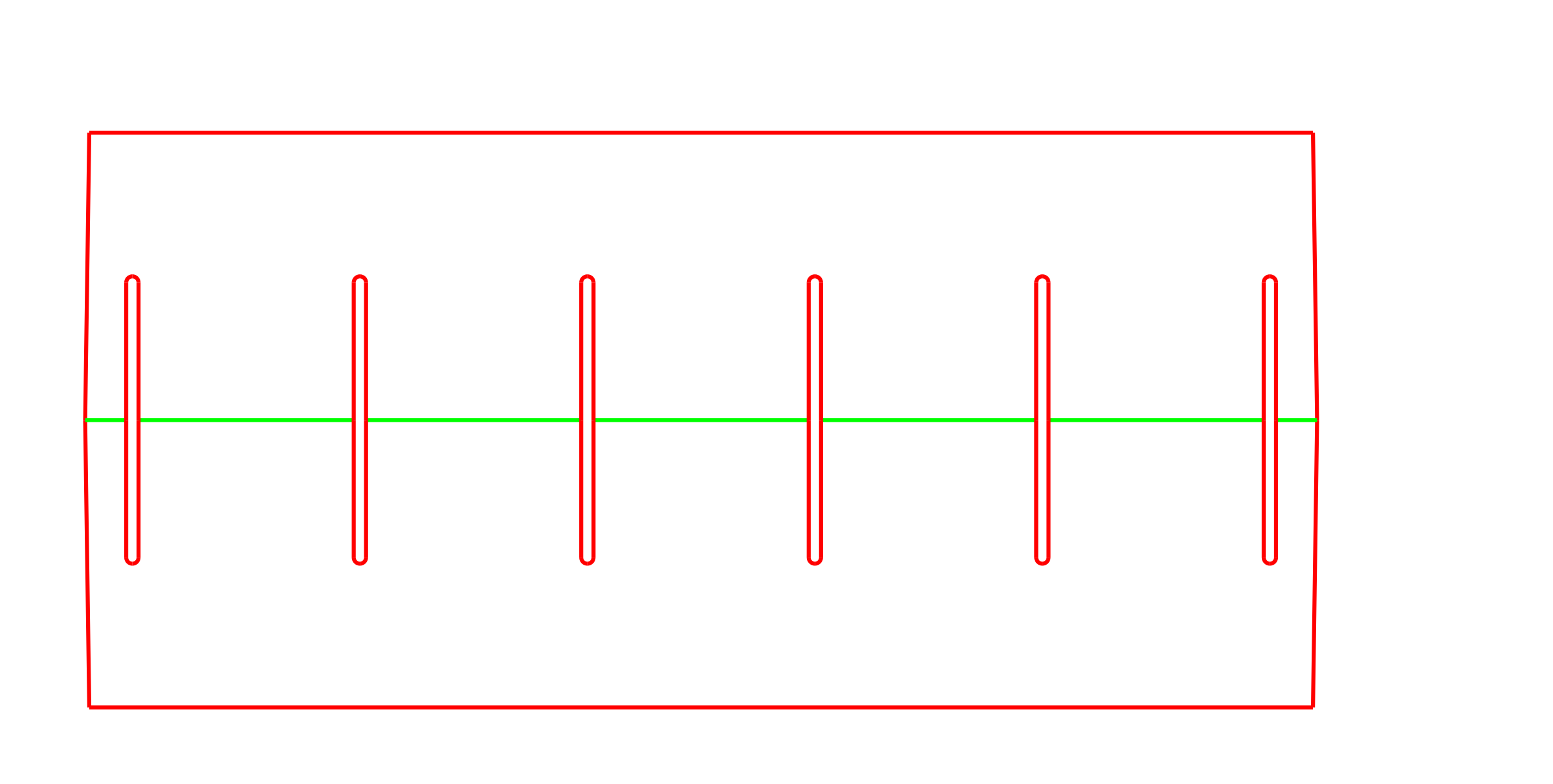

Because every piece folds in half, the interlocking slots must be cut wide enough to accommodate two thicknesses of the chosen board. Changing the board material requires recalculating these slots.
Master carton sizing
The extensions and double walls change the overall footprint compared to single-wall dividers. The outer box must be sized to accommodate this extra bulk.
Assembly labor planning
Account for the time required to fold every individual piece before interlocking the grid. This manual step adds significant labor to the packing line.
Grid and Buffer Adjustments
Cell count and grid layout
The grid can be adjusted for any number of longitudinal and transverse cells to fit the exact product assortment.
Extension length (buffer zone)
The ends of the dividers extend past the outermost slots. This extension can be lengthened to create a larger crush zone between the outer products and the master carton walls.
Slot depth and flush edges
The depth of the interlocking slots determines how flush the top edges sit. This can be adjusted to ensure a perfectly level presentation.
Packing details
Physical assembly testing
Because the slots rely on friction to hold the double-wall pieces together, a physical prototype is highly recommended to verify the fit, fold behavior, and grid stability before a full production run.
Additional notes
Grain direction and fold cracking
The 180-degree fold puts significant stress on the board. Grain direction must run parallel to the horizontal crease to ensure a clean fold without cracking the outer liner or print.
FAQs
Can this partition be assembled by automated machinery?
Generally, no. Because each individual divider piece must be folded in half horizontally before the grid is interlocked, this system requires manual assembly.
Can this be made from corrugated board?
It is usually made from paperboard. Corrugated board is difficult to fold 180 degrees cleanly, and doing so would make the double walls extremely thick, requiring massive interlocking slots.
Why are the slots cut wider than normal?
Since every piece in the grid is folded in half, the intersecting slots must accommodate two layers of board thickness rather than one.
What is the purpose of the extensions on the ends?
The extensions act as a buffer zone. They keep the outermost cells spaced away from the walls of the master carton, protecting edge products from side impacts.
Why choose a folded-edge partition over a standard one?
The folded top edge hides the raw paper cut, providing a much cleaner, premium look for retail kits. It also prevents paper cuts during loading and reduces paper dust inside the box.
Should I request a sample before ordering?
Yes. A physical sample confirms that the chosen board folds 180 degrees without cracking and that the slot widths provide the right amount of friction for a stable grid.
How does the double-wall design affect the master carton size?
The double-wall thickness and end extensions increase the overall footprint of the divider system. The outer box must be sized specifically to accommodate this extra bulk.
Does grain direction matter for this divider?
Yes. The grain direction must run parallel to the horizontal crease to ensure a clean 180-degree fold without cracking the outer liner or print.
