Layer Separation, Base Stiffening, and Retail Inserts
Layer Separation in Master Cartons
Used to separate layers of product within a larger box. The chamfered corners allow the pad to slide past the outer box's corner folds without getting stuck, speeding up the packing process.
Base Stiffening and Reinforcement
Placed at the bottom of a carton or tray to distribute vertical loads and provide a flat, stable floor for the product. Corrugated board is often chosen for this role to resist bowing.
Printed Retail Base Cards
When cut from folding boxboard or solid bleached board, the pad serves as a clean, printable surface to present a product inside a display or gift box.
Top Clearance Pads for Opening
Placed on top of a packed box before sealing. When the outer carton is opened, the pad protects the products underneath from blade cuts. The angled corners make it easy to drop in as the final packing step.
Automated Insertion, Hand Packing, and High-Density Storage
Automated Pick-and-Place Fulfillment
The flat, non-porous surface of an unperforated pad is compatible with vacuum suction feeders on automated packing lines. The chamfered corners provide the necessary clearance tolerance for machine insertion.
Manual Kitting and Assembly
For hand-packing operations, the angled corners eliminate the frustration of forcing a tight-fitting square pad past the inner glue flap or corner folds of the outer box.
High-Density Storage and Inbound Freight
Because these pads are delivered completely flat with no folds or glued seams, they offer excellent pallet density, taking up very little warehouse space before use.
E-commerce Unboxing Presentation
Used as a branded insert that sits cleanly at the bottom of a mailer, providing a premium backdrop for the product without catching on the mailer's side flaps.
When to Compare Square or Rounded Pads
When corner clearance is not an issue
If the outer box has a simple interior without bulky seams, or if the pad is sized much smaller than the box footprint, a standard square pad may be sufficient.
When a softer edge is required
If the pad will be handled directly by consumers or used in a premium presentation where sharp angles are undesirable, a pad with rounded corners may be a better aesthetic choice.
Board Choice, Clearance, and Flute Direction
Board Choice and Pad Stiffness
The choice of board dictates the pad's performance. Paperboard is excellent for lightweight separation and clean printing. Corrugated board provides planar stiffness to resist bowing under heavier loads, though it increases the thickness of the stacked pads.
Clearance and Fit Tolerances
The overall length and width must be sized to fit the internal dimensions of the destination box. The chamfer dimensions must be large enough to clear the specific corner radius or glue flap of that outer container.
Print and Coating Requirements
When used as a retail base card, the pad can be printed on one or both sides. Paperboard options provide a smooth surface for graphics, varnishes, or protective coatings that resist scuffing from the product.
Flute Direction for Corrugated Pads
If using corrugated board for stiffness, the flute direction should run perpendicular to the primary bending stress to maximize reinforcement.
Chamfer Depth, Angles, and Material Scaling
Chamfer Depth and Angle Adjustments

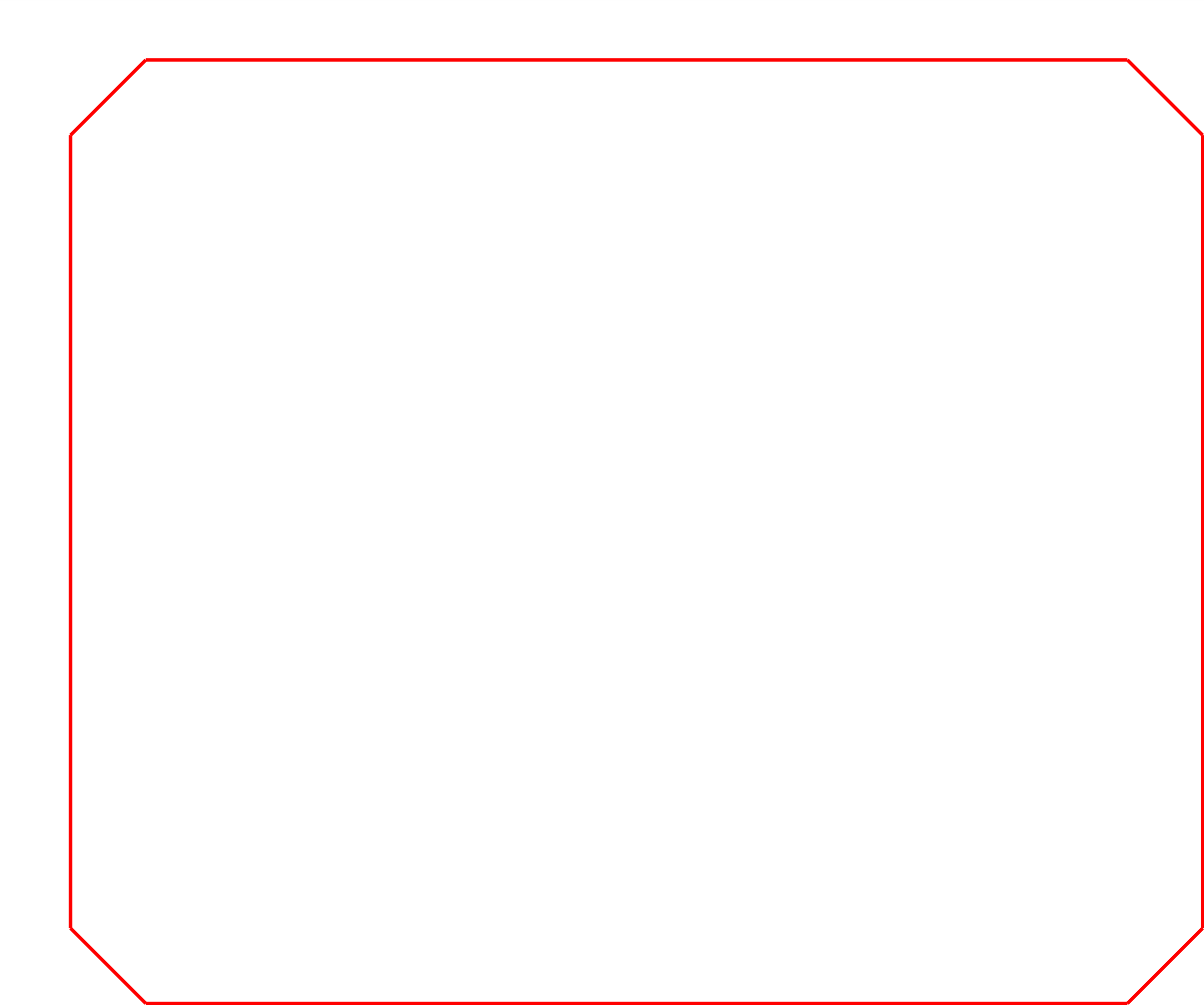

The horizontal and vertical cuts of the chamfer can be adjusted independently. While a symmetrical 45-degree cut is common, the angles can be modified to clear specific internal box features.
Asymmetrical Chamfers
The horizontal and vertical cuts do not have to be equal. They can be adjusted to clear specific, uneven internal box features or glue flaps.
Material Caliper Scaling
The template geometry is insensitive to material thickness, allowing easy switching between thin paperboard and thick corrugated without redesigning the profile.
Packing details
Nesting and Dieboard Efficiency
The simple geometry of a chamfered pad allows for very efficient nesting on a dieboard. The chamfer size can sometimes be adjusted to optimize offcut waste, making long runs very material-efficient.
Additional notes
Flat delivery and storage
These pads are delivered completely flat. Because they have no folds or glued seams, they offer excellent pallet density, taking up very little warehouse space before use.
Related Internal Components
FAQs
Why choose chamfered corners over standard square corners?
Square corners can catch on the inner vertical seams or glue flaps of an outer box during insertion, especially if the pad is sized for a tight fit. Chamfered corners provide clearance, allowing the pad to drop in smoothly without binding or crushing the edges.
How do I determine the correct chamfer size?
The chamfer needs to be large enough to clear the internal corner radius and any overlapping seams of your specific outer box. We recommend testing a physical sample with your chosen outer container to ensure a smooth fit.
What materials make sense for this pad?
It depends on the job. Paperboard is excellent for lightweight layer separation and printed base cards. Corrugated board is better when you need planar stiffness to distribute weight or prevent the pad from bowing under a heavy product.
Can these pads be used on automated packing lines?
Yes. The flat profile is generally well-suited for automated vacuum pick-and-place feeders. The chamfered corners also provide a helpful tolerance margin for automated insertion into the outer box.
Does this shape require complex tooling?
No. It is a very simple flat shape that requires only a basic cutting die, with no creasing rules needed. For short runs or prototypes, it can be easily cut on a digital CAD table.
Can this pad be printed on both sides?
Yes, depending on the board choice. Paperboard and certain corrugated grades can be printed on both sides for retail presentation or unboxing experiences.
Does the chamfered pad provide vertical stacking strength to the outer box?
No. It distributes weight across the base or separates layers, but it does not bear vertical loads like a partition or the walls of the outer box.
How does flute direction affect a corrugated chamfered pad?
Flute direction determines where the pad is stiffest. For base reinforcement, the flutes should run perpendicular to the expected bending stress of the heavy product.
