Decorative Layering and Base Pads
Confectionery Base Pads
Often placed at the bottom of a chocolate or pastry box, the scalloped edges frame the product and prevent direct contact with the carton floor. The board must be specified with appropriate grease-resistant coatings if direct food contact is expected.
Cosmetic and Gift Layering
Used to separate tiers of products within a deeper rigid or folding carton. The decorative edge adds a finished look when the consumer lifts the top layer to reveal the items below.
Apparel and Soft Goods Presentation
Placed over folded garments or textiles inside a mailer or rigid box, the scalloped sheet acts as a premium alternative to tissue paper, holding the items flat while framing the presentation.
Bakery and Pastry Floor Pads
Used under cakes or delicate baked goods to provide a clean, decorative lifting surface that keeps the product separated from the primary carton base.
Retail, Subscription, and Gifting Channels
Premium Retail Unboxing
Brands use this insert when a plain rectangular divider feels too utilitarian. The scalloped edge provides a visual cue of quality, turning a simple structural separator into a deliberate design element.
Subscription Box Presentation
When packing multiple loose items, a scalloped layer card creates a distinct reveal moment, hiding the lower tier of products while adding a stylized border to the box interior.
Corporate Gifting and Event Kits
Used to elevate standard rigid boxes or mailers by adding a custom-printed, decorative interior layer that reinforces the event branding before the recipient reaches the contents.
When to Compare Straight Edges or Walled Trays
Utilitarian separation without presentation needs
If the pad is purely for structural separation, leveling a carton floor, or adding puncture resistance, a plain rectangular pad is easier to strip during manufacturing and avoids the need to match arc widths.
Need for structural corner support
This flat pad provides no vertical column strength. If the insert needs to bear weight, hold products in place laterally, or reinforce the outer carton, a folded tray or a walled partition should be compared instead.
Clearance, Edge Crispness, and Packing Setup
Outer Carton Clearance
The pad must be sized slightly smaller than the internal dimensions of the outer carton. Because the scalloped pattern requires whole arcs to close the shape, the final cut size may shift slightly from the requested dimensions. This final size must be checked against the carton walls to ensure it drops in without catching or bowing.
Arc Width and Stripping
The width of the individual scallops affects both the look and the manufacturing process. Very narrow arcs create a delicate lace effect but increase the risk of tearing during the stripping phase of die-cutting. Wider arcs are easier to process cleanly at high speeds.
Board Grade and Edge Crispness
Solid bleached board (SBB) or folding boxboard (FBB) yields the cleanest cut for intricate edges. If corrugated board is used, the flutes will be exposed along the scallops, and the arc tips may crush during cutting.
Hand Packing Versus Automated Insertion
Flat pads are simple to drop into a carton by hand. For high-volume packing lines using suction or friction feeders, the board's porosity and the exact clearance inside the carton will dictate how smoothly the automated insertion runs.

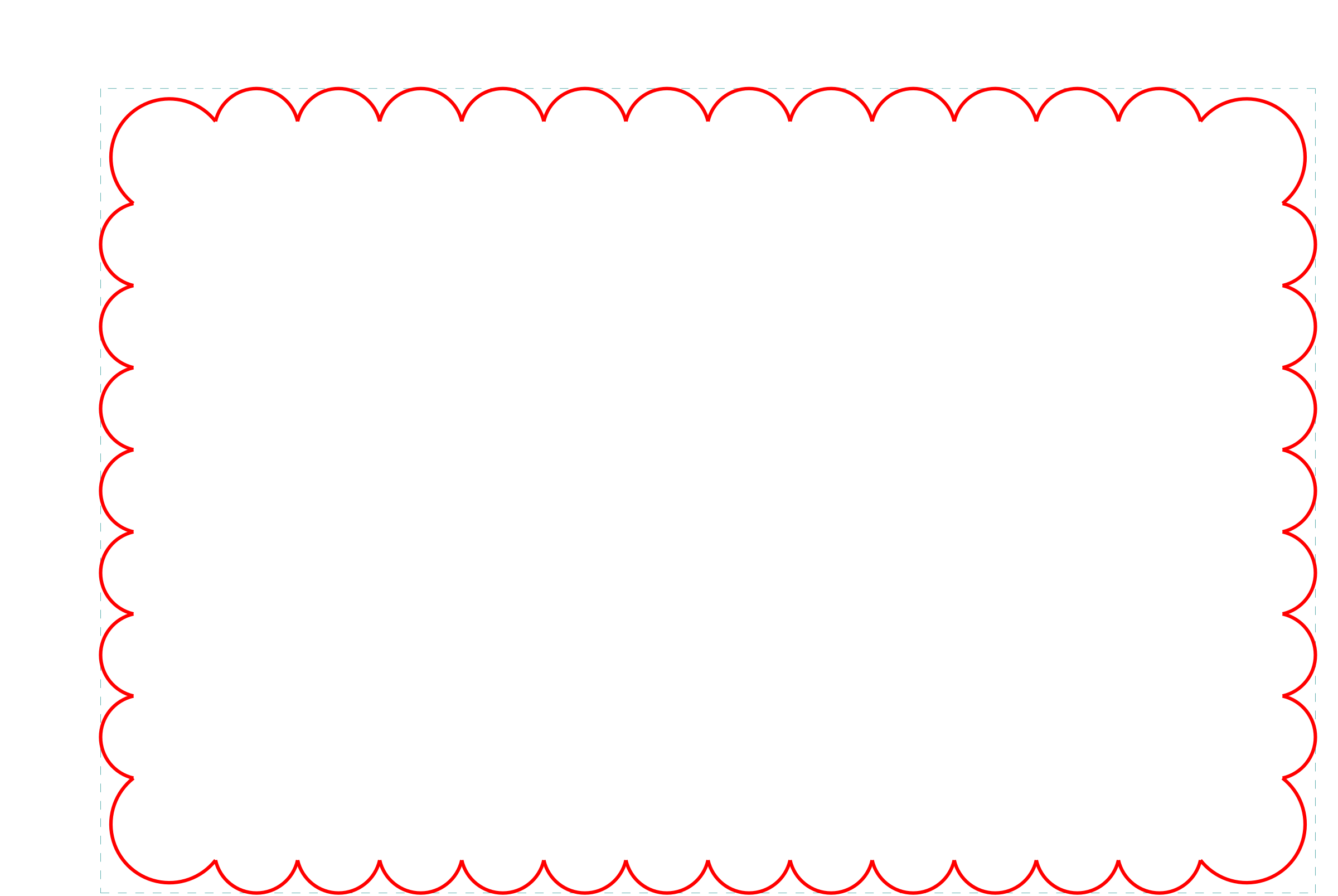

Adjusting Scallop Width and Corner Geometry
Arc Width and Depth
The size of the scallops can be adjusted to change the visual rhythm of the edge. The depth of the cut is proportional to the width, meaning wider scallops will cut deeper into the usable center area of the pad.
Corner Arc Geometry
The template handles the corner transition by adjusting the corner arc height. This ensures the scalloped pattern closes cleanly at all four corners without leaving awkward straight gaps or sharp points.
Overall Dimension Snapping
Because the perimeter must consist of complete arcs, the template automatically snaps the final physical length and width to accommodate the chosen arc width. Buyers should verify these final snapped dimensions against their outer carton.
Packing details
Print and Finish Surfaces
Because the pad lies flat, it can easily accept high-end finishes like foil stamping, embossing, or full-coverage print on one or both sides. If the pad separates two visible layers, double-sided printing ensures a consistent presentation.
Food contact coatings
If the pad will sit directly under chocolates, pastries, or other foods, the paperboard must be specified with an appropriate grease-resistant or food-safe barrier coating.
Edge and Corner Variations
Alternate Corner Transitions
Different templates handle the corner geometry differently. Some maintain a continuous wave, while others use a distinct corner radius to close the scalloped pattern.
Additional notes
Double-sided printing
If the pad separates two visible layers of product, printing on both sides ensures a consistent presentation when the consumer lifts the divider.
Testing the drop-in fit
Always test a physical sample of the scalloped pad inside the exact outer carton to confirm the arc tips do not catch on the side walls during insertion.
Related Pads and Dividers
FAQs
Why might the final dimensions of the pad differ slightly from my requested size?
The scalloped edge pattern requires a whole number of arcs to complete the perimeter. The template automatically snaps the final length and width to the nearest dimension that allows the arcs to close perfectly without cutting a scallop in half.
Can this pad be made from corrugated board?
While possible, corrugated board often struggles with intricate scalloped edges. The die-cutting process can crush the flutes at the arc tips, and the exposed corrugated edge usually detracts from the premium presentation.
Does this insert require any folding?
No. It is delivered as a completely flat, die-cut sheet and is placed directly into the outer carton or under the product.
Can the scallops be different sizes on different sides?
In this specific template, the arc width is consistent around the entire perimeter to maintain a uniform decorative border.
What causes tearing on the edges during production?
If the specified arc width is too small, the waste material between the scallops becomes difficult to strip away cleanly. The die-cutting machine may tear the delicate tips of the paperboard. A moderate arc width prevents this issue.
How much clearance is needed between the pad and the outer carton?
The pad should be slightly smaller than the carton's internal dimensions so it drops in without friction. If the fit is too tight, the scalloped edges will catch on the walls, causing the pad to bow or the tips to bend.
Can this pad support the weight of heavy stacked items?
As a flat sheet, it provides no vertical column strength. It transfers weight directly to the carton floor or the product layer beneath it. If vertical support is needed, a folded tray or partition is worth comparing.
How are these pads delivered and stored?
These inserts are delivered completely flat. Because they have no folds or glued seams, they offer extremely high pallet density and require minimal storage space before packing.
