Common Applications for Paperboard Cups
Beverage and Food Service
When manufactured with poly-coated or PLA-coated board and heat-sealed seams, the cup provides liquid holdout for hot or cold drinks.
Dry Snack Kitting
For popcorn, nuts, or confectionery, the cup can be produced using standard uncoated folding boxboard. This lowers material complexity while maintaining the familiar, easy-to-hold shape.
Frozen Desserts and Ice Cream
The conical shape allows easy scooping and eating. Coated boards help keep moisture from absorbing through condensation when stored in freezers.
Promotional Samplings
Small-volume versions are useful for event giveaways and product sampling, offering a full-wrap print surface for branding.
Industry and Retail Environments
Large Retail and Events
Cups are printed flat before forming, allowing for high-quality, full-wrap graphics. Because they ship nested, they take up more warehouse space than flat cartons but eliminate assembly labor at the point of use.
Quick-Service Restaurants
The nested delivery allows rapid dispensing and filling at the counter. The rolled top rim supports a tight snap-fit with standard plastic or paper lids.
Confectionery and Snack Brands
Brands packing dry goods can use the cup shape for shelf appeal, often sealing the top with a film or placing the cup inside a larger display.
When to Consider Flat-Shipped Alternatives
Limited Storage Space or Short Runs
If warehouse space is tight or the order volume does not support dedicated cup-forming production, consider flat-folding crash-lock cartons or folding trays that can be erected on demand.
E-commerce Parcel Shipping
Cups offer very little resistance to crushing when empty or filled with soft goods. If shipped through parcel networks, they should be packed inside a rigid corrugated outer box.
Key Decisions for Cup Production
Coating and Material Choice
Liquid contents rely on barrier-coated boards (like PE or PLA) and heat-sealed or ultrasonically welded seams. Dry goods can often use standard glued boxboard, which changes the manufacturing route and material choice.
Exact Volume and Size Matching
Changing the top diameter, bottom diameter, or height involves specific forming equipment. If your volume requirement is flexible, adapting your artwork to an existing cup size can simplify the production path.
Print Method and Run Size
Cups are typically printed web-fed via flexo for large beverage programs, or sheet-fed via offset for promotional runs. The print method affects the practical order size.
Nesting Pitch and Shipping Cube
The taper angle of the sidewall determines how tightly the finished cups nest together. A steeper angle allows tighter nesting, which maximizes the number of cups per shipping sleeve and reduces freight footprint.
Volume and Dimension Adjustments
Rim Roll and Lid Fit
The top edge of the sidewall is curled outward to form a rigid drinking brim. The amount of material allocated to this roll can be adjusted to support a tight snap-fit with standard lids.
Bottom Seal Wrap
The lower edge of the sidewall wraps around the inserted base disc. This overlap is calibrated based on the board thickness and coating to support a secure seal under pressure.
Taper Angle
The angle of the conical sidewall can be adjusted to change the visual profile and the nesting density, though this involves matching forming equipment.
Packing details
Edge Skiving for Hot Liquids
For hot beverages, the inner edge of the side seam is often skived (shaved thin) and folded over. This helps keep liquid from wicking into the raw paperboard edge and weakening the cup over time.
Additional notes
Liquid holdout and edge skiving
For hot liquids, the inner edge of the side seam is often skived and folded over to help keep liquid from wicking into the raw paper edge.
FAQs
Do these cups ship flat?
No. Paperboard cups are fully formed, sealed, and rim-rolled at the manufacturing facility. They are delivered nested in stacks, ready for immediate filling.
Can I use standard uncoated board for a beverage cup?
Liquid applications rely on poly-coated (PE) or biopolymer-coated (PLA) board to keep the paper from absorbing moisture. Standard uncoated board is only suitable for dry goods.
What prevents the cup from cracking at the rim?
The paperboard's grain direction runs horizontally around the cup. This allows the top edge to roll smoothly into a brim without splitting or cracking the printed surface.
Why are custom sizes difficult for small orders?
Forming a cup involves equipment matched to the cup's internal dimensions. Creating a new size means preparing new forming parts, which is usually practical only for large, repeating programs.
How is the artwork applied to the curved surface?

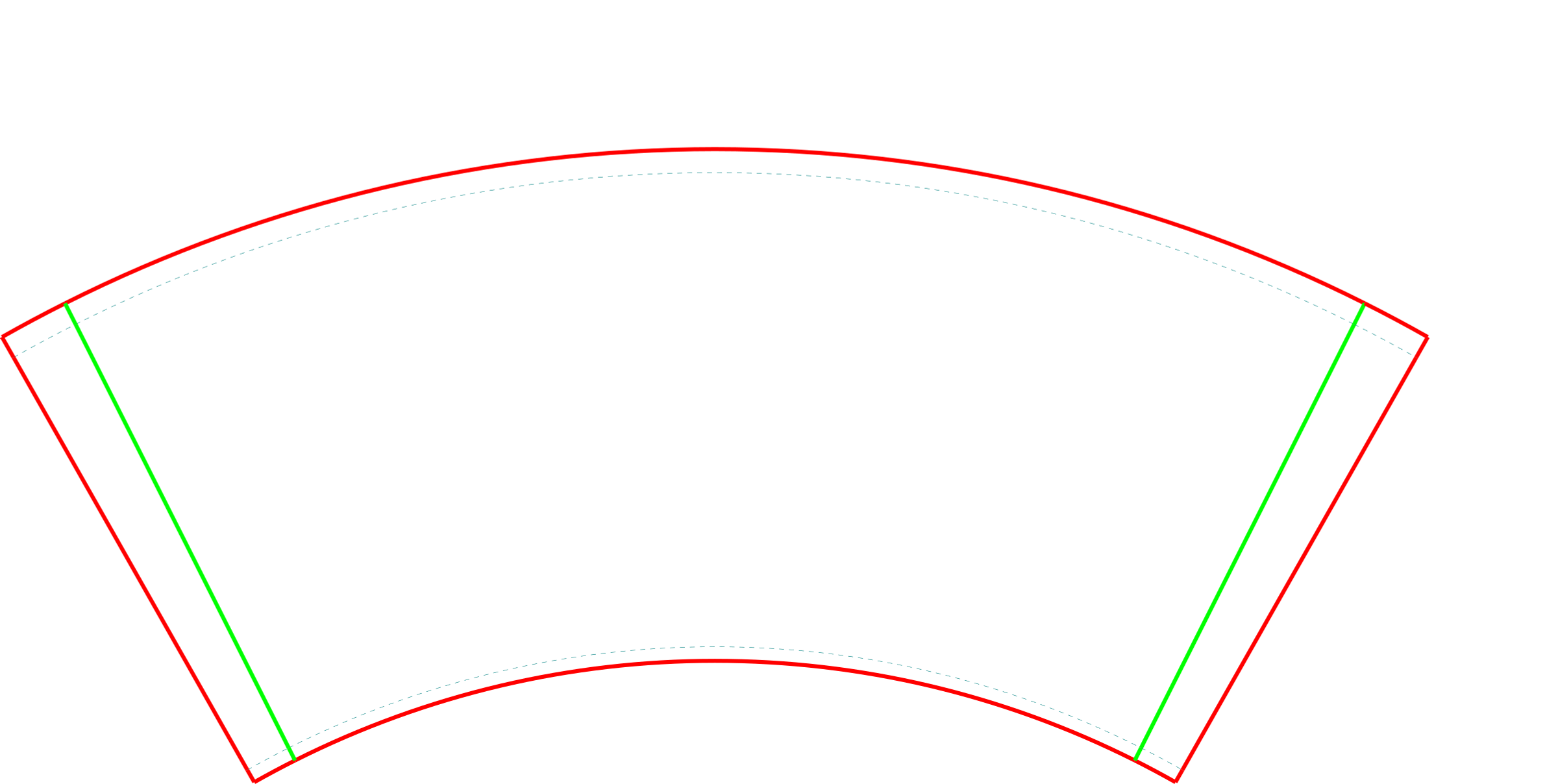

The board is printed while flat, usually via flexo or offset presses, before the curved sidewall blanks are die-cut. The artwork is warped (conically distorted) during the design phase so it appears straight once the cup is formed.
Are these suitable for e-commerce parcel shipping?
Cups offer very little resistance to crushing when empty or filled with soft goods. If shipped through parcel networks, they should be packed inside a rigid corrugated outer box.
How does the taper angle affect shipping?
A steeper taper allows the cups to nest more deeply into one another. This increases the number of cups that fit into a single shipping sleeve, reducing the overall freight volume.
Can I get a physical prototype of a custom size?
While a CAD table can cut a few flat curved blanks for artwork proofing, a true physical prototype cannot be formed by hand. Testing the actual seal and rim roll involves time on the production equipment.
