EVP12040

Clear Plastic Crash-Lock Carton

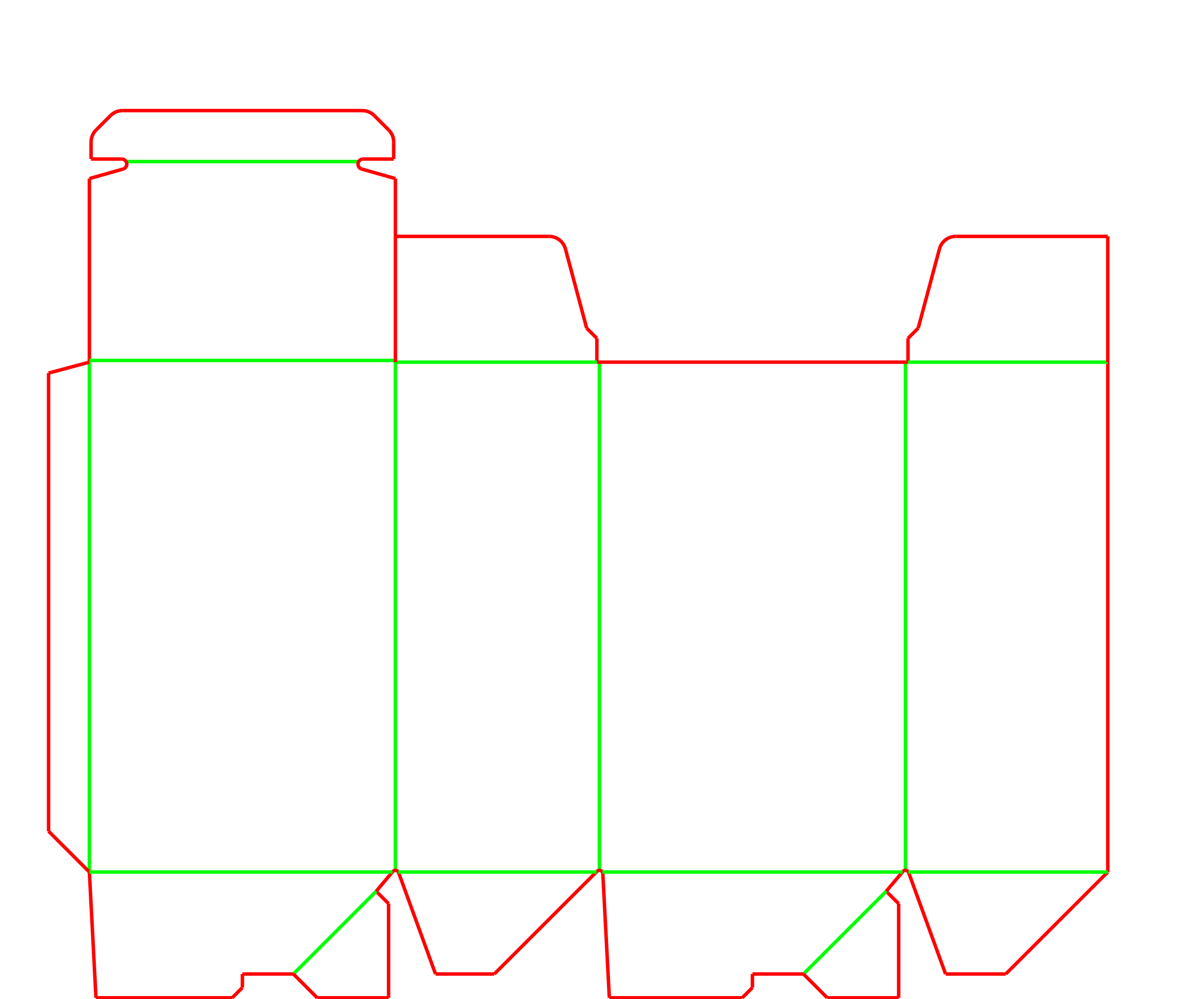

The EVP12040 is a clear plastic folding carton designed for high-visibility retail presentation and rapid manual fulfillment. Delivered flat, the pre-glued crash-lock base automatically drops into place and interlocks when the carton is opened for loading, eliminating the need to fold bottom flaps by hand.

Because plastic has a natural tendency to spring back, the top closure features a tuck lid with slit locks, which are small notches that catch the side dust flaps to keep the package securely closed on the shelf. This package shifts complexity to the production path to provide a faster packing experience on the floor.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • 360-degree product visibility for retail display
  • Pre-glued auto-bottom drops into place for loading
  • Slit-lock top closure resists plastic fold memory

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for clear plastic preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Display and Fast Fulfillment

High-visibility retail presentation

Clear plastic allows the product to serve as its own display graphic. This carton is frequently used for cosmetics, electronics, and premium toys where 360-degree visibility drives the purchase. The rigid, squared base provides a stable footprint for retail shelving.

Repeat hand-packing lines

The crash-lock auto-bottom design is built specifically for hand assembly. Because the base is delivered pre-glued, packers only need to square the tube, load the product, and tuck the top lid. This reduces labor time compared to manually folding a snap-lock bottom.

Lightweight electronics and accessories

Tech accessories often rely on clear packaging to show build quality. The flat floor of the crash-lock base supports molded plastic or paperboard inserts that hold cables and devices securely in the center of the carton.

Cosmetics and personal care

Fragrances and skincare products benefit from the premium look of clear plastic. The slit-lock top closure resists the natural spring-back of the plastic, keeping the lid flat and secure on the retail shelf.

Premium Goods and Repeat Packing

Premium consumer goods

Brands using clear packaging often rely on internal insert cards or molded trays to hold the product in place. The crash-lock base provides a flat, secure floor that supports these inserts without the uneven interior seams found in some manual-fold bottoms.

Kitting and gift sets

For multi-item sets, the fast assembly allows fulfillment teams to stage dozens of open cartons quickly before dropping in the assorted components.

Contract packaging operations

When paying for third-party fulfillment by the hour or unit, the speed of an auto-erecting bottom can offset the production path of a pre-glued plastic carton.

When to Consider Snap-Lock or Paperboard Alternatives

Trial orders or simpler production

If the order size is small or you want a simpler production path, compare this to a snap-lock bottom (EVP12030). The snap-lock takes more time to pack by hand but is easier to produce.

Machine-loaded packing

Crash-lock bottoms are built for hand assembly. If the packing line uses machine loading, a straight-tuck or reverse-tuck carton is often a better fit.

Opaque or printed branding

If full-coverage graphics are more important than product visibility, a paperboard crash-lock carton (EVF11203) is easier to print, score, and glue than plastic.

Material, Scoring, and Layout Choices

Plastic grade and thickness

The choice between PET, PVC, or PP affects clarity, environmental compliance, and fold memory. The thickness of the plastic directly changes how the slit locks engage and how the side seams are glued, so the exact caliper should be specified early.

Scoring and fold memory

Clear plastic typically uses specialized scoring to ensure the hinges fold cleanly without whitening, cracking, or snapping off during assembly.

Surface protection during transit

Clear cartons are prone to scuffing. Discuss whether the flat blanks need a protective peel-off masking film during manufacturing, and plan for an outer corrugated shipper to protect the cartons during distribution.

Insert and tray compatibility

If the product requires a custom insert, the dimensions of the insert must account for the internal clearance of the folded crash-lock flaps at the base of the carton.

Adjusting Clearances and Locks

Slit-lock friction tuning

The width and offset of the slit-lock notches can be adjusted based on the plastic thickness and spring-back behavior. A tighter lock provides more security but requires more effort from the packer to close.

Tuck flap length

The length of the top tuck flap can be extended for a deeper friction fit, which helps resist the outward pressure of the folded plastic dust flaps.

Dust flap coverage

The side dust flaps can be lengthened to provide better gap coverage at the top corners, reducing the chance of dust entering the retail package.

Packing details

Base adhesion for plastic

Standard adhesives do not bond well to plastic. The side seam and crash-lock base require specialized adhesion to ensure the bottom does not drop out under the product weight.

Paired Layouts for Material Efficiency

Paired Layouts (EVP12040#2P)

Plastic substrates are expensive. The paired variant nests two interlocking carton blanks together on the die-board, reducing material waste during production runs.

Alternate Flat Layout (EVP12040#2)

A single-up version of the alternate nested shape, used when tooling or sheet size dictates a different blank orientation.

Additional notes

Scratch prevention and masking films

To maintain premium clarity, plastic cartons are often manufactured with a thin protective film that should be peeled off before or after packing.

Production path for plastic crash-locks

Producing a pre-glued plastic base requires a specific production path. This package is generally reserved for repeat programs where the packing labor savings offset the production requirements.

Related Retail Cartons

FAQs

Can this carton hold heavy items?

While the glued crash-lock base is secure, clear plastic walls can bow under heavy vertical weight. It is best suited for lightweight to medium retail goods, often paired with an internal tray to distribute the weight.

Can I ship this plastic carton directly through the mail?

Clear plastic folding cartons lack the crush resistance needed for unshielded parcel networks and are prone to scratching. They should be packed inside a protective corrugated outer shipper for transit.

How are graphics applied to this clear carton?

Printing on plastic typically uses specialized UV offset or silkscreen processes. If text needs to be readable against the product inside, an opaque white under-strike layer is usually printed beneath the colored inks.

Why choose a crash-lock over a snap-lock bottom?

A crash-lock bottom is pre-glued and drops into place when the carton is opened. This saves time on the packing line compared to a snap-lock, which requires the packer to fold and interlock four separate bottom flaps by hand.

Will a prototype show exactly how the final carton folds?

A digital plotter sample can verify dimensions, but plotter creasing wheels do not perfectly replicate the specialized scoring used in production. A true production sample is recommended to test the exact fold memory and slit-lock friction.

Is the slit-lock top tamper-evident?

No. The slit locks keep the lid securely closed against the plastic natural spring-back, but they can be opened cleanly. If tamper evidence is required, a clear wafer seal should be applied over the closure.

Does the plastic turn white at the fold lines?

Standard cold creasing can cause clear plastic to whiten or crack. Production runs typically use specialized scoring to create clean, transparent hinges.

When should I choose a paperboard crash-lock instead?

Paperboard is a better choice when you need full-coverage printed graphics, lower material costs, or simpler gluing processes, and you do not need the product to be visible from the outside.

Evaluate your product weight, packing line speed, and retail display needs to determine if an auto-erecting clear carton is the right fit.
