EVP12030P

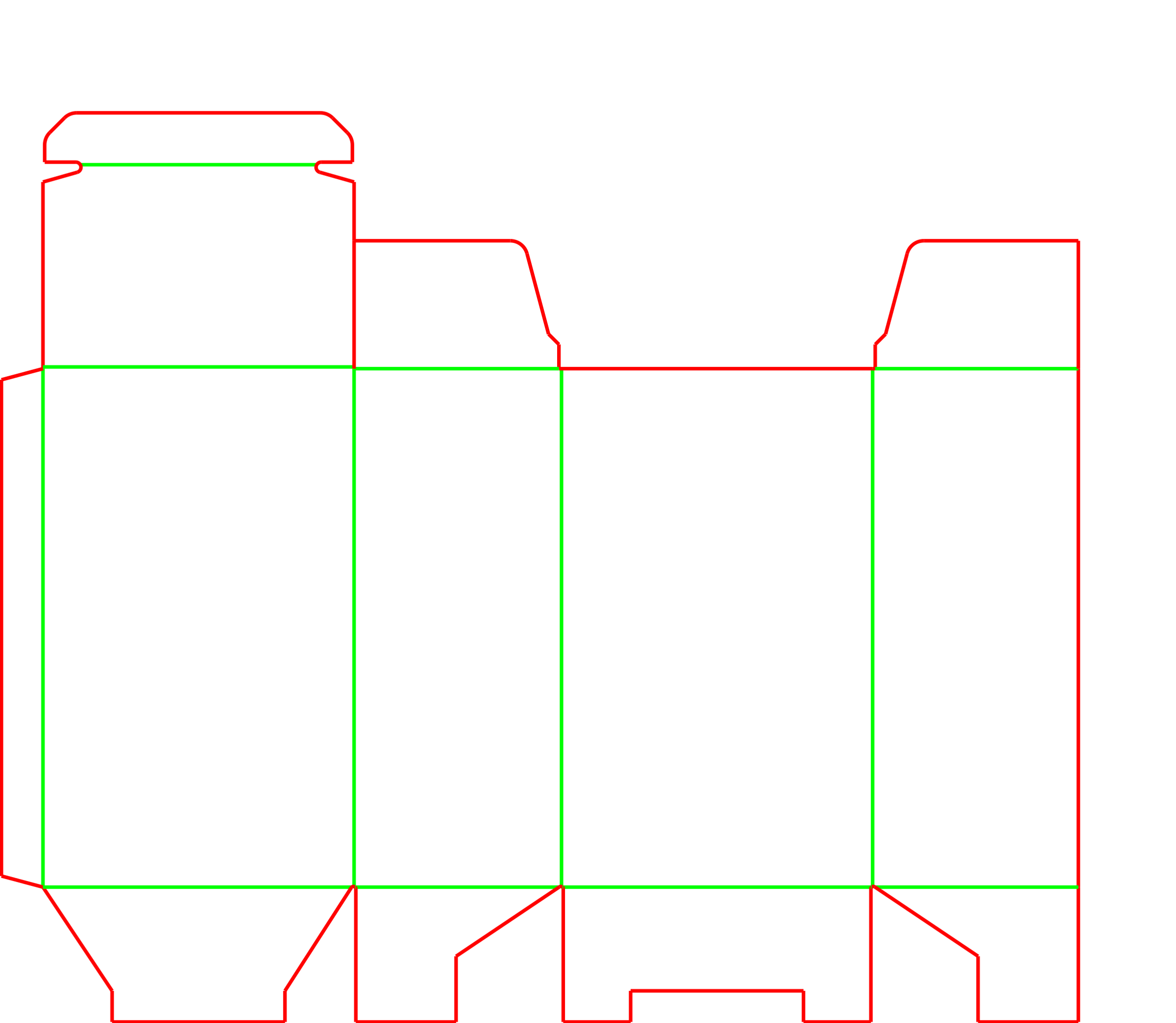

Clear Plastic Snap-Lock Carton (Paired Layout) | EVP12030P

The EVP12030P is a clear plastic folding carton designed for high-visibility retail display. It features a manual snap-lock bottom for secure product retention and a slit-lock tuck top that resists the natural spring-back of plastic materials.

This specific template uses a paired manufacturing layout, nesting two carton blanks together on the plastic sheet. This interlocking approach maximizes material yield, making it an efficient choice for medium to high-volume retail programs.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Clear 360-degree retail product visibility
  • Paired 2-up layout maximizes plastic material yield
  • Manual 1-2-3 snap-lock bottom for hand-packing lines

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for clear plastic preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Display and Presentation

Cosmetics and Beauty

Provides a premium, unobstructed view of primary containers like bottles, jars, or compacts while keeping them secure on the shelf.

Consumer Electronics

Useful for cables, small devices, or accessories where buyers want to inspect the product before purchase.

Toys and Collectibles

Protects the item from dust and handling while offering full visibility for display.

Specialty Retail and Gifts

Displays wrapped confectionery, artisan goods, or multi-piece gift sets, allowing the product presentation to serve as the primary display.

Industries Using Clear Snap-Lock Cartons

Hand-Packing Operations

The snap-lock (1-2-3) bottom requires manual folding. It is an excellent fit for fulfillment centers set up for hand assembly, but it is not compatible with high-speed automated cartoning equipment.

High-Volume Retail Rollouts

The paired (2-up) layout is specifically designed to nest two blanks together during die-cutting. This interlocking design maximizes material yield, making it an efficient choice for larger production runs.

Premium Shelf Presentations

When the product itself is the main visual draw, clear plastic removes the need for complex exterior printing while maintaining a rigid, protective display shape.

When to Consider Paperboard or Auto-Bottoms

High-Speed Automation

If your packing line uses automated erecting equipment, the manual snap-lock bottom will cause bottlenecks. Compare this with a crash-lock (auto-bottom) plastic carton or a standard paperboard carton.

Opaque Branding Needs

If your product does not require 360-degree visibility, a paperboard folding carton offers easier automated gluing, traditional scoring, and a traditional print surface.

Material, Scoring, and Assembly Choices

Plastic Grade (PET vs. PP)

PET is the common choice for maximum clarity and rigidity, making it a strong choice for premium retail. PP (Polypropylene) is softer and slightly cloudy, but more resistant to cracking at the creases.

Scuff Protection and Transit

Clear plastic is prone to scratching during transit. Discuss whether the sheets need a removable protective film during manufacturing, and plan for a corrugated outer shipper to protect the cartons during distribution.

Scoring and Side Seam Welding

Plastic requires specialized manufacturing. Ensure your production plan accounts for RF (Radio Frequency) or heated scoring to prevent the creases from cracking, and PUR glue or ultrasonic welding for the side seam.

Base Strength and Product Weight

The snap-lock bottom relies on friction and interlocking flaps. For heavier items, verify that the base can support the payload without bowing, or consider a reinforced closure.

Modifying the Carton for Your Product

Hanger Hole Additions

A sombrero hole or basic round punch can be added to the extended back panel or top lid for pegboard retail displays.

Insert Integration

Clear plastic or paperboard inserts can be designed to float the product in the center of the carton, maintaining clean sightlines while preventing the item from shifting.

Slit-Lock Offsets

The exact position and depth of the slit locks can be adjusted based on the plastic thickness to ensure the top lid catches securely without tearing.

Packing details

Understanding the Slit-Lock Top

Plastic has a natural memory that causes basic tuck flaps to spring open. The slit locks on this top closure catch against the edges of the front panel or dust flaps, creating a friction lock that keeps the lid securely closed on the retail shelf.

Additional notes

Adhesive requirements for plastic side seams

Unlike paperboard, plastic cartons cannot use traditional cold glue. The side seam must be secured using PUR adhesive or ultrasonic welding to ensure the tube does not fail when popped open.

Related Packaging Options

FAQs

Can this carton be erected on automated packaging lines?

No. The 1-2-3 snap-lock bottom requires manual folding to interlock the base flaps. It is designed for hand-packing operations.

What does the paired layout mean for my order?

A paired layout nests two carton blanks together on the cutting die. This interlocking design reduces the amount of wasted plastic between cartons, which improves material efficiency for larger runs.

Why does the top flap have slit locks?

Clear plastic naturally tries to return to its flat state, which can push a basic tuck flap open. The small slits on the tuck tongue catch on the carton's edges, locking the lid in place without needing clear tape.

Can I ship this plastic carton directly in the mail?

No. Clear plastic cartons are designed for retail display, not parcel transit. They offer minimal impact protection and will scuff easily. They must be packed inside a corrugated outer shipper for distribution.

Should I choose PET or PP plastic for this box?

PET provides the best glass-like clarity and rigidity for premium displays. PP is softer and slightly milky, but it is more flexible and more resistant to cracking along the fold lines. The choice depends on your visual requirements and product weight.

How does the snap-lock bottom compare to a crash-lock bottom?

A snap-lock bottom requires the packer to fold and interlock four flaps manually. A crash-lock (auto-bottom) is pre-glued by the manufacturer and pops into place automatically when the box is opened, making it faster to pack but often requiring different tooling.

Do I need a protective film on the plastic?

It is often necessary. Clear plastic scratches easily during die-cutting, transit, and handling. A removable film protects the surface until the carton is ready for final retail display.

Can I add a hanger hole for pegboard displays?

Yes. A sombrero hole or basic round punch can be integrated into an extended back panel or the top lid, allowing the carton to hang on retail pegboards.

A highly efficient layout for clear retail presentation, ready to be sized for your product.
