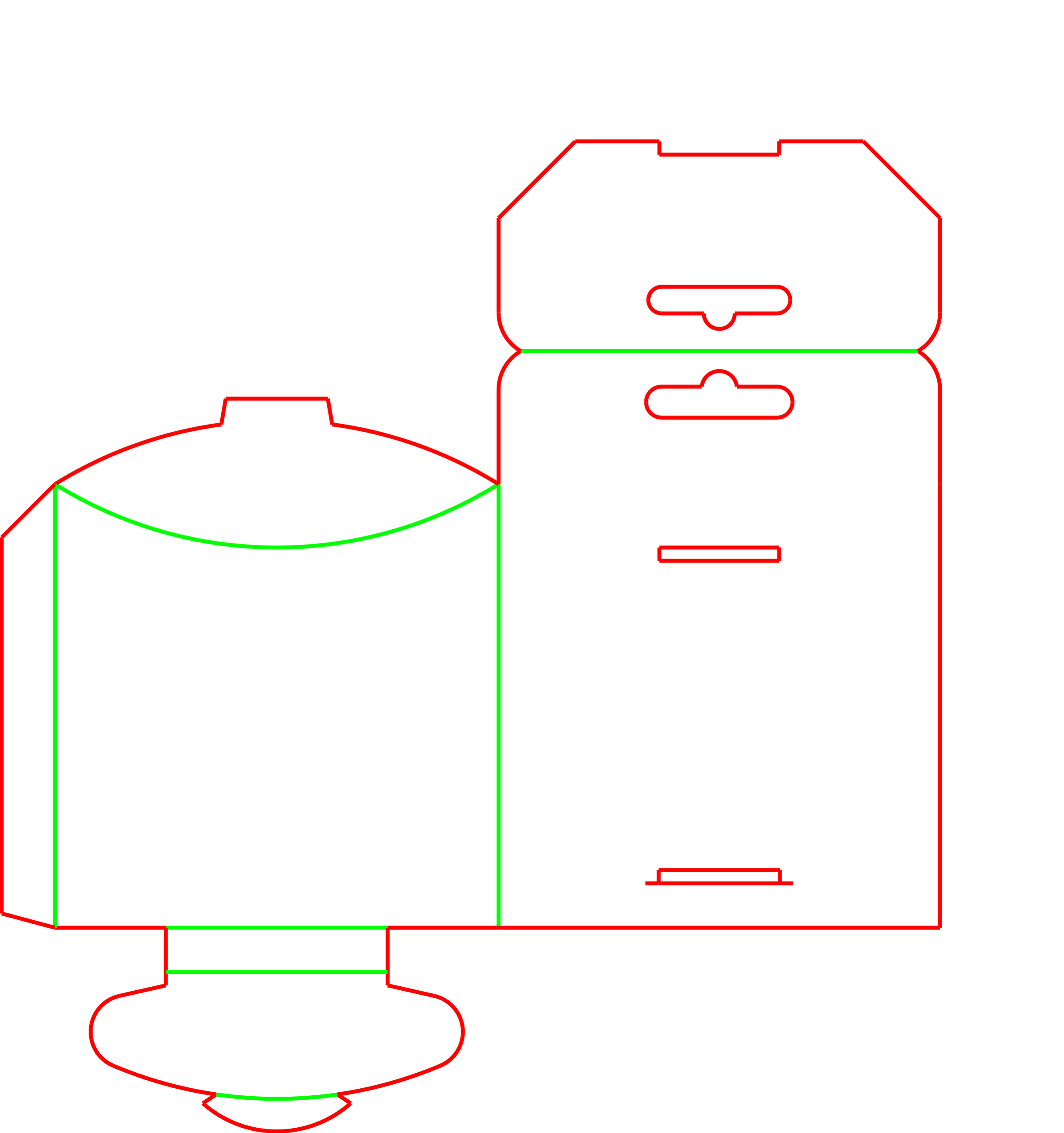

Dieline

EVP20009

Clear Plastic Hanging Pillow Box

This clear plastic display box combines the high-visibility volume of a pillow pack with the stability of a flat back panel. Designed specifically for retail pegboards, it features a bowed front to present the product and a double-thick header to support hanging weight.

Unlike standard symmetrical pillow boxes, the flat back keeps the package sitting flush against retail displays, while the flat base allows it to stand upright on shelves if needed. It is delivered flat as a side-glued tube and assembled manually.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Clear plastic construction for maximum retail visibility
  • Flat back panel with double-thick hanger hole
  • Manual assembly with secure slit-lock tuck tabs

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for clear plastic preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Pegboard Hanging And Shelf Display Contexts

Pegboard retail display

The flat back panel allows the package to sit flush against a display wall without rolling or tilting. The header panel folds over to double the material thickness around the hanger hole, providing extra tear resistance for hanging weight.

Upright shelf presentation

While designed for hanging, the bottom closure forms a flat, rectangular base. This allows the package to stand upright on a flat shelf or counter display, offering merchandising flexibility if pegboard space is unavailable.

High-visibility accessory packaging

The bowed front panel creates a 3D presentation that catches light and highlights the product inside. The clear plastic construction allows full visibility of colors and textures without requiring a separate window cutout.

Lightweight hardware and cable kitting

The slit-lock tabs provide a secure closure that relies on the natural tension of the plastic. This keeps lightweight tech accessories, cables, or hardware securely contained on the retail floor while allowing customers to view the item from all angles.

Product Categories For Clear Plastic Display

Cosmetics and personal care

The curved front profile and clear material offer a premium presentation for beauty products, allowing shoppers to inspect shades and finishes without opening the package.

Small electronics and accessories

Tech accessories benefit from the secure slit-lock closures and the ability to hang neatly on crowded retail pegs, keeping the product fully visible.

Craft and hobby supplies

Small, lightweight craft items display well in this package, as the flat back keeps the box stable on the pegboard while the bowed front accommodates irregular shapes.

Premium stationery and gifts

The clear, glossy finish of PVC or PET elevates the perceived value of gift items and stationery sets, providing a clean, modern look.

When To Consider Rigid Paperboard Or Blister Packs

Heavy products that stress the hanger

This package relies on the tension of the plastic and the tear strength of the hanger hole. Heavy items can distort the bowed front or tear the header. For heavier products, evaluate rigid paperboard hanger boxes or blister packs with sealed cards.

High-volume automated packing

The curved pillow fold and the tuck-into-slit closures require manual assembly. If your packing operation relies on automated cartoning equipment, you should evaluate standard straight-tuck or reverse-tuck folding cartons instead.

Material, Scoring, And Assembly Choices

Material choice and thickness

This package is typically produced in clear PET or PVC. The thickness of the plastic determines the rigidity of the hanger and the force required to bow the front panel. Thicker plastic is stronger but requires more effort for the packing team to close the curved top flap.

Crease preparation for plastic

To prevent the plastic from whitening or cracking along the folds, specialized heated scoring or RF welding is used. This ensures the creases fold cleanly during manual assembly.

Header panel assembly

The double-thick header is formed by folding the top panel 180 degrees. You should decide whether this fold is secured during manufacturing, or if the packer will fold it manually and rely on the retail peg to hold the two layers together.

Closure security and tamper evidence

Because the tuck tabs rely on plastic tension, they can be opened and closed repeatedly without damage. If your retail environment requires tamper evidence, you should plan to apply clear wafer seals over the top and bottom closures after packing.

Adjusting The Profile And Hanger

Front panel bow depth

The depth of the curved top crease can be adjusted to create a more pronounced or shallower bow on the front panel. This must be carefully matched to the depth of the flat base to ensure the package maintains its correct shape when loaded.

Hanger hole shape and placement

The standard euro-hole or round hanger hole can be adjusted in width, height, and placement to match specific retail pegboard requirements.

Base depth and standing stability

The flat bottom panel can be widened to provide a larger footprint. This improves stability if the primary display method will be standing upright on a shelf rather than hanging on a pegboard.

Packing details

Surface protection and scuff risk

Clear plastic is prone to scuffing during shipping and handling. Blanks are often supplied with a peelable protective film that the packing team must remove before retail display.

Additional notes

Plastic tension and tab security

The top and bottom flaps feature tuck tabs that lock into slits on the flat back panel. The outward bow of the front panel creates tension that pulls the tabs tight against the slits, keeping the package securely closed on the shelf.

Related Retail Packaging

FAQs

Can this box be packed on automated machinery?

No. The curved top crease, the bowed front panel, and the slit-lock tuck tabs require manual assembly. It is delivered flat as a side-glued tube and opened by hand.

Does this package require tape or glue to stay closed?

The side seam is glued or welded by the manufacturer. The top and bottom closures use tuck tabs that insert into horizontal slits on the back panel. Because the design uses the natural spring-back tension of the plastic, it usually stays closed without additional tape, though clear wafer seals can be added for tamper evidence.

Can this design be made from paperboard instead of plastic?

While similar shapes exist in paperboard, this specific template relies on the tension and memory of plastic to keep the slit-lock tabs secure. Converting this exact geometry to paperboard would likely result in loose closures that pop open.

Is this box suitable for direct parcel shipping?

No. The bowed front panel and tuck closures are designed for retail display and will crush or pop open if shipped loose in a courier network. It must be packed inside a rigid corrugated master shipper for transit.

How is graphics or branding applied to this package?

Branding is typically applied via UV offset printing, screen printing, or by applying a separate adhesive label to the flat back panel. The clear front is usually left unprinted to maximize product visibility.

How much weight can the hanger hole support?

The header is folded over to double the material thickness, which improves tear resistance. However, the exact weight limit depends on the plastic thickness and material type. Heavy items should be physically tested on a peg hook to ensure the hole does not stretch or tear over time.

How are these boxes delivered to my packing facility?

They are shipped flat as pre-glued sleeves. The packing team squeezes the edges to pop the box open, folds the base, loads the product, and tucks the top pillow flap.

What prevents the plastic from cracking when folded?

During manufacturing, the plastic is treated with specialized heated scoring or RF welding. This softens the material along the fold lines, allowing it to bend cleanly without whitening or snapping.

Review your product's weight and retail display environment to determine the right material thickness and hanger style for this presentation.
