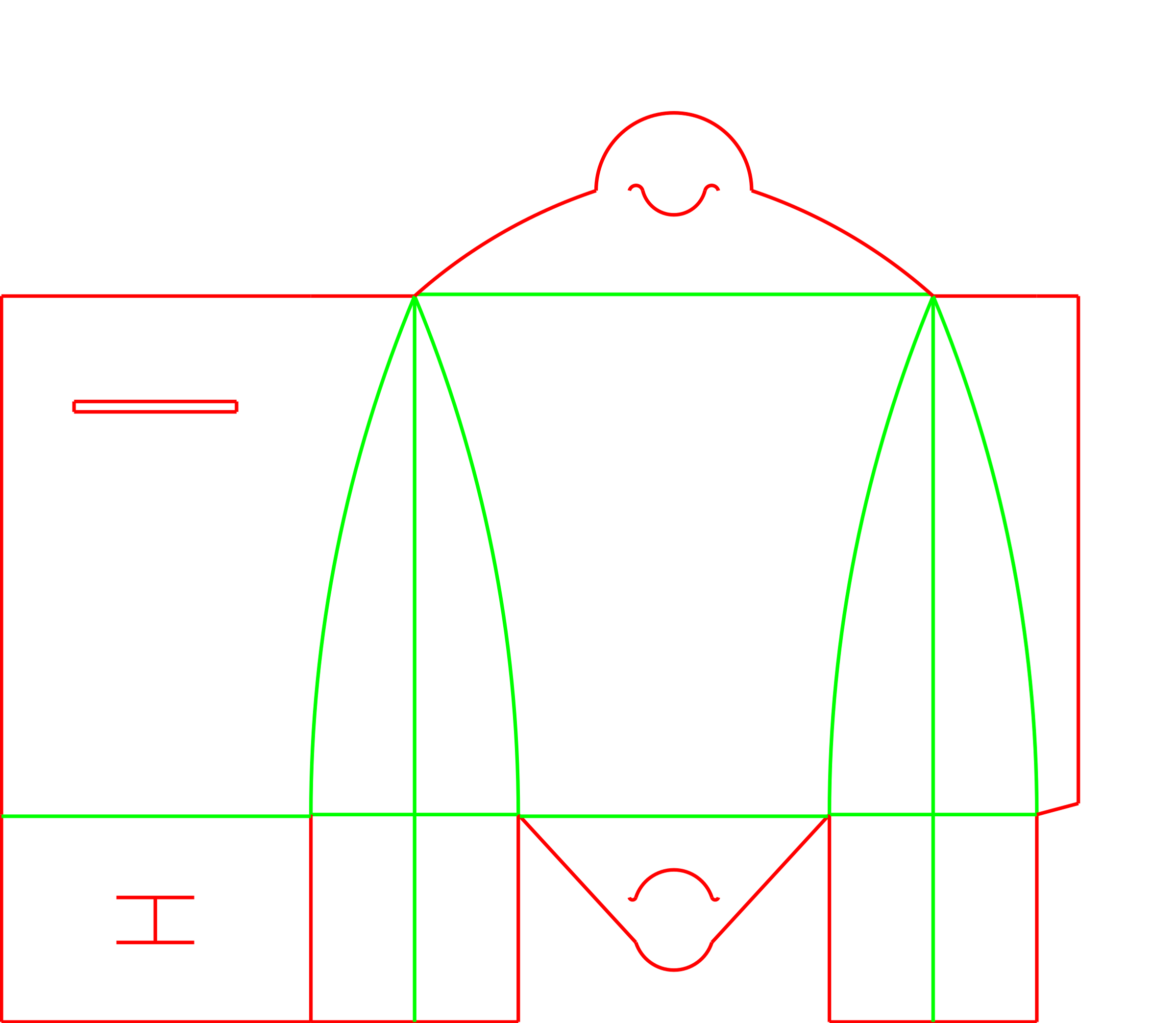

Dieline

EVP20010

Clear Plastic Cut-Away Pillow Pack

The EVP20010 is a clear plastic folding carton designed for high-visibility retail presentation. Unlike a standard pillow pack, it features straight top and bottom closures and curved side gussets that pinch inward, creating a distinct lenticular profile that grips the product.

Delivered as a flat, side-seam glued tube, it opens for manual loading. The top and bottom flaps secure into horizontal slots on the front panel, relying on precise material-caliper matching to keep the plastic from springing open.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Clear plastic construction for 360-degree product visibility
  • Curved side gussets create a distinct pinched-waist 3D profile
  • Manual assembly with tongue-and-slot friction locks

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for clear plastic preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Display and Promotional Kitting

High-Visibility Retail Presentation

The transparent plastic construction and unique cut-away shape make this package a strong choice for shelf displays where the product itself serves as the primary visual. The inward-bowing side panels can help center and grip cylindrical or contoured items.

Manual Promotional Kitting

Because the package is delivered as a flat tube and relies on simple tuck-and-slot closures, it is well-suited for hand-packing operations, gift sets, and promotional rollouts that do not use automated cartoning lines.

Contoured Product Grip

The pinched waist created by the curved side panels provides natural tension against the product. This helps stabilize bottles, tubes, or soft goods so they do not shift during retail handling.

Shelf-Ready Gift Packaging

The straight top and bottom panels provide a stable base and clean closure compared to the curved ends of traditional pillow packs, allowing the package to stand upright on retail shelves.

Cosmetics, Gifts, and Lightweight Consumer Goods

Cosmetics and Personal Care

The pinched-waist profile complements bottles, tubes, and contoured cosmetic containers. The clear material allows color matching and brand details on the primary container to show through without requiring extensive printing on the outer box.

Gift and Confectionery Packaging

The distinct 3D shape elevates simple items into gift-ready presentations. The straight top and bottom panels provide a stable base and clean closure compared to the curved ends of traditional pillow packs.

Apparel Accessories and Soft Goods

Rolled ties, scarves, or small garments benefit from the pinched waist, which holds the rolled shape securely while keeping the fabric visible from all angles.

When to Consider Standard Pillow Packs or Paperboard

Standard curved-end pillow packs

If you prefer flat front and back panels with curved top and bottom closures, a standard PVC pillow pack is the traditional choice. The cut-away version reverses this geometry, which changes how the product sits inside.

Automated packing lines

This package is opened and loaded by hand. If your volume points toward high-speed automated cartoning, a standard straight-tuck or reverse-tuck carton is a safer starting point.

Heavy or fragile transit

The friction locks and clear plastic are designed for retail shelves, not raw parcel shipping. E-commerce fulfillment usually needs a corrugated master shipper to protect the plastic from scuffing and the locks from popping open.

Material Caliper, Scoring, and Closure Fit

Plastic Caliper and Slot Clearance

The thickness of the chosen plastic directly dictates the required width of the receiver slots on the front panel. If the slots are too wide, the tongue locks may slip; if too narrow, the plastic will bind and resist closing.

Scoring and Crease Memory

Clear plastics like PVC and PET often use specialized heated or radio-frequency scoring to fold cleanly without whitening or cracking. The central vertical creases on the side panels should be scored correctly to ensure the package pops open easily without excessive spring-back.

Surface Protection

Clear plastic is highly susceptible to scratching during transit and hand packing. Discuss whether the flat blanks should be supplied with a peel-off protective film that the packing team or end-user removes.

Base Weight Distribution

The bottom closure uses a triangular Greenleaf tongue lock. While more secure than a simple tuck, it is still a friction fit. The weight of the product rests directly on this flap, so heavy items should be physically tested to ensure the lock does not disengage when lifted.

Adjusting Proportions and Lock Clearances

Modifying the Cut-Away Curve

The depth of the side panels and the curvature of the cut-away profile can be adjusted to match the specific contour of the product being packed, ensuring a snug fit that prevents the item from rattling.

Adding a Hang Hole

For pegboard retail environments, a standard sombrero or round hang hole can be integrated into the top rounded tongue flap, provided the plastic caliper and product weight support hanging.

Lock Clearance Tuning

The width of the receiver slots on the front panel can be fine-tuned to match the exact thickness of the chosen plastic, ensuring the tongue locks seat firmly without binding.

Packing details

Crease Whitening Risk

Standard die-cutting can cause clear plastic to turn white or crack along the fold lines. Proper production often involves specialized scoring tools to maintain transparency at the hinges.

Related Retail and Pillow Packaging

FAQs

How is this package assembled?

It is delivered as a flat, side-seam glued tube. The packer squeezes the edges to pop the package into its 3D shape, folds the bottom triangular flap into its slot, loads the product, and secures the top rounded flap into the upper slot.

How does the cut-away shape affect internal space?

The side panels bow inward along a central crease, creating a pinched waist. This reduces the internal clearance in the middle of the package compared to a standard rectangular carton, which is useful for gripping contoured items but requires careful measurement for bulky products.

Do the top and bottom flaps require tape or glue?

Both the top and bottom use tongue-and-slot friction locks. The natural spring-back of the folded plastic helps keep the tongues seated in the front panel slots, provided the slot width is matched exactly to the material thickness.

Can this be made from standard paperboard?

While the geometry can be cut from paperboard, the design is specifically tailored for the structural memory and visual appeal of clear plastics like PET or PVC. Paperboard versions of this exact shape may lack the intended tension and display value.

Can this package be shipped directly in the mail?

The clear plastic surface will scuff, and the friction locks can pop open under transit pressure. It is designed as a primary retail package and should be placed inside a corrugated outer box for parcel shipping.

Can graphics or text be printed on the clear plastic?

Specialized UV inks or silk-screening can be applied to the flat panels before folding. However, many buyers choose to let the product show through and apply a simple tamper-evident label or printed insert instead.

How do you prevent the clear plastic from scratching before it reaches the shelf?

Clear plastic blanks are often supplied with a thin, peel-off protective film. The packing team or the end consumer removes this film to reveal the pristine, scratch-free surface.

How much weight can the bottom Greenleaf lock hold?

The bottom lock is a friction fit that relies on the plastic's tension. While the triangular Greenleaf shape is more secure than a standard tuck, it is best suited for lightweight cosmetics, gifts, or apparel. Heavy items should be tested to ensure the lock holds during retail handling.

Review your product's contours and weight to ensure the cut-away profile provides the right fit and presentation for your retail display.
