This corrugated display tray is built for the retail shelf. It features an open top with sloping side walls to showcase primary packaging, an integrated back header for branding, and a snap-lock base that locks together by hand.
Because the top remains open, loaded trays are usually packed into a master shipper for distribution. The display header folds down flat over the products during transit, allowing store staff to simply pull the tray out, flip the header up, and place it directly on the shelf.
Designed to move straight from the stockroom to the supermarket shelf. The sloping side walls keep items contained while exposing the primary packaging to shoppers.
Countertop Point-of-Purchase
Works well for lightweight impulse items near the register. The tall back header acts as a miniature billboard to draw attention in crowded retail environments.
Lightweight Assortment Kits
Useful for presenting sample packs, snack bars, or mixed product sets. The tray keeps the assortment organized while the header explains the promotion.
End-Cap Retail Displays
Fits well on promotional end-caps where products need to stand out. The adjustable front wall allows the primary packaging to remain visible even when stacked.
Who Uses This Display Tray
FMCG and Packaged Foods
Brands packing pouches, bars, or small cartons use this tray to ensure their products stay organized on the shelf without relying on store staff to stack individual items.
Co-Packers and Fulfillment Centers
Teams handling retail assortments appreciate the pre-glued side seam. The flat-delivered trays pop open quickly, though the bottom flaps rely on manual folding before loading.
Pharmacy and Cosmetics
Companies selling small bottles, tubes, or over-the-counter items use this tray to keep small goods upright and facing forward on crowded pharmacy shelves.
When to Compare Other Display Trays
Standalone parcel shipping
This tray has an open top and is not designed to ship through courier networks on its own. If you need a display that doubles as its own shipping box, a tear-away retail-ready shipper is worth comparing.
High-speed automated packing
The snap-lock bottom relies on manual folding. If your packing line uses automated case erectors, a machine-formed tray or wrap-around blank may be a better fit.
Key Display and Packing Decisions
Master Shipper Sizing
Because the tray is open, it is usually packed inside a master carton for distribution. The display header is designed to fold forward over the loaded products, so the master carton's internal height should account for the folded header and the primary product.
Two-Sided Print Requirements
The back wall extends upward to form the display header. Since the inside of that back wall faces the consumer, you will likely need two-sided printing or a specific fold-over artwork strategy to ensure the branding looks correct on the shelf.
Board and Flute Choice
E-flute is a common choice for retail displays because it folds cleanly and provides a smooth surface for high-quality graphics. Thicker boards like C-flute can make the manual snap-lock bottom difficult to assemble and may distort the display's appearance.
Header Crease and Folding
The crease at the base of the header allows it to fold down for transit and stand up for retail presentation. Depending on the board grade, this crease may need a reverse score to fold cleanly in both directions without cracking the print.
Adjusting the Display Profile
Front Wall Drop Height
The height of the front wall can be raised or lowered to match your product. A lower front wall reveals more of the item, while a higher front wall provides better retention for taller or heavier goods.
Header Profile

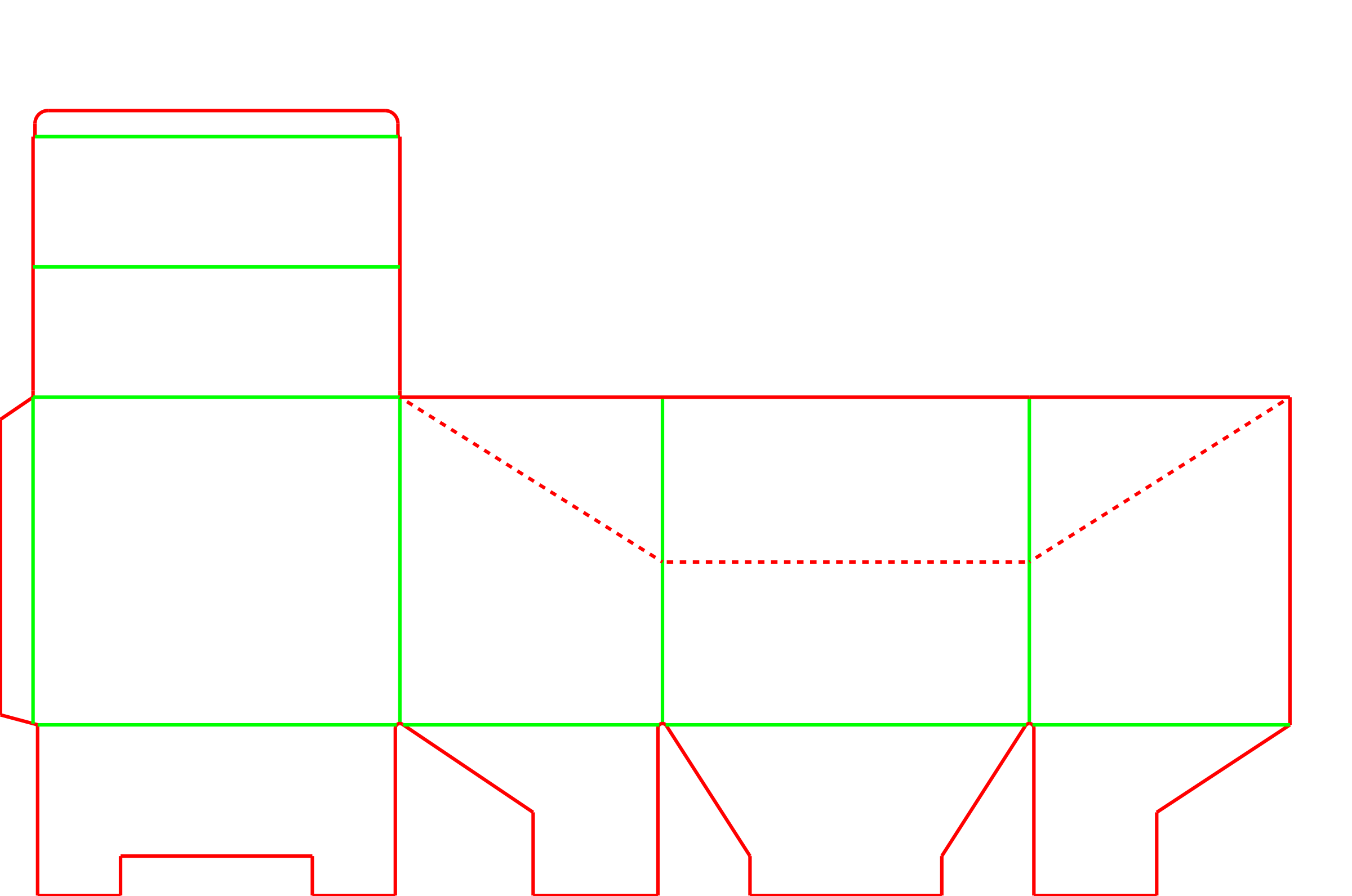

The template includes a small cutout at the top of the header. This is a manufacturing feature that allows the blanks to nest tightly together on the cutting die, reducing material waste. The overall height of the header can be adjusted based on your branding needs.
Safety Edge Cuts
Because consumers will reach into this tray, the exposed top edges of the corrugated board can be cut with a specialized wavy or nicked rule to help prevent paper cuts on the retail floor.
Packing details
Manufacturing Nesting Cutout
You may notice a small notch at the top of the header. This allows the factory to interlock the blanks head-to-toe during cutting, which helps reduce corrugated waste.
Additional notes
Header folding and master shippers
To save space inside the master shipper, the display header features a crease that allows it to fold flat over the top of the loaded products during transit.
Die-cutting efficiency
You may notice a small notch at the top of the header. This allows the factory to interlock the blanks head-to-toe during cutting, which helps reduce corrugated waste.
Worth comparing if your product requires more forward retention and less exposed primary packaging.
FAQs
Can this tray be shipped through the mail?
The open top and sloped side walls mean it is not designed for standalone courier transit. It is usually loaded with product and then packed inside a closed master shipping carton for distribution.
Does this display require tape or glue to set up?
The side seam is glued by the manufacturer before delivery. The bottom uses a mechanical snap-lock design that folds and locks together by hand at the packing bench, usually without tape.
Where does the artwork go on the header?
The header is an extension of the back wall. When it stands up on the retail shelf, the inside surface of the corrugated board faces the shopper. You will need to plan for inside printing or a specific graphic layout for that section.
How do I know if the front wall is the right height?
The front wall drop is adjustable. It should be high enough to keep your products from tipping forward, but low enough that shoppers can easily see the primary packaging and remove the items.
Is this suitable for automated packing lines?
The snap-lock bottom is designed specifically for manual assembly. If you are running high-volume automated lines, machine-erected tray styles are usually a better fit.
What board thickness is common for this display?
A thinner material like E-flute is often preferred. It provides a smooth surface for retail printing and allows the manual bottom flaps to fold and lock cleanly without excessive resistance.
Can the header fold down for shipping?
The display header features a crease that allows it to fold flat over the top of the loaded products, saving space inside the master shipper during transit.
How does the snap-lock bottom hold weight?
The bottom flaps interlock to form a secure base. For heavier retail items, the board grade and lock clearances should be tested to ensure the base does not bow when the tray is lifted.
Review your primary product dimensions and retail shelf limits to determine the front wall height and header size for your display.
