Retail Carry-Out and Heavy Consumer Goods
Retail appliances and electronics
The integrated plastic handle makes it easy for consumers to carry heavier boxed items off the shelf and out of the store.
Bulk retail goods
Provides a comfortable grip for multi-packs or heavy single items where a die-cut corrugated handle might dig into the hand or tear under the payload.
Hardware and tool kits
Supports dense, heavy items that require a rigid grip for safe lifting and transport.
Promotional beverage multi-packs
Offers a premium carry-out experience for heavy liquid multi-packs, keeping the presentation clean while supporting the weight.
Retail Display, Assembly, and Customer Transport
Manual pack-bench operations
The snap-lock base and manual handle insertion are designed for hand-packing lines. Because the plastic handle must be snapped into place by an operator, this box is not a fit for automated top-closing equipment.
Store-floor presentation
The flat top and clean side panels offer excellent billboard space for retail graphics, while the slit-lock top keeps the box securely closed during carry-out.
Customer transport and ergonomics
A rigid plastic handle prevents the discomfort of carrying heavy corrugated edges, improving the customer experience for heavy retail purchases.
When to Consider Alternative Handle or Closure Styles
Parcel and courier shipping
The protruding handle and slit-lock top can catch on sorting equipment. If shipping directly via courier, an outer master shipper is necessary, or a standard RSC should be evaluated instead.
Lighter retail items
If the product is lightweight, a box with an integrated die-cut corrugated handle may be simpler to manage than sourcing separate plastic hardware.
Hardware Matching, Board Strength, and Route Planning
Matching the plastic handle hardware
The die-cut mounting slots on the inner flap must be precisely sized to match the clips of your chosen plastic handle. You will need to select your hardware before finalizing the box dimensions.
Board strength and tear resistance
The product's weight dictates the required board strength. The corrugated board between the mounting slots must be strong enough to prevent the handle from tearing out when the box is lifted.
Base style and packing speed
The 1-2-3 snap-lock base is faster to assemble than a standard taped bottom, but slower than a pre-glued crash-lock base. Evaluate your packing volume to decide if the assembly speed fits your operation.
Outer shipping requirements
Because the handle protrudes and the top is secured by a friction tuck, this box is meant for palletized retail delivery. Plan for an outer master carton if the product will ship through mixed-carrier networks.
Adjusting the Handle Mounts and Clearances
Handle anchor slot dimensions
The width and length of the anchor slots on the inner flap can be adjusted to fit different plastic handle clips and accommodate the thickness of the corrugated board.
Grip clearance hole
The large oval cutout on the outer flap can be resized to accommodate wider or taller handle grips, ensuring the handle passes through cleanly.
Tuck tongue length and lock friction
The tuck tongue on the outer flap can be lengthened or widened to increase friction inside the receiver slit, keeping the top securely closed around the handle.

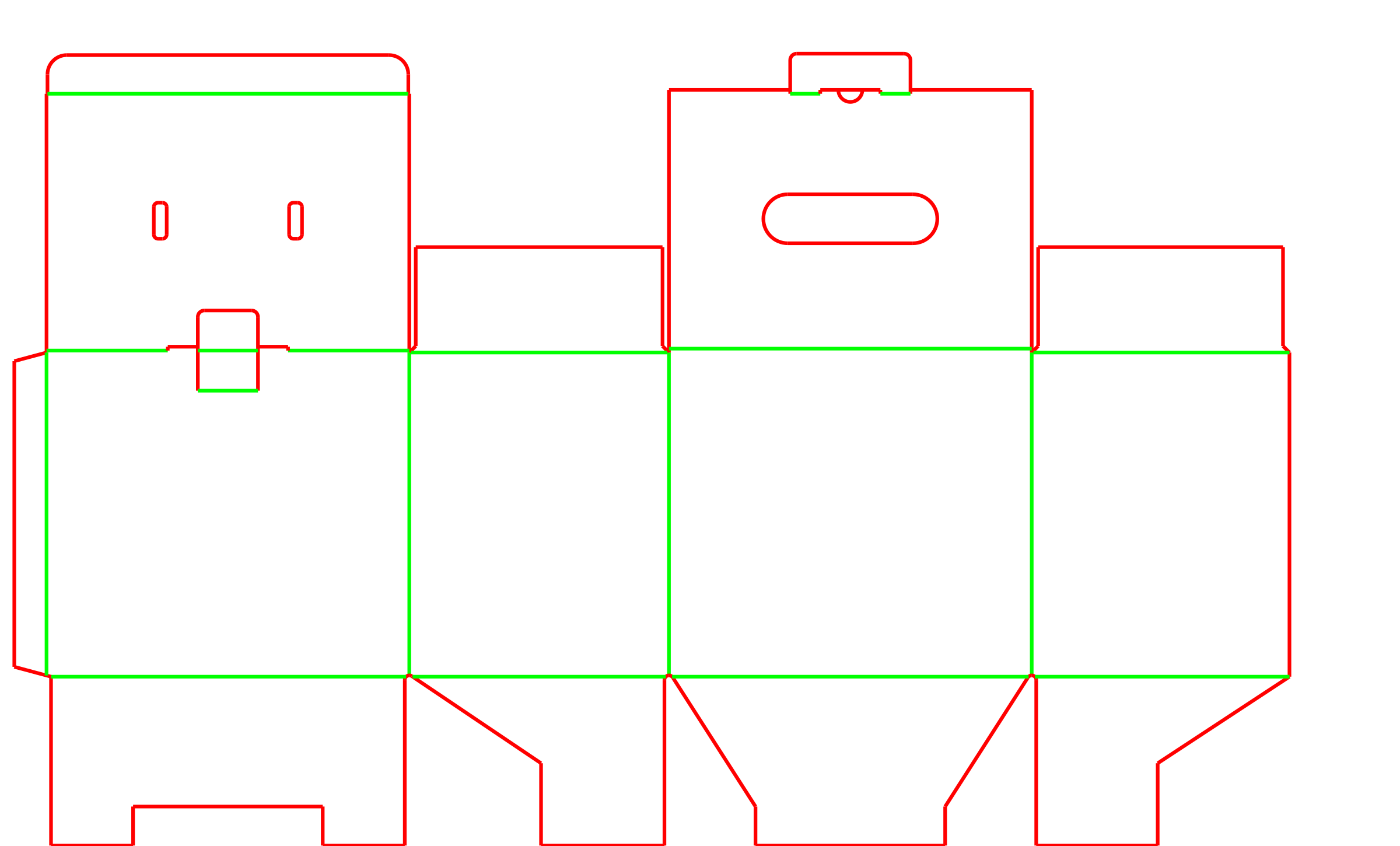

Packing details
Two-layer top closure
The top assembly uses an inner flap to anchor the handle and an outer flap with a clearance hole to cover the mechanics. The two layers are secured by a tuck tongue and slit, keeping the top flat and closed.
Flat delivery
The box is side-seam glued by the converter and delivered flat, maximizing pallet density before it reaches the pack bench.
Additional notes
Retail graphics and print surfaces
The flat top and large main panels provide uninterrupted space for branding, making it an excellent choice for shelf display before the customer carries it home.
Related Retail and Handle Boxes
FAQs
Does this box include the plastic handle?
No, this template provides the corrugated shape and precise die-cut slots to anchor a plastic handle. The plastic hardware must be sourced separately and inserted during packing.
Can this box be closed on an automated packaging line?
The side seam is glued automatically by the converter, but the 1-2-3 snap-lock base and the insertion of the external plastic handle require manual pack-bench assembly.
Is this box suitable for parcel shipping?
It is designed primarily for retail carry-out. The protruding handle and tuck closure can catch in courier sorting networks, so an outer shipping box is usually needed for parcel delivery.
How much weight can the handle support?
The weight capacity depends entirely on the selected corrugated board grade and the tear strength of the board between the handle mounting slots. Heavy items may require a thicker flute or reinforced board.
How does the top stay closed when carried?
The outer top flap features a tuck tongue that inserts into a receiver slit on the inner flap, locking the two layers together around the handle.
Should we test the handle fit before a full production run?
Yes. A physical prototype is highly recommended to ensure the die-cut mounting slots perfectly match your specific plastic handle clips and that the board withstands the product weight.
What board thickness works with plastic handle clips?
The board must be thin enough for the plastic clips to snap over the edges of the mounting slots, but thick enough to resist tearing. E-flute or B-flute are common, but the exact hardware dictates the limit.
Can the snap-lock base hold heavy items without tape?
The interlocking flaps hold moderate weights securely, but very heavy items can cause the base to bow or unlock. Testing the loaded box will determine if bottom tape is needed for extra security.
