Retail and Shelf-Ready Applications
FMCG shelf replenishment
Allows fast transition from the pallet to the retail shelf. The operator simply pulls the perforated window away, leaving the products neatly arranged in a branded tray.
Club store multi-packs
Keeps multiple items contained securely during bulk transport while offering high visibility to the consumer once opened on the warehouse floor.
Bagged or flexible goods
Provides a rigid outer structure for items that cannot stand up on their own, keeping them organized on the shelf.
Lightweight boxed items
Groups smaller primary cartons into a single handling unit that converts into a neat retail presentation.
High-Volume Retail and Club Store Channels
Automated fulfillment lines
Because the base package is an end-loading tube, it fits naturally into horizontal packing workflows before the ends are sealed.
Retail environments with strict safety policies
The integrated thumb cuts and tear-away perforations eliminate the need for retail staff to use blades, reducing both injury risk and the chance of slicing the primary product inside.
Brands seeking consistent shelf presentation
The controlled tear path ensures the display tray looks uniform across different stores, rather than relying on how a worker cuts open a standard box.
When to Consider Standard Shippers or Top-Loading Displays
When retail display is not required
If the box will only be unpacked in a back room, a standard end-loading carton without perforations provides a continuous surface without deliberate weak points.
When products must be dropped in from above
If your packing line relies on gravity-feeding or top-loading, an end-loading design will disrupt the workflow. Compare top-loading display trays or standard slotted containers instead.
Board Choice, Print Surfaces, and Perforation Strength
Board grade and tear performance
Thicker flutes offer more transit protection but can leave a rougher, fibrous edge when the window is torn away. Thinner flutes often provide the cleanest tear for premium retail presentation. The perforation pattern must be matched to the chosen board.
Inside printing for the display tray
Once the front and top window is removed, the interior back and side walls become highly visible to the consumer. Consider whether these interior panels need printing to maintain brand consistency on the shelf.
End closure method
While the side seam is glued before delivery, the end flaps must be sealed at your facility after the product is loaded. This is typically done with adhesive or tape, depending on your equipment.
Perforation cut-to-tie ratios
The success of this package depends on balancing the perforations. They must hold the box together during pallet stacking and transit, but yield cleanly when pulled by a retail worker.

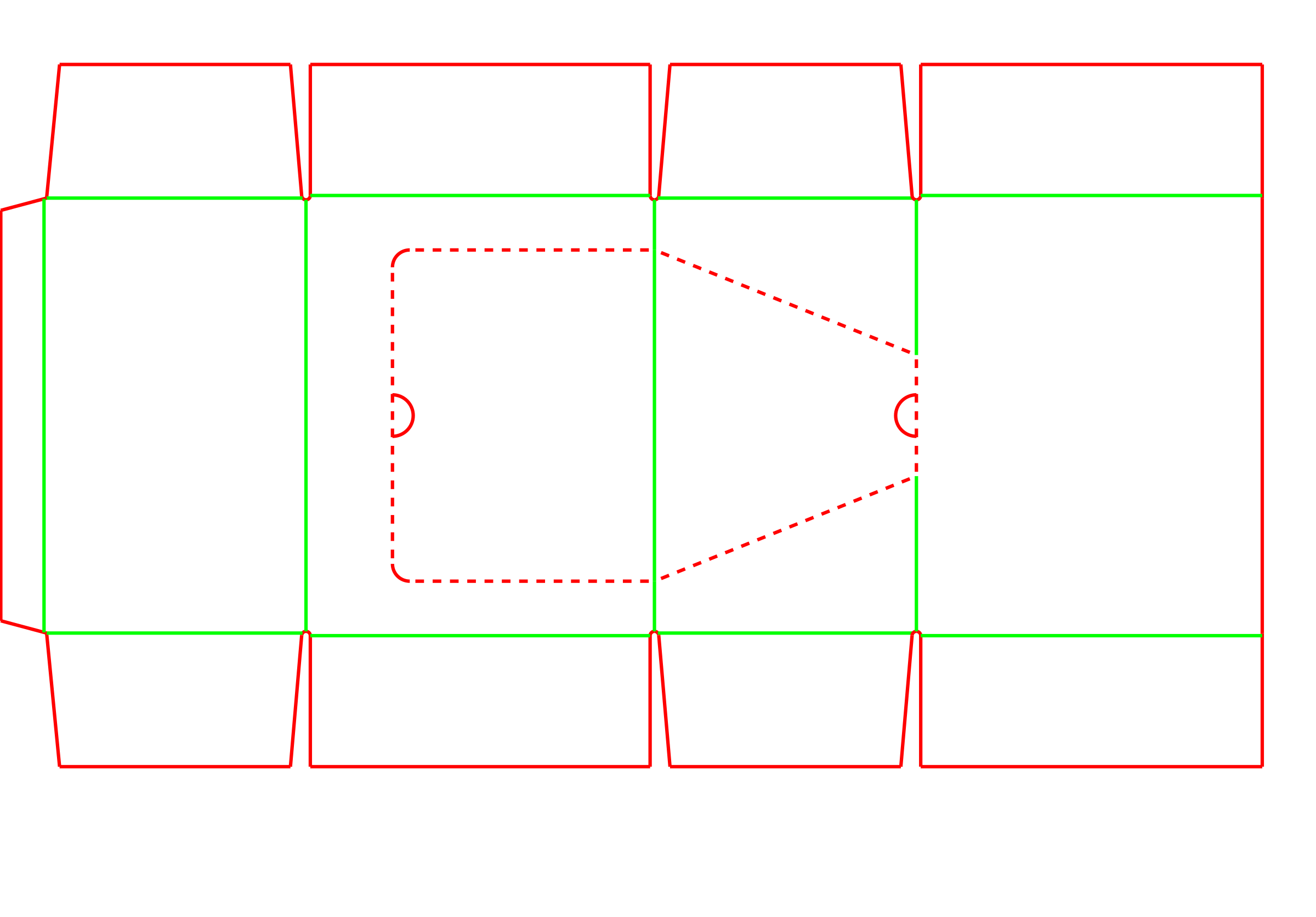

Display Window and Front Lip Adjustments
Window size and front lip height
The tear-out area can be adjusted to reveal more of the primary product. However, enough front lip must remain to prevent items from falling forward when the tray is placed on a shelf.
Thumb cut placement
The semi-circular finger holes can be resized or repositioned to ensure operators can easily grip and start the tear, depending on the overall size of the box.
Flap bevels and clearances
The minor end flaps feature angled cuts to prevent binding when folded inward, ensuring smooth closure on the packing line.
Packing details
Pallet orientation and flute direction
The corrugated flutes should align with the primary vertical load during transit. Ensure the box orientation on the pallet matches the intended compression axis.
Additional notes
Pallet orientation
Ensure the box orientation on the pallet aligns the corrugated flutes with the primary vertical load to maximize compression strength.
Related Display and Transit Packaging
FAQs
Can this box run on automated packaging lines?
Yes, the flat-folded, end-loading format is common for horizontal packing equipment. The machine squares the tube, loads the product through the open ends, and seals the flaps.
Is this box suitable for individual e-commerce shipments?
Because the perforated window creates a deliberate weak point for easy opening, this box is usually better suited for palletized retail distribution. Single-parcel courier shipping often requires an outer shipper or a non-perforated design.
How does board thickness affect the display?
Thicker corrugated boards offer more cushioning but can leave a ragged edge when torn. Thinner boards often provide the cleanest tear for a neat retail presentation. The perforation cuts must be adjusted based on the exact material chosen.
Can the inside of the display tray be printed?
Yes, inside printing is common for this style. Once the retail worker removes the window, the interior back and side walls are exposed to the shopper, making them valuable branding space.
How high should the front lip be?
The front lip must be high enough to retain the product securely on the shelf, but low enough that shoppers can easily see and remove the items. This depends entirely on the size and weight of your primary product.
How is the box sealed after loading?
The main side seam is glued before the flat boxes are delivered to you. After you load the product horizontally, the end flaps must be sealed using either adhesive or tape.
Should we test the tear-away feature before ordering?
Yes, physical testing is highly recommended. A sample run allows you to verify that the perforations tear cleanly without damaging the display tray or requiring excessive force.
Does the tear-away window affect stacking strength?
Yes, perforations alter the compression profile of the box. The design relies on the remaining solid panels and the primary product inside to support vertical loads during palletization.
