Retail and Carry-Out Applications
Retail point-of-sale and carry-out
The built-in handle and display windows make this carrier a practical fit for retail environments where customers purchase and carry out multiple bottles. The crash-lock bottom supports the weight of heavy glass while allowing retail staff to assemble the box in seconds.
Promotional and gift packaging
The tapered gable top provides a distinct presentation for holiday releases or specialty food kits. The front panel windows can be aligned with product labels to display the contents on the shelf.
Tasting room and winery purchases
Customers buying multiple bottles at a vineyard need a fast, secure way to carry them to the car. The integrated handle and sturdy base provide a reliable carry-out experience.
Specialty food and jar kits
Beyond wine, the carrier works well for heavy glass jars like sauces, honey, or preserves, where the crash-lock base supports the weight and the windows display the product.
Beverage and Gift Packing
High-volume fulfillment centers
Because the bottom is pre-glued by the manufacturer, packers simply push the opposite corners to open the box. This eliminates the manual folding associated with snap-lock bottoms, improving packing speed for large promotional runs.
Retail store floors
Store clerks need to assemble carriers quickly at the register without complex folding. The auto-erecting bottom allows for immediate loading during busy checkout times.
Corporate gifting programs
Companies sending holiday gifts need a presentation-ready carrier that holds heavy items securely. The gable top and display windows offer a premium unboxing experience.
When to Consider a Different Carrier
Parcel shipping and palletized distribution
The gable top prevents vertical stacking, and the exposed handle offers no protection against courier handling. If the primary goal is shipping directly to consumers or stacking pallets without a master carton, a standard flat-top slotted box with internal partitions is worth comparing.
Short-run or prototype orders
If the order volume is too low to justify the setup time for multi-point gluing, a manually folded snap-lock base might be more practical for early testing.
Board, Fit, and Production Choices
Board thickness and handle comfort
While heavier flutes increase overall wall strength, they can make the top gussets difficult to fold and the handle uncomfortable to carry. A thinner board, such as E-flute, often provides a good balance of clean folding, sharp print quality, and a secure tongue lock.
Production volume and gluing setup
The crash-lock bottom involves specialized multi-point gluing equipment during manufacturing. For very short runs or prototype testing, a carrier with a manually folded snap-lock bottom may be easier to source.
Window placement and structural strength
Removing the display windows increases the rigidity of the front panel, which may be useful for heavier payloads or to simplify the die-cutting process.
Internal dividers for glass protection
The template does not include built-in partitions. If packing multiple glass bottles, consider whether the product needs a separate corrugated insert to prevent clinking during transit.
Modifying the Carrier Layout
Bottle count and window removal

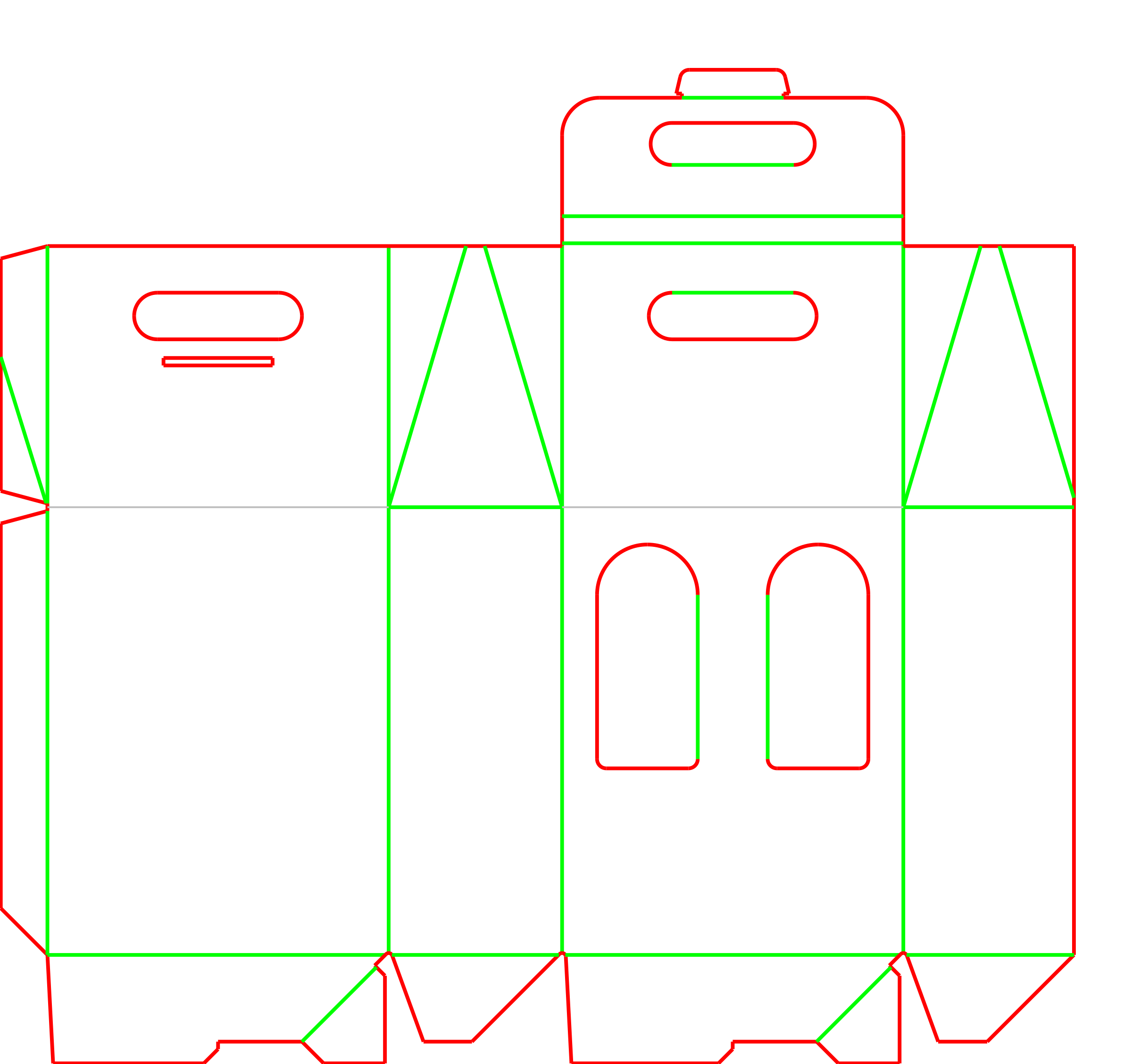

The template can be adjusted to hold different bottle quantities, which will widen the handle span and overall footprint. The front display windows can also be removed entirely to increase the structural strength of the main panel.
Handle hole sizing
The grip area can be adjusted to accommodate different hand sizes or to leave more board for the locking tongue, depending on the expected weight of the contents.
Gusset angle and roof height
The taper of the top can be modified to fit taller bottles or to change the visual profile of the carrier for specific retail displays.
Packing details
Master carton planning
Because the gable top prevents stacking, these carriers are usually packed into standard shipping boxes for transit. The overall height of the carrier, including the handle, dictates the required depth of the master carton.
Additional notes
Internal dividers and glass protection
This template does not include built-in partitions. If packing multiple glass bottles, consider whether the product needs a separate corrugated insert to prevent clinking during transit.
FAQs
Can this carrier be shipped through parcel networks?
Not on its own. The gable top and exposed handle are designed for retail carry-out. For parcel shipping, the loaded carrier should be placed inside a protective outer shipping box.
Does the bottom need adhesive during packing?
No. The crash-lock bottom is pre-glued during manufacturing. When the packer pushes the flat edges inward, the bottom flaps automatically interlock to form a rigid floor.
How does the handle stay closed?
The two handle panels meet at the top, and a tuck tongue on one side folds over and slides through a slot on the opposite side. This locks the two halves together and prevents the handle from splitting under the weight of the bottles.
Can the windows be resized to match specific labels?
Yes. The window cutouts can be adjusted to frame specific bottle labels, or they can be removed entirely if you prefer a solid front panel for maximum graphics and wall strength.
What corrugated flute works well for this style?
Thinner profiles like E-flute are often chosen. They provide a smooth surface for retail printing and allow the top gussets and handle lock to fold cleanly. Thicker flutes can make the handle bulky and difficult to lock.
Why does the crash-lock bottom affect order size?
Pre-gluing the bottom involves a multi-point folder-gluer. This equipment is efficient for large runs but involves setup time that may make very small orders less practical compared to a manually folded bottom.
How does the crash-lock bottom work?
The bottom flaps are pre-glued by the manufacturer. When the flat box is pushed open, the flaps automatically interlock to form a rigid floor, eliminating the need for manual folding.
Can we stack these carriers on a pallet?
The gable top prevents vertical stacking. If palletizing is necessary, the loaded carriers should be placed inside a flat-top master carton.
