Flat and Fragile Product Protection
Edge isolation for flat goods
The hollow side tubes create a physical standoff between the outer shipping wall and the product. This protects framed art, glass-faced items, or flat electronics from side impacts during courier transit.
Kitting without separate inserts
By building the crush zones directly into the mailer, fulfillment teams avoid managing separate foam blocks or corrugated void fill, reducing the number of parts required to pack each order.
Presentation unboxing
The front-hinged lid folds backward to reveal the product framed by the side buffers. This creates a clean, organized presentation for premium books, binders, or tech accessories.
Heavy flat items needing perimeter protection
For dense items that might punch through a standard mailer wall if dropped on their edge, the rolled buffers provide a dedicated crumple zone to absorb the impact.
Electronics, Framed Goods, and Kitting
Fulfillment operations reducing insert inventory
Managing separate foam blocks, corner protectors, or corrugated void fill adds complexity to purchasing and storage. This single-piece wrap consolidates the protective elements into the primary mailer, simplifying the bill of materials for low-to-medium volume fulfillment.
Electronics and tablet shipping
Refurbished tablets, laptops, and flat electronic components require reliable side protection. The integrated buffers hold these devices away from the outer edges without requiring custom-molded foam.
Framed art and glass-faced goods
Frames and glass panels are sensitive to edge drops. The hollow tubes provide the necessary standoff distance to prevent corner impacts from transferring directly to the fragile frame.
When to Consider Standard Wraps or Separate Inserts
High-speed packing lines
Rolling the side buffers 360 degrees and seating the locking tabs adds time to the packing bench. If packing speed is the primary constraint, a standard mailer paired with drop-in protective inserts may be faster for an assembly line.
Standard book or media shipping
If the product is not sensitive to edge impacts, a standard wrap-around folder uses less corrugated board and folds faster.
Board Thickness, Buffer Locking, and Print
Flute profile and tab friction
The side buffers are held in place by small tabs that pop up from the base. Thinner flutes roll easily and allow the tabs to catch cleanly. Thicker flutes have higher memory and may overpower the tabs, causing the buffers to unroll.
Buffer width sizing
The width of the hollow side tubes dictates the size of the crush zone. Expanding the buffers increases protection but also increases the overall flat footprint of the unfolded blank.
Closure security for parcel transit
The front-hinged lid secures with a single tuck tongue into the rear wall. For individual courier or parcel shipments, this closure should be reinforced with tape or a security seal to prevent the lid from catching and opening.
Print orientation and visibility
Because the side extensions roll completely inward, the surface that forms the inside wall of the buffer is the same side of the board as the exterior of the mailer. This allows a single-sided print run to show graphics on both the outside of the box and the inner side walls.
Buffer Width and Closure Adjustments
Buffer width adjustment
The hollow side tubes can be widened for greater crush protection or narrowed to save material, depending on the fragility of the product being packed.
Base tab geometry
The small tabs that lock the buffers in place can be adjusted in height and width to provide the correct amount of friction for the chosen corrugated board grade.
Tuck tongue dimensions
The single rear tuck tongue can be widened or lengthened to improve friction and closure security, though outer tape is still recommended for parcel shipping.
Packing details
Flatbed die-cutting requirements
The complex internal cutouts for the base tabs and the precise slit locks require flatbed die-cutting. This design cannot be produced on a standard rotary slotter.
Additional notes
Front-hinged lid behavior
Unlike most mailers where the lid hinges from the back, this lid hinges from the front wall and folds backward over the product. This creates a clean presentation at the front edge but changes the standard packing motion.
Related Protective Mailers
FAQs
Can this mailer be erected by automated equipment?
The 360-degree rolling motion required to form the side buffers makes this a hand-assembled package. High-volume automated lines typically use standard trays with drop-in inserts instead.
Does this wrap protect all six sides of the product?
The rolled buffers provide heavy crush protection on the left and right sides. The front, back, top, and bottom rely on single-wall corrugated board. Products needing heavy impact protection on all sides may still require additional padding.
How does the buffer design affect interior printing?
Because the side extensions roll completely inward, the surface that forms the inside wall of the buffer is the same side of the board as the exterior of the mailer. This allows a single-sided print run to show graphics on both the outside of the box and the inner side walls.
Why is a physical sample important for this specific design?
The locking mechanism relies on small base tabs catching the raw edge of the rolled corrugated board. A physical prototype confirms whether your chosen board grade has too much spring-back for the tabs to hold the buffers securely.
Is the tuck closure secure enough for parcel shipping?
The single rear tuck tongue holds the lid closed for handling and palletizing, but individual parcel shipments usually require an outer tape seal to ensure the lid does not pop open on conveyor belts.
How does the flat blank size affect material usage?

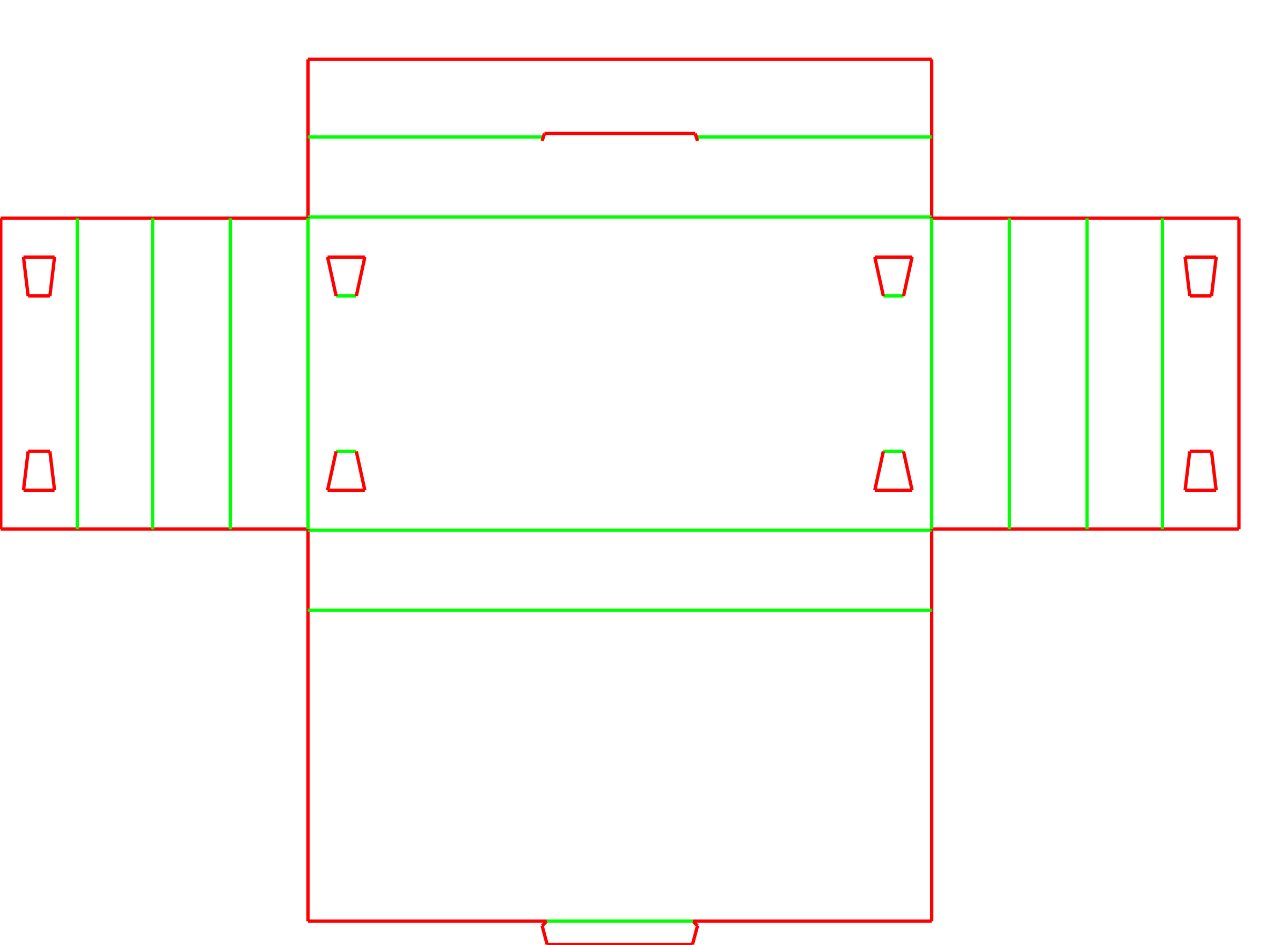

The side extensions must be four panels wide to roll into hollow tubes. This creates a very wide flat blank, which reduces how many mailers can be cut from a single corrugated sheet, often requiring more material than a simple folder.
What board flutes align well with the rolled buffers?
Thinner profiles like E-flute or B-flute are often a strong fit because they roll easily and allow the base tabs to catch cleanly. Heavy flutes have higher memory and may overpower the locking tabs.
Can the width of the side buffers be adjusted?
The width of the hollow tubes can be expanded for greater crush protection or narrowed to save material, depending on the specific fragility of the product.
