Presentation and Display Applications
Desktop and Counter Displays
The wedge profile naturally angles products toward the viewer, making it a strong fit for point-of-purchase counters or desktop sample kits without requiring a separate angled insert.
Premium Presentation Kits
The wrap-around opening sequence reveals the inner front panel, offering a prime location for inside printing and creating a deliberate unboxing sequence for high-value items.
Retail Shelf Merchandising
The slanted front provides a natural viewing angle for products sitting on lower retail shelves, making it easier for shoppers to read branding without picking up the package.
Promotional Mailers
When placed inside a standard rectangular master shipper, the wedge shape creates a distinct unboxing reveal for influencer kits or high-value product launches.
Retail and Marketing Contexts
Marketing and Sales Teams
Teams distributing physical samples or promotional kits often use this shape as a structural differentiator, as the slanted front stands out immediately from standard rectangular boxes.
Retail Merchandising
Brands looking for a self-contained display shipper can use the wedge shape to present goods directly on the shelf, though the irregular footprint requires careful pallet planning.
E-commerce and Subscription Brands
Brands shipping curated kits can use the wedge profile to differentiate their unboxing experience, provided they use an outer shipping box to protect the closure during transit.
When to Consider Simpler Rectangular Packaging
Standard Roll-End Tuck-Top Trays
If a standard rectangular footprint is sufficient and faster manual assembly is needed, a traditional tuck-top tray is easier to fold and nests more efficiently on the corrugated sheet.
Standard Wrap-Around Folders
If the primary goal is transit efficiency rather than presentation, a flat rectangular folder uses less board and avoids the complex angled side walls.
Board, Print, and Assembly Choices
Flute Thickness and Fold Quality
Thin corrugated board, such as E Flute, is strongly recommended. The design relies on precise 72-degree and 108-degree folds; heavier flutes can distort the geometry and prevent the tongue lock from seating properly.
Two-Sided Print Opportunities
Because the outer wrap folds completely over the inner core, the inner front panel is fully exposed when the package is opened. This makes two-sided printing highly effective for revealing instructions or branding.
Manual Assembly Labor
This package is not a fit for linear folder-gluers. The complex sequence of folding the inner core, squaring the dust flaps, and securing the outer wrap requires dedicated manual pack-bench labor.
Outer Packaging for Transit
Because the mechanical tongue lock can open under pressure, buyers planning to ship these individually through courier networks should evaluate clear wafer seals or a separate outer shipping box.
Wedge Proportions and Lock Adjustments
Wedge Proportions
The height of the back wall and the depth of the flat top can be modified to change the steepness of the slanted front. The side flap angles recalculate automatically to maintain a closed wedge.
Tongue Lock Sizing
The width and height of the bottom tuck tongue can be adjusted to tune the friction lock, ensuring it holds securely in the chosen board grade.
Top Flat Panel Depth
The depth of the top horizontal panel can be expanded or reduced to change the steepness of the front display face, accommodating different product sizes.
Packing details

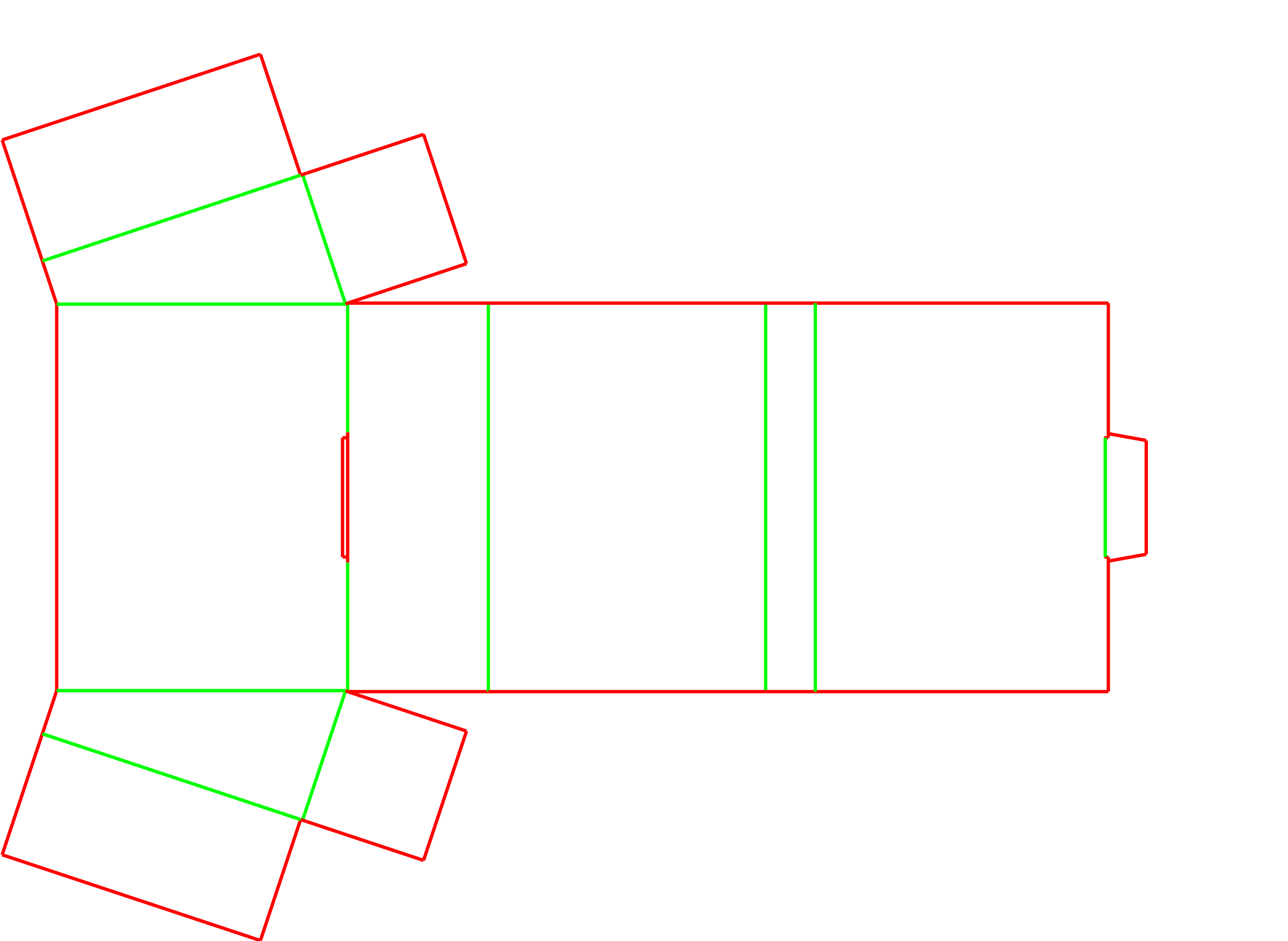

Blank Sprawl and Flatbed Routing
The cross-shaped flat blank and irregular side flaps create more offcut waste than standard boxes and require flatbed die-cutting, making this a premium choice for specialized runs.
Parcel Shipping and Outer Seals
The mechanical tongue lock holds the display together for presentation. For individual courier shipments, the closure may open under pressure, so a clear wafer seal or a standard rectangular master shipper is often used.
Additional notes
Parcel sealing and outer carton choice
Because the tongue lock relies on friction, individual courier shipments often benefit from a clear wafer seal or placement inside a standard rectangular master shipper to prevent opening during transit.
Board thickness and fold clearance
Heavy double-wall corrugated is generally avoided for this shape, as the thick material fights the sharp angles required to form the slanted front.
Related Wrap-Around and Display Packaging
FAQs
Can this box be assembled on automated lines?
No, the complex wrap sequence and angled side walls require manual pack-bench assembly. It is not a fit for linear folder-gluers.
What board grade is recommended for this shape?
Thin corrugated, such as E Flute, is recommended to ensure the tight angled folds close cleanly without cracking the liner or distorting the wedge profile.
Does this box need tape or glue?
The structure relies entirely on a mechanical tongue lock at the bottom front. While it holds itself together for presentation, parcel shipping often benefits from an outer seal or master carton.
Where can graphics be placed?
The entire outer wrap is available for printing. Additionally, the inner front panel is fully visible when the box is opened, making it an excellent target for inside graphics.
How does the wedge shape affect manufacturing?
The irregular side flaps and cross-shaped blank create nesting sprawl, meaning it uses more board area per unit than a standard rectangular box and requires flatbed die-cutting.
Can the angle of the slanted front be changed?
Yes, adjusting the overall depth and the top flat panel depth will automatically shift the side wall angles to maintain a closed wedge.
Can this box hold custom inserts?
Yes, the interior volume can accommodate die-cut corrugated or foam inserts to hold products securely against the slanted front panel.
Should I request a physical sample before ordering?
A physical prototype in the exact board grade is highly recommended to verify that the tongue lock provides enough friction and that the slanted angles fold cleanly.
