Heavy-duty stacking and retail display jobs
Retail-ready produce and beverage trays
The open long sides allow shoppers to see and access the product, while the raised side panels keep loose items from sliding out. The integrated handles make it easier for retail staff to move fully loaded trays.
Heavy palletized stacking
The triangular corner pillars bear vertical weight efficiently, making this tray useful for dense pallet loads that might crush standard single-wall trays.
Club store bulk displays
The combination of high stacking strength and immediate shelf readiness fits environments where goods move directly from the pallet to the retail floor without secondary unpacking.
Agricultural field packing
The open design allows for natural ventilation, while the strong corners support the weight of stacked produce during transit from farm to distributor.
Produce, beverage, and bulk retail channels
Club stores and bulk retail
These environments benefit from packaging that serves as both a transit shipper and a retail display, reducing the labor needed to restock shelves.
Agricultural packing
Farms and distributors often need trays that balance airflow for fresh produce with the structural rigidity to survive stacked pallet transport.
Beverage distribution
Heavy liquid loads require strong vertical support to prevent lower trays from bowing, and the integrated handles assist with manual loading and unloading.
When to consider standard roll-end trays or closed boxes
High-speed packing lines
If your operation relies on automated folder-gluers or fast manual erection, a standard four-corner glued tray or a crash-lock base will be faster to assemble than rolling four individual corner columns.
Parcel shipping
Because the top and sides are open, this tray is not intended for standalone courier delivery. It needs a separate outer shipping box for parcel networks.
Assembly labor, board thickness, and print visibility
Manual assembly labor
The corner columns require a specific folding sequence, rolling the flaps inward and locking the final tab into a base slot. This takes more time per unit than folding a standard tray and should be factored into pack-bench planning.
Board grade and fold ergonomics
While thicker flutes increase stacking strength, they also make the small triangular column flaps harder to fold and lock by hand. A physical prototype helps verify that the chosen board can be comfortably assembled by packing staff.
Print surface and liner visibility
The diagonal face of each corner column shows the inside liner of the board to the interior of the tray. If interior branding is important, a double-sided print or mottled white inner liner may be worth discussing.
Handle cutout reinforcement
The handles are native cutouts in the corrugated board. For very heavy products, the board grade should be evaluated to ensure the handle edges do not tear during lifting.

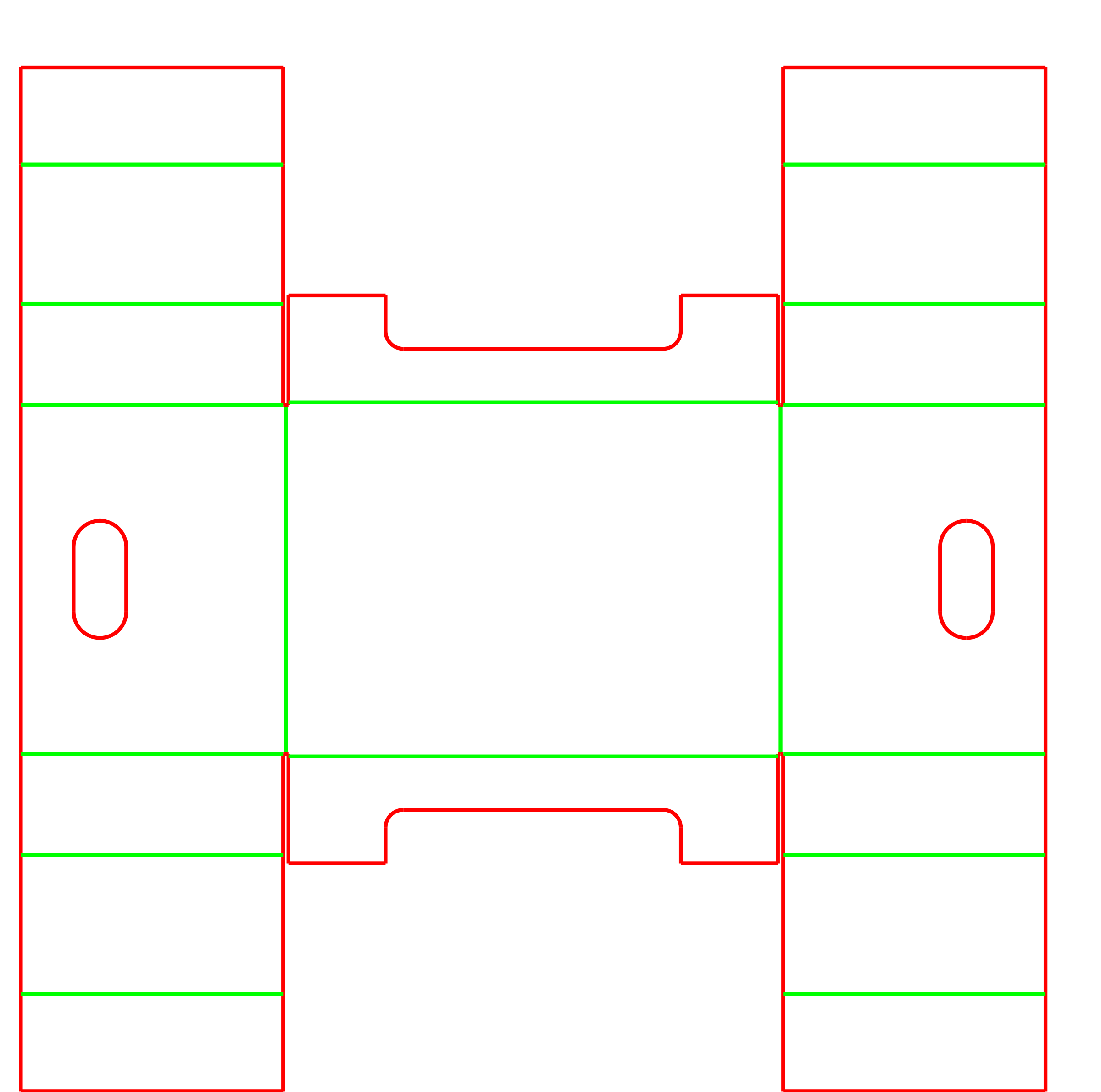

Adjusting side retention, handles, and column gaps
Raised side panel height
The height of the long-side retaining panels can be adjusted. Higher panels offer better containment for loose items, while lower panels maximize product visibility on the shelf.
Handle dimensions
The oval cutouts on the short ends can be resized to accommodate different lifting requirements or to provide more clearance for gloved hands.
Open gap width between columns
The open space along the long sides can be widened or narrowed. However, the corner columns must remain wide enough to fold properly, so widening the gap too much reduces the size of the supporting pillars.
Packing details
Column locking slots
The base panel features specific slots that receive the final tuck of the corner columns. The width of these slots must be matched precisely to the chosen board thickness to ensure the columns stay locked under tension.
Additional notes
Pack-bench training
The folding sequence for the corner columns is not immediately intuitive to first-time packers. Plan for a brief training period to ensure the tabs are fully locked into the base slots so the tray maintains its rigidity.
Related retail and stacking trays
FAQs
Can this tray be erected on automated packaging lines?
Generally, no. The multi-step process of rolling and locking the triangular corner columns is designed for manual pack-bench assembly.
How does this tray support heavy pallet loads?
The weight is carried primarily by the four triangular columns formed at the corners, which act as vertical pillars. This helps prevent the side walls from bowing under pressure.
Will loose items fall out of the long sides?
The tray includes raised retaining panels along the long edges specifically to keep products contained. The height of these panels can be adjusted based on what you are packing.
Can I ship this tray directly through the mail?
No. The open top and partially open sides mean the product is exposed. For parcel or courier delivery, this tray needs to be placed inside a sealed outer shipping box.
Should I use a heavy double-wall board for maximum strength?
Thicker board increases vertical strength, but it can make the small corner flaps too stiff to fold and lock by hand. A physical sample is highly recommended to balance strength with assembly ergonomics.
Can the open gap between the corner columns be widened?
Yes, the open space can be adjusted, but the corner columns must remain wide enough to fold properly. Widening the gap too much reduces the size and strength of the supporting pillars.
Does the inside of the board show on the finished tray?
Yes. The diagonal face of each corner column folds inward, exposing the inside liner of the corrugated board to the interior of the tray.
How are the corner columns secured without glue?
The final flap of each rolled column tucks into a specific slot cut into the base panel. The tension of the folded corrugated board keeps the tab locked in place.
