Agricultural, Retail, and Kitting Uses
Agricultural and Produce Packing
The columned corners support the weight of stacked pallets, protecting delicate produce from crushing. The open top allows for ventilation and easy inspection in the field or at the market.
Retail Shelf Displays
The raised bench ends provide a natural branding surface, while the open center keeps products accessible to shoppers. The strong construction helps the tray maintain its shape even when handled frequently.
In-Plant Kitting and Work-in-Progress
Useful for organizing heavy components during manufacturing. The trays can be stacked securely on carts or pallets, and the hand holes make manual lifting easier.
Bakery and Pastry Transport
The open top and rigid corners make it suitable for moving delicate baked goods from production to retail without the risk of top-crushing during transit.
Manual Fulfillment and Palletized Distribution
Manual Fulfillment Operations
This tray relies on manual assembly. It is a strong fit for operations where packing happens at multiple stations or in the field, as it requires no specialized taping equipment.
Palletized Distribution
Designed for vertical compression strength, this tray excels in supply chains where goods are stacked high on pallets but still require an open top for access or display.
Field Packing and Harvesting
Because the tray locks together mechanically without tape, it can be shipped flat to agricultural sites and assembled on demand as crops are harvested.
When to Compare Simpler or Machine-Erected Packaging
High-Volume Automated Packing
If your operation relies on automated tray erectors, the manual roll-over assembly of this tray may slow down the line. A simpler glued tray is often worth comparing for those environments.
Direct-to-Consumer Parcel Shipping
Because this is an open tray, it does not enclose the product for individual courier transport. It must be used as an inner display or shipped on a wrapped pallet.
Board Grade, Moisture, and Print Planning
Board Grade and Flute Profile
Stacking strength depends heavily on the chosen board. Thinner boards offer crisp folds for retail presentation, while thicker boards provide the necessary rigidity for heavy agricultural loads. Board thickness will affect how easily the roll-over panels fold and lock.
Moisture and Environment
If the tray will be used in cold storage, high humidity, or field packing, discuss moisture-resistant board options to prevent the columns from softening.
Print Surface Planning
Because the short ends roll over to the inside of the tray, the exterior print surface will be visible on the inner walls of the bench ends. Plan graphics accordingly if the interior presentation matters.
Assembly Labor and Space
Since the tray is delivered flat and assembled by hand, consider the labor time and workspace required to fold the corner columns and lock the base tabs before loading products.
Hand Hole and Bench Height Adjustments
Hand Hole Sizing
The lifting holes on the long walls can be resized or reshaped to accommodate different handling requirements or gloved hands, provided they do not interfere with the structural fold lines.
Bench Height Adjustments
The height of the raised short ends can be modified to provide more branding space or to better contain specific product profiles, though this will affect the overall flat footprint.
Ventilation and Drainage Slots
For agricultural uses, additional slots or holes can be added to the base or side walls to improve airflow and allow moisture to escape.
Packing details
Production routing
The angled corner flaps, hand holes, and base locking slots require shaped cutting rather than simple straight cuts. This routing is typically suited for medium to high-volume runs.
Additional notes

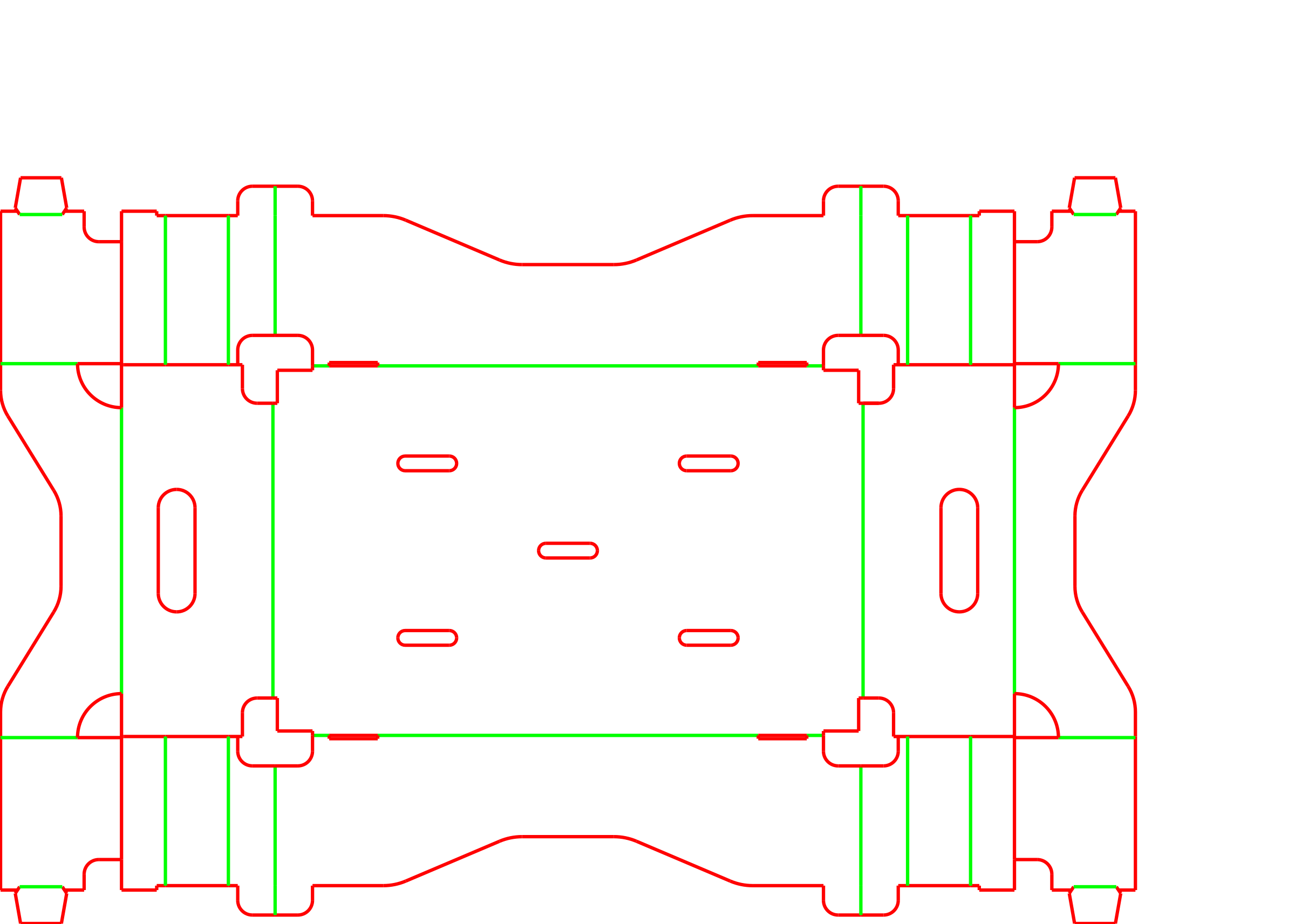

Blank footprint and material efficiency
The extended roll-over panels and corner flaps create a large flat footprint before assembly. This makes it more material-intensive than a simple slotted tray, which should be weighed against the benefits of its stacking strength.
Related Columned and Roll-End Packaging
FAQs
Does this tray require tape to stay assembled?
No. The tray uses a mechanical lock. The inner panels of the short walls roll over the corner flaps and feature tuck tongues that seat into slots in the base panel.
Can this tray be erected by a machine?
This specific design is intended for manual assembly. The roll-over action and base-locking tabs are generally easier to manage with hand packing rather than high-speed automated equipment.
How does the bench support affect stacking?
The raised bench ends work in tandem with the hollow corner columns to transfer vertical weight down to the base, preventing the side walls from bowing and protecting the contents from crushing.
Will the corner columns take up space inside the tray?
Yes. The reinforced corners create a hollow triangular column inside the tray. You must account for this lost interior volume when determining if your product will fit.
Can I print on the inside of the tray?
Yes, but note that the outer panels of the short walls roll over to form the inside ends. This means your exterior print will naturally appear on the inside of those short ends without requiring double-sided printing.
Is this tray suitable for wet produce?
The structural design is excellent for produce, but standard corrugated board will weaken when wet. If packing damp goods or storing in high humidity, you will need to specify a board treated for moisture resistance.
How is this tray delivered?
The tray is delivered flat. This maximizes shipping and storage efficiency before the trays are manually assembled at the packing station.
Can the hand holes be removed or resized?
Yes. The hand holes can be adjusted for different lifting needs or removed entirely if the tray will only be handled by machinery or pallets, as long as the changes do not interfere with the corner fold lines.
