Practical Uses for Double-Wall Partitions
Heavy Industrial Components
The double-thickness walls provide rigid separation and high top-load resistance, preventing heavy metal parts or dense assemblies from shifting and damaging each other during transit.
Fragile Glass and Ceramics
The folded construction offers high cushioning compared to single-wall dividers, making it a strong choice for protecting delicate bottles, jars, or ceramic goods.
Heavy Liquid Jars and Bottles
The double-wall rigidity prevents heavy glass or dense liquid containers from compressing the grid during transit, keeping individual units isolated and secure.
Premium Retail Kits
Because the 180-degree fold hides the raw, wavy flutes of the corrugated board, the top edge of the partition looks clean and finished. This is well-suited for subscription boxes or presentation kits where the customer sees the divider upon opening.
Who Specifies Folded-Edge Dividers
High-Value Product Protection
When the cost of product damage far exceeds the cost of packaging labor, the high rigidity of a double-wall partition justifies the extra material and manual assembly time.
Open-Box Presentation
Brands that want a polished unboxing experience often choose folded-edge dividers to avoid the unfinished, industrial look of exposed corrugated flutes.
Manual Kitting Operations
Because this partition requires hand-folding every strip, it fits best in fulfillment centers set up for manual kitting rather than high-speed automated packing lines.
When to Consider a Standard Partition
High-Volume Fulfillment
If packing speed is critical, the manual folding required for every single strip of this partition will slow down the line. A standard single-wall partition is much faster to assemble.
Lightweight Goods
If the items being separated are light and not highly fragile, the double-wall construction is likely over-engineered. A standard divider will save material and reduce costs.
Key Decisions Before Ordering
Board and Flute Selection
This design requires the board to fold 180 degrees flat against itself. Thinner profiles like E-flute or F-flute handle this fold cleanly. Heavier boards like B-flute or C-flute are prone to cracking along the fold and may cause the interlocking slots to bind.
Assembly Labor Planning
The partition is delivered flat. Packing teams must fold every individual length and width strip in half before sliding them together to form the grid. This labor burden should be factored into the overall packaging cost.
Master Box Sizing
The double-wall thickness takes up more internal space than a standard partition. The master outer box must be sized accurately to accommodate both the product and the thicker divider walls.
Outer Shipper Strength
While the double-wall grid adds substantial internal crush resistance, it does not replace the need for a properly rated outer shipping box to handle external impacts.
Configuration and Fit
Cell Count and Dimensions
The number of cells and their individual length, width, and height can be adjusted to fit the specific product payload and the master outer carton.
Slot Clearance
The width of the interlocking slots must be precisely matched to the folded thickness of the chosen corrugated board to ensure the grid holds together without binding or crushing during assembly.

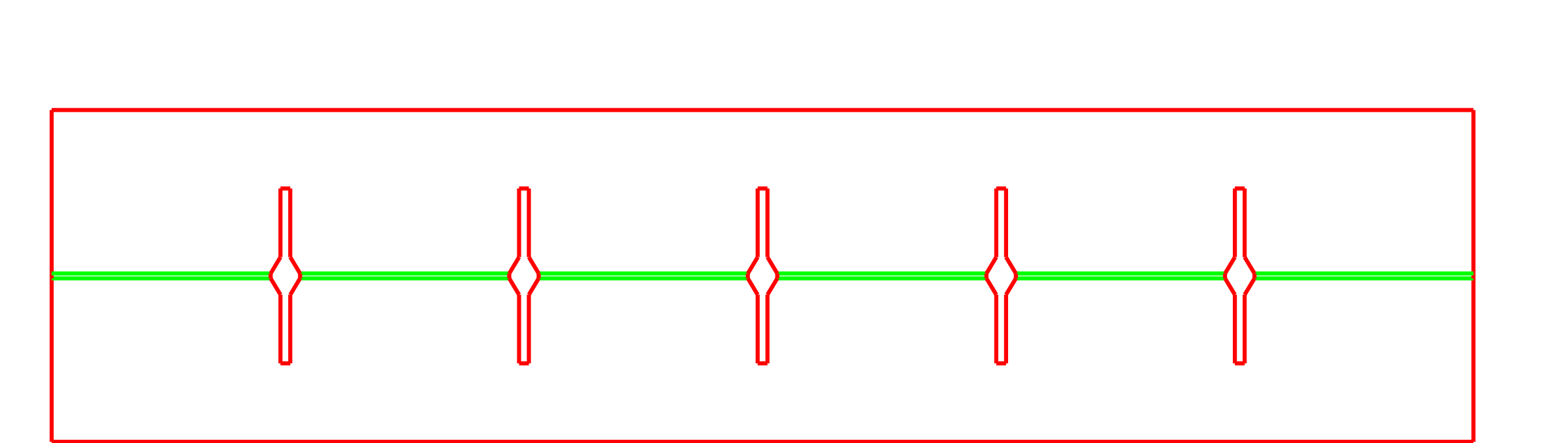

Fold Relief Notches
The diamond-shaped cutouts at the center of each slot can be adjusted based on the board thickness to ensure the 180-degree fold does not tear the liner.
Packing details
Tooling and Production Route
Because of the internal slot cutouts and the central double crease, this partition must be produced on a flatbed die-cutter. It cannot be run on simple rotary slotting equipment used for basic boxes.
Additional notes
Manual assembly time
The requirement to fold every single strip before interlocking makes this partition substantially slower to assemble than standard single-wall dividers. It fits best in lower-volume or high-value packing lines.
Fold relief notches
The design includes small diamond-shaped cutouts at the center of each slot. These relieve stress on the board when it is folded 180 degrees, preventing the material from tearing or bunching.
Related Internal Organizers
FAQs
Why use a double-wall folded partition instead of a standard one?
The 180-degree fold creates a double-thickness wall that substantially increases vertical crush resistance and provides better cushioning for heavy or fragile items. It also creates a clean, continuous top edge for better presentation.
What board grades fit this fold?
Thinner profiles like E-flute (1.5mm) or F-flute are often specified. Heavier flutes resist the 180-degree fold and are likely to crack along the crease or cause the interlocking slots to bind during assembly.
How is this partition assembled?
The partition pieces are delivered flat. A packer must manually fold every individual length and width strip in half along its center crease, then slide the folded strips together perpendicularly to form the interlocking grid.
Does this partition require special tooling?
Yes. The internal cutouts and specific double-crease lines require flatbed die-cutting boards. It cannot be manufactured using simple rotary slotting methods.
Can this be used for retail presentation?
Yes. Because the fold hides the raw corrugated flutes, the top edge of the assembled grid looks clean and finished, making it a popular choice for premium kits and open-box displays.
Does the double-wall construction change the master box size?
Yes. The folded double-thickness walls take up more internal volume than standard single-wall dividers. The outer carton dimensions must be increased to accommodate both the product and the thicker grid.
Can this partition be assembled by automated machinery?
No. The requirement to fold every individual strip 180 degrees before interlocking makes this design incompatible with automated partition assemblers. It relies on manual packing labor.
Will the folded edge crack during assembly?
Cracking is a risk if heavy board grades like B-flute or C-flute are used. Specifying thinner profiles like E-flute or F-flute, along with proper fold relief notches, prevents the liner from tearing during the 180-degree fold.
