Practical Uses for Extended Partitions
Glass and Bottled Liquids
The perimeter extensions absorb side impacts that might otherwise shatter the outermost bottles in a master case.
Machined Parts and Components
Keeps heavy or easily scratched industrial components separated, preventing metal-on-metal contact during transit vibration.
Cosmetics and Fragile Jars
Provides rigid individual cells that prevent labels from scuffing and caps from cracking when the outer box is handled roughly.
Electronic Sub-Assemblies
Separates delicate electronic components to prevent static friction and physical impact during transit.
Fulfillment and Kitting Contexts
Manual Kitting Operations
Because the strips are usually slotted together by hand, this partition fits well in operations where packing labor is already allocated for careful, multi-item kitting.
High-Density Storage
The separate strips ship completely flat and nest tightly on a pallet, taking up minimal warehouse space before they are needed on the packing line.
Multi-Item Master Packing
For brands shipping bulk quantities of individual retail units to distributors, the outer box acts as a transit shell while the partition keeps the inner units pristine.
When to Consider a Different Divider Style
Flush-Cut Partitions
If the outer box is already tightly sized and a perimeter air gap is unnecessary, a standard flush-cut partition uses less material and fits smaller master cartons.
Die-Cut Foam Inserts
For extremely sensitive electronics that need multi-axis shock absorption rather than just separation, a custom foam insert may be worth comparing against a corrugated grid.
Key Decisions for Fit and Assembly
Board Thickness and Slot Friction
The width of the interlocking slots should closely match the thickness of the corrugated board. Changing from a thin E-flute to a thicker B-flute usually involves adjusting the slot tooling to keep the grid from being too loose or crushing during assembly.
Outer Box Sizing
The master shipping box should be sized to accommodate the total footprint of the grid, including the perimeter extensions. The extensions should touch the inner walls of the box to keep the partition from shifting.
Assembly Labor
Consider the time needed to align and press the slotted strips together by hand. For very high-volume runs, specialized partition-assembly equipment might be worth evaluating.
Cell Clearance
Decide whether the product should fit tightly within the cell to prevent rattling, or have loose clearance for faster drop-in loading at the packing station.
Configuring the Grid and Buffer
Cell Count and Dimensions
The number of cells along the length and width can be adjusted to fit the payload, and the individual cell dimensions can be sized to grip or loosely hold the product.
Extension Length
The length of the perimeter buffer can be increased for more crush protection or decreased to fit a slightly smaller outer box.
Slot Chamfers and Lead-ins
The shape of the slot openings can sometimes be adjusted to make manual assembly faster and reduce the risk of crushing the board edges.
Packing details

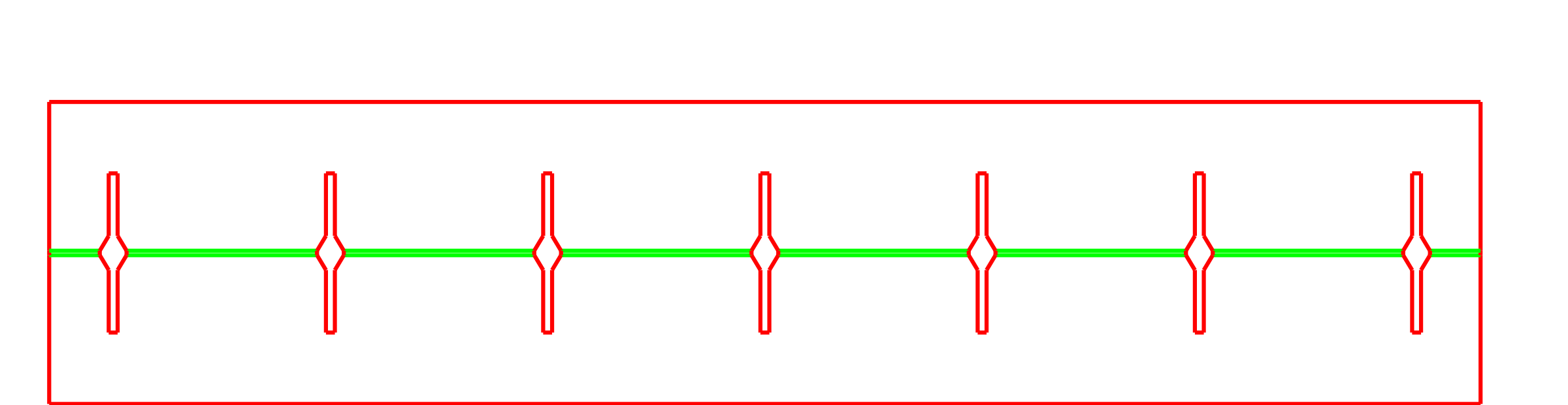

Double Crease Slot Bases
The bottom of each slot features a double crease. This small detail wraps around the intersecting board, reducing the risk of the strips tearing when pressed together.
Print and Finish
Partitions are typically left unprinted or use simple one-color flexo printing, as they serve a purely internal protective role.
Additional notes
Outer carton coordination
The internal dimensions of the master shipping box should closely match the outer footprint of the assembled partition, including the extensions, to keep the grid from shifting during transit.
Related Inserts and Shippers
FAQs
Can this partition be assembled automatically?
Because this is a multi-piece grid, standard linear folder-gluers are not typically used for assembly. High-volume operations often use specialized partition-collating equipment, while lower volumes are usually assembled by hand at the packing station.
How do I determine the right cell size?
Cell dimensions should be based on the maximum diameter or width of the product. You can choose a tight friction fit or leave slight clearance for easier loading and unloading.
Can I switch board thicknesses later?
Changing the board thickness, for example from E-flute to B-flute, usually involves new cutting tooling. The slots should be widened to match the new board caliper, or the strips may crush when forced together.
Does this partition add stacking strength to the box?
Yes. The intersecting vertical walls of the grid share the top-load weight with the outer box, which can help prevent the master carton from crushing under heavy pallets.
How long should the perimeter extensions be?
The extensions are typically sized to provide a safe air gap for the specific product, often half the width of a standard cell. They should be long enough to absorb impact without transferring force to the items inside.
How are these delivered?
The longitudinal and transverse strips are delivered completely flat and bundled. This makes them extremely space-efficient for shipping and warehouse storage prior to use.
Do the slots tear easily during hand assembly?
The template includes a double crease at the base of each slot. This wraps around the intersecting board, reducing the risk of tearing when the strips are pressed together.
Should the partition fit tightly inside the master carton?
The assembled grid, including its perimeter extensions, should touch the inner walls of the outer box. This prevents the entire partition from shifting during transit.
