Practical Uses for Buffered Partitions
Glassware and Bottle Shipping
Keeps glass items separated to reduce product-to-product contact. The perimeter extensions create a physical gap so that side impacts to the master carton do not directly strike the outermost bottles.
Machined Parts and Heavy Components
Isolates heavy metal or industrial parts that could damage each other during transit. The interlocking grid also adds vertical support to the master carton, which can help with heavier pallet loads.
Electronic Component Kitting
Organizes multiple components into a single master carton. When produced in anti-static or specialized board, the grid keeps sensitive parts separated and buffered from the outer walls.
Cosmetics and Jar Packing
Separates individual jars or bottles to reduce label scuffing and surface damage. The perimeter buffer provides extra clearance for delicate primary packaging.
Industries Relying on Perimeter Protection
E-commerce and Fulfillment
Useful for kitting multiple items into a single shipment. The partitions are delivered flat and assembled at the packing station, keeping the storage footprint low before use.
Industrial Bulk Packing
Allows manufacturers to ship large quantities of identical components in a single master carton while maintaining strict separation and part integrity.
Subscription Box Assembly
Helps organize multiple distinct items neatly within a single box. The grid presents items clearly upon opening while keeping them secure during transit.
When to Consider a Different Divider Style
When maximum cell density is the priority
If the master carton is tightly constrained and side-impact risk is low, a standard partition without perimeter extensions allows for larger internal cells or a smaller overall box footprint.
When packing very lightweight or soft items
For items that do not require rigid separation or vertical stacking support, simple chipboard dividers or molded pulp trays may be more practical and faster to load than corrugated grids.
Key Decisions for Partition Specification
Board Caliper and Slot Clearance
The width of the interlocking slots must precisely match the thickness of the chosen corrugated board. Thicker boards require wider slots and larger diamond cutouts to assemble smoothly without tearing.
Assembly Labor and Volume
These partitions are shipped flat and require manual assembly by sliding the longitudinal and transverse strips together. For very high volumes, discuss whether your packing line uses automated partition assemblers.
Master Carton Sizing
The overall length and width of the assembled partition, including the extensions, must be sized to fit snugly inside the master carton. A loose fit reduces the effectiveness of the perimeter buffer.
Extension Length
Determine how much buffer space is needed between the product and the outer box wall. Longer extensions provide more clearance but require a larger master carton.
Configuring the Grid and Buffer
Cell Count and Dimensions
The number of cells along the length and width can be adjusted to fit the product count. The template automatically recalculates the individual cell sizes based on the overall frame dimensions and the requested grid pattern.
Extension Length Adjustment
The length of the perimeter buffer can be increased for extra clearance or decreased to save space, depending on the fragility of the outer items.
Slot Profile Modification
If flatbed die-cutting is not preferred and the board is thin enough, the diamond cutouts can be removed to allow production on rotary slotting equipment, though this may increase assembly friction.
Packing details

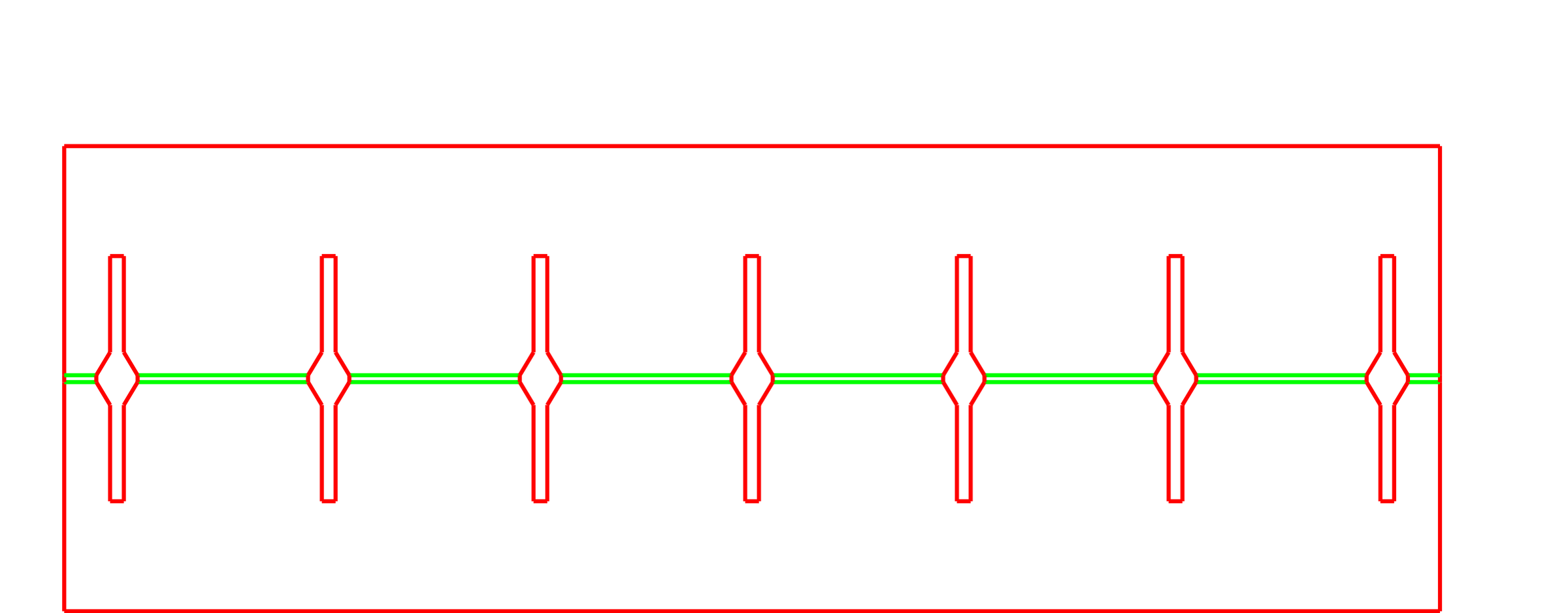

Flatbed Die-Cutting for Diamond Slots
Because of the diamond-shaped clearances at the base of each slot, this partition style requires flatbed die-cutting. It cannot be produced on rotary slotting equipment without modifying the design to use straight, simple slots.
Additional notes
Board thickness and slot fit
The slot width is directly tied to the board caliper. If you change the board grade later, the cutting die must be updated to adjust the slot widths, or the partition will either bind or fit too loosely.
Related Internal Packaging
FAQs
How are these partitions delivered?
They are delivered flat as separate longitudinal and transverse strips. They must be assembled into the grid shape before being placed into the master carton.
What is the purpose of the diamond cutouts in the slots?
The diamond shapes provide relief at the exact point where the two corrugated strips intersect. This reduces board binding, making manual assembly smoother and reducing the risk of tearing, especially with thicker flutes.
How does the perimeter extension change the fit?
It extends the divider walls past the outermost cells, creating an intentional gap between the packed items and the walls of the master carton. This helps isolate the product from side impacts.
Does this partition change the stacking strength of the outer box?
Yes. The assembled interlocking grid acts as a rigid internal honeycomb, which can increase the vertical compression strength of the master carton, helping it support heavier pallet loads.
Can this be made on a rotary slotter?
No. The specialized diamond slot clearances require flatbed die-cutting. If rotary slotting is necessary for your production route, the design must be modified to use straight slots, which may increase assembly friction.
Can I use double-wall board for this partition?
While possible, double-wall board makes the interlocking slots very wide, which can weaken the individual strips before assembly. It also increases assembly friction. B, C, or E flutes are more common for this style.
Do I need to order the master carton at the same time?
It is highly recommended. The overall length and width of the assembled partition must fit snugly inside the master carton for the perimeter buffer to work properly.
How is the individual cell size determined?
The cell size is calculated automatically based on the overall frame dimensions, the number of cells requested, and the length of the perimeter extensions.
