Retail Merchandising and Heavy Loads
Beverage and Wine Promotions
The intersecting grid of the center divider and shelves transfers weight directly to the floor, providing the stability needed for heavy bottles. The barrel shape reinforces the beverage theme.
Freestanding Aisle Displays
With a flat rear profile and a curved front, the display can sit flush against an end-cap or stand independently in an aisle, drawing attention from multiple angles.
Heavy Specialty Food Items
The 16mm rigid board construction and center support make this display suitable for heavy jars, cans, or specialty food items that would cause standard corrugated shelves to sag.
End-Cap Retail Placements
The flat back panel allows the display to sit flush against existing store shelving or end-caps, maximizing floor space while presenting a curved, branded front to shoppers.
Beverage and Specialty Promotions
Retail Rollouts
The tool-free assembly relies on sliding the shelves into the back panel and dropping locking pegs into place. This allows store staff to set up the display quickly without hardware or adhesives.
Logistics and Distribution
A native folding hinge across the main back panel allows the tall structure to fold in half. This significantly reduces the flat footprint, making it easier to palletize and distribute to individual stores.
Brand Activations and Thematic Campaigns
The distinctive barrel silhouette provides a large, continuous canvas for direct-to-board UV printing, helping thematic campaigns stand out in crowded retail environments.
Comparing Display Profiles
When a standard shape is preferred
If the barrel curve does not fit the brand or if maximum shelf width is required across the entire height, a straight-sided floor display may be a more efficient use of space.
When a different aesthetic curve is needed
If the barrel profile does not match the campaign theme, alternative curved back panels can provide a different visual footprint while maintaining the same shelf capacity.
Material and Shipping Considerations
Board Thickness and Routing
This display relies on 16mm rigid board (such as Inverted Corrugated Board or honeycomb) for its strength. Because of the material thickness and the folding hinge, it is manufactured using CNC routing rather than traditional die-cutting. This makes it well-suited for short to medium production runs.
Physical Load Testing
While the center divider provides significant support, the outer spans of the shelves are unsupported. A physical prototype should always be loaded with the actual retail product to confirm the shelves will not sag over time.
V-Cut Hinge Necessity

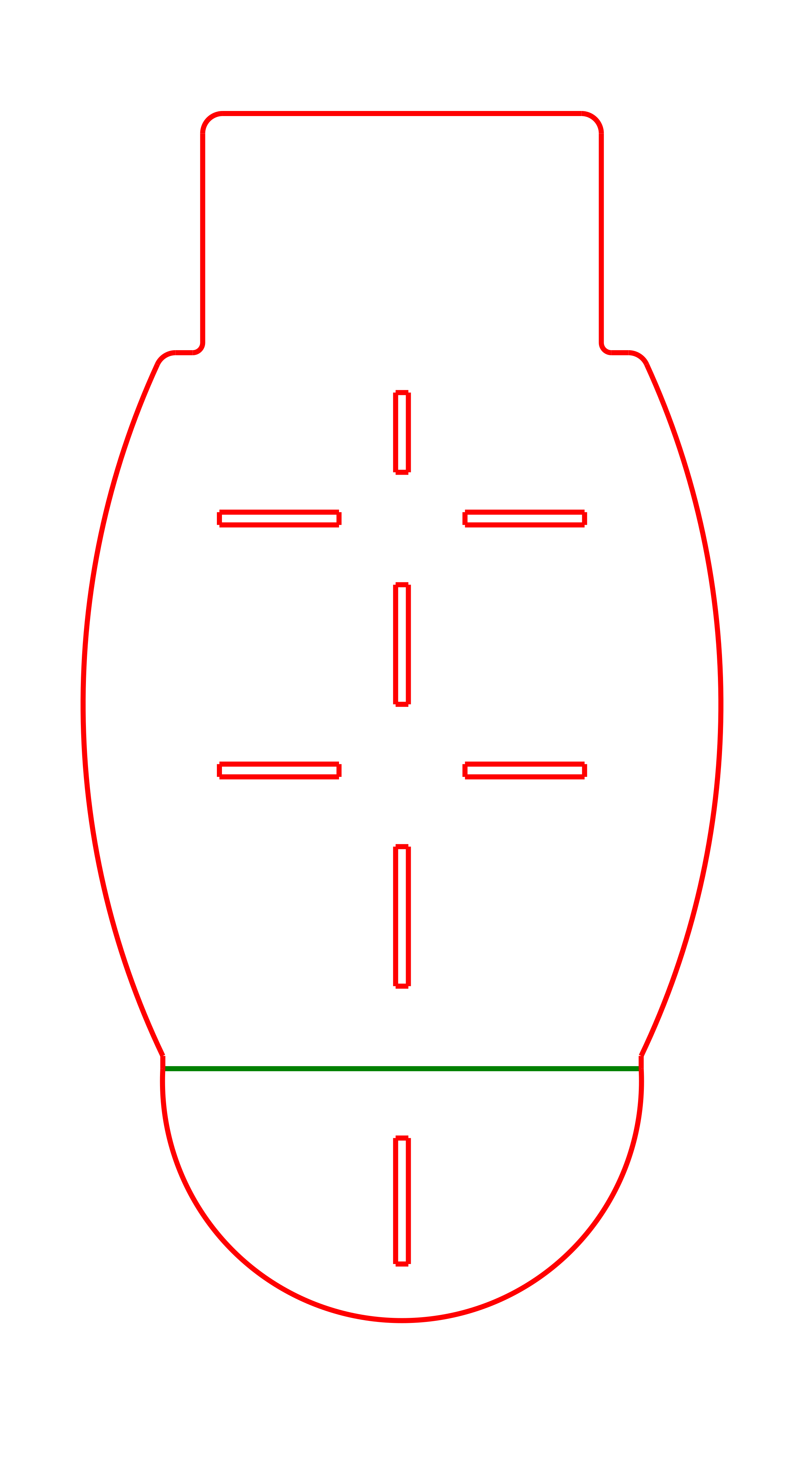

The horizontal V-cut allows the tall back panel to fold in half for shipping. If the display will be shipped fully assembled or if local transport can accommodate the full height, the V-cut can be removed to increase the back panel's continuous strength.
Print Surface and Artwork Alignment
The curved back panel and top header offer significant branding space. Artwork should be planned to account for the intersecting shelves and the center divider, which will obscure portions of the back wall.
Customizing the Display
Shelf Spacing and Height
The vertical distance between the shelves, as well as the height of the bottom shelf from the floor, can be adjusted to accommodate different bottle heights or product sizes.
Header Dimensions
The rectangular header at the top of the display can be resized or reshaped to fit specific campaign artwork or die-cut logos.
Base Footprint Adjustments
The overall width of the barrel curve and the depth of the shelves can be modified to fit specific retail floor space requirements or larger product dimensions.
Packing details
Locking Peg Mechanism
The shelves and center divider feature tabs that pass completely through the back panel. Small T-shaped pegs are then dropped into holes in these tabs, wedging the components securely against the back wall and preventing the shelves from pulling forward.
Additional notes
Material thickness and slot tolerances
If a different board thickness is chosen (e.g., 10mm instead of 16mm), the width of all intersecting slots and locking tabs must be recalculated to ensure the display remains stable and easy to assemble.
FAQs
How does a display this tall ship flat?
The main back panel features a horizontal folding hinge (a V-cut in the rigid board). This allows the tall back wall to fold in half, significantly reducing the size of the flat package for pallet shipping.
Do store teams need tools to build this?
No. The display uses a tab-and-slot design. The shelves slide through the back panel, and small locking pegs are dropped into place by hand to secure the structure.
Is this display strong enough for wine bottles?
Yes, it is designed for heavy loads. The vertical center divider intersects with the shelves, transferring the weight of the products directly to the floor. However, we always recommend testing a prototype with your actual product to ensure the outer edges of the shelves do not sag.
Can we change the distance between the shelves?
Yes. The vertical spacing between the shelves can be adjusted to fit taller bottles or shorter specialty items.
What material is used for this display?
It is typically cut from 16mm heavy-duty rigid board, such as Inverted Corrugated Board (ICB) or honeycomb board, which provides the necessary rigidity for the shelves and the locking mechanism.
Can the header shape be customized?
Yes. The rectangular header at the top of the display can be resized or reshaped to match specific campaign artwork or brand logos.
Does the back panel have to fold in half?
No. The folding hinge is included to make pallet shipping more efficient. If your logistics plan allows for shipping the full height flat, the hinge can be removed for a solid back panel.
How are the shelves secured to the back panel?
The shelves have tabs that pass through slots in the back panel. Small locking pegs are then inserted into these tabs at the rear of the display, wedging the shelves securely in place.
