Retail and Merchandising Applications
Heavy or bulky retail goods
The rigid board and wedged joinery support more weight than typical folded bins, making it a strong fit for beverages, hardware, or premium packaged goods.
High-end temporary fixtures
The clean lines and lack of visible folded flaps give it a semi-permanent, furniture-like appearance for seasonal rollouts or premium brand presentations.
Store-floor assembly
The peg-and-slot design requires no tools, tape, or adhesive, allowing retail staff to set it up quickly without specialized training.
Semi-permanent aisle placements
The thick board and locking joints withstand shopping cart bumps and heavy foot traffic better than conventional folded bins, making it suitable for longer-term aisle placements.
Store Environments and Fulfillment
Club stores and big-box retail
Environments that demand sturdy, high-visibility endcaps or aisle displays that resist crushing under heavy foot traffic or dense product weight.
Co-packing operations
The multi-part flat delivery allows co-packers to easily stage the components, though the small locking pegs must be carefully kitted to avoid loss before final assembly.
Heavy-goods merchandising
Brands launching heavy items like hardware tools, paint, or large beverage multipacks benefit from the rigid base and wedged joints that prevent the display from bowing.
When to Consider Different Display Styles
Multi-shelf presentations
If the product mix requires tiered merchandising, a multi-shelf variant provides the same peg-and-slot strength with additional horizontal platforms.
Lightweight dump bins
If the product is light and budget is the primary driver, a conventional folded corrugated display will be more economical than routing thick rigid board.
Board, Kitting, and Production Choices
Board thickness and slot tolerances
This template is natively designed for 16mm board. Any change in material caliper requires recalculating all slot widths and peg clearances so the joints do not bind or tear.
Kitting and transit

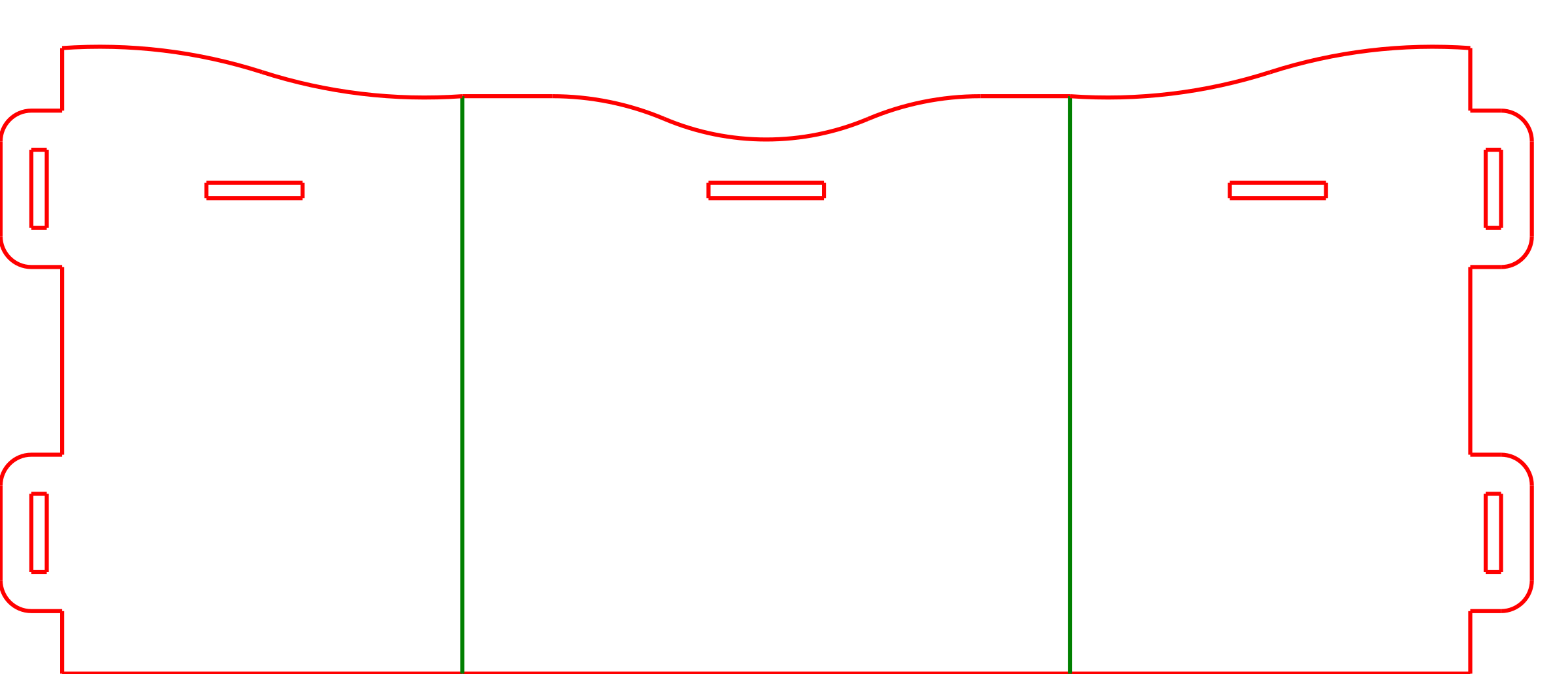

The display consists of a large rear wall, a base, a shelf, and small locking pegs. The flat-pack strategy must account for securing the small pegs so they arrive safely at the retail destination.
Print and finish
The large, flat rear wall and U-shaped base offer uninterrupted panels for direct-to-board digital printing or litho-lamination.
Shelf load and span limits
While the peg-and-slot joints are strong, the shelf itself can sag if the span is too wide for the product weight. Testing the exact product load on a physical mockup is necessary before full production.
Structural and Visual Adjustments
Shelf span and depth
The shelf dimensions can be adjusted for different product footprints, but wider spans may require testing to ensure the board does not sag under heavy loads.
Base profile and header shape
The curves on the U-shaped base and the top of the rear wall can be modified to match brand aesthetics or specific product access needs.
Locking peg extension
The length of the locking pegs can be adjusted to provide a tighter wedge against the rear wall, depending on the exact thickness and compression behavior of the chosen board.
Packing details
Production routing
Because of the thick board and slot joinery, this display is typically produced on large-format digital flatbed cutters or heavy-duty flatbed die-cutters, making it well-suited for short to medium rollout volumes.
Shelf load testing
While the peg-and-slot mechanism is inherently strong, the actual weight capacity depends entirely on the chosen board grade and the width of the shelf span. Physical mockups should be loaded with the real product before full production.
Additional notes
Direct-to-board printing
The flat, rigid components are well-suited for large-format digital printing, allowing for high-quality graphics without the need for separate printed wraps or labels.
FAQs
Does this display require glue or tape to assemble?
The entire structure is held together by extended tabs that pass through the rear wall and are locked in place by separate wedge pegs, eliminating the need for adhesive.
Can we use conventional corrugated board for this design?
Conventional corrugated lacks the shear strength for the peg slots and will likely crush under load. The template is designed for rigid materials like 16mm Inverted Corrugated Board (ICB) or honeycomb board.
How is the display shipped?
It ships knocked down as a set of flat parts. Because it includes small locking pegs, the components must be carefully kitted or shrink-wrapped together so nothing is lost in transit.
Can the shelf hold heavy products like beverages?
Rigid board displays are often used for heavier goods, but the exact weight capacity depends on the board thickness and the shelf width. A physical load test is always a necessary step.
How do we change the height of the rear wall?
The rear wall height can be extended to create a taller header for branding, provided it stays within the maximum cutting bed limits of the production equipment.
Is this suitable for automated packing?
This is a multi-part display that requires manual assembly, either by a co-packer or by retail staff on the store floor.
Can we add dividers or inserts to the shelf?
The flat shelf surface can accommodate separate rigid or corrugated dividers to organize smaller items, though these are cut as separate pieces and placed during store setup.
Should we test a prototype before ordering the full rollout?
A physical prototype is a necessary step. Because the shelf relies on board stiffness rather than folded supports, testing the exact product weight ensures the shelf will not sag over time.
