Retail Merchandising And Floor Presentations
Semi-Permanent Retail Displays
The thick rigid board construction makes this unit suitable for longer-term retail promotions. The four shelves provide ample space for multiple identical products, while the tall header and side walls offer large, uninterrupted surfaces for brand graphics.
Boxed Goods And Packaged Items
The flat shelves and front retaining lips are well-suited for holding boxed retail items, cosmetics, or stable bottles. The shelves transfer weight to the side walls via locking tabs, but heavy loads should always be physically tested.
End-Cap Promotions
With its tall profile and stable pedestal base, this unit fits naturally at the end of retail aisles. The separate rear panels ensure the back remains closed and rigid, keeping the presentation clean from multiple angles.
High-Traffic Aisle Merchandising
The extended footprint of the separate base helps resist forward tipping in busy retail environments. The front lips on each shelf keep loose or boxed items secure even if the display is bumped.
Aisle And End-Cap Environments
In-Store Assembly And Setup
Because this is a multi-piece unit, it requires manual assembly at the retail location. While the shelves slot into the side walls, the separate base and rear cover panels typically require double-sided tape or adhesive to secure them in place.
Flat-Pack Distribution
The entire display ships knocked down. The main stand, base, and rear panels must be kitted together into a custom outer shipping carton, saving significant space during transit before arriving at the store.
Large-Format Brand Campaigns
The flat, rigid panels provide excellent surfaces for direct large-format digital UV printing. Artwork can be applied across the header, side walls, shelf lips, and base to create a cohesive brand presentation.
When To Consider Alternative Displays
When shipping fully assembled
This display is designed to ship flat as a knocked-down kit. If you need a display that ships fully loaded with product as a pre-pack, a different structural style with an integrated shipping shroud is usually required.
When displaying heavy bulk items
While the V-cut rigid board and locking tabs provide good stability, extremely heavy loads may exceed the capacity of the shelf hinges. For heavy bulk goods, a metal fixture or a reinforced corrugated structure may be a safer choice.
Material, Print, And Assembly Choices
Rigid Board And V-Cut Requirements
This design relies on V-cut hinges to create clean 90-degree folds. It requires thick, rigid materials like 16mm or 10mm honeycomb board, ICB, or Re-board. Standard thin corrugated board cannot support the V-cut geometry.
Print Surfaces And Branding
The large, flat panels are ideal for direct large-format digital UV printing. Artwork can be applied to the header, side walls, shelf lips, and the base to create a cohesive brand presentation.
Flat Delivery And Kitting
The display consists of one main stand, one base, and four rear panels. These pieces must be kitted together into a custom outer shipping carton for safe transit to the retail store.
Base Attachment Method
The separate pedestal base and rear cover panels do not have native friction locks. You will need to specify double-sided tape or an adhesive plan for the retail staff to secure these pieces during setup.
Adjusting The Display Layout
Shelf Clearance And Depth
The vertical distance between the shelves and the depth of the shelves can be adjusted to accommodate different product sizes. Changing the material thickness requires recalculating the slot widths and V-cut offsets.
Custom Header Shapes
The rounded top header can be modified into different shapes or contours to match specific brand logos or campaign themes.
Material Thickness
The design can be adapted for different rigid board thicknesses, typically between 10mm and 16mm. Thicker boards increase load capacity but require adjustments to the V-cut routing paths.
Packing details
Anti-Tip Base And Footprint
The separate trapezoidal base elevates the bottom shelf and extends the footprint of the display. This helps resist forward tipping, but the overall center of gravity should be checked when planning the product load.
Additional notes
Shelf Retaining Lips
Each shelf features a front lip that folds up to help keep products from sliding off the front of the display.
FAQs
Does this display require tools or tape to assemble?
While the shelves lock into the side walls using tabs, the separate base pedestal and the rear cover panels generally require double-sided tape or adhesive to stay securely in place.
Can this be made from standard corrugated cardboard?
No. The clean 90-degree folds rely on V-cut hinges, which require thick, rigid materials like honeycomb board or ICB (typically 10mm to 16mm thick). Standard corrugated board will not fold correctly with this design.
How is this display shipped to stores?
It ships flat as a knocked-down kit. Because it is a multi-piece design, the main stand, base, and rear panels must be kitted together and packed inside a custom outer shipping carton.
How much weight can the shelves hold?
The weight capacity depends entirely on the specific rigid board chosen and the width of the display. The shelves use side tabs to transfer weight to the walls, but heavy items like large beverage bottles should be physically tested with a prototype.
Can the shape of the top header be changed?
Yes, the top header profile can be custom-cut to match brand logos, specific shapes, or promotional themes without altering the main folding structure.
Do the shelves sit flat or at an angle?
The shelves fold down to sit completely flat at 90 degrees from the back wall. Each shelf also has a front lip that folds up to keep products from sliding forward.
What board thickness is required for this display?
This design is typically routed from 10mm to 16mm rigid board. The exact thickness must be chosen before production, as it dictates the width of the locking slots and the V-cut hinge offsets.

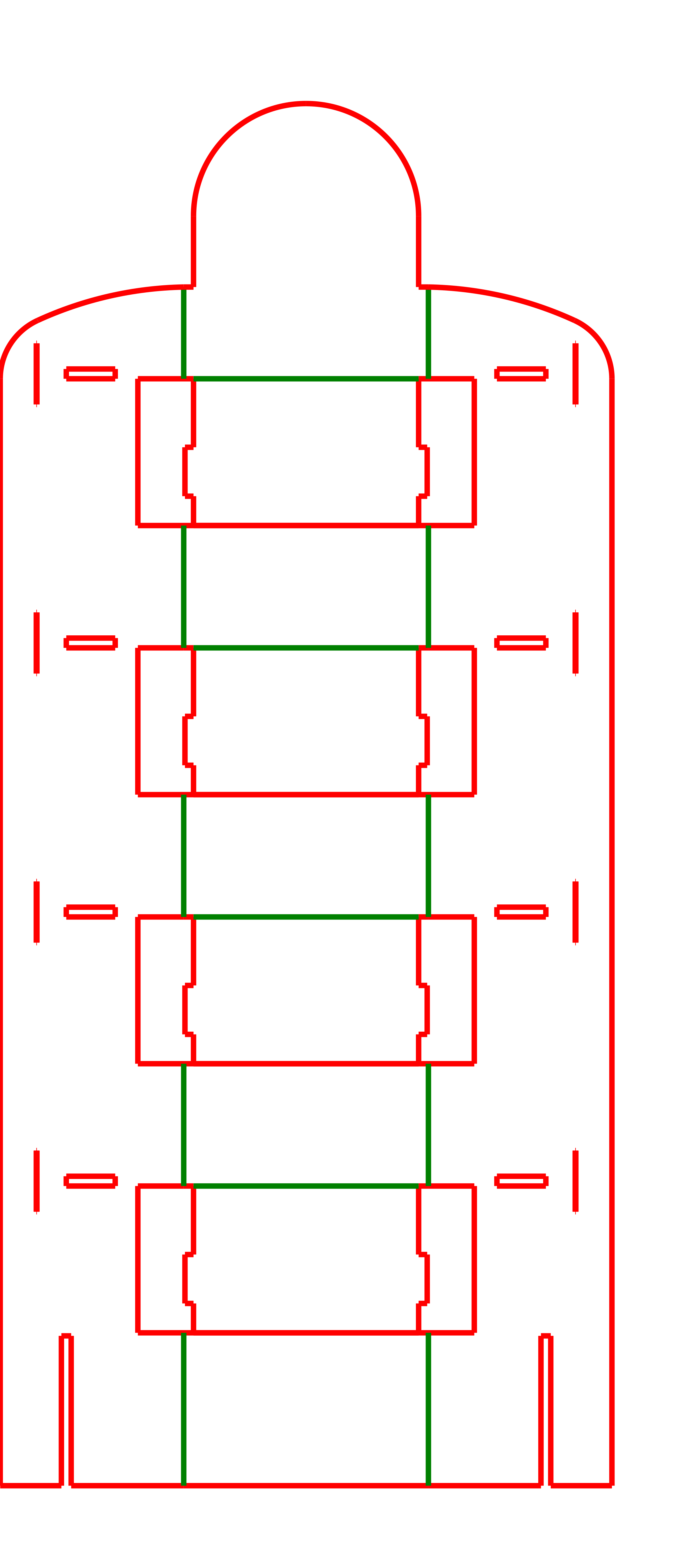

Is the display cut from a single sheet of board?
No. While the main stand and shelves are cut from one large sheet, the base and the four rear cover panels are separate pieces that must be packed together.
