Retail Applications for a Single-Shelf Display
Heavy or Bulk Retail Items
The single, deep shelf accommodates stacked goods or large, bulky items that might overwhelm a standard corrugated display. The rigid board construction transfers weight directly to the side walls.
End-Cap and Aisle Presentations
With a tall back wall and a large front fascia, this unit provides ample branding space, making it highly visible in high-traffic retail environments.
High-Impact Brand Campaigns
The tall front plinth acts as a continuous billboard. This uninterrupted surface is highly effective for product launches or seasonal promotions where visual impact is the primary goal.
Freestanding Product Bins
Because the shelf is deep and enclosed by the side walls and front fascia, the display can act as a sturdy bin for loose or irregularly shaped items that do not stack neatly.
Who Uses This Display Style
Retail Merchandising Teams
Merchandisers benefit from the large, uninterrupted print panels on the back wall and front plinth, allowing for high-impact campaign graphics.
Store Operations
Store associates can assemble the unit quickly without tape or glue. The two-piece design simply slides and locks together, reducing setup errors on the floor.
Trade Show and Event Exhibitors
The flat-packing design and tool-free assembly make this a practical choice for temporary event spaces where quick setup and teardown are required.
When to Consider a Different Display
Assorted or Segmented Products
If you are displaying multiple product types or smaller items that need separation, a multi-shelf unit or a design with internal dividers will organize the presentation better than a single deep shelf.
Lightweight Counter Presentations
For small, lightweight items intended for checkout areas, a standard corrugated counter unit is often a more practical choice than a large rigid board floor unit.
Key Decisions for Production and Fit
Material Thickness and Cutting Method
This unit is typically cut from 16mm rigid board or honeycomb. The thickness usually requires CNC routing or heavy-duty flatbed cutting. The cutting method must hold tight tolerances so the friction-fit tabs lock securely.
Print Panel Planning
The back wall, side walls, and front fascia offer large branding areas. Because the side walls fold forward, their interior faces are visible and often require double-sided printing.
Physical Load Testing
While rigid board is strong, a single wide shelf can sag under extreme weight. Physical testing with your actual product is necessary to confirm the shelf load capacity and the overall anti-tip stability.
Shelf Depth and Footprint
The depth of the side walls determines the overall footprint. This must be balanced against the product volume needed and the available aisle space in the target retail environment.
Adjusting the Display Proportions
Shelf Height and Plinth Size
The height of the shelf can be adjusted, which directly changes the size of the front branding plinth. A higher shelf creates a taller plinth but reduces the vertical space available for product stacking.
Overall Display Dimensions
The total height, width, and depth can be scaled to fit specific retail planograms, provided the overall footprint remains stable against tipping.
Base Leg Clearance
The gap at the bottom of the front fascia can be adjusted. A larger gap may be required for floor cleaning access or to accommodate pallet jacks if the unit is moved while loaded.
Packing details
Flat Shipping and Logistics

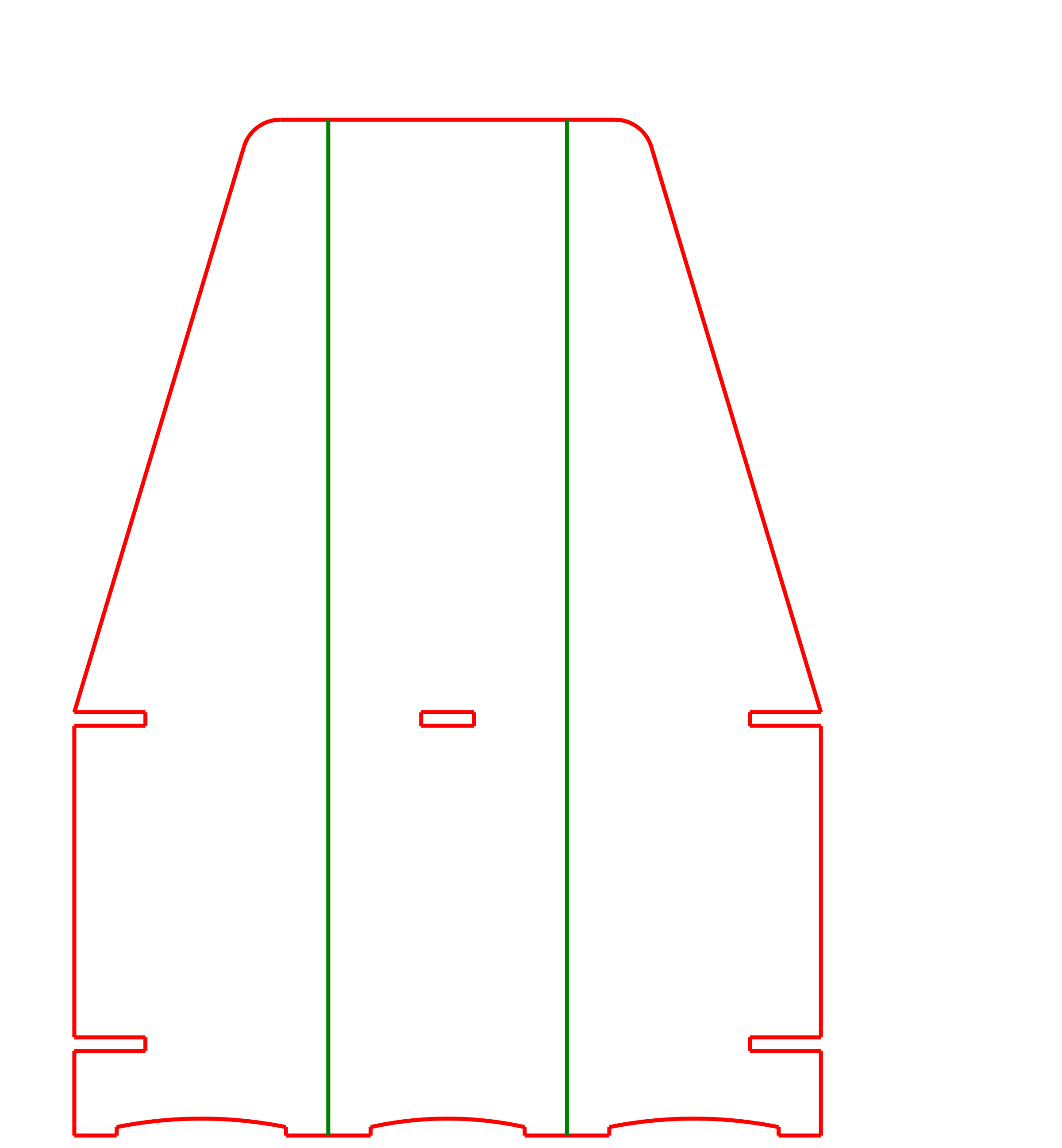

The unit consists of two large blanks: the main body and the shelf component. These ship flat to the retail location, minimizing transit volume before being erected on-site.
Additional notes
Tab and Slot Tolerances
The stability of the display depends entirely on the friction fit of the tabs. Precise CNC routing is critical to ensure the joints are neither too tight to assemble nor too loose to hold weight.
FAQs
How does this display assemble in the store?
The main body folds into a U-shape. The separate shelf component then slides in, and its side tabs lock into slots on the side walls. The front fascia folds down to form the base. No tape or glue is used.
Can this be made from standard corrugated board?
This specific tab-and-slot approach relies on the thickness and rigidity of materials like 16mm honeycomb or inverted corrugated board. Standard thin corrugated board would likely crush at the connection points under load.
How much weight can the shelf hold?
The capacity depends on the exact material chosen and the width of the shelf. Because the entire load is transferred through the side tabs, physical testing with your product is recommended to ensure the shelf will not sag.
Which areas of the display can be printed?
The large back wall, the outside of the side walls, and the front plinth are the primary branding surfaces. The inside of the side walls is also visible when assembled, so double-sided printing is often used.
Does this display ship with products already loaded?
No, this unit is designed to ship flat to the retail store, where it is assembled and loaded with product on-site.
Can the front plinth be removed?
The front fascia panel folds down to stiffen the front edge of the shelf and prevent bowing. Removing it entirely would reduce the shelf load capacity.
How do we ensure the display will not tip forward?
The depth of the side walls and the position of the shelf must be balanced against the product center of gravity. Physical testing with the actual product is recommended to confirm stability.
Does this design require custom cutting dies?
For short to medium runs, 16mm rigid board is typically cut using CNC routing, which does not require physical die boards. High-volume runs may use heavy-duty flatbed cutting depending on the exact material.
