Retail Signage and Display Headers
Wall-Mounted Graphics and Signage
The hollow frame provides excellent beam strength and a premium, thick appearance, making it a strong fit for large retail wall graphics that need to remain flat and rigid without heavy mounting hardware.
Point-of-Purchase Display Headers
When mounted atop a larger floor display, the recessed center naturally frames promotional artwork, while the 3D border adds visual depth to the overall fixture.
Trade Show and Event Backdrops
For temporary event spaces, these lightweight panels offer a substantial architectural look. They are much easier to transport and hang than traditional wooden set pieces.
Premium Counter Mats and Presenters
Scaled down, the framed structure works well on retail counters to highlight luxury cosmetics or electronics, keeping the focus contained within the recessed center.
Premium Merchandising and POP Environments
Premium Retail and Showrooms
Brands looking to elevate their in store presentation often use this board to replace flat, single sheet signs. The mitered corners and thick edges signal a higher end display.
Temporary Pop-Up Shops
Short term retail activations benefit from the visual weight of these panels. They deliver a permanent architectural feel but are easily recycled or removed after the event.
Corporate Lobbies and Office Branding
Companies needing branded wall art or directional signage can use these framed boards for a clean, modern aesthetic that mounts easily to drywall.
When to Consider Standard Trays or Flat Boards
Standard Corrugated Trays for Containment
If you need to hold or ship products rather than display a graphic, a standard roll-end tray is a better choice. This panel board is a signage component, not a containment vessel, and its hollow frame is not designed to bear heavy internal product weight.
Flat Rigid Boards for Simple Signage
If the 3D frame aesthetic is not required, a simple flat sheet of honeycomb or foam board is more economical. The flat board avoids the need for V-cut routing and manual gluing.
Frame Width, Depth, and Delivery State
Pre-Assembled Delivery vs. Flat Shipping
Because the 45 degree mitered corners must meet perfectly flush and require adhesive to stay locked, this board is usually shipped pre-assembled to the retail store. Shipping it flat requires store associates to apply glue and hold the frame square, which often leads to poor results.
Outer Protection for Transit
While the assembled board is rigid, the hollow perimeter frame can crush under focused impact. If moving through a mixed parcel network, the finished display will need a protective master shipper.
Print Surface and Registration
Graphics are typically printed directly onto the flat board before it is routed and folded. The recessed central panel and the raised front frame are the primary visible areas for branding, requiring careful alignment during the digital print stage.
Mounting Hardware and Hanging Strategy
Decide how the panel will attach to the wall or display fixture. While lightweight, the hollow back frame may require specific adhesive strips, French cleats, or hanging wire depending on the final installation surface.
Adjusting the Frame Proportions
Frame Width and Border Proportions
The width of the front facing border can be adjusted independently of the central graphic area. A wider border creates a more dramatic picture frame effect, while a narrow border maximizes the printable center.
Overall Frame Depth
The depth of the frame can be increased to create a thicker looking sign. The depth must simply remain larger than the thickness of the rigid board being used to ensure the V-cuts fold correctly.
Board Thickness Compatibility
While often cut from 16mm rigid board for maximum visual impact, the template can be adjusted for thinner 10mm or 8mm boards, provided the frame depth is scaled to match the new material caliper.
Packing details
V-Cut Routing and Material Choice

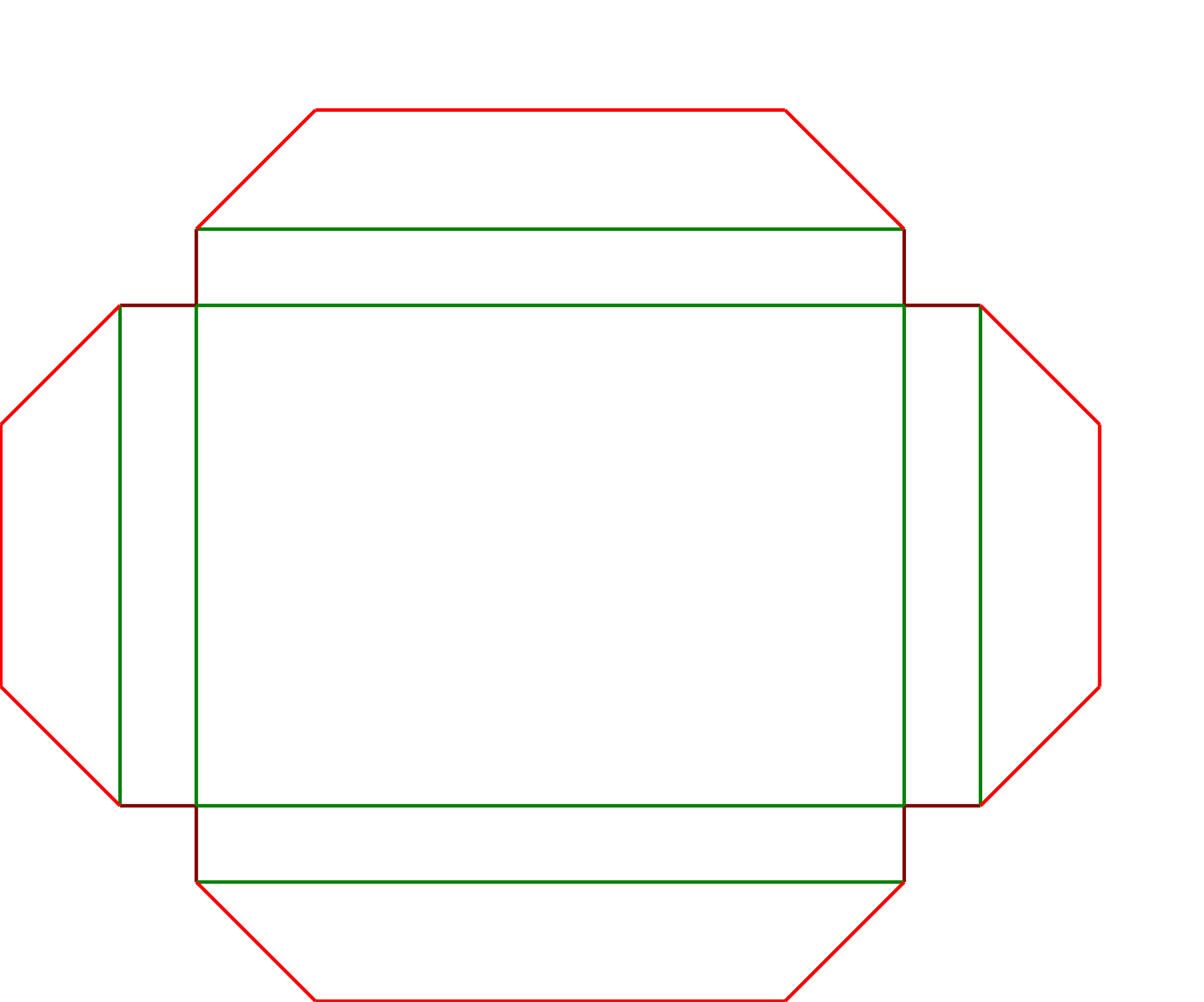

This structure cannot be produced with standard steel rule die-cutting. It requires CNC flatbed routing to cut the precise V-grooves that allow thick materials like 16mm honeycomb or ICB to fold cleanly at 90 degrees.
Material and Thickness Options
Custom Corner Angles
The standard 45 degree miter is required to create a perfect rectangular frame. Changing this angle is only done when designing custom hexagonal or octagonal display boards.
Additional notes
CNC Routing vs. Die-Cutting
Because of the thick rigid board and the need for precise V-grooves, this display is produced on a CNC flatbed router rather than a traditional die-cutting press. This makes it highly suitable for short to medium display runs.
Related Display Structures
FAQs
Can this display board be assembled at the retail store?
It is generally not recommended. The frame requires adhesive in the V-grooves or at the mitered corners, and the 45 degree joints must be held perfectly square while the glue sets. Pre-assembling before shipment ensures a clean, professional look.
Can this be made from standard corrugated board?
No. This design relies on V-cut hinges, which are specifically routed into thick, rigid materials like honeycomb board, Xanita, or Inverted Corrugated Board. Standard corrugated board is too thin and crushes under V-cutting.
Can the hollow frame support heavy mounted products?
The frame provides excellent rigidity to keep the board flat, but the hollow cavity beneath the front border is vulnerable to crushing if heavy items are mounted directly to it. It is best used for printed graphics and lightweight attachments.
Where can graphics be printed on this board?
Graphics are typically printed directly onto the flat board before it is routed and folded. The recessed central panel and the raised front frame are the primary visible areas for branding.
Does the assembled board need special packaging for shipping?
Yes. If shipping via parcel or courier networks, the assembled board needs a protective outer carton. The hollow edges can dent if dropped or struck directly during transit.
Can the corner angles be changed?
The standard 45 degree miter is required to create a perfect rectangular frame. Changing this angle is only done when designing custom hexagonal or octagonal display boards.
How is the board mounted to a wall?
Because the board is lightweight, it can often be mounted using heavy duty double sided adhesive strips, hook and loop fasteners, or custom French cleats attached to the back of the recessed panel.
Is this suitable for outdoor use?
This depends entirely on the material and coating chosen. Standard paper based honeycomb or ICB is designed for indoor retail environments and will degrade if exposed to rain or high humidity.
