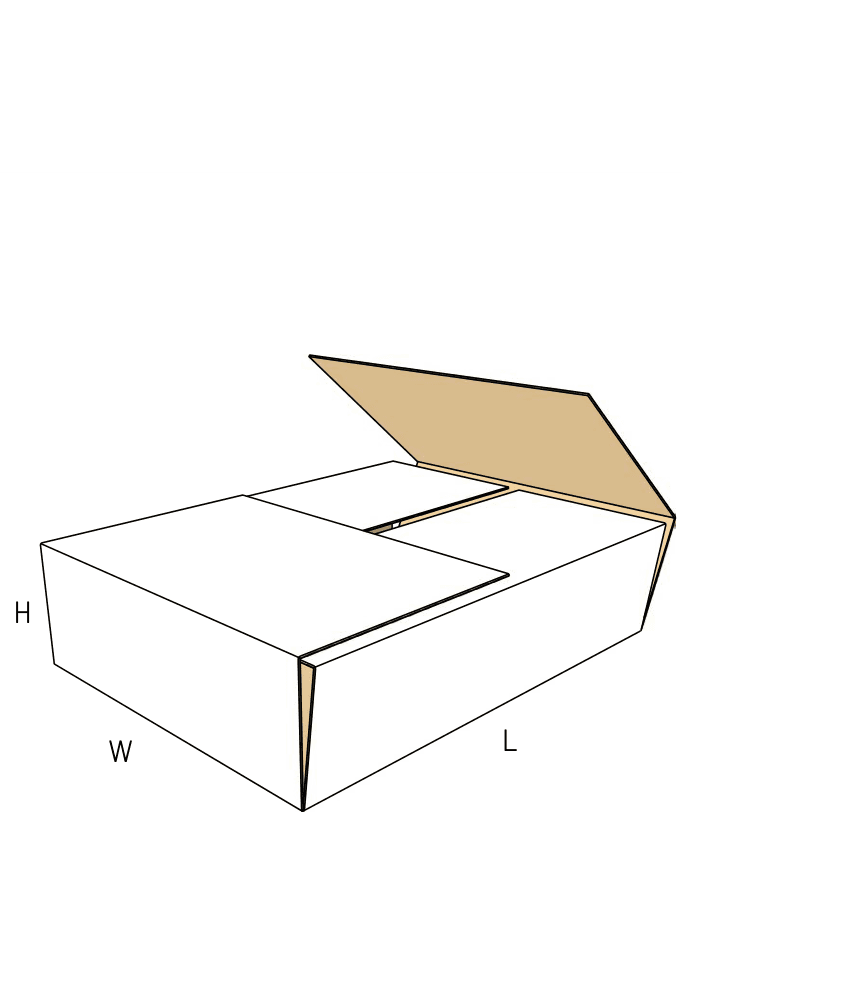

FEFCO 0402

Wrap-Around Folder with Flush Top

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Wraps tightly around flat goods to avoid void fill
Outer covers abut perfectly for a flush top surface
Relies on external strapping or adhesive sealing to secure the closure

About this product

Shipping flat, rigid goods requires packaging that prevents internal shifting without relying on excess void fill. This one-piece wrap-around folder folds directly around the product to form a tight, protective shell with solid edge and corner protection.

Unlike heavier cross-folders, this package uses short inner dust flaps and outer covers that abut perfectly. This creates a clean, flush top surface for sealing while reducing overall material weight.

Common uses

Publishing and print media
Framed art and mirrors
Flat industrial panels
Flat electronics and screens

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Depth (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How do you plan to seal the package?

Which option describes the item going inside?

Will these be stacked heavily on pallets during shipping?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Flat goods and shallow-depth packing

Books, calendars, and print media

Wraps tightly around rigid, flat items, providing edge protection and a flat top surface that stacks cleanly.

Framed art and shallow displays

Secures wide, thin items that are prone to bending. The tight wrap prevents internal shifting without requiring custom inserts.

Industrial panels and flat components

Scales up well for heavy, wide items like door frames or furniture components where a standard slotted box leaves too much empty space.

Flat electronics and screens

Provides a snug fit for monitors or flat devices, keeping the item immobilized during transit before adding an outer master shipper.

Publishing, framing, and industrial distribution

E-commerce and postal fulfillment

The flush top surface provides an even area for applying a secure seal and a shipping label, keeping the package profile slim for parcel delivery.

B2B component shipping

Operations shipping flat metal or wood panels rely on the tight wrap to prevent edge damage when items are stacked on pallets.

Retail distribution

Distributors sending flat goods to retail locations benefit from the compact footprint, allowing more units to fit on a single pallet compared to oversized slotted boxes.

When to evaluate a different wrap-around folder

Heavy top-load environments

If the package will face severe top-crush pressure on a pallet, the center seam of this folder can be a weak point. Evaluate the FEFCO 0401, which uses full inner flaps to create a double-layered top.

Variable product heights

If packing items with unpredictable depths, the abutting flaps of this folder may gap or overlap. A standard FEFCO 0400 is more forgiving of height variations.

Close variants and lookalike dielines

The closest library neighbors include 0401, 0400, 0403. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, closure planning, and fit

Board thickness and top cover alignment

This folder is highly sensitive to board thickness. If a thick double-wall board is selected, the outer covers may bow upward instead of lying flat. Single-wall or fine flutes generally fold much cleaner.

Center seam sealing

Because the top flaps abut without overlapping, the package relies entirely on an applied seal or strapping to stay closed. Plan for a wide, high-tack adhesive seal to secure the center seam during transit.

Internal versus external dimensions

Because the board wraps over itself, specifying whether dimensions are internal for product fit or external for pallet fit changes how the blank is cut.

Packing line capabilities

This style requires either manual hand-packing or specialized wrap-around automation equipment. It does not run on conventional linear folder-gluers.

Template adjustments for product fit

Inner flap angles

The short inner dust flaps are cut at a slight angle to prevent them from binding against the corners of the product during assembly.

Layer step crease compensation

For thicker boards, the fold scores must be offset so the outer walls can wrap over the inner flaps without cracking or bowing.

Dimension type targeting

The template can be adjusted to prioritize a tight internal fit around the product or a strict external footprint for pallet optimization.

Board and packing details

Blank sprawl and material efficiency

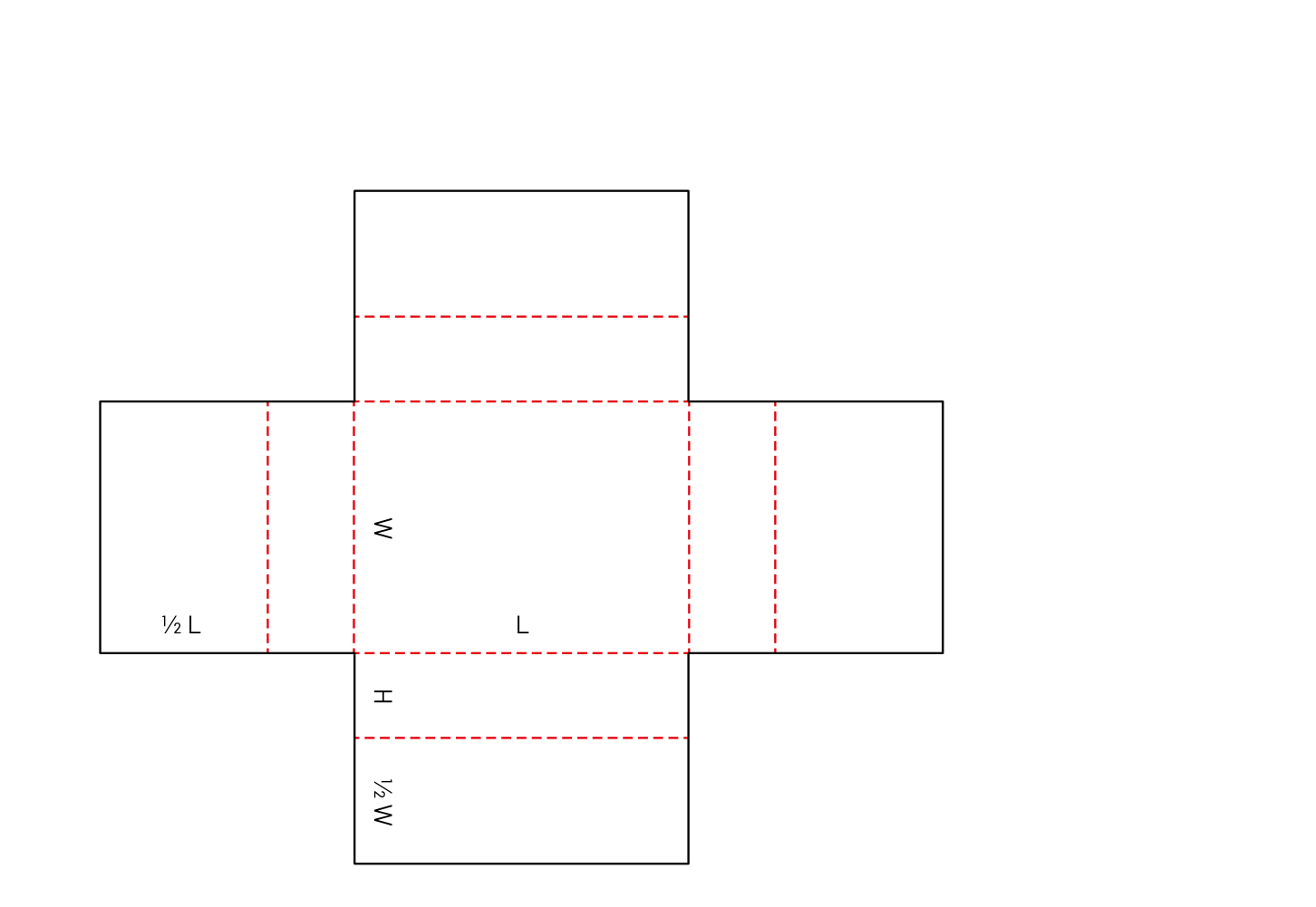

The cross-shaped flat blank requires more raw material area than a standard rectangular box. While it avoids void fill, the corner offcut waste can affect production economics on very large runs.

Additional notes

Center seam support

Because the top covers abut rather than overlap, heavy point loads directly on the center seam can cause the box to bow downward. Consider this if shipping heavy items without a rigid internal product to support the center.

FAQs

Closure and Sealing

Does this folder need external sealing?

Yes. The top covers abut in the center but do not interlock. External strapping or adhesive sealing is necessary to hold the package closed during transit.

Product Fit

Is this a good choice for deep or bulky items?

No. This wrap-around style is designed for shallow, flat goods. Deep vertical loading is better served by a standard slotted box or a dedicated tray.

Material and Board

Can this be made in heavy double-wall board?

It is possible, but thick boards increase the risk of the top covers bowing upward. Single-wall or fine flutes generally fold much cleaner and keep the top flush.

Comparison

What is the difference between this and the 0401 folder?

The 0401 has full inner flaps that meet in the center, creating a double-thick top layer. This 0402 uses short inner dust flaps, which saves material and weight but offers less top-crush resistance.

Production

Why might this cost more than a standard shipping box?

The flat, cross-shaped design creates empty corner space on the raw cardboard sheet during cutting. This offcut waste can make the production economics higher than a standard box, though money is often saved by avoiding void fill.

Assembly

Can this be packed on an automated line?

This style does not run on conventional linear folder-gluers. It relies on either manual hand-packing or specialized wrap-around automation equipment.

Shipping

Is the center seam vulnerable during shipping?

Customization

Can the inner flaps be lengthened?

Extending the inner flaps changes the structural behavior. If they are lengthened to meet in the middle, the package effectively becomes a FEFCO 0401, which requires different fold allowances.
