Retail Plinths and Structural Pillars
Retail Plinths and Pedestals
Acts as a standalone pedestal for elevating specific products or electronics. The sharp V-cut corners provide a clean aesthetic that keeps the focus on the merchandise.
Load-Bearing Display Pillars
Serves as the load-bearing foundation for larger, multi-part point-of-purchase (POP) installations. The internal bulkheads help resist lateral crushing and keep the column square under top loads.
Trade Show Display Bases
Provides a stable, flat-packing base for exhibition environments. The column can be transported flat to the venue and assembled on-site without specialized tools or adhesives.
Semi-Permanent Floor Fixtures
Replaces heavy wood or metal fixtures in temporary retail rollouts. The thick rigid board offers enough durability for multi-week campaigns while supporting recyclable-material goals at the end of the promotion, depending on local recovery routes.
Premium POP and Semi-Permanent Displays
Premium POP and Semi-Permanent Displays
Fits campaigns that need to look like permanent fixtures but still require the logistics of flat-pack shipping. The smooth, uninterrupted front and side panels offer broad surfaces for large-format digital printing and brand messaging.
Trade Shows and Exhibitions
Helps event teams reduce freight costs and drayage fees. The knocked-down delivery takes up minimal space in transit, while the assembled column provides a substantial physical presence in the booth.
Showroom and Gallery Presentations
Supports clean, minimalist product presentations. The hidden back seam and continuous front faces prevent raw corrugated edges from distracting viewers in high-end environments.
When to Consider Standard Corrugated Tubes or Sleeves
When to Consider Standard Corrugated Tubes
If the display requires a lightweight, low-cost dump bin base or a short-term promotional sleeve, a standard glued corrugated tube is usually a better fit. This V-cut column is a heavier display component requiring CNC routing and thick rigid board.
When to Consider Folding Carton Sleeves
For small countertop pedestals or lightweight cosmetic risers, a folding carton sleeve with an auto-bottom may be faster to assemble and cheaper to produce. The ICB40030 is scaled for floor-standing, load-bearing applications.
Board Thickness, Edge Finishing, and Print Layout
Board Thickness and Internal Tolerances

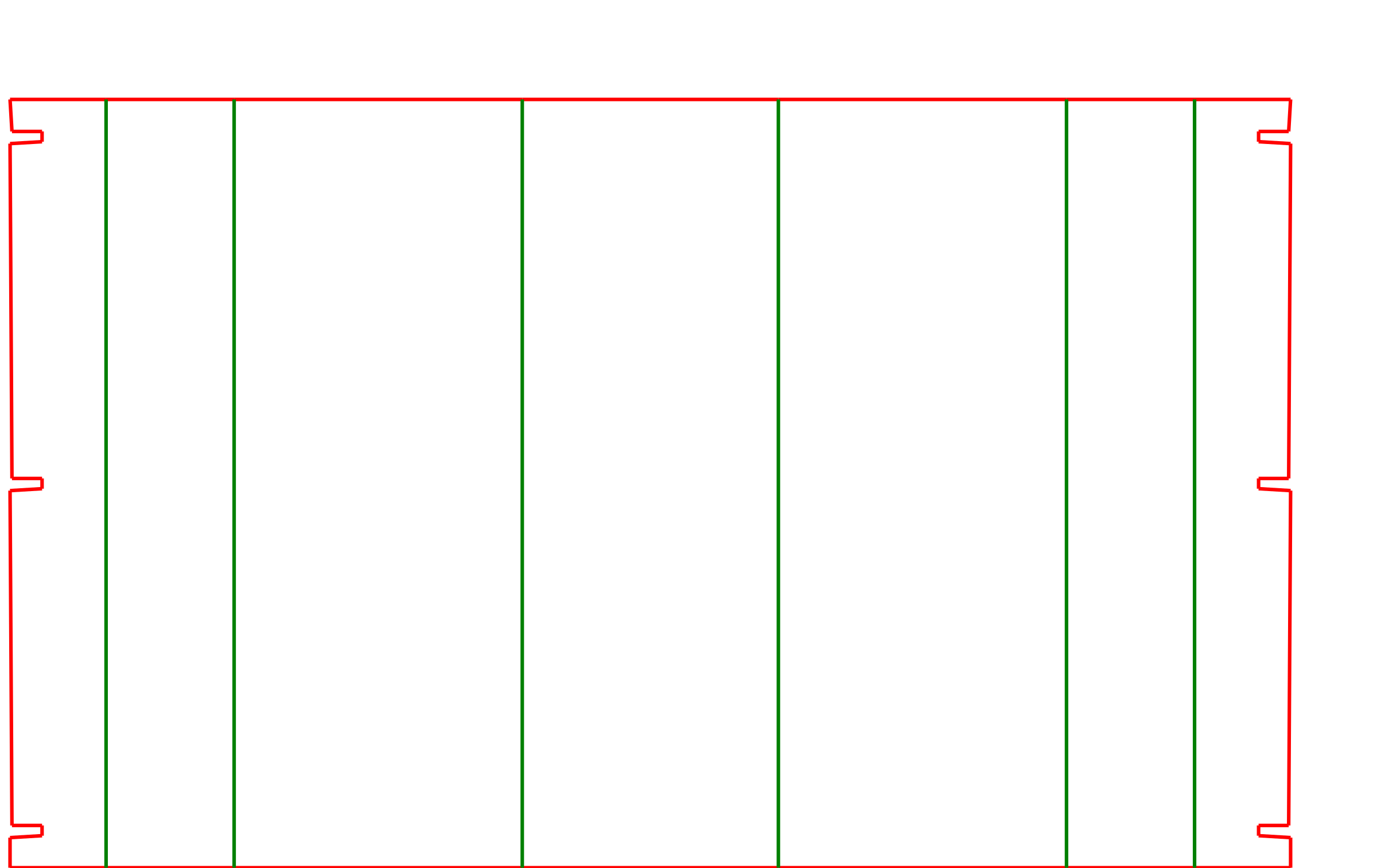

The locking mechanism relies on slots cut into the horizontal supports. These slots need to match twice the thickness of the chosen board. If the material changes from 16mm to 10mm board, the CAD file needs to be updated, or the column will not lock.
Edge Finishing and Top Caps
While the vertical corners are continuous, the top and bottom edges will expose the raw core of the rigid board. Decide if the display design requires a separate top cap, a product tray, or a base skirt to hide these edges.
Assembly Labor and Store Rollout
Store staff will need to position the three internal supports and wrap the main panel around them. While tool-free, manipulating thick rigid board requires some care and clear instructions for retail teams.
Print Surface and Graphic Layout
The front and side panels form a single continuous surface, allowing graphics to wrap around the corners without interruption. The back panel is split by a vertical seam, which should be considered when placing text or logos.
Height Scaling and Support Distribution
Height and Footprint Scaling
The column can be scaled taller or wider. The CAD template automatically resizes the internal horizontal supports to ensure they still fit inside the new footprint.
Support Distribution
For very tall columns, additional mid-span supports can be added to prevent the side walls from bowing. For shorter plinths, the middle support can be removed to reduce material use.
Top and Bottom Capping
The standard template leaves the top and bottom open. Custom capping pieces can be designed to slot into the top opening, providing a flat surface for product placement and hiding the raw board edges.
Packing details
CNC Routing Requirements
Because this design relies on 90-degree V-cuts in thick board, it is produced on a digital flatbed cutter (CNC router) equipped with a V-notch tool, rather than a standard flatbed die-cutter.
Flat-Pack Logistics
Despite its large assembled volume, the column ships as four flat pieces. This reduces freight costs and warehouse space compared to pre-assembled pedestals.
Additional notes
Tooling and CNC Routing
This display relies on a digital flatbed cutter equipped with a V-notch tool. It is not produced using conventional steel-rule die-cutting.
Related Display Components
FAQs
Does this column require glue or tape to assemble?
The main wrap features terminal panels that fold inward to form a double-thick spine. This spine slides into pre-cut slots on the three horizontal supports, locking the entire assembly together without glue or tape.
Can this be made from standard corrugated board?
This specific template is suited for thick, rigid boards (like 16mm ICB or honeycomb) that can be V-cut. Standard corrugated board typically crushes rather than folding cleanly at 90 degrees when V-cut, making it less suitable for this exact template.
How much weight can the column support?
The vertical walls of 16mm rigid board provide substantial compression strength, which can support heavy display items. However, exact load ratings depend on the specific material grade and should be validated with a physical prototype.
Are there visible seams on the outside of the column?
The front and side faces are completely continuous due to the V-cut folds. There is a single vertical seam running down the center of the back wall where the wrap locks together.
Can we change the height of the column?
The overall dimensions can be adjusted. The CAD template will automatically resize the internal horizontal supports to ensure they still fit inside the new footprint.
How is this delivered to stores?
It ships knocked-down (KD) as a flat kit containing the main wrap and the three loose support pieces, minimizing shipping volume.
How should artwork be set up for the continuous corners?
Because the V-cuts allow the board to fold without breaking the outer liner, artwork can be designed to wrap continuously across the front and side panels. Registration marks should align with the V-cut centers.
Are the top and bottom edges closed?
The standard template leaves the top and bottom open, exposing the raw core of the rigid board. If a closed top is needed for product placement, a separate top cap or tray should be added to the design.
