Retail and Structural Display Roles
Load-Bearing Retail Plinths
The internal rib structure makes this pillar highly capable of elevating heavy products or serving as a standalone display pedestal. The cross-web bracing prevents the outer walls from bowing under vertical pressure.
Structural Display Columns
Used as architectural elements in temporary retail setups or trade show booths. The rigid board provides a solid, flat surface for large-format graphics, while the internal matrix maintains the column squareness.
Header and Signage Supports
When building large floor displays, these pillars act as sturdy legs to hold overhead branding or heavy signage without buckling.
Product Risers for Window Displays
The clean V-cut edges and hidden fluting make this column a strong fit for high-visibility window merchandising where raw corrugated edges would detract from the presentation.
Merchandising and Store Rollouts
Premium Brand Activations
When the display needs to look like permanent furniture rather than temporary cardboard, the V-cut corners hide the internal fluting or honeycomb core, delivering a clean, sharp edge suitable for luxury merchandising.
National Store Rollouts
Because the pillar ships completely flat, it drastically reduces freight volume compared to pre-assembled wood or acrylic pedestals. Store staff assemble the internal ribs and wrap the outer shell around them on-site.
Trade Show and Event Marketing
Event teams benefit from a lightweight but highly structural pedestal that can be transported flat, set up quickly for a weekend event, and recycled afterward.
When to Compare Other Display Bases
Lighter product displays
If the pillar only needs to support lightweight items or act as a visual standee, a standard folding carton tube or a lighter corrugated column without internal ribs may reduce manufacturing time and assembly effort.
High-moisture environments
If the display will be mopped around frequently or placed outdoors, standard paper-based rigid board may wick moisture. Comparing a plastic corrugated or PVC foam board alternative is worth discussing.
Material, Assembly, and Shipping Choices
Board Thickness and Material
Typically cut from 16mm or 10mm rigid board. The choice of thickness dictates the width of the interlocking slots. Changing the material means updating the CAD file so the friction-fit tabs engage correctly.
Permanent vs. Temporary Setup
The structure holds itself together through the friction of the tabs and slots. For temporary promotions, this is often sufficient. For permanent or high-traffic installations, adhesive is often added to the V-cuts and slots during assembly.
Flat Delivery vs. Pre-Assembled
Shipping the components flat is highly efficient but shifts the assembly burden to retail staff, who align multiple slots simultaneously. Shipping pre-assembled eliminates retail error but consumes considerable volumetric space.
Print Surface and Coating
The outer wrap is a single large piece of board. Deciding whether to print directly on the board or apply a laminated printed sheet affects the final finish and scuff resistance during store floor handling.
Adjusting Height and Footprint
Height and Footprint Scaling
The overall height, width, and depth of the column can be adjusted. As the outer footprint changes, the internal support ribs scale automatically to maintain the correct bracing geometry.
Slot Offset and Positioning
The vertical position of the internal ribs can be shifted to support specific load points, though this involves careful synchronization between the outer wrap and the internal components.
Base and Top Caps
Depending on the display need, the top and bottom openings can be left open, or fitted with separate drop-in caps to create a closed pedestal surface.
Packing details
CNC Routing and V-Cut Production
This structure is not produced on standard flatbed die-cutters. It relies on a large-format CNC router equipped with a V-cut tool to precisely score the thick rigid board without cutting through the outer printable liner.
Print Panel Layout

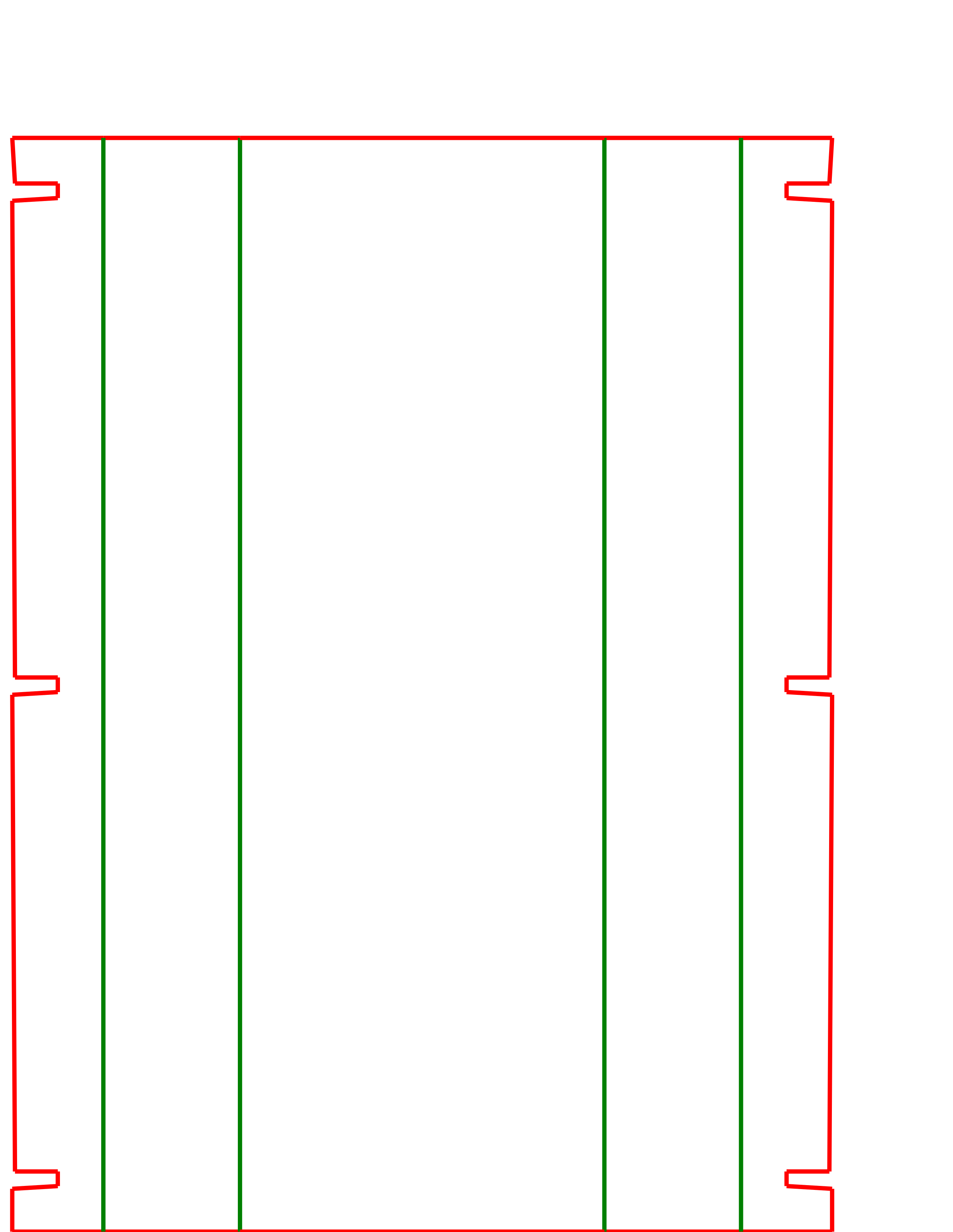

The outer wrap is a single large piece of board. Graphics can be designed to flow continuously across the V-cut corners, ensuring perfect alignment on the finished 3D column.
Additional notes
Retail instruction planning
Because the outer wrap engages with multiple internal tabs at once during the final fold, providing a simple visual assembly guide helps prevent store staff from forcing or damaging the rigid board.
Prototype validation
A physical sample is highly recommended to verify that the slot widths perfectly match the actual caliper of the chosen board, ensuring the friction fit is neither too loose nor too tight.
Related Display Structures
FAQs
How difficult is this pillar to assemble in-store?
Assembly takes moderate effort. Store associates first slot the internal ribs together, place them on the flat outer wrap, and then fold the wrap around the ribs, aligning multiple tabs and slots simultaneously. Clear instructions help.
How much weight can the column support?
The internal interlocking matrix provides vertical crush resistance, often supporting heavy display headers or products. Exact weight limits depend on the chosen board grade, thickness, and footprint, and should be physically tested.
Can this be made from standard corrugated board?
The design relies on V-cuts, which are intended for thick, rigid materials like 10mm or 16mm honeycomb or Inverted Corrugated Board. Standard corrugated board would need a different hinging mechanism and would lose the intended structural rigidity.
Does this need an outer shipping box?
Yes. When shipped flat, the large outer wrap and internal rib components need a protective master carton to prevent the edges and V-cut hinges from being damaged during transit.
Do I need tape or glue to keep it closed?
The column is designed to lock together via friction-fit tabs and slots. While it can stand securely without fasteners, permanent displays or those in high-traffic areas often benefit from adhesive applied during assembly.
Can the height be customized for different displays?
Yes. The vertical height can be adjusted freely within the limits of the CNC machine bed size. The internal ribs will remain properly proportioned to support the new dimensions.
Does the printing cross over the corners?
Yes. Because the outer wrap is cut from a single sheet and folded using V-cuts, artwork can be designed to wrap continuously around the 90-degree corners without breaking the image.
What happens if we change the board thickness?
Changing from a 16mm board to a 10mm board means the CAD file needs updating. The interlocking slots are sized exactly to the board thickness, so a mismatch will cause the friction fit to fail.
