Retail display and pegboard presentation
Secure pegboard hanging

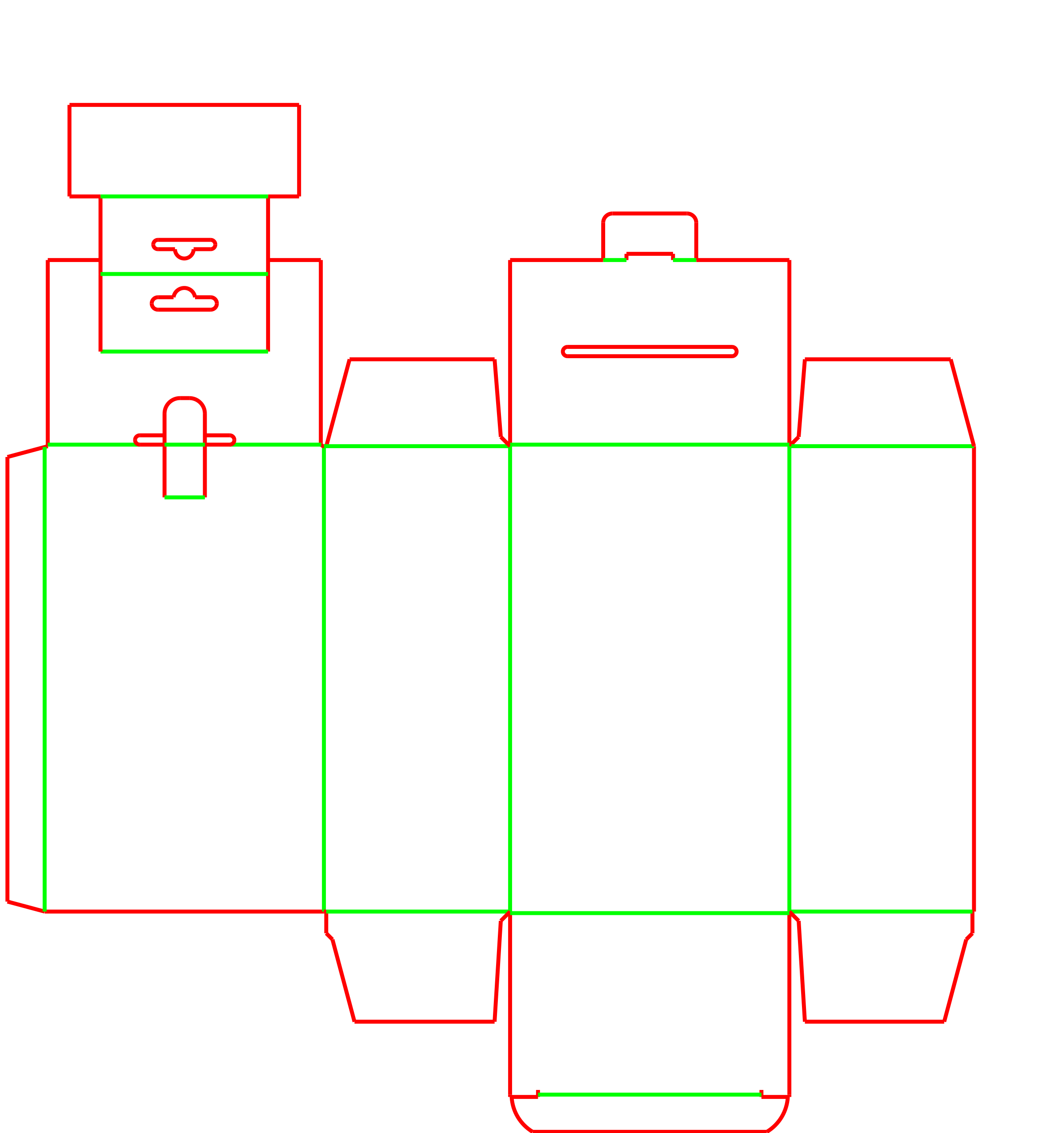

The primary job of this carton is to stay securely on a retail peg hook without tearing or sagging. The hanger panel extends from the front wall, folds 180 degrees for double thickness, and passes through a slot in the top cover. This transfers the hanging weight down the front of the box rather than pulling on a single top flap.
Preventing top-flap failure
Simple hanging boxes sometimes open at the top when the product is heavy. This design uses an edge-lock tongue that engages the top tuck flap, locking the cover in place so the package remains closed while suspended.
Displaying dense or heavy small goods
The double-thick tab and edge lock handle concentrated weight better than a single-layer tab, reducing the risk of the box falling off the display hook.
Maintaining a clean retail presentation
The slotted top cover keeps the top squared off, preventing the bulging or sagging common with simple extended-back panels over time.
Product types and retail environments
Hardware and electronics accessories
Products with dense, concentrated weight benefit from the reinforced tab and edge lock, which keep the presentation clean and reduce the risk of the box falling off the display.
Cosmetics and personal care
The flat, slotted top cover provides a clean, squared-off appearance on the shelf, while the double-thick tab maintains a premium look without bending or creasing over time.
Automotive parts and small tools
Heavy, dense items require a strong hanging point to avoid tearing the euro-hole on the store floor, making the folded, multi-layer tab a practical choice.
When a simple extended-back carton makes more sense
High-volume manual packing lines
Because the packer must fold the hanger tab, thread it through the top cover slot, and engage the edge lock, assembly takes longer than a standard tuck box. If packing speed is the priority and the product is very light, a carton with a simple, single-layer extended back panel may be a better fit.
Direct-to-consumer parcel shipping
The protruding hanger tab is easily bent or crushed in transit. If this carton is being shipped directly to consumers through a courier network, it will need an outer master shipper to protect the display features.
Board choice and assembly planning
Board thickness and fold clearance
The hanger panel folds completely flat against itself. If the chosen paperboard is too thick, this 180-degree fold can crack, or the folded tab may bind when passing through the top cover slot. Discussing the exact board caliper early ensures the fold clearances are calculated correctly.
Material selection
Solid bleached sulfate (SBS) or folding boxboard (FBB) generally provide the right balance of stiffness for hanging and flexibility for the tight folds. Micro-flute corrugated is usually a poor fit for this design due to the bulk of the folded tab.
Packing labor and assembly time
The packer must fold the tab, thread the slot, and engage the edge lock. This takes more time than a standard tuck box, so it makes sense when display security outweighs packing speed.
Outer shipping requirements
The protruding tab is vulnerable in transit. Buyers must plan for a master carton or outer shipper to protect the display features during distribution.
Hole sizing and tab adjustments
Euro-hole sizing
The width, height, and placement of the hanging hole can be adjusted to fit specific retail peg hooks or display racks.
Edge lock sizing
The width and depth of the edge-lock tongue can be modified. A larger tongue provides a stronger hold for heavier items but requires slightly more effort from the packer to engage.
Tab height and placement
The hanger tab can be extended or adjusted to ensure the product hangs at the correct visual level on the retail peg hook.
Packing details
Bottom closure strength
The bottom uses a standard tuck flap with slit locks. While the slit locks help resist downward pressure, heavy products may benefit from a clear wafer seal at the bottom for complete security.
Additional notes
Flat delivery and storage
These cartons are glued along the side seam at the factory and delivered flat. They are opened into a tube shape before the bottom is tucked and the top hanger is assembled.
Related retail display cartons
FAQs
Does this box take longer to assemble than a standard tuck carton?
Yes. The packer must fold the hanger tab over itself, thread it through the slot in the top cover, and secure the edge lock. This provides excellent display security but increases manual packing time.
Can this carton be made from corrugated board?
Usually not. The hanger panel requires a tight 180-degree fold, and the top cover must slot cleanly over it. Corrugated board, even micro-flute, is typically too thick and will crack or bind during assembly.
Can this box be shipped individually in the mail?
The protruding hanger tab is vulnerable to crushing in mixed courier networks. It should be packed inside a protective outer shipper or master carton for transit.
How much weight can the hanger tab support?
The double-thick folded tab is stronger than a single-layer extension, but the exact weight limit depends entirely on the chosen board grade and tear resistance. Physical testing with the actual product is always recommended.
Does the top cover need adhesive to stay closed?
No. The edge-lock tongue engages the top tuck flap to keep the cover closed under the weight of the hanging product. A clear seal is generally only added if tamper evidence is required.
Why is board thickness so critical for this design?
Because the hanger tab folds over itself, the slot in the top cover must be wide enough to accommodate four layers of board. Changing the board thickness without adjusting the template clearances will cause the box to assemble poorly.
What prevents the top of the box from opening while hanging?
The edge-lock tongue engages the top tuck flap, securing the cover in place even when the product weight pulls downward.
Can the hanging hole be customized for different retail hooks?
Yes, the width, height, and shape of the euro-hole can be adjusted to fit specific pegboard hardware or display racks.
