Structural Support and Protection Roles
Heavy-Duty Corner Protection
The right-isosceles geometry fits exactly into the 90-degree corners of large master shippers. The double-wall construction absorbs impact and reinforces the outer carton, making it useful for protecting heavy appliances or furniture.
Structural Void Fill
When a heavy product leaves an awkward triangular void in a rectangular outer box, this glued block fills the space while adding substantial vertical stacking strength.
Vertical Display Plinths
Stood on end, the sealed triangular prism can support substantial weight, serving as a clean, printable base or plinth for retail displays.
Internal Bracing for Master Cartons
Placed centrally or along the walls of a large shipping box, these blocks act as internal pillars, helping prevent the outer carton from crushing under heavy top loads during transit.
Industrial, Furniture, and Display Packaging
Appliance and Furniture Manufacturers
Teams shipping large, heavy, or easily dented items use these blocks to brace corners and prevent the outer shipping carton from crushing under lateral or vertical loads.
Industrial Component Shippers
When packing dense machinery parts, these rigid posts keep the primary product centered and absorb transit shocks that would crush standard single-wall void fill.
Retail Display Builders
Designers creating large point-of-purchase displays use these blocks as hidden internal supports or as visible, printed plinths to elevate heavy products.
When to Consider Standard Mailers or Corrugated Posts
Reclosable shipping tubes
If you need to insert a product and allow the end user to open the package, evaluate a standard triangular mailer with tuck ends. The EVF11906 is permanently sealed, and opening it usually destroys the structure.
Flat-shipping void fill
If your packing line cannot accommodate complex 3D gluing or the high shipping volume of pre-assembled blocks, consider simpler single-wall folded inserts or corrugated corner posts that involve less assembly labor.
Assembly, Gluing, and Shipping Logistics
Assembly responsibility and freight volume
This structure involves multi-axis gluing to seal the eight end flaps. If the converter glues it, the blocks ship fully assembled, consuming high freight volume. If shipped flat, your facility needs the specialized fixtures and labor to fold the 720-degree wrap and glue the ends on-site.
Board thickness and double-wall wrap behavior

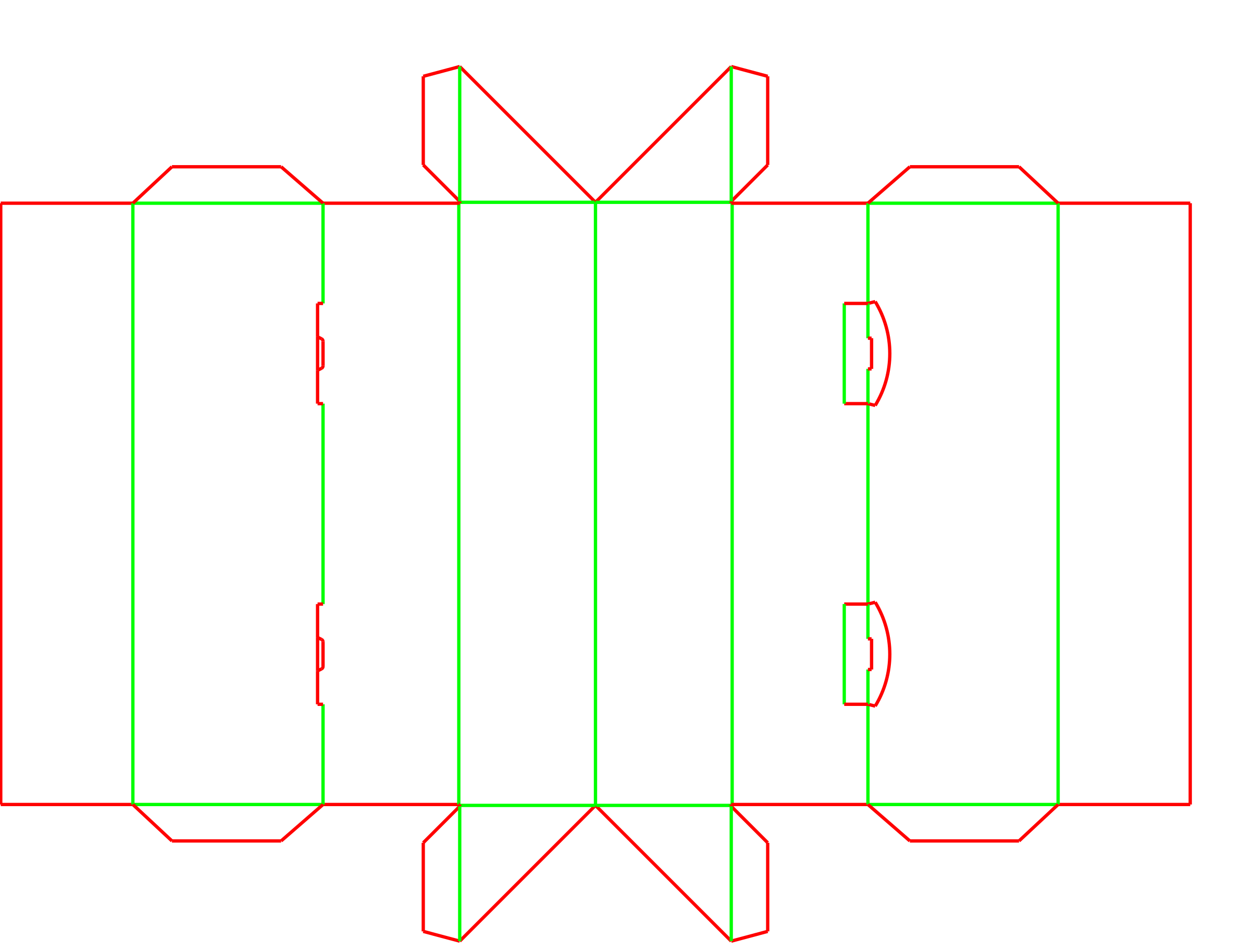

The template relies on precise caliper offsets to ensure the inner and outer layers nest perfectly without bowing. While heavier board increases rigidity, it should be tested to confirm the small end glue flaps can still fold cleanly without tearing.
Adhesive selection for structural integrity
The rigidity of this block relies entirely on the glue seams holding. The adhesive should be strong enough to withstand internal pressure and transit shock so the end caps do not open under load.
Print and finish requirements
If the block is used as a hidden void fill, uncoated recycled board is often sufficient. If it serves as a visible retail plinth, the outer hypotenuse and leg panels can be printed and finished to match the display.
Dimensional Adjustments and Caliper Offsets
Height and corner-width scaling
The overall height (length of the tube) and the width of the 90-degree corner sides can be adjusted to match your master shipper. The template automatically recalculates the angled face to maintain the right-isosceles geometry.
Caliper offset tuning
The dimensions of the inner wrap are automatically reduced based on the exact material thickness. This ensures the inner and outer layers nest tightly without binding or bowing when folded.
Tuck tongue and receiver slot sizing
The mechanical locks that hold the double-wall structure together during assembly can be adjusted in width and depth to suit the chosen board grade and assembly method.
Packing details
Crease locks and inner-layer stability
As the blank wraps around itself twice, tuck tongues on the inner creases snap into receiver slots on the outer layer. This mechanical lock holds the double-wall structure together during the final end-gluing process.
Additional notes
Adhesive requirements for structural integrity
The rigidity of this block relies entirely on the glue seams holding. If the adhesive gives way under internal pressure or transit shock, the end caps may open and the double-wall structure will lose its bracing strength.
Related Structural and Triangular Packaging
FAQs
Can this block be assembled on a standard folder-gluer?
No. While a straight-line folder-gluer can seal the main side seam to form a flat tube, the top and bottom triangular end caps involve complex 3D folding and gluing. This usually means specialized equipment or manual assembly fixtures are needed.
Does this package ship flat?
It can be shipped flat as an unglued blank or a partially glued tube, but the end user then performs the final 3D gluing. If the converter completes the assembly, the blocks ship as rigid, empty 3D shapes, which increases freight volume.
Can I use this as a mailing tube for posters or parts?
It is not recommended for that job. Because the end caps are permanently glued shut, the recipient would have to cut or tear the heavy double-wall structure apart to retrieve the item. A standard tuck-end triangular mailer is a better choice for shipping goods.
How much weight can this corner block support?
The double-wall wrap and glued ends provide excellent vertical compression strength, but exact load limits depend entirely on the chosen board grade, the length of the block, and the quality of the adhesive seal. Physical compression testing helps confirm performance for heavy appliance or furniture applications.
Can this be made from corrugated board?
While the geometry is strong, micro-flute corrugated board may cause issues. The inner wrap can suffer from flute crush, and the eight small end glue flaps may be too bulky to fold and adhere cleanly. Heavy solid board or folding carton is usually preferred.
Can the angle of the triangle be changed?
The template is strictly engineered as a right-isosceles triangle (one 90-degree corner and two 45-degree corners) to fit into standard square boxes. Changing the angles involves a complete custom redesign of the locking mechanisms and caliper offsets.
How does the double-wall wrap stay together during assembly?
As the blank wraps around itself, small tuck tongues on the inner creases snap into receiver slots on the outer layer. This mechanical lock holds the shape steady while the final end caps are glued.
Can this block be printed?
Yes. If the block is used as a visible retail plinth rather than hidden void fill, the outer hypotenuse and leg panels can be fully printed and finished to match your display.
