Practical uses for accordion buffers
Heavy component blocking
The dense paperboard stack absorbs impact and helps prevent heavy items, like motors or metal parts, from shifting inside a master carton.
Fragile item separation
When placed between delicate products, the multi-layer fold acts as a shock-absorbing spacer that takes up less warehouse room than pre-formed foam blocks.
Dense void fill replacement
Replaces bulky foam or molded pulp with a flat-shipping paperboard alternative that expands to fill specific gaps in the master carton.
Edge and corner protection
Positioning the folded block against the vulnerable edges of a heavy product helps absorb lateral impacts during transit.
Fulfillment and packing environments
Manual kitting and assembly lines
Because the zig-zag fold involves two-handed manipulation, this insert fits well in operations where packers have the time and workspace to build the buffer before loading the product.
High-density storage facilities
Operations with limited warehouse space benefit from this wrap because thousands of flat sheets can be stored on a single pallet, replacing bulky pre-assembled void fill.
Multi-component master cartons
Operations packing several different heavy items into one shipper often use these wraps to provide localized, dense blocking that prevents internal collisions.
When to consider different protective inserts
High-speed automated packing
If your line relies on automated folder-gluers or case erectors, the manual concertina fold may slow down production. A pre-glued crash-lock tray or a simple scored pad may be a better choice.
Standalone shipping needs
This wrap has no native locks and tends to spring open if left unconstrained. If you need a package that ships on its own, compare it to a roll-end tuck-top mailer.
Material, depth, and closure choices
Board caliper and grain direction
The material needs to handle repeated 180-degree folds without cracking. Standard folding boxboard is common; corrugated board is usually too thick and risks cracking or creating an unmanageable stack height. Grain direction should run parallel to the folds.
Securing the wrap
Decide how the buffer will stay closed. It can be taped, secured with a paper band, or simply dropped into a tightly fitted outer carton that holds the walls in place.

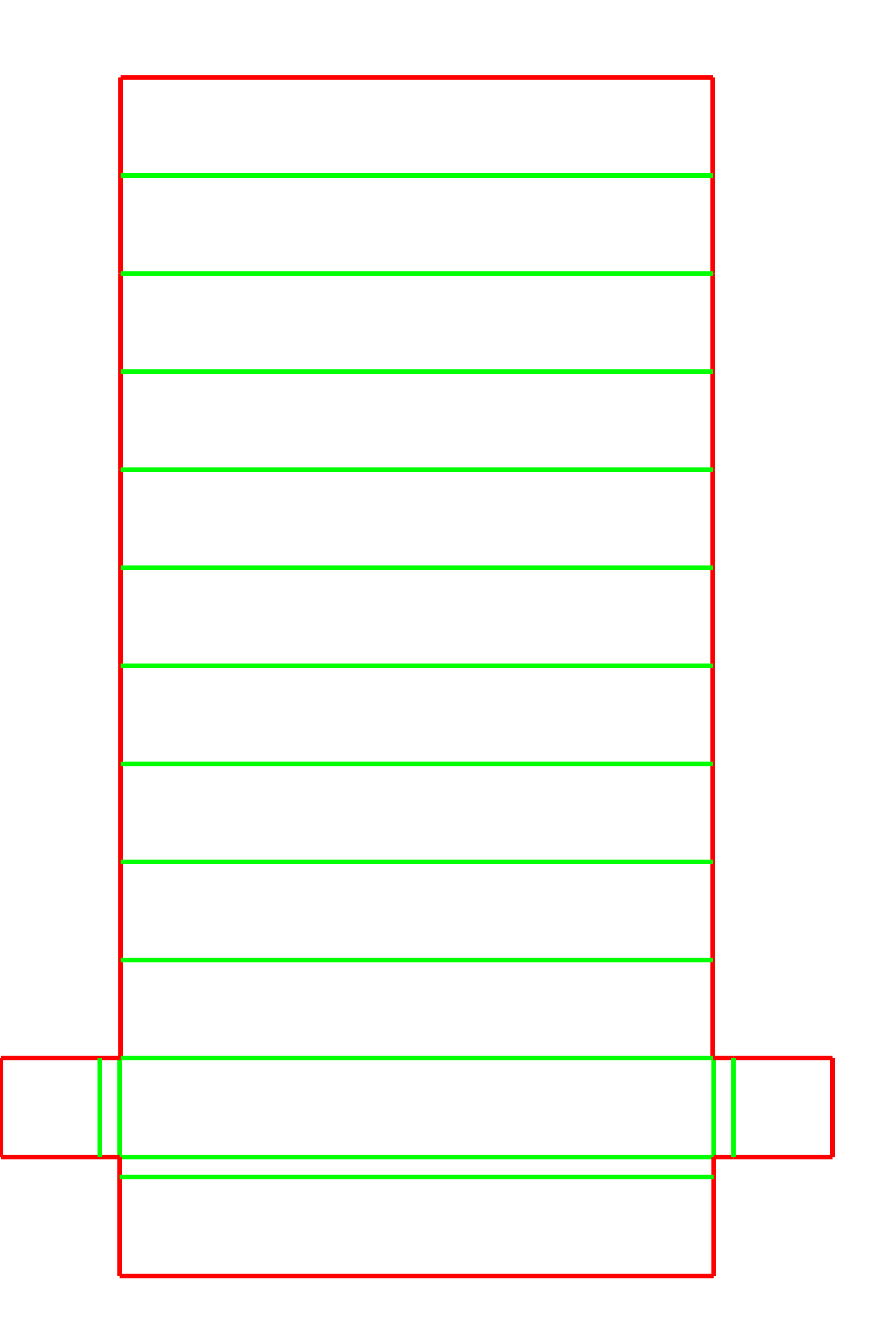

Accordion layer count
While the standard layout uses 10 layers, the required thickness of the final block dictates the material choice and the double-crease depth.
Outer container fit
Because the wrap lacks built-in locks, the internal dimensions of the master carton need to be tight enough to hold the wrap's walls closed, or secondary banding should be planned.
Adjusting the wrap dimensions
Double-crease depth clearance
The depth of the outer wrapping walls needs to match the total thickness of the folded 10-layer stack. If you change the board thickness, this clearance should be recalculated so the walls do not bow or bind.
Base footprint dimensions
The length and width of the base panel can be adjusted to match the specific component being protected or the void space being filled.
Accordion panel height
The height of each folding segment is derived from the base width, ensuring the stack sits flush within the wrapped walls without binding.
Packing details
Spring-back force and handling
Paperboard has natural memory. Until the wrap is secured or placed in an outer box, the accordion stack will try to unfold. Packers usually hold the assembly closed during transfer.
Additional notes
Grain direction and cracking
Because the wrap relies on sharp 180-degree folds, the paperboard grain should run parallel to the creases to help prevent the fibers from tearing during assembly.
Related protective packaging
FAQs
Can this wrap be erected by machine?
Automated packaging equipment is not typically designed for the back-and-forth zig-zag motion required for the 10-panel stack. It usually involves manual assembly at the packing station or specialized folding equipment.
Can we make this out of corrugated board?
Corrugated board is generally a poor fit. Ten layers of fluting create a very thick stack that needs large depth adjustments, and the 180-degree folds risk cracking thicker corrugated materials. Paperboard is usually preferred.
Does the wrap lock closed on its own?
The layout does not include native tucks or locking tabs. It relies on tape, banding, or the walls of an outer shipping box to hold its shape.
What happens if we use a thicker paperboard?
The outer wrapping walls rely on a specific double-crease distance to clear the folded stack. If the board gets thicker, that distance needs to be increased, or the wrap will not close properly.
Can this be used as a parcel shipping box?
This wrap functions as an internal protective element. Because it lacks locking closures and sealing flaps, it is designed to sit inside a primary shipping carton rather than travel through a courier network on its own.
How is this delivered to the facility?
It is delivered completely flat, which maximizes pallet density and reduces inbound freight costs compared to pre-assembled foam or molded pulp buffers.
How do we determine the right double-crease depth?
The depth needs to accommodate the total thickness of the folded accordion stack. If you use a 0.5mm board for a 10-layer stack, the depth should clear at least 5mm plus folding tolerances.
Can the number of accordion layers be changed?
The standard layout features a 10-panel chain. Adjusting the number of layers involves a CAD redesign to add or remove panels and recalculate the wrapping depth.
