Retail and Kitting Applications
Premium retail presentation
The unglued design leaves no visible adhesive seams, making it an excellent choice for cosmetics, lightweight electronics, and apparel where the interior appearance is just as important as the exterior.
Inner kitting and subscription boxes
When placed inside a heavier corrugated mailer, this carton acts as a clean, organized inner tray. The hinged lid provides a structured unboxing experience for multi-item kits.
Apparel and soft goods
Clothing and accessories do not exert heavy outward pressure on the side walls, making them a strong match for friction-locked trays. The smooth rolled edges prevent snagging on delicate fabrics.
Corporate gifting and promotional kits
For short-run promotional items, an unglued tray avoids the setup time of folder-gluer runs while still delivering a polished, double-walled presentation.
Merchandising and Fulfillment Contexts
Hand-packing operations
Because this box requires a specific sequence of rolling the side walls over the dust flaps to engage the pinch locks, it relies entirely on manual assembly. It is a strong fit for fulfillment centers set up for hand-packing rather than automated erecting lines.
Low-volume or seasonal product runs
Without the need for gluing, this tray is easier to produce in smaller batches. Brands testing new product lines or seasonal kits can order flat blanks and assemble them as needed.
Multi-component retail displays
The clean interior created by the rolled-over side walls provides an excellent cavity for custom inserts. This helps organize multiple small items without exposing raw corrugated edges or glue tabs.
When to Consider Glued or Corrugated Alternatives
Direct parcel shipping
Friction locks and a simple tuck lid can disengage under drop impact or rough handling. If the box will ship individually through parcel networks without an outer shipper, compare it to a corrugated mailer with locking dust flaps or a glued crash-lock base.
Heavy or bulky products
The front and back walls are single-ply. Heavy outward pressure from dense products can cause the dust flaps to slip and the side walls to splay. For heavier items, a fully double-walled tray or a glued carton is a safer choice.
High-speed automated packing
The complex roll-over and pinch-lock sequence is designed for manual assembly. If your fulfillment line relies on automated case erectors, a glued tray or a machine-formed carton will be necessary.
Board, Finish, and Assembly Choices
Board grade and folding endurance
The side walls must fold a full 180 degrees to trap the dust flaps and lock into the base. Standard folding boxboards (FBB) or solid bleached boards (SBS) handle this tension well. Thicker corrugated flutes may crack along this hinge unless the template is specifically adjusted for the material.
Lid closure friction

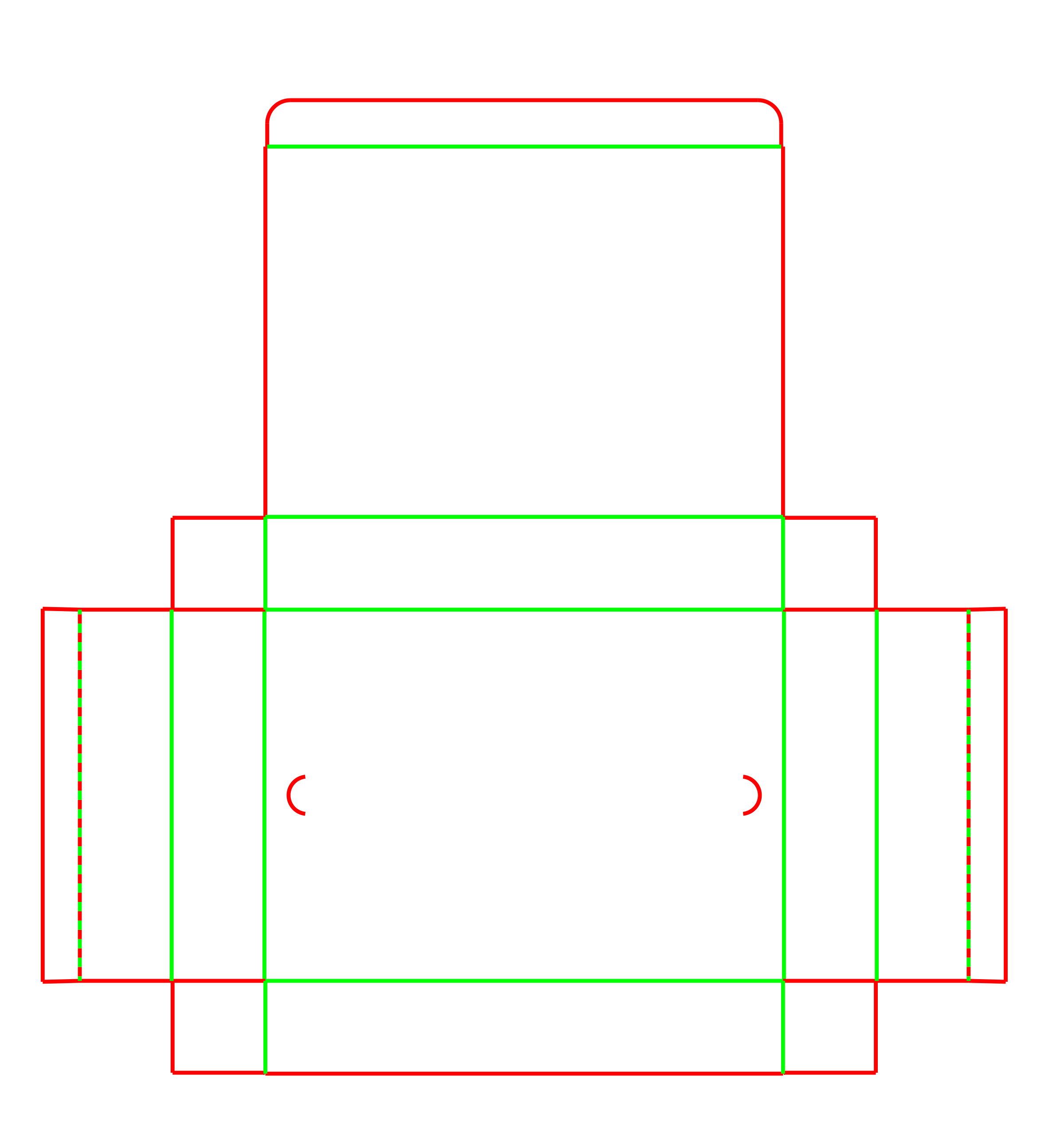

The lid secures by sliding a tuck flap into two crescent cuts on the front wall. Heavy varnishes or laminations can reduce the friction of this connection, so a physical sample is recommended to check the closure feel before a full production run.
Outer shipping strategy
Because the tuck lid is not tamper-evident and the friction locks are not designed for transit impacts, decide early whether this tray will be placed inside a master carton, a corrugated mailer, or sealed with heavy-duty labels.
Insert compatibility
If packing multiple items, consider whether you will use paperboard partitions or foam inserts. The internal dimensions must account for the insert thickness, and the single-wall front panel must be supported if the insert pushes outward.
Modifying the Pinch Locks and Lid Tuck
Tuck flap and receiver cuts
The depth of the lid tuck and the width of the receiving cuts on the front wall can be adjusted. Tighter cuts increase security but require more effort to open, while wider cuts make access easier but risk the lid popping open.
Pinch lock tab height
The tabs that snap into the base floor dictate how securely the side walls stay rolled over. These can be extended for a firmer lock, depending on the thickness of the chosen board.
Layer step crease adjustments
The template includes a specific parameter to adjust the lid hinge so it overlaps the folded side walls without tension. This must be recalculated if you change the board caliper to ensure the lid closes flat.
Packing details
Flat delivery and storage
Because there are no glued seams, the blanks ship completely flat. This maximizes pallet density and reduces storage space in the warehouse before the boxes are needed on the packing line.
Additional notes
Single-sided print efficiency
Because of how the blank folds, all exterior surfaces (the lid top, the outer side walls, and the base bottom) share the same side of the flat sheet. This makes single-sided printing highly efficient for full-color exterior branding.
Related Presentation Trays
FAQs
Can this box be erected on an automated packing line?
This specific carton is designed for manual assembly. The sequence of folding the dust flaps and rolling the side walls over them to engage the pinch locks requires hand manipulation. Automated erecting usually requires a different tray style or specialized forming mandrels.
Does this box need tape or seals to stay closed?
For retail shelves or inner kitting, the friction tuck lid is usually sufficient. If the box is being handled individually in transit or shipped via parcel networks, it will need clear wafer seals, a branded label, or an outer shipping carton to prevent the lid from opening.
Can this be made from corrugated board?
It is primarily designed for folding carton paperboard like FBB or SBS. Using micro-flute corrugated board is possible but requires careful adjustment of the fold allowances, as the 180-degree roll-over on the side walls can cause thicker fluted materials to crack or bind.
Why is a physical sample important for this design?
Because the box relies entirely on friction to hold its shape at both the base pinch locks and the lid tuck, a physical sample confirms that your specific board choice, coating, and product weight work together without the walls splaying or the lid slipping.
Is this suitable for heavy items?
The front and back walls are single-ply, and the structure is held together by friction tabs. Heavy items can push outward against the walls, causing the locks to disengage. It is better suited for lightweight cosmetics, apparel, or small electronics.
Can this tray hold custom inserts?
The clean interior created by the rolled-over side walls makes it an excellent outer shell for paperboard or foam inserts. Ensure the insert does not exert excessive outward pressure on the single-wall front and back panels.
Does the unglued design affect printing?
Because of how the blank folds, all exterior surfaces share the same side of the flat sheet. This makes single-sided printing highly efficient for full-color exterior branding without needing to print on the reverse side of the board.
How are these boxes delivered and stored?
Since there are no glued seams, the cartons are delivered completely flat. This provides excellent pallet density and minimizes the storage space required at your fulfillment center before assembly.
