EVF41120

Interlocking Presentation Tray

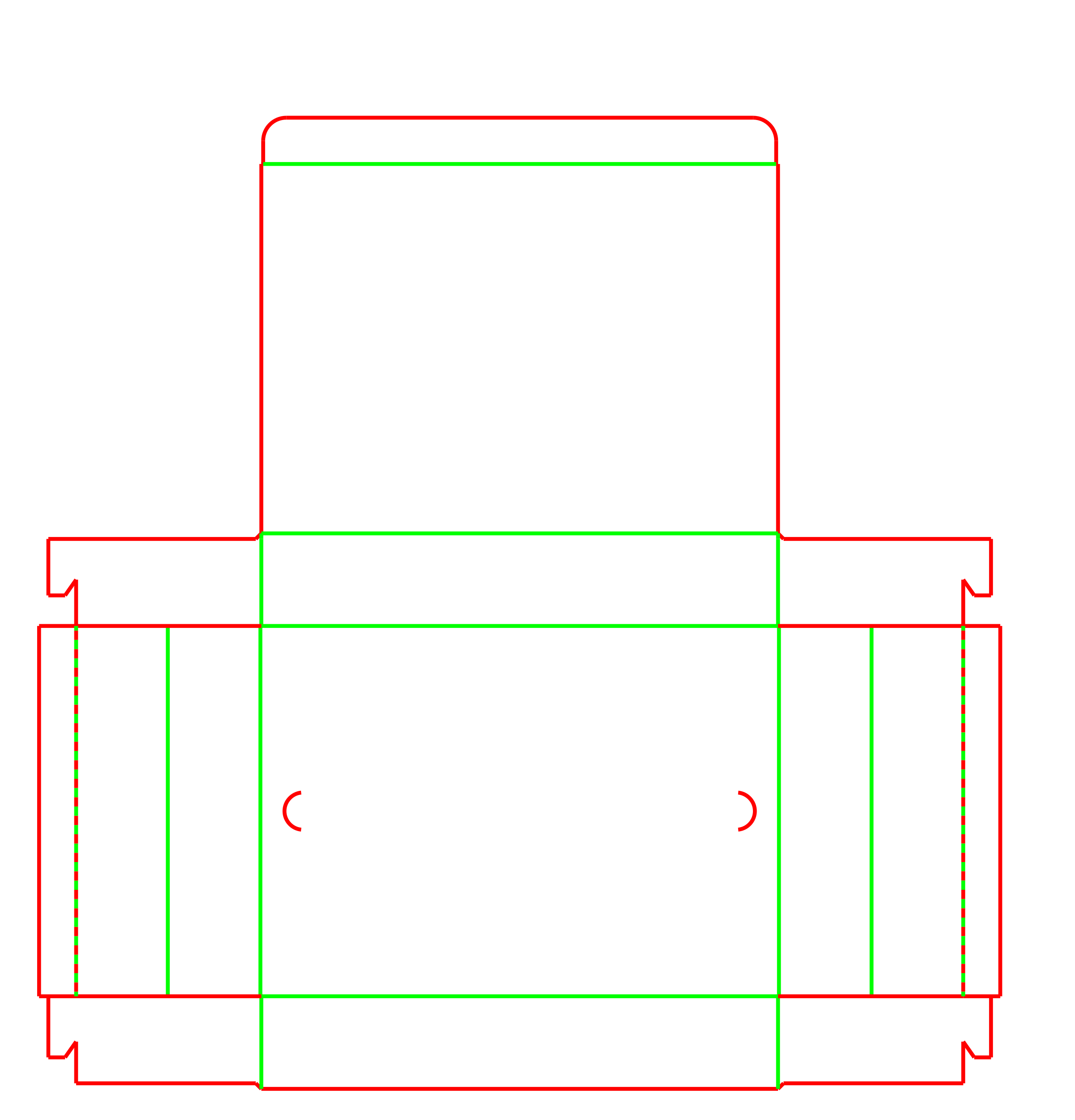

This specialized roll-end tray uses an interlocking base mechanism to achieve high rigidity without adhesive. The front and back dust flaps overlap and anchor directly into the floor, preventing the walls from bowing outward even when holding heavier retail items.

Because the double side walls roll over these anchored flaps to lock the structure in place, the resulting tray feels solid. However, this structural strength comes at the cost of assembly speed, making it a better fit for premium unboxing experiences than fast-paced packing lines.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Anchored dust flaps keep walls straight and increase base stiffness.
  • Double-wall sides and a hinged lid create a clean presentation.
  • Multi-step manual assembly makes this a better fit for lower-volume packing.

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product contexts for interlocking trays

Premium retail and heavy-item presentation

Clean lines, double side walls, and a hinged lid create a high-end feel for electronics, cosmetics, or luxury goods. The rigid base ensures the box does not twist or flex when handled, while the anchored dust flaps keep the front and back walls in tension, preventing them from bowing outward when loaded with dense products.

High-end electronics and device packaging

The interlocking floor provides a stable foundation for heavy components. Because the walls resist splaying, delicate devices remain securely seated within their custom inserts, reducing the risk of shifting during retail handling.

Luxury cosmetics and fragrance kits

The roll-over side walls present a clean, finished edge that elevates the unboxing experience. This structure allows brands to display premium products without visible raw board edges or glue seams on the interior sides.

Fragile glassware and ceramic sets

The torsional stiffness created by the anchored dust flaps prevents the tray from twisting when lifted. This rigid frame helps protect fragile items that might otherwise be stressed by a flexible or bowing package base.

Fulfillment and retail environments

Manual assembly operations

The interlocking base requires a specific, multi-step folding sequence where the dust flaps must be seated into the floor slits before the side walls are rolled over. This demands manual dexterity and slows down the packing rhythm, making it a better fit for operations where presentation value outweighs packing speed.

Low-volume, high-margin programs

Because the complex folding sequence increases labor time, this tray makes sense in premium product lines where the unboxing experience justifies the slower fulfillment rate.

Kitting and subscription boxes

Brands building curated kits often need a presentation box that feels substantial and reusable. The double-wall sides and rigid floor provide that durable feel, encouraging customers to keep the box long after the initial purchase.

When to compare simpler roll-end trays

Faster packing priorities

If you need quicker manual assembly and the product does not exert outward pressure on the walls, a standard roll-end tuck-top tray eliminates the complex base locks while maintaining the same general appearance.

Standalone parcel shipping

This is a presentation tray, not a standalone shipper. If the box will be shipped individually as a parcel, consider a corrugated mailer with a secure closure rather than relying solely on a tucked lid.

Board thickness and assembly labor choices

Board thickness and assembly labor

The locking tabs and base slits are precisely calculated for a specific material thickness. If you change from a standard folding carton board to a thicker micro-flute, the locks may bind or fail to seat. The exact board grade must be finalized before the cutting profile is established.

Print surface and interior branding

The roll-over side walls display the exterior print on the inside of the tray. This allows for partial interior branding without the cost of double-sided printing, but requires careful artwork placement.

Fulfillment speed versus structural rigidity

The interlocking base requires a multi-step folding sequence. You must evaluate whether the base rigidity and premium feel justify the slower manual packing rhythm compared to simpler tray styles.

Outer packaging requirements

Because the lid relies on a simple front tuck, you must decide whether to use a master carton, an individual outer mailer, or a secure tamper-evident label for transit.

Adjusting the locks and cutouts

Adjusting the locks and cutouts

The front wall includes a standard thumb-hole cutout to assist with opening the tucked lid. This can be resized or removed entirely for a cleaner front panel.

Modifying the dust flap overlap

The length of the dust flaps and the position of the base slits can be adjusted to accommodate different tray proportions, ensuring the base remains rigid regardless of the overall box dimensions.

Base slit positioning

The anchor points in the floor can be shifted slightly to account for the specific board caliper chosen, ensuring the pinch locks seat securely without tearing the material.

Packing details

Stripping the base slits

The narrow arc slits in the floor must be stripped cleanly during manufacturing. Any remaining scrap will prevent the dust flaps from locking properly during assembly.

Grain direction planning

To prevent cracking when the inner side walls fold 180 degrees, the board grain should run parallel to the roll-over hinges.

Additional notes

Two-sided branding on a single side

The roll-over side walls display the exterior print on the inside of the tray, offering a premium look without the cost of double-sided printing.

Related Presentation Boxes

FAQs

Can this tray be erected by automated machinery?

The complex overlapping dust flaps generally require manual assembly, as automated tray formers are not designed to seat these specific base locks.

Can I ship this box through the mail as-is?

Parcel shipment often requires an outer mailer or a secure seal to keep the lid closed during transit.

Can this be made from corrugated board?

It is primarily designed for folding carton. Using micro-flute corrugated requires careful CAD adjustments to the locking slits and pinch tabs to account for the thicker material.

Should we request a physical sample?

Because the pinch locks rely on friction and the exact thickness of the board, a physical prototype helps verify that the tray locks securely without tearing.

Why use this over a standard roll-end tray?

The interlocking base prevents the front and back walls from splaying outward, giving the tray strong torsional stiffness and a much more solid feel.

Does this box require glue?

It uses a friction-fit pinch lock and anchored dust flaps to hold its shape, eliminating the need for adhesive.

How does the double-wall structure affect interior space?

The roll-over side walls consume a small amount of internal volume. You must account for this board thickness when sizing the tray for exact product inserts.

Can we add a clear window to the lid?

Yes, a window cutout can be added to the top panel, though it may slightly reduce the overall rigidity of the lid depending on the size of the aperture.

Review your assembly labor capacity and board thickness requirements before committing to this interlocking structure.
