Retail, Food, and Kitting Uses
Bakery and dry food takeout
The gap-free floor helps keep crumbs and dry ingredients contained, while the attached lid provides quick closure.
Boutique apparel and accessories
The unglued design allows for fully printed interiors, offering a clean presentation for lightweight items.
Short-run promotional kitting
Without the need for folder-gluer setup, this style is accessible for limited-edition runs or custom digital prints.
Small parts and hardware assortments
The continuous base helps prevent tiny components from slipping through corner gaps during handling.
Retail and Packing Environments
Retail storefronts
Staff can assemble these boxes on demand at the counter. The flat delivery saves backroom storage space.
Manual kitting operations
Teams packing assortments or gift sets can utilize the open tray format for easy loading before securing the lid.
Prototype and sample runs
Because it requires no factory gluing, buyers can easily test structural samples or short digital runs before committing to large orders.
When to Compare Other Tray Styles
High-volume automated packing
If the packing line relies on automated case erectors, the manual folding of the webbed corners may slow down the process. A crash-lock or auto-bottom carton may be a better fit.
Heavy or bulky items
The friction-tuck lid and unglued walls are designed for lightweight goods. Heavy items may cause the tray walls to bow or the lid to open during transit.
Direct parcel shipping
This is primarily a retail or presentation box. For courier networks, it usually needs an outer shipping carton or secure taping to keep the friction-tuck lid closed.
Board, Grain, and Packing Decisions
Board thickness and corner folding

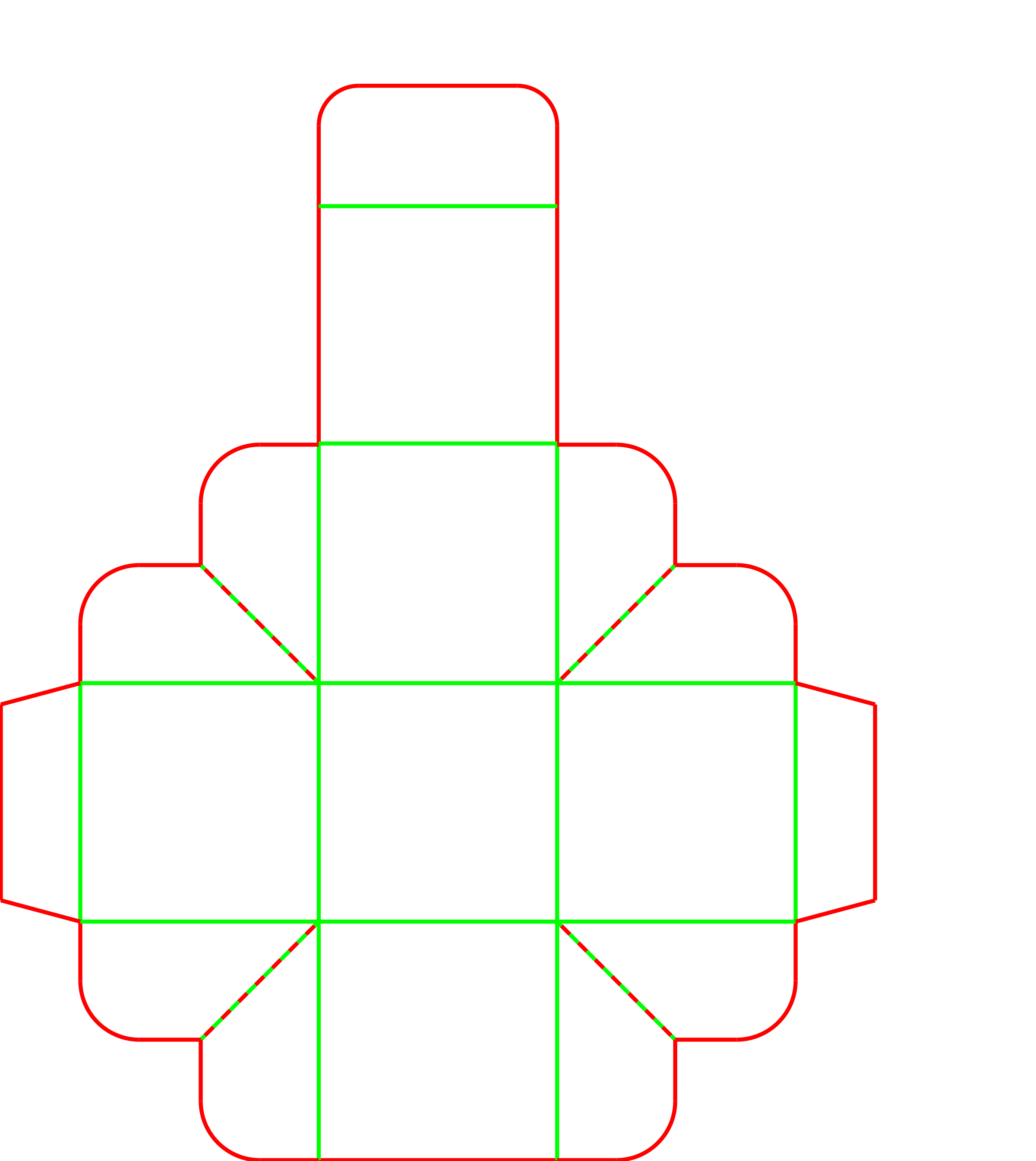

The webbed corners fold 180 degrees flat against the inside walls. Thick corrugated board can bind or crush, so standard folding carton calipers or very light micro-flutes are often preferred.
Grain direction and crease cracking
To help prevent the board from cracking along the diagonal corner creases, the grain direction should be discussed with the converter.
Manual packing rhythm
Factor the time needed to manually erect the tray into the overall packing costs. The simultaneous folding of the four corners takes practice.
Internal clearance for inserts
The folded corner gussets add a double layer of board thickness to the front and back walls. This should be accounted for when sizing tight-fitting inserts.
Adjusting the Tray Proportions
Dust flap width
The side dust flaps can be extended or shortened to change how much of the tray opening they cover beneath the lid.
Lid tuck depth
The front tuck flap can be lengthened for a tighter friction fit, though this uses more board area.
Gusset cutout radius
The rounded cutouts on the webbed flaps can be adjusted to change how the corners interlock and relieve stress during folding.
Packing details
Artwork placement on gussets
Because the webbed corners fold inside the tray, any graphics printed on those specific panels will be hidden from the exterior view.
Base rigidity and wall thickness
The folded gussets rest against the front and back walls, adding board thickness to those sides, which slightly increases vertical rigidity.
Additional notes
Sample testing for corner folds
Because the diagonal creases undergo stress during assembly, requesting a physical sample in the chosen board grade helps verify that the corners will fold cleanly without cracking.
FAQs
Can this box be erected by machine?
Generally, no. The webbed corners involve a simultaneous, multi-directional fold that is difficult for automated case erectors to handle. It is designed for manual assembly.
Can I make this out of heavy corrugated board?
It is not recommended. The corner gussets fold flat against the inside walls. Heavy fluting can bind, preventing the box from squaring up, and the diagonal creases may tear.
Is the continuous base completely waterproof?
The structural design helps prevent dry sifting (like crumbs or powders), but true water resistance depends entirely on applying a specific poly or aqueous coating to the paperboard.
Can I ship this directly in the mail?
The friction-tuck lid can open during rough handling. For parcel delivery, this tray usually needs an outer shipping box or secure taping.
Why choose an unglued box over a glued one?
Eliminating the gluing process reduces factory setup time, making it easier to produce short runs, prototypes, or digitally printed campaigns.
Will the folded corners interfere with my product?
The webbed gussets fold flat against the inside of the front and back walls. While they take up minimal space, that extra board thickness should be considered when sizing the internal clearance for inserts.
How does the tray hold its shape without glue?
The webbed corners fold inward and interlock near the center of the front and back walls. This mechanical tension, combined with the inserted lid tuck flap, keeps the walls upright.
Are the side dust flaps required?
The trapezoidal dust flaps help cover side gaps and support the lid, preventing it from dipping inward. While they can be resized, removing them entirely may weaken the lid closure.
