Retail and Presentation Uses
Boutique Retail and Cosmetics
The clean lines and lack of glue seams make this tray well-suited for high-end retail environments. The hinged lid and tongue lock provide a deliberate, satisfying unboxing sequence for cosmetics, skincare, or lightweight electronics.
Curated Gift Kits
For multi-item kits assembled by hand, the flat-delivered blanks save storage space. The tray's reinforced back wall supports the lid during repeated opening and closing, keeping the presentation intact as the customer explores the contents.
Lightweight Electronics
Small devices and accessories benefit from the secure tongue lock, which keeps the lid firmly closed on the retail shelf without requiring clear wafer seals or tape.
Confectionery and Specialty Foods
When paired with appropriate food-safe coatings or inner wraps, the adhesive-free construction offers a premium presentation for chocolates, macarons, or artisanal snacks.
Fulfillment and Packing Contexts
Manual Fulfillment Operations

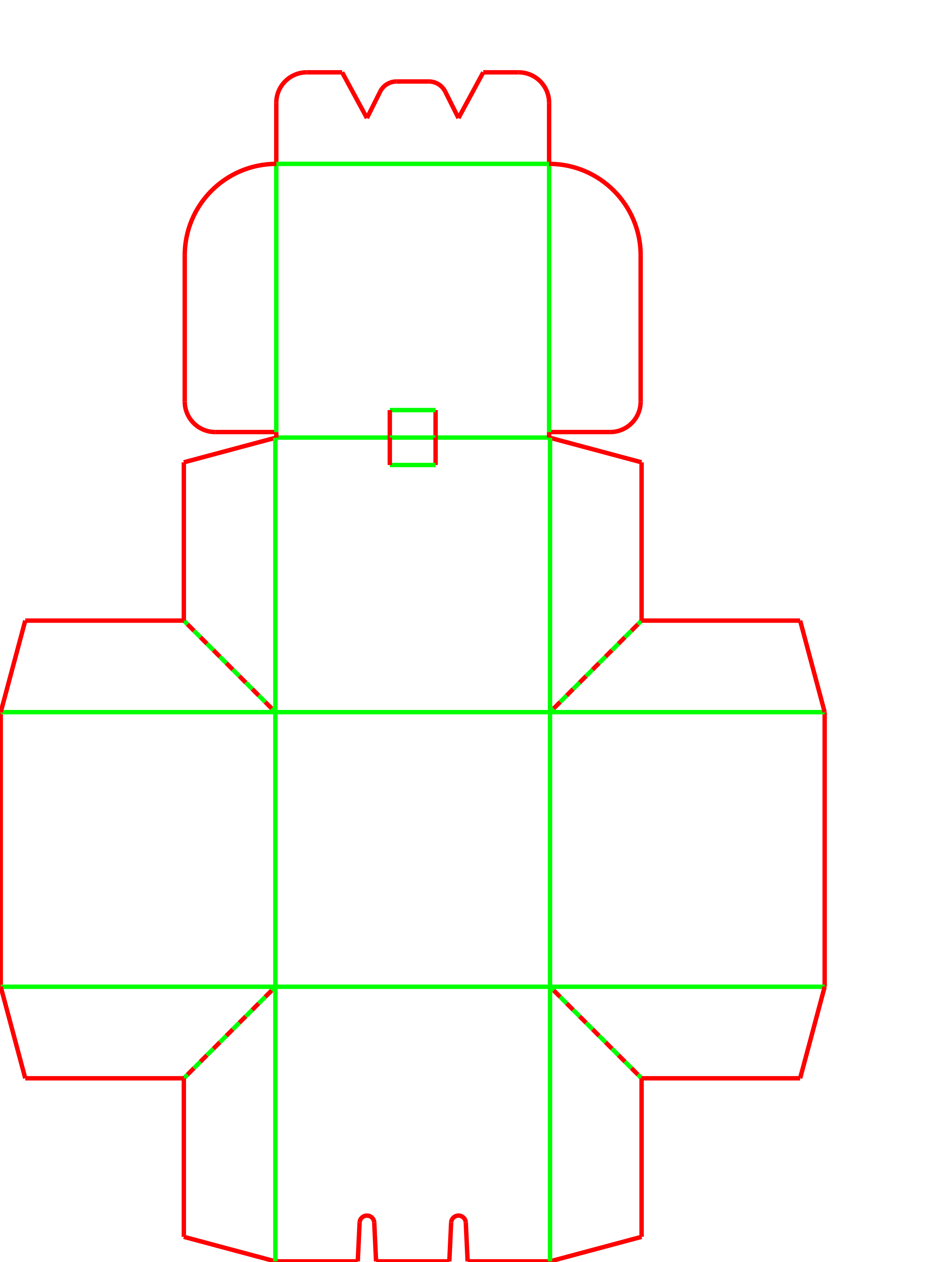

This package is built for hand-packing. The webbed front corners fold inward to create a friction fit, while the back wall flaps fold flat to stiffen the hinge. Teams should plan for the assembly time required to execute these specific folds before loading the product.
High-End Unboxing Experiences
Brands prioritizing the customer reveal often choose this style because the mechanical tongue lock requires a deliberate action to open, slowing down the unboxing process and drawing attention to the product inside.
Flat-Shipped Storage Environments
Because the tray requires no pre-gluing, the blanks ship and store completely flat. This maximizes pallet density and saves warehouse space for businesses assembling kits on demand.
When to Consider Alternative Trays
High-Speed Automated Packing
The mechanical folds, webbed corners, and tongue lock resist mechanization. If your packing line relies on automated carton erectors or folder-gluers, a standard crash-lock or glued-corner tray will be much faster.
Standalone Parcel Shipping
Friction fits and tongue locks risk opening under the stress of courier networks. If this tray is shipping directly to a consumer, it requires a sturdy outer mailer or secure external sealing.
Material and Route Decisions
Paperboard Caliper and Grain
This tray requires thin, precise paperboard. The back wall features flaps that fold 180 degrees flat against themselves, and the tongue lock requires exact clearances. Thick corrugated board will crack on the tight folds and prevent the lock from engaging.
Print and Finish Planning
Because the tray is assembled without glue, you have flexibility with interior and exterior coatings. However, heavy varnishes or laminations should be tested to ensure they do not cause the webbed corner flaps to slip out of their friction fit.
Assembly Labor Allocation
The lack of a glued seam means your fulfillment team must fold the webbed corners and 180-degree back flaps for every unit. Factor this manual labor into your overall packing costs.
Outer Shipper Requirements
If these trays are destined for e-commerce fulfillment, decide early whether they will be placed in a master carton for retail distribution or packed into individual corrugated mailers for direct-to-consumer shipping.
Template Adjustments
Tongue and Hole Clearances
The dimensions of the locking tongue and its receiving hole must be carefully matched to your chosen board thickness. Adjusting one requires adjusting the other to maintain a secure hold without tearing the front wall.
Webbed Corner Angles
The angle and height of the front corner gussets can be modified to change how tightly they wedge against the side walls, allowing you to tune the friction fit for different materials.
Hinge Reinforcement Flaps
The back wall includes side flaps that fold completely flat against the rear panel. The width of these flaps can be adjusted to provide more or less stiffness to the lid hinge, depending on the expected lifespan of the box.
Packing details
Artwork Routing Around the Lock
The front wall features a functional cutout to receive the lid's locking tongue. Ensure critical text, logos, and barcode elements are routed around this central hole during the design phase.
Additional notes
Board grain direction
Grain direction is critical for this package. It should run parallel to the 180-degree folds on the back wall to prevent the paperboard from cracking during assembly.
FAQs
Does this tray require glue or tape to hold its shape?
No. The tray relies entirely on mechanical folds. The front corners use webbed gussets that wedge into place, and the lid is secured by a tongue that locks into the front wall.
Can this box be erected by automated machinery?
This design is intended for manual assembly. The specific 180-degree reinforcement folds and the webbed corner tucks are difficult to automate on conventional erecting equipment.
Can I use corrugated board for this tray?
Corrugated board is generally a poor fit. The design requires a 180-degree fold on the back wall and a precise tongue lock, both of which require thin, crisp paperboard. Corrugated material is likely to crack or fail to lock properly.
Is this tray secure enough to ship in the mail?
Not on its own. The mechanical tongue lock holds well on retail shelves but risks opening during rough transit. For parcel shipping, it should be placed inside a protective outer mailer.
Will the locking hole interrupt my front panel artwork?
Yes. The front wall has a small, functional cutout to receive the lid's locking tongue. Artwork and critical text should be routed around this central hole.
Why is a physical sample important for this design?
A sample verifies that the webbed corners hold tightly and that the tongue lock engages smoothly with your specific board thickness and coating.
How does the back wall support the hinged lid?
The back wall includes side flaps that fold 180 degrees to lay completely flat against the rear panel. This creates a double-thick wall that stiffens the hinge and prevents tearing during repeated opening.
Can the webbed corners be adjusted for different materials?
Yes. The angle and height of the front corner gussets can be modified to change how tightly they wedge against the side walls, allowing you to tune the friction fit if you switch to a slightly different paperboard.
