Retail and food service applications
Bakery and pastry presentation
The wide top opening allows delicate items to be placed inside without catching on the walls. The tapered shape provides an elegant presentation on the counter and during unboxing.
Premium takeout and food service
Often used for high-end food delivery, the integrated lid keeps contents covered while the double-thick side walls provide stability. Food-safe barrier coatings are needed for direct contact.
Retail gift kitting
The clean front edge, created by a folded top flange, and the glue-free construction make this a popular choice for boutique gift sets and cosmetics.
Confectionery and chocolate assortments
The wide top opening allows packers to arrange delicate items or inserts easily, while the tapered walls frame the contents for a premium unboxing experience.
Store-floor packing and short-run production
Store-floor and point-of-sale packing
Because the tray relies on a specific sequence of folds to lock the side panels over the dust flaps, it is best suited for environments where staff can be trained on the assembly method and have space to build boxes on demand.
Short-run and digital programs
The lack of a glued manufacturer's joint means this package bypasses the folder-gluer entirely. This makes it highly accessible for short digital runs or prototype testing on a CAD table.
High-end delivery and catering
When the unboxing presentation justifies the extra manual assembly time, this tray provides a sturdy, elegant container that looks better than standard glued takeout boxes.
When to evaluate straight-sided or glued alternatives
High-speed packing lines
If your operation relies on automated carton erecting or rapid manual setup, a glued crash-lock base or a standard straight-tuck carton will be significantly faster to pack than this roll-end design.
Parcel shipping
The friction-locked walls and tuck tongue are designed for hand delivery or retail bags. If this box will travel through a courier network, it often benefits from an outer shipping carton to prevent the lid from popping open or the walls from unspooling.
Board memory, print surfaces, and material footprint
Board memory and caliper
The side walls fold 180 degrees to lock the tray. This relies on a folding boxboard (FBB) or solid bleached board (SBB) with excellent memory and fold endurance to prevent cracking along the hinges.
Two-sided printing
When the box is opened, the inside of the lid and the inner faces of the roll-over side panels are fully visible. If you want a continuous brand experience, plan for two-sided printing.
Packing labor allocation
The roll-end assembly sequence takes longer than popping open a glued crash-lock base. Operations should weigh the cost of manual packing against the savings of a glue-free design.
Outer shipping strategy
The friction-locked walls and tuck lid are designed for hand delivery or retail bags. If the product will ship through a courier network, plan for a dedicated outer shipping box.
Taper adjustments and lock clearances
Taper angle recalculation
The slant of the walls is derived from the difference between the top and bottom dimensions. Changing the footprint prompts the CAD system to recalculate the wall heights and angles to ensure the lid and locks still align perfectly.
Lock hole and flange depth
The front flange that receives the lid's tuck tongue can be adjusted to accommodate different board thicknesses, ensuring the lid sits flush without bowing.
Tuck tongue length and slit locks
The front closure tab can be lengthened or modified with slit locks to increase friction, helping the lid stay closed during handling.
Packing details
Blank sprawl and material usage

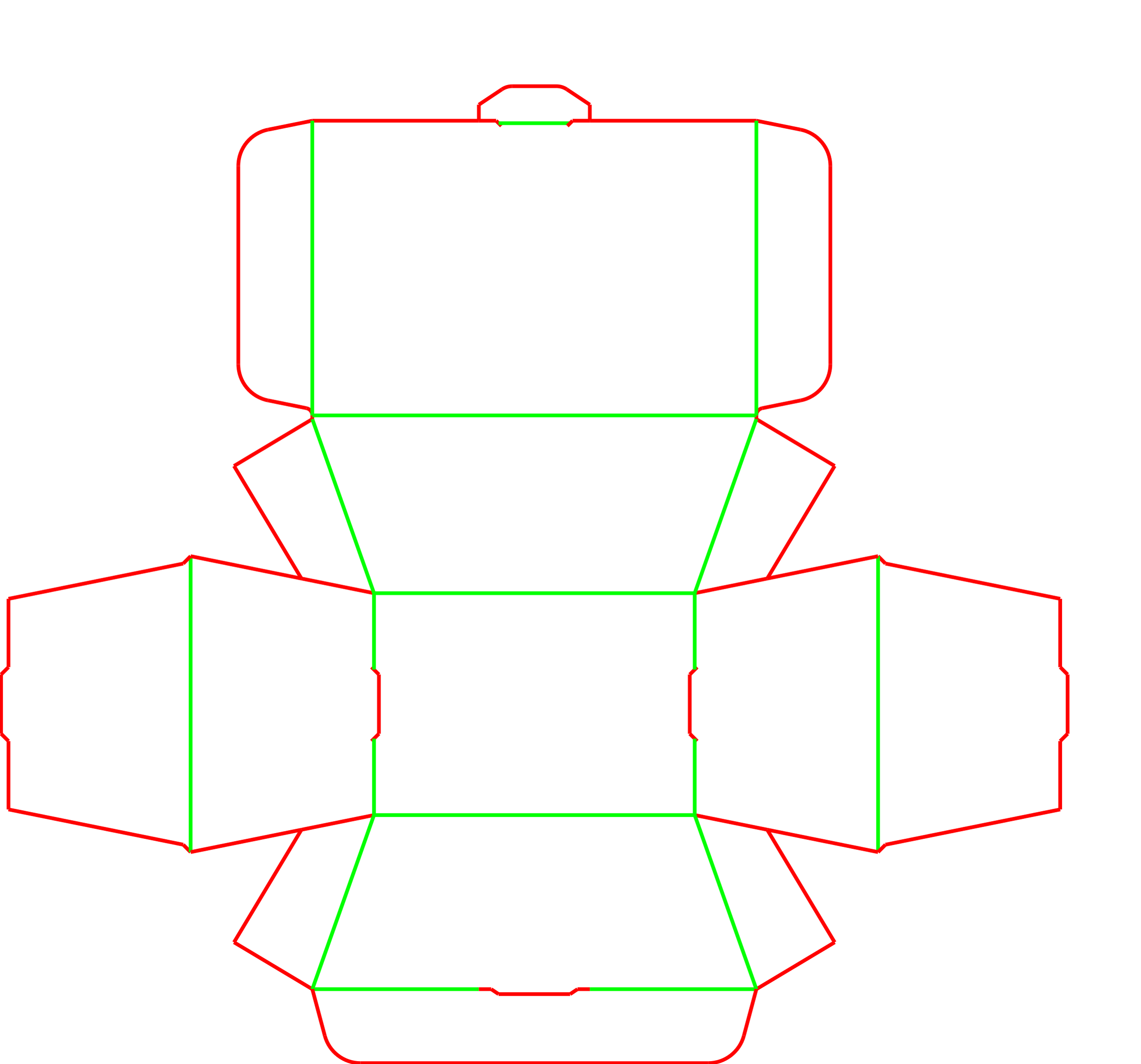

The flat, unglued blank resembles a large cross. Because the roll-over panels and the attached lid extend outward in four directions, this design consumes more total board area than a standard glued carton and may result in higher nesting waste during die-cutting.
Additional notes
Board thickness and fold endurance
Because the side panels fold completely flat against themselves to lock the tray, the chosen paperboard should resist cracking on tight folds. Extremely thick boards may prompt template adjustments to the lock clearances.
Related tray and lid styles
FAQs
Does this box require glue to stay together?
The tray base locks mechanically without adhesive. The side walls fold completely over the front and back dust flaps, trapping them in place using the friction of the board.
Can this tray be erected by automated machinery?
This specific roll-end design relies on manual assembly at the packing station. It is not a fit for standard automated folder-gluers or high-speed carton erectors.
Will the inside of the box be blank?
By default, the inner roll-over side panels and the inside of the lid will show the unprinted side of your board. Two-sided printing is needed if you want graphics visible on these interior surfaces.
Is this box secure enough for courier shipping?
The tuck lid and friction-locked walls are intended for retail presentation, takeout, or hand delivery. For parcel shipping, this tray should be placed inside a dedicated corrugated outer shipper.
Can this be made from corrugated board?
Micro-flute corrugated is generally a poor match. The 180-degree folds needed to lock the side panels will likely bind or crush corrugated material. It performs best with standard folding carton boards.
Can we change how steep the tapered walls are?
The taper is controlled by adjusting the top opening dimensions relative to the bottom footprint. The structural design software will automatically recalculate the wall angles to maintain the locking mechanism.
How is this box delivered?
It is delivered completely flat. Because there are no glued joints, the flat blanks stack very densely, which helps save space in crowded retail or food service stockrooms.
Can this box hold food directly?
The structural design works well for food, but direct contact depends entirely on the paperboard choice. You will need to specify a food-safe board with an appropriate grease or moisture barrier.
