Premium Presentation and Kitting
High-end inserts for rigid boxes
This tray is frequently used inside a rigid setup box or a custom sleeve. The hollow walls act as a shock-absorbing perimeter, while the mitered shoulders frame the product cavity, elevating the unboxing experience.
Luxury kitting and multi-product assortments
For multi-product sets, the sturdy buffer walls provide a rigid boundary that keeps items contained. Custom inserts or partitions can be placed inside the central cavity to organize individual components.
Framed presentation for single premium items
When packing a single high-value item, the mitered buffer walls draw the eye toward the center, creating a display-ready presentation as soon as the outer packaging is opened.
Protective inner trays for delicate goods
The double-wall construction creates a hollow void around the perimeter. This crush zone helps protect fragile items from side impacts during handling and transit.
Industries Using Framed Buffer Trays
Cosmetics and fragrance presentation
The clean, framed aesthetic complements premium beauty products. The hollow walls provide a sense of volume and protection without relying on heavy plastic or foam inserts.
Consumer electronics unboxing
Used to present devices and accessories cleanly. The buffer walls offer a degree of side-impact protection during transit when paired with a sturdy outer box.
Confectionery and specialty foods
Well-suited for premium chocolates or artisanal foods where the presentation frame adds perceived value to the unboxing experience.
Jewelry and accessory display
The crisp mitered corners and clean inner walls provide an elegant backdrop for watches, leather goods, or high-end accessories.
Situations That Point to Simpler Trays
High-speed packing lines and automated erection
The six-phase manual assembly sequence takes time. If packing speed is the primary concern, a standard four-corner glued tray or a machine-erected format will be much faster, though they lack the hollow-wall presentation.
Standalone parcel shipping and transit security
This tray relies on friction locks that can dislodge under rough handling. It is usually placed inside a secure outer shipper or tight-fitting sleeve for courier networks.
Key Design and Assembly Choices
Manual assembly labor and packing rhythm
Because the tray is un-glued and features complex roll-over walls with interlocking corner flaps, fulfillment teams should budget adequate time for manual erection. A physical prototype helps assess the packing rhythm.
Board thickness and corner crispness
The folding sequence asks the board to roll over and lock without cracking or bowing. Solid Bleached Sulfate (SBS) or high-quality Folding Boxboard (FBB) around 0.5mm thick is typically chosen to achieve crisp mitered corners.
Outer packaging pairing
Since the tray is an insert, the dimensions of the outer sleeve or rigid box dictate the final footprint. The tray should be sized to slide in smoothly without binding.
Print and finish placement
Decide whether the interior cavity and buffer tops need graphics. The flat delivery format makes it easy to apply premium finishes like foil stamping or spot varnish before assembly.
Adjusting the Frame and Fit
Buffer wall width and perceived volume
The width of the hollow frame can be adjusted to create a thicker or thinner border around the product. Wider buffers increase the perceived size of the package but may need heavier board to prevent the top panels from bowing.
Miter angle and corner fit
The angle where the inner walls meet (the shoulders) is adjustable. While a standard angle provides a classic picture-frame look, it can be modified to accommodate specific product shapes or board thicknesses.
Layer step corrections for thicker boards
As board thickness increases, the inner tucks need slight dimensional adjustments to fold without binding. The template handles these layer corrections to keep the walls straight.
Packing details
Print panel and surface finishing
The buffer tops and inner walls are highly visible upon opening. If graphics cross these fold lines, careful print registration is helpful. The flat delivery format makes it easy to apply premium finishes like foil stamping or spot varnish before assembly.
Additional notes
Board thickness and layer step corrections
Because the board folds over itself multiple times, the template uses layer step corrections to adjust panel sizes slightly. This ensures the inner walls seat fully without binding against the outer walls.
Related Presentation Trays
FAQs
Does this tray use glue?

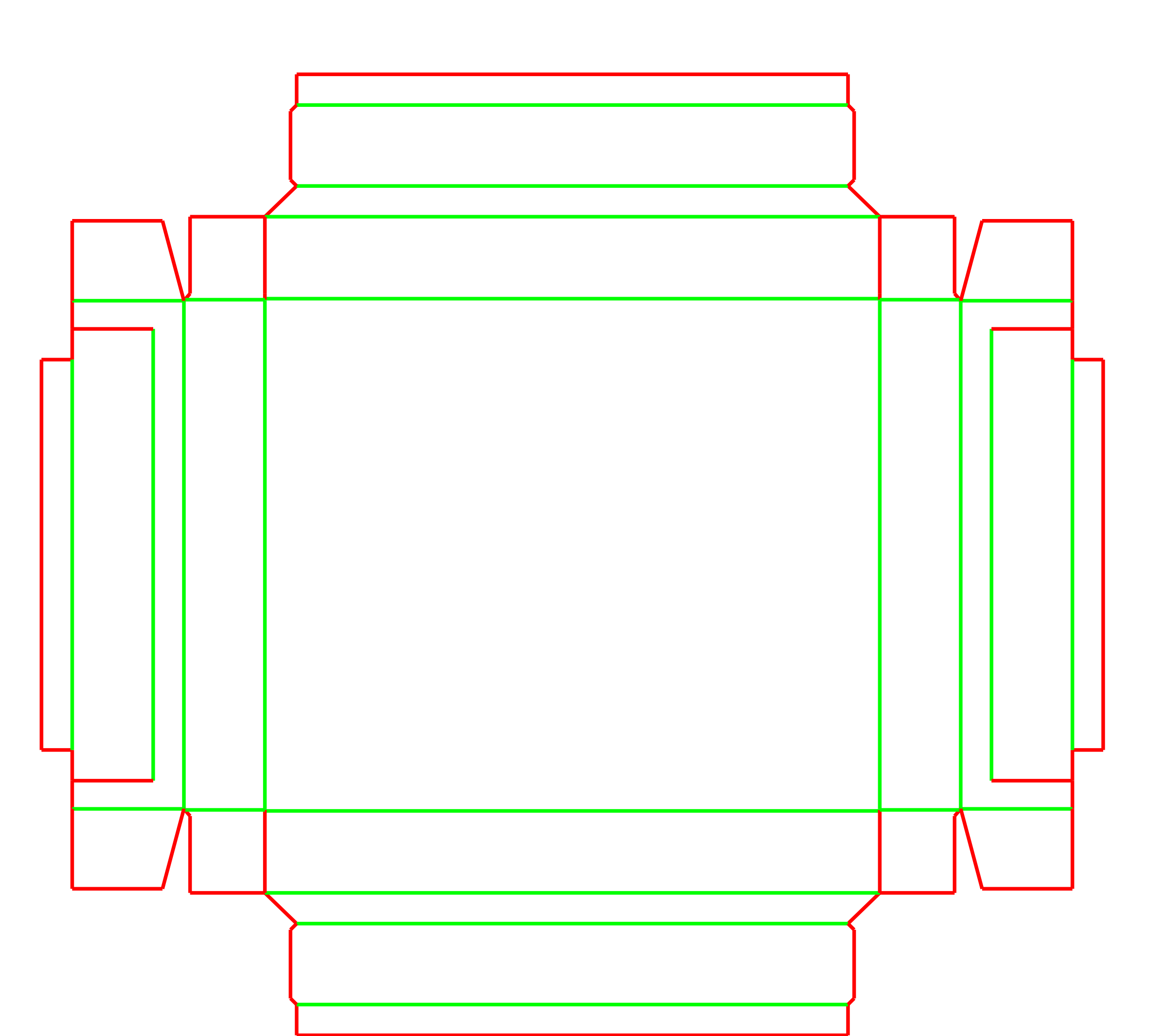

No. The EVF41206 is a single-piece blank that uses friction locks (bottom tucks) to hold the rolled-over walls in place. It bypasses the folder-gluer entirely.
Is this suitable for automated packing?
Generally, no. The sequence of folding the outer walls, tucking the corner flaps, and rolling the buffer walls over to lock them relies on manual assembly.
Can this tray be shipped on its own?
The friction locks are designed for presentation, not transit security. For courier handling, the tray is typically enclosed in a rigid box, sleeve, or master shipper.
What causes the buffer walls to bow?
If the buffer width is too large relative to the board's stiffness, the top panel of the hollow wall may sag or bow. Adjusting the board grade or reducing the buffer width resolves this.
Can the mitered corners be changed?
Yes. The angle of the trapezoidal cuts on the inner walls can be adjusted during the structural design phase to ensure the corners meet cleanly based on your specific board thickness.
Can I use corrugated board for this tray?
While micro-flute (like E or F flute) is possible, the complex roll-over corners and mitered cuts may bind or crush. Premium folding carton boards (like SBS or FBB) usually fold more cleanly for this specific geometry.
How is the tray delivered to the packing facility?
It is delivered flat as a single die-cut and scored blank, which saves space during shipping and storage before assembly.
Can the inner walls and buffer tops be printed?
Yes. Because the tray is delivered flat, the entire surface can be printed. Careful layout ensures graphics align correctly across the fold lines of the buffer walls.
