EVF41207

Premium Buffer Wall Presentation Tray

The EVF41207 is a premium folding carton tray designed for high-end unboxing. It features hollow perimeter buffer walls on all four sides, creating a thick, rigid frame that protects fragile items while mimicking the look of a rigid setup box.

Delivered flat and assembled manually without glue, the tray relies on a specific roll-over sequence. The side walls fold in to deploy a double-thick floor, while the top and bottom walls lock the tray together using hidden insertion tongues.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Hollow perimeter walls for side-impact protection and a framed presentation
  • Double-thick floor provides a flat, uninterrupted interior surface
  • Unglued manual assembly via hidden locking tongues

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Presentation and Kitting Jobs

High-End Unboxing and Retail Display

The hollow walls create a visual frame around the product, making it a strong choice for luxury retail environments. The double-thick floor hides all internal folds, leaving a clean, uninterrupted surface that presents the product clearly.

Fragile Item Perimeter Protection

The air gap inside the four buffer walls absorbs side impacts before they reach the interior compartment. This makes the tray effective for holding delicate electronics or glass cosmetics when paired with a protective outer sleeve or master carton.

Multi-Item Kitting and Gift Sets

The rigid walls and flat interior floor provide a stable base for custom inserts. Brands frequently use this tray to hold multiple components securely in place for holiday gift sets or promotional kits.

Direct-to-Consumer Premium Unboxing

When placed inside a standard mailer box, the buffer wall tray elevates the presentation. The customer opens the mailer to find a framed, high-end display rather than loose items in void fill.

Product Categories Using Buffer Wall Trays

Cosmetics and Personal Care

Brands use this tray to hold multiple skincare items or cosmetic sets. The rigid feel of the rolled edges conveys quality, while the flat-shipping design keeps logistics manageable compared to pre-glued rigid boxes.

Consumer Electronics

For devices that require a premium reveal, the buffer walls provide both the necessary physical standoff from the outer packaging and a clean architectural presentation.

Luxury Confectionery and Specialty Foods

The clean interior floor without raw edges is excellent for food presentation, assuming a food-safe board is selected. The hollow walls protect delicate chocolates or pastries from side compression.

When to Consider Simpler Tray Styles

High-Volume Automated Packing

This tray requires manual dexterity to guide the locking tongues into the hollow walls. If your packing line relies on automated tray erectors, a standard glued four-corner tray or a machine-formed crash-lock tray will be much faster.

Strict Material Budgets

The four double-wall roll-overs and the extended floor panels require a much larger flat blank than a standard tray. If cost per unit is the primary driver and the premium framed look is not required, a standard roll-end tray uses far less board.

Board Choice, Assembly, and Outer Packaging

Board Caliper and Tongue Clearance

The locking mechanism relies on side-extending tongues sliding into the hollow walls. This friction fit is sensitive to board thickness. Standard folding boxboard or solid bleached sulfate works well, but moving to a thicker micro-flute corrugated requires recalculating the tongue clearances to prevent binding.

Outer Packaging Strategy

This is an open presentation tray, not a closed shipper. You will need to plan for a matching folding carton sleeve, a clear lid, or a dedicated master carton to protect the tray during transit.

Assembly Labor and Fulfillment Time

The multi-step roll-over sequence and tongue insertion take longer to assemble than a standard friction-tuck tray. Fulfillment teams should test the folding motion during prototyping to accurately forecast packing times.

Insert and Partition Planning

The flat interior floor is excellent for mounting custom inserts. Decide early whether you will use a die-cut paperboard insert, a molded pulp tray, or foam, as this affects the internal dimensions required.

Adjusting the Buffer Width and Floor Panels

Buffer Wall Width

The width of the hollow shoulder can be adjusted to create a thicker or thinner frame around the product. Widening the buffer wall reduces the internal volume and changes the required size of the locking tongues.

Interior Floor Printing

Because the left and right walls roll over to form a complete secondary floor, this interior surface can be fully printed with branding, instructions, or patterns without exposing raw board edges.

Tongue Taper and Clearance

The locking tabs can be tapered or adjusted in width to accommodate different board finishes or coatings, ensuring they slide smoothly into the hollow walls without tearing the paperboard.

Packing details

Assembly Sequence and Packing Labor

The assembly sequence is strict: the left and right walls must roll over first to lay the floor panels flat. Only then can the top and bottom walls roll over, allowing their side tabs to slide into the open ends of the left and right buffer walls.

Additional notes

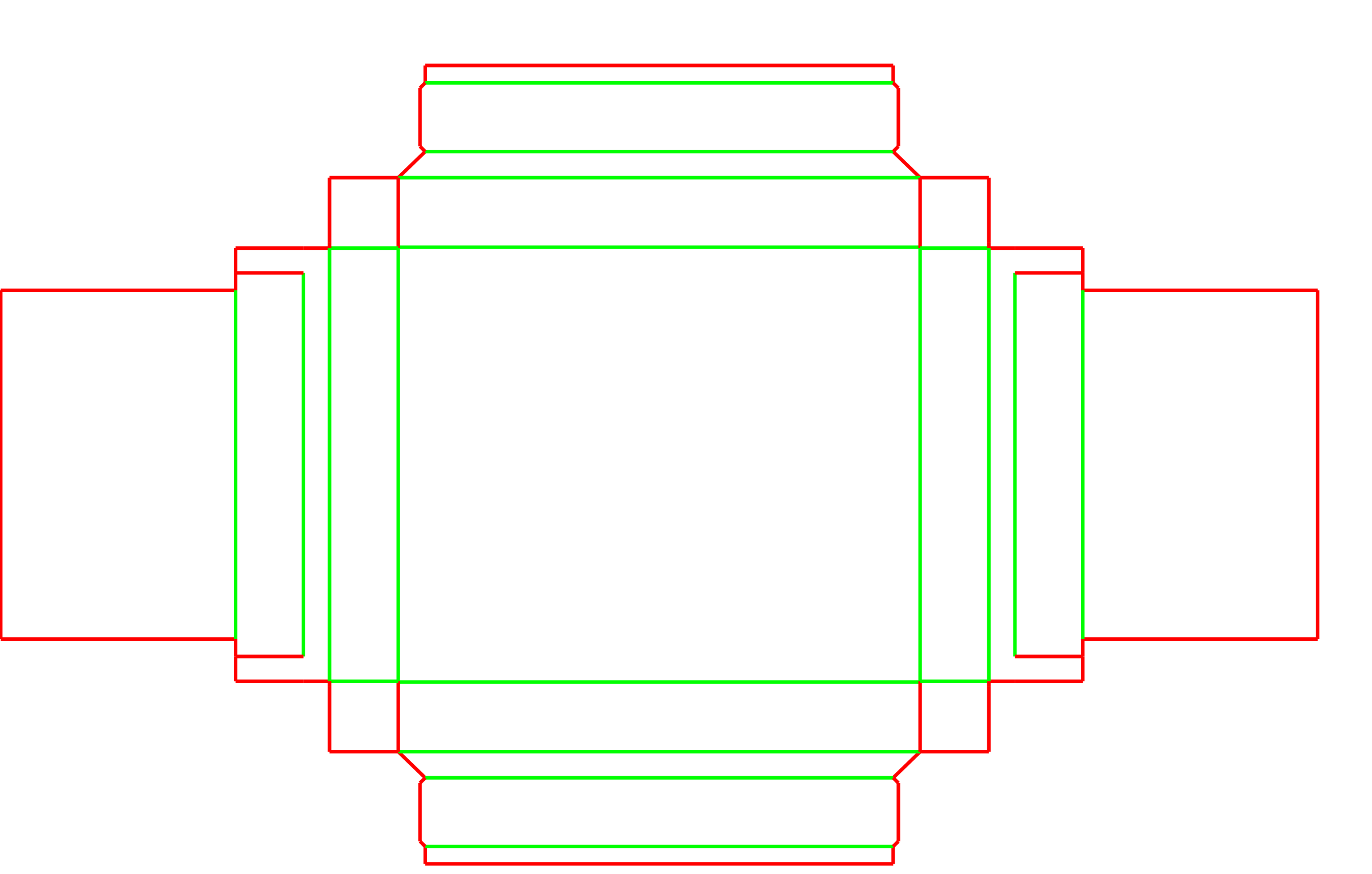

Blank size and material footprint

Because the tray features four double-wall roll-overs and a secondary floor, the flat unassembled blank is exceptionally large compared to the final tray size. This high material usage should be factored into early budget discussions.

Related Presentation Trays

Standard Roll-End Tray

A simpler unglued tray without the hollow perimeter walls, offering faster assembly and lower material usage for standard retail needs.

FAQs

Does this tray require glue or tape to stay together?

No. The tray locks mechanically. The top and bottom inner walls feature side-extending tabs that slide into the hollow ends of the left and right buffer walls, holding the entire tray under tension.

Can this tray be erected by automated machinery?

This design is intended for manual assembly. Guiding the locking tongues into the hollow buffer walls requires human dexterity and is generally not suitable for standard automated tray erectors.

Can we use corrugated board for this tray?

It is challenging. The intricate locking tongues and the double-thick floor are designed for thinner folding carton boards. Thicker corrugated flutes will likely crush during the multiple 90-degree folds and cause the locking tabs to bind.

Where can graphics be printed on the inside?

The entire interior floor and the inner faces of the buffer walls can be printed. The floor is formed by two large panels that meet in the center, providing a clean canvas for internal branding.

Can this tray be shipped directly in the mail?

No, it is an open presentation tray. For parcel or courier shipping, it must be inserted into a protective outer mailer or a secure sleeve.

Why is a physical sample important for this specific tray?

A sample verifies two critical details: that the locking tongues fit smoothly into the hollow walls with your chosen board thickness, and that your fulfillment team is comfortable with the multi-step manual folding sequence.

Can we add custom inserts to this tray?

Yes, the flat interior floor provides an excellent base for custom inserts. Paperboard, molded pulp, or foam inserts can rest inside the tray to hold individual items securely.

How do we keep the tray closed during transit?

Because this is an open tray, it requires secondary packaging. Most brands pair it with a custom folding carton sleeve, a clear plastic lid, or place it inside a larger master carton.

A premium presentation tray that frames your product and elevates the unboxing experience.
