Premium Retail Presentation and Kitting
Framed retail display
The outward-sloping exterior walls and flat top rim create a visual frame around the product. This presentation style draws attention to the center cavity, making it a strong choice for luxury retail environments where the tray sits directly on the shelf.
Perimeter crush protection
The hollow buffer walls absorb side impacts before they reach the inner cavity. This double-wall standoff helps protect fragile items, glass bottles, or delicate confections during handling and retail loading.
Kitting and multi-component presentation
The hollow walls and rigid base make it a strong foundation for custom inserts holding multiple items, such as skincare sets or promotional bundles.
Shelf-ready open presentation
The angled walls provide a clear view of the product while maintaining a distinct boundary on crowded retail shelves, helping the package stand out without requiring a lid.
Cosmetics, Confectionery, and Fragile Goods
Hand-packed premium goods
Because the tray requires a multi-step manual roll-over sequence to lock the walls into place, it fits operations that already rely on hand assembly. The unglued tray avoids folder-gluer setup, making it accessible for short-run digital programs or limited-edition kits.
Luxury cosmetics and skincare
The framed aesthetic elevates the perceived value of jars, bottles, and compacts, providing a presentation style that matches the premium nature of the product.
Confectionery and artisanal foods
The buffer walls provide a standoff distance that helps protect delicate chocolates or baked goods from side impacts during retail handling.
Straight Walls and High-Volume Packing
High-speed automated fulfillment
The complex foot-lock folding sequence is difficult to automate. If the packing line depends on fast, machine-erected trays, a standard four-corner glued tray or a simpler crash-lock base may be a better choice.
Minimizing material footprint

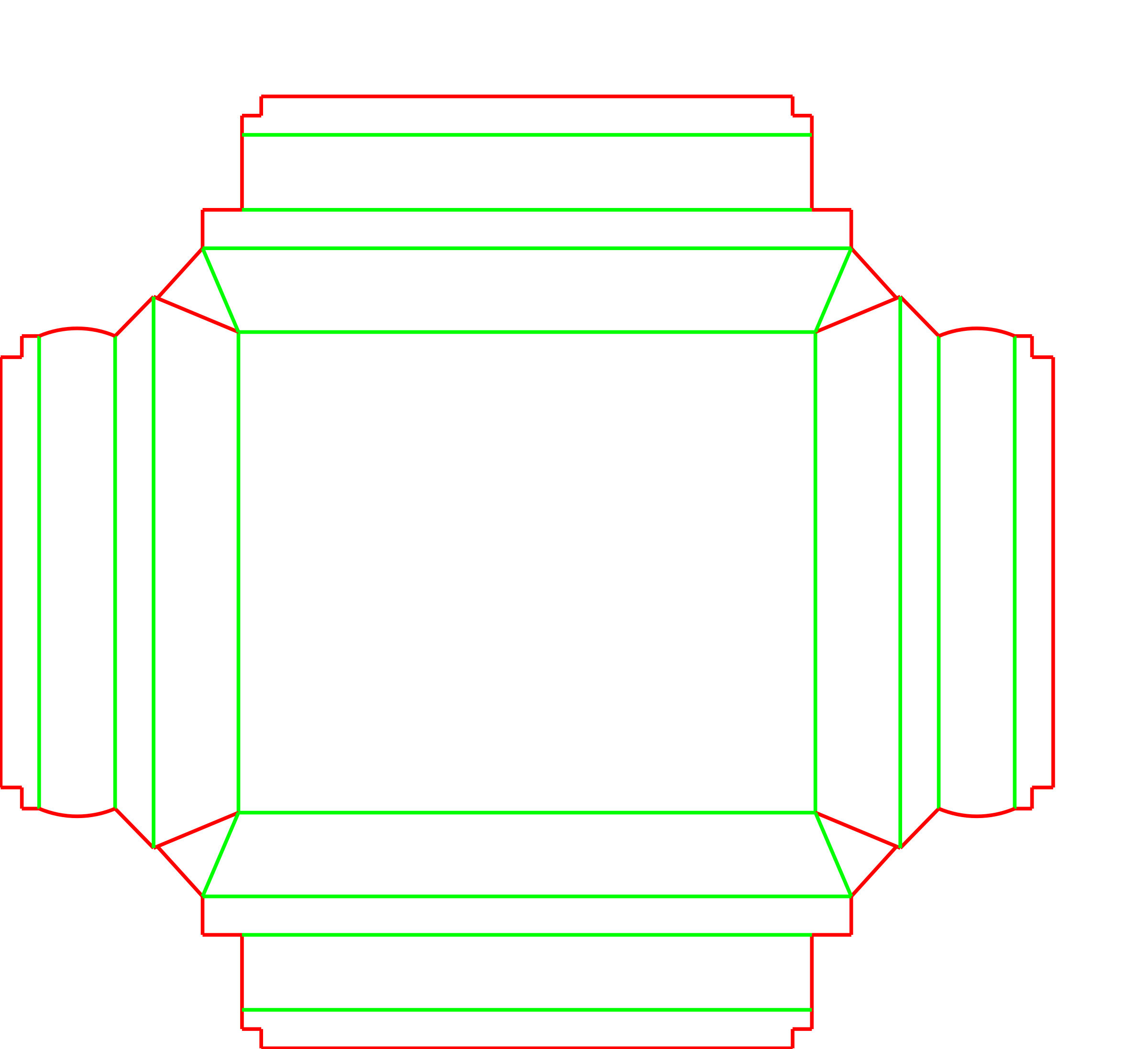

The extended roll-over panels create a large, cross-shaped flat blank. If material yield is a primary concern, a straight-wall tray may be worth comparing, as it requires less board to form the perimeter.
Board Caliper, Blank Sprawl, and Assembly Labor
Assembly labor and fulfillment time
The four outer walls, corner webs, and inner foot-locks must be folded and tucked by hand. Fulfillment teams should review a physical sample to understand the time required per unit before committing to a large run.
Board thickness and crease cracking
The design relies on multiple parallel creases to form the top rim and inner walls. Heavy boards may crack under this tight rolling sequence, while very light boards can weaken the hollow frame. The exact board grade should be tested for foldability and lock friction.
Internal volume versus external footprint
The tapered walls and buffer rim consume part of the overall footprint. The internal cavity dimensions must be verified against the exact product size to ensure a proper fit.
Print surface and scuff risk
The outward-sloping exterior walls are highly visible, making them excellent surfaces for premium graphics. However, they are also the first point of contact during handling, so scuff-resistant coatings should be considered.
Taper Angle and Buffer Wall Width
Taper angle and footprint
The slope of the outer walls can be adjusted. Steeper angles increase the overall footprint of the tray, while more vertical angles reduce the visual frame effect. Extreme angles should be checked to ensure the corner web panels do not tear or overlap during assembly.
Buffer wall width
The width of the top rim determines the thickness of the hollow perimeter. Widening this rim increases the protective standoff but reduces the available volume inside the product cavity.
Foot-lock tab sizing
The friction fit of the terminal flaps can be adjusted based on the chosen board caliper to ensure the frame stays locked without tearing or popping open.
Packing details
Outer shipping requirements
This is an open-top tray designed for presentation. It does not secure products for parcel transit on its own and will require a closely fitted outer shipper, sleeve, or lid for courier networks.
Additional notes
Print panel and scuff risk
The outward-sloping exterior walls are highly visible on a retail shelf, making them excellent surfaces for premium graphics or foil. However, these angled panels are also the first point of contact during handling, so scuff-resistant coatings should be considered.
Related Buffer Wall Trays
FAQs
Can this tray be erected by automated packing machinery?
The multi-directional roll-over and foot-lock sequence relies on manual assembly. If the packing line depends on high-speed machine erection, a standard four-corner glued tray may be a better fit.
Does the hollow wall reduce the internal packing space?
The buffer wall width and the tapered outer angle consume part of the overall footprint. The internal cavity dimensions should be verified against the exact product size.
What board types work well for this roll-over design?
Standard folding boxboards usually provide the right balance of rigidity and foldability. Thicker boards can crack along the multiple rim creases, and the foot-locks may pop out if the material is too stiff.
Can this tray be shipped through parcel networks?
As an open display tray, it requires a secondary outer carton or a secure sleeve to retain the product during rough transit.
Does this tray require gluing?
The entire frame is held together by mechanical foot-locks that tuck into the base, bypassing the folder-gluer entirely.
Can a window be added to the buffer walls?
Adding cutouts or windows to the hollow perimeter walls is generally avoided, as it weakens the frame and complicates the roll-over assembly.
Should we request a physical sample before ordering?
Because the foot-locks rely on friction and the multiple creases can stress the board, testing a physical sample helps confirm the assembly time and structural hold.
Can the inner walls be printed?
The inner vertical walls are part of the same flat blank and can be printed, though the primary visual focus is usually on the outward-sloping exterior walls and the top rim.
