EVF41261

Tapered Buffer Wall Tray

The tapered buffer wall tray is a premium presentation package that creates a thick, angled frame around the product. The hollow outer walls slope inward, drawing the eye to the center while providing side-impact protection for fragile or high-value items.

Delivered flat and assembled without glue, this tray relies on a sequence of roll-over folds and friction locks. The resulting package is highly rigid, making it a strong choice for cosmetics, electronics, and luxury confectionery where the unboxing experience matters as much as the protection.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Angled hollow walls create a premium picture-frame effect
  • Delivered flat and assembled entirely by hand without glue
  • Requires paperboard with excellent folding endurance

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Presentation and High-Value Packing

Premium Unboxing and PR Kits

The angled outer walls and flat top rim create a distinct framing effect that elevates the perceived value of the contents. The hollow buffer space also allows for deep, secure insert placement, keeping items centered and protected during presentation.

Fragile Item Protection

The thick, hollow walls absorb side impacts before they reach the product. This makes the tray useful for delicate electronics, glass cosmetics bottles, or high-end confectionery that cannot risk edge damage.

Horizontal Display Trays

Because the tray sits flat and frames the interior, it works well for retail shelves or display cases where the product needs to remain visible but physically separated from neighboring items.

Component Separation with Inserts

The vertical inner walls drop straight down to the base, creating a clean rectangular cavity. This interior space easily accepts die-cut paperboard or foam inserts to separate multiple components.

Product Categories That Benefit from Tapered Walls

Cosmetics and Personal Care

Skincare sets and fragrance bottles benefit from the deep framing and rigid side walls. The smooth paperboard surfaces provide ample room for high-end finishes, foil stamping, and brand colors.

Luxury Confectionery

Chocolates and delicate sweets are protected from crushing by the hollow buffer zones. The glue-free assembly ensures a clean interior presentation without adhesive residue.

Consumer Electronics

High-value tech accessories and devices require both impact protection and a premium unboxing feel. The hollow walls provide a crush-resistant perimeter without relying on bulky foam blocks.

When to Consider a Different Tray Style

High-volume fulfillment lines

This tray requires sequential manual folding of eight wall segments and four corner webs. If packing speed is the primary concern, a pre-glued crash-bottom carton or a simpler straight-walled tray may be a better choice.

Direct parcel shipping

Friction-locked trays can unroll if twisted or dropped heavily. For courier delivery, this tray must be paired with a tight-fitting outer sleeve or a dedicated corrugated shipping box.

Board, Assembly, and Transit Choices

Board Quality and Folding Endurance

The complex roll-over walls require multiple 90-degree and 115-degree folds. Solid Bleached Sulfate (SBS) or Folding Boxboard (FBB) is usually necessary to prevent the hinges from cracking during assembly.

Fulfillment Labor and Assembly Time

Because the tray is delivered flat and uses a foot-lock mechanism, fulfillment teams must budget time for manual setup. The left and right walls fold first, followed by the top and bottom walls which trap the corner webs to lock the structure.

Outer Shipping Strategy

Since the tray relies entirely on friction locks, it is not meant to travel through courier networks alone. Buyers should plan for a snug outer mailer or master carton to keep the tray closed during transit.

Press Sheet Yield and Blank Sprawl

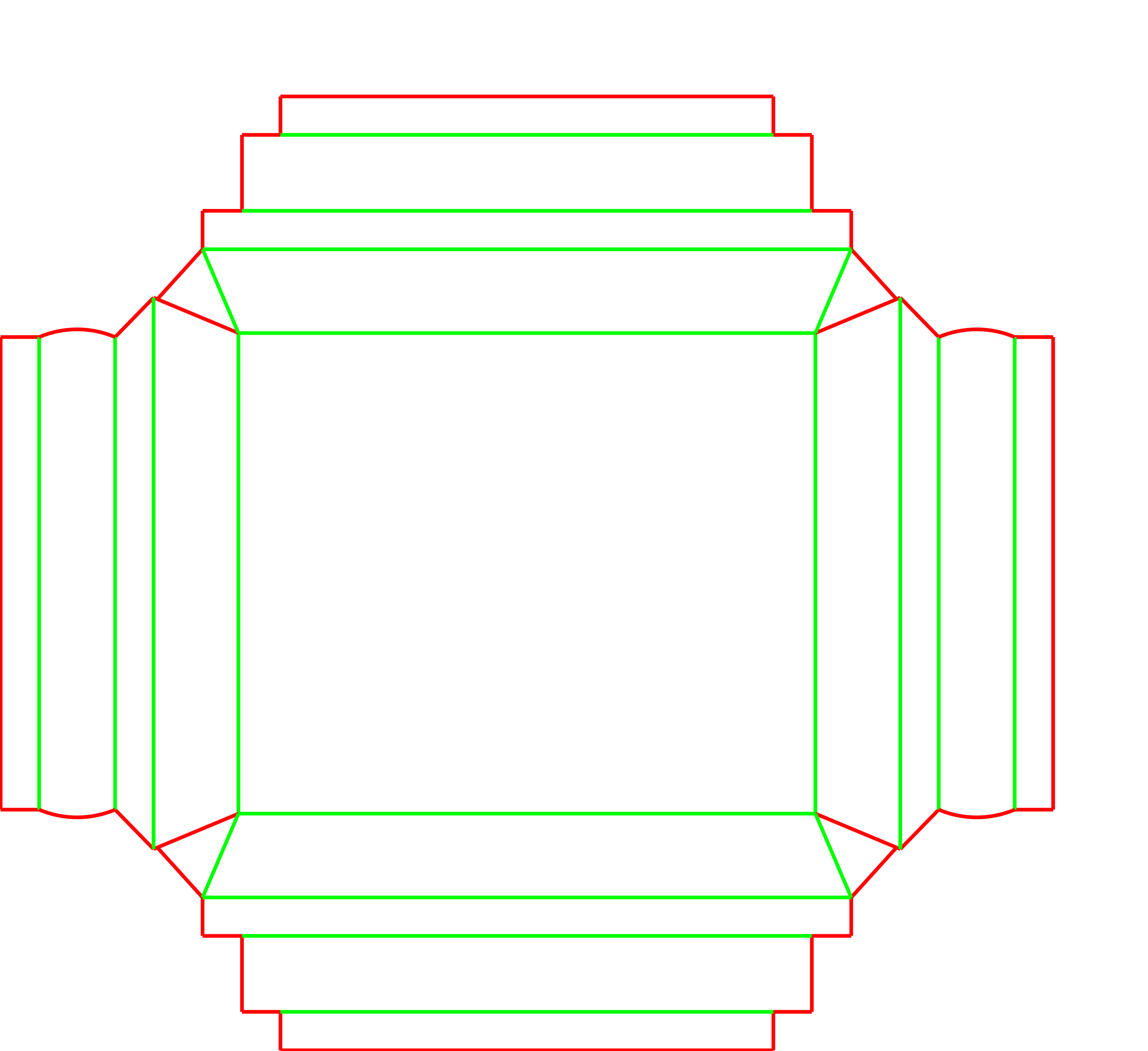

The extended roll-over panels and corner webs mean the flat, unfolded shape is much larger than the final tray. This large footprint can affect how many trays fit on a single press sheet, which influences material efficiency.

Adjusting the Frame and Taper

Frame Thickness and Taper Angle

The width of the top rim and the angle of the outer walls can be adjusted to change the visual impact. Steeper angles or wider rims increase the overall footprint of the flat blank.

Buffer Wall Width

The flat top edge of the hollow wall can be widened or narrowed. A wider rim creates a thicker frame around the product, while a narrower rim maximizes the internal cavity space.

Inner Cavity Depth

The overall height of the tray dictates the depth of the inner cavity. This depth should be matched to the product or the custom insert being used to ensure items sit flush with the top rim.

Packing details

Corner Web Closure

Triangular corner webs bridge the gaps between the angled outer walls. These webs fold inward and are trapped inside the hollow buffer space, ensuring the corners remain closed and visually clean.

Additional notes

Blank size and press sheet yield

The extended roll-over panels and corner webs mean the flat, unfolded shape is much larger than the final tray. This can affect how many trays fit on a single press sheet.

Related Presentation Trays

FAQs

Does this tray require glue?

No. The tray is delivered flat and locks together using friction. Foot-lock flaps on the inner walls sit flat against the base, holding the rolled-over walls securely in place.

Can this tray be erected by automated machinery?

The complex sequence of rolling over the walls and trapping the corner webs generally requires manual assembly. It is not suited for standard automated tray formers.

Can this be made from corrugated board?

This design relies on precise, sharp folds and tight friction locks that do not work well with fluted corrugated material. It is intended for high-quality paperboard.

Is this tray safe for courier shipping?

On its own, a friction-locked tray can pop open during rough transit. It should be placed inside a snug outer mailer, sleeve, or master carton for parcel delivery.

Can the angle of the outer walls be changed?

Yes, the taper angle can be adjusted. However, changing the angle requires recalculating the corner webs to ensure the tray closes without gaps.

How does the tray hold inserts?

The vertical inner walls create a clean rectangular space that easily accepts custom paperboard or foam inserts to hold products securely.

What keeps the angled corners from showing gaps?

The template includes triangular corner webs attached to the top and bottom walls. During assembly, these webs fold inward and are trapped inside the hollow buffer space, closing the corners cleanly.

Why does this tray require specific paperboard grades?

The assembly process involves rolling the walls over at 115-degree and 90-degree angles. Paperboard with excellent folding endurance, such as SBS or FBB, is necessary to prevent the hinges from cracking under that stress.

Review your product dimensions, desired frame thickness, and fulfillment setup to finalize the tray proportions.
