Base Pads, Dividers, and Top Sheets
Base Lining and Cushioning
Cut from corrugated board, this pad sits at the bottom of a hexagonal outer carton to distribute vertical loads, absorb shock, and provide a flat resting surface for the product.
Layer Separation
Used between stacked products to prevent scuffing and stabilize the load. The hexagonal shape ensures the divider reaches the walls of a matching outer container without shifting.
Printed Top Sheets
Cut from thin paperboard and printed with branding or instructions, it acts as a presentation layer that greets the customer immediately upon opening the outer box.
Corner Clearance in Rectangular Cartons
When packing cylindrical or complex items in a standard rectangular box, an irregular hexagonal pad can provide a stable base while leaving the four corners open for vertical bracing or accessory placement.
Retail Presentation, Confectionery, and Industrial Kitting
Specialty Retail and Gifting
Hexagonal outer boxes are common in cosmetics and specialty gifting. These pads provide the necessary internal separation or branded presentation to complete the unboxing experience.
Industrial Components
For cylindrical or irregularly shaped heavy parts, a hexagonal outer box with matching corrugated base pads can offer a tighter fit and better material efficiency than a conventional square box.
Confectionery and Baked Goods
Often used to separate layers of delicate items inside hexagonal hat-box style packaging, preventing crushing and maintaining a clean presentation between tiers.
When to Compare Rectangular or Folded Inserts
Conventional rectangular outer cartons
If the primary container is a simple rectangle and there are no internal corner features to clear, a basic rectangular pad is more material-efficient and easier to source.
Standalone containment needs
This is strictly a flat component. If the application requires a tray to hold loose items before being placed in a master shipper, a folded tray is required.
Board Grade, Fit Tolerances, and Flute Direction
Board Grade and Thickness
The choice of material dictates the pad's function. Thin paperboard works well for printed inserts and light dividers, while thicker corrugated board is necessary for load distribution and shock absorption.
Internal clearance and bowing risk
The pad must be sized slightly smaller than the internal dimensions of the outer carton. If it is too tight, it will bow and compromise the flat surface; if too loose, it may shift during transit.
Flute direction across gaps
If the pad is used to span a gap or support weight across an uneven base, the corrugated flute direction should run perpendicular to the gap for maximum bending resistance.
Surface Finish and Coating
If the pad will touch sensitive surfaces or food packaging, consider whether a coated board, anti-scuff varnish, or specific paperboard grade is needed to prevent abrasion.
Profile Angles, Cutouts, and Handling Features
Adjusting the point angles

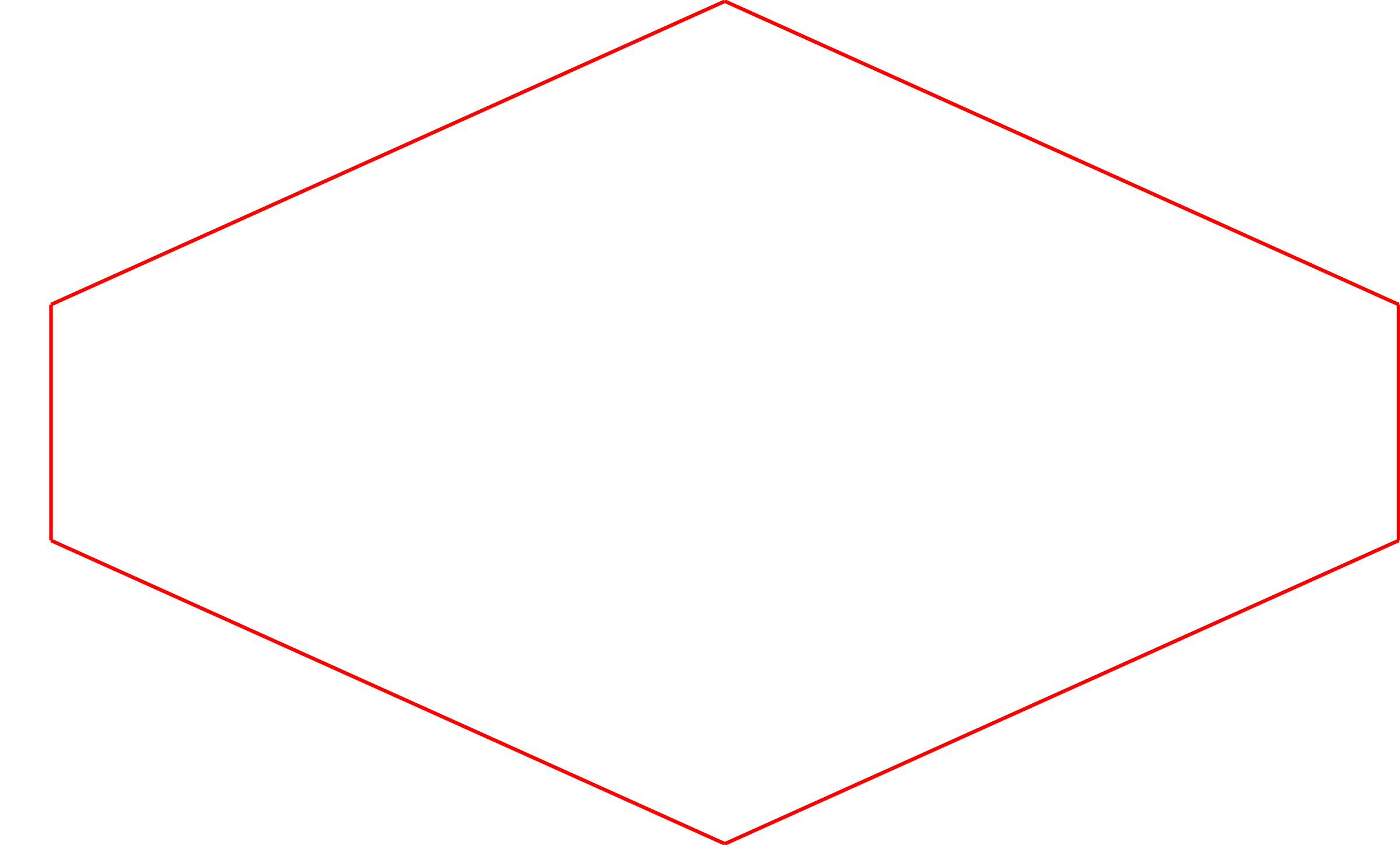

The overall length and width set the bounding box, but adjusting the length of the two parallel straight edges changes the angle of the pointed ends, allowing the pad to match various hexagonal profiles.
Finger holes for easy removal
For tight-fitting base pads or top sheets, adding a small die-cut finger hole makes it much easier for packers or end-users to remove the pad from the outer box.
Center Cutouts and Apertures
The flat profile can be modified with central die-cut shapes to hold specific components, turning a simple base pad into a locating insert.
Packing details
Die-cut nesting and material waste
The irregular hexagonal shape often allows for highly efficient interlocking layouts on the die-cutting board, minimizing waste compared to circular or heavily contoured pads.
Additional notes
Clearance for easy insertion
A pad that is exactly the same size as the internal box dimensions will often bind or bow due to material thickness at the corners. Always build in a small tolerance.
FAQs
How do I ensure the pad fits my outer box?
Measure the exact internal dimensions of the assembled outer carton. The pad should be sized slightly smaller to drop in easily without bowing.
Can the angles of the hexagon be changed?
By adjusting the total length, total width, and the length of the straight parallel sides, the angles of the points will shift to match your specific requirement.
What materials are typically used for this pad?
It depends on the job. Corrugated board is used for structural base pads and heavy dividers. Solid bleached board or folding boxboard is used for high-quality printed top sheets and light inserts.
Does this shape require a custom cutting die?
Because it has angled cuts rather than just straight 90-degree edges, it requires a custom die for high-volume production, or a digital flatbed cutter for short runs and prototypes.
How are these delivered?
They are delivered completely flat and stacked densely on pallets, making them highly efficient to ship and store before use.
Can I add cutouts to the pad?
Custom apertures can be die-cut into the center of the pad to hold specific products, or finger holes can be added near the edge for easy removal.
How does flute direction affect a corrugated hexagonal pad?
If the pad is bridging a gap or supporting weight unevenly, the flutes should run perpendicular to the span to provide the highest bending resistance.
Can this pad be printed on both sides?
Yes. If used as a divider where both sides are visible, paperboard or corrugated sheets can be printed on both faces before die-cutting.
