EVC11001P

Corrugated Snap-Bottom Tuck-Top Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Tape-free 1-2-3 snap-lock bottom for manual assembly
Tuck top with slit locks to prevent accidental opening
Useful for retail presentation and secondary inner-packing

About this product

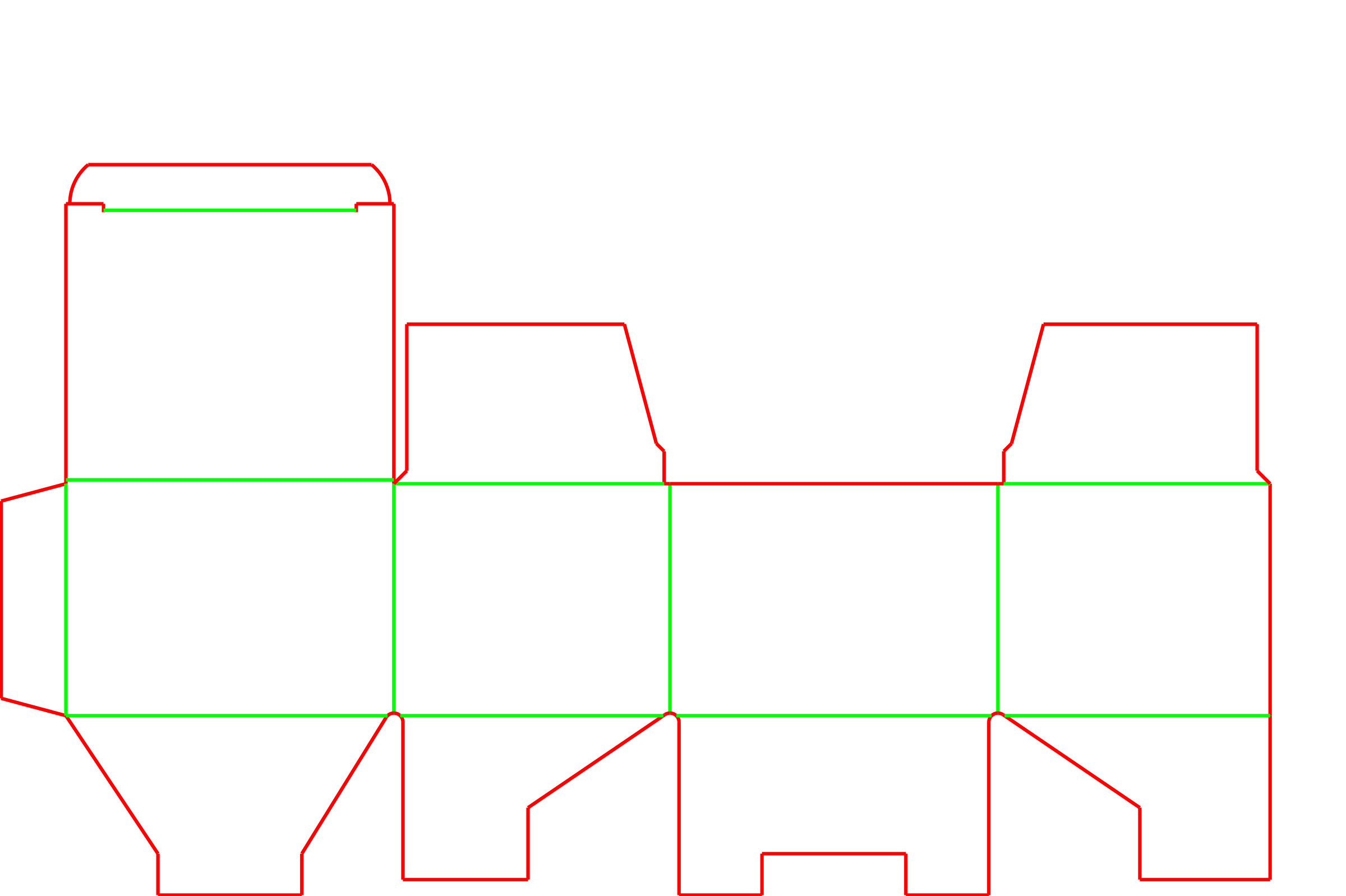

The EVC11001P is a corrugated folding carton featuring a 1-2-3 snap-lock base and a regular tuck top. Delivered flat with a pre-glued side seam, it opens into a rectangular tube, allowing packers to manually interlock the bottom flaps without tape or adhesive.

Because it relies on mechanical friction rather than tape, this style provides a clean, uninterrupted exterior well-suited for retail shelves and secondary inner-packing. The top closure uses a tuck flap with slit locks that catch on the internal dust flaps, keeping the lid secure during handling.

Common uses

Retail shelf packaging
Inner master cartons
Kitting and assortment boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the item going inside?

How will this box be shipped?

What is your expected packing volume?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail presentation and secondary packing roles

Retail shelf presentation

The tape-free exterior leaves all main panels clear for branding and labeling. The tuck top allows consumers to open and reclose the box easily without cutting through seals.

Inner master cartons

When packing multiple units into a larger corrugated shipper, the snap-bottom box provides individual unit protection and a clean presentation upon unboxing.

Kitting and multi-part assemblies

The flat bottom and rigid walls create a stable base for loading multiple components, inserts, or instruction manuals before closing the top lid.

Subscription box inner packaging

Used to group smaller items inside a larger mailer, keeping the presentation organized and preventing loose parts from shifting during transit.

Product classes and fulfillment channels

Consumer goods and hardware

Useful for medium-weight items, parts kits, or multi-component products where presentation matters and the packer needs a structured box that holds its shape during loading.

Manual fulfillment operations

Fits operations where packers assemble boxes by hand at the bench. The 1-2-3 bottom requires a specific folding sequence, making it slower than an auto-bottom but faster than taping a standard slotted container.

Retail-ready display packing

Brands preparing goods for physical retail shelves often choose this style because it avoids the messy appearance of bottom tape while keeping the top accessible for inspection.

When to consider auto-bottoms or standard shippers

High-speed fulfillment lines

If the seconds spent manually folding the 1-2-3 bottom add up to a bottleneck on the packing line, an auto-bottom (crash-lock) box is worth comparing. Auto-bottoms pop into a locked position instantly, though they require different factory tooling.

Heavy industrial goods

Because the base relies entirely on the friction of interlocking flaps, heavy products can cause the bottom to bow or drop out. For dense items, compare this to a standard taped box or a tray.

Standalone parcel shipping

Snap locks and tuck tops can catch on sorting equipment or open during rough courier transit. If the box will ship individually through a parcel network, it usually requires an outer seal, heavy-duty tape, or placement inside a master shipper.

Board thickness, assembly labor, and print choices

Flute profile and lock binding

This box is typically cut from thinner corrugated board, such as E-flute. Moving to a thicker C-flute or double-wall board requires careful checking, as the thicker material can cause the snap-lock tongue and top slit locks to bind or tear during assembly.

Assembly time tolerance

Packers must fold the U-shaped flap, fold the two side flaps, and push the final slotted tongue down to lock the base. This manual sequence should be factored into fulfillment planning.

Print surface and branding

Because the bottom requires no tape, all four side panels and the top lid are available for uninterrupted graphics. The choice of board finish will dictate how well fine text or solid colors print.

Outer shipping protection

Buyers must decide whether this box will act as the final shipping container or an inner retail pack. If it ships via courier, an outer mailer or master carton is usually necessary to protect the tuck top from catching.

Lock clearances and flap adjustments

Slit lock depth

The notches on the tuck flap can be adjusted to increase or decrease the friction hold on the lid, depending on how securely the box needs to stay closed before consumer opening.

Snap lock tongue height

The depth of the bottom locking tab can be modified to ensure it catches securely under the side flaps without binding during the manual push.

Dust flap clearances

The top side flaps can be shortened or angled to prevent them from interfering with the tuck flap as it slides into the front panel.

Packing details

Paired layout production

This specific template uses a paired layout, nesting two box blanks together during die-cutting. This optimizes board usage and reduces waste for volume runs, though the blanks must be separated before entering the folder-gluer.

Layout and material variants

Single Layout (EVC11001)

The exact same box structure, but tooled as a single blank. Often used for shorter runs or when the sheet size does not accommodate a paired layout.

Additional notes

Paired layout efficiency

The 'P' in this template indicates a paired layout, meaning two box blanks are nested together on the cutting die. This reduces material waste during flatbed die-cutting, making it efficient for larger production runs.

Bottom drop-out risk

Because the base relies on interlocking flaps rather than glue or tape, the entire payload rests on the friction of those flaps. Dense or heavy items should be tested to ensure the base does not disengage when lifted.

FAQs

How much slower is a snap lock compared to an auto-bottom?

A snap lock (1-2-3 bottom) requires the packer to manually fold and interlock four flaps, which takes a few seconds per box. An auto-bottom pops into a locked position instantly when the box is squared, making it faster for high-volume lines.

Can this box be shipped through parcel networks as-is?

If the box will ship individually through a parcel network, an outer seal, heavy-duty tape, or placement inside a master shipper is usually necessary. The tuck top and snap bottom can catch on sorting equipment or open if dropped.

How much weight can the snap-lock bottom hold?

The weight capacity depends entirely on the corrugated board grade and the friction of the interlocking flaps. Heavy items can cause the bottom to bow or drop out, so physical testing is a practical step for dense products.

Does the board thickness affect how the box closes?

Yes. This style relies on precise clearances for the bottom snap lock and the top slit locks. Moving from a thin E-flute to a thicker B-flute or C-flute requires adjusting the die to prevent the locks from binding or tearing.

Can this box be erected on automated packaging lines?

Snap-lock bottoms are difficult for many automated erecting machines, which are typically built for auto-bottoms or taped boxes. This box is usually assembled by hand.

What keeps the top lid from opening?

The top tuck flap features small notches called slit locks. When the flap is inserted, these notches catch on the raw edges of the folded side dust flaps, creating a friction lock.

Can I use custom inserts with a snap-bottom box?

Yes. The flat interior floor created by the interlocking bottom flaps provides a stable base for corrugated or foam inserts, keeping multi-part products organized.

Should I test the snap lock before ordering a full run?

Yes. Because the bottom relies on friction rather than glue, testing a physical sample with your actual product weight ensures the flaps will not disengage when the box is lifted.
