EVC11024

Corrugated Presentation Box with Integrated Shelf

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Built-in product shelf eliminates separate inserts
Tongue-lock lid provides a secure retail closure
Manual assembly required for the shelf and snap bottom

About this product

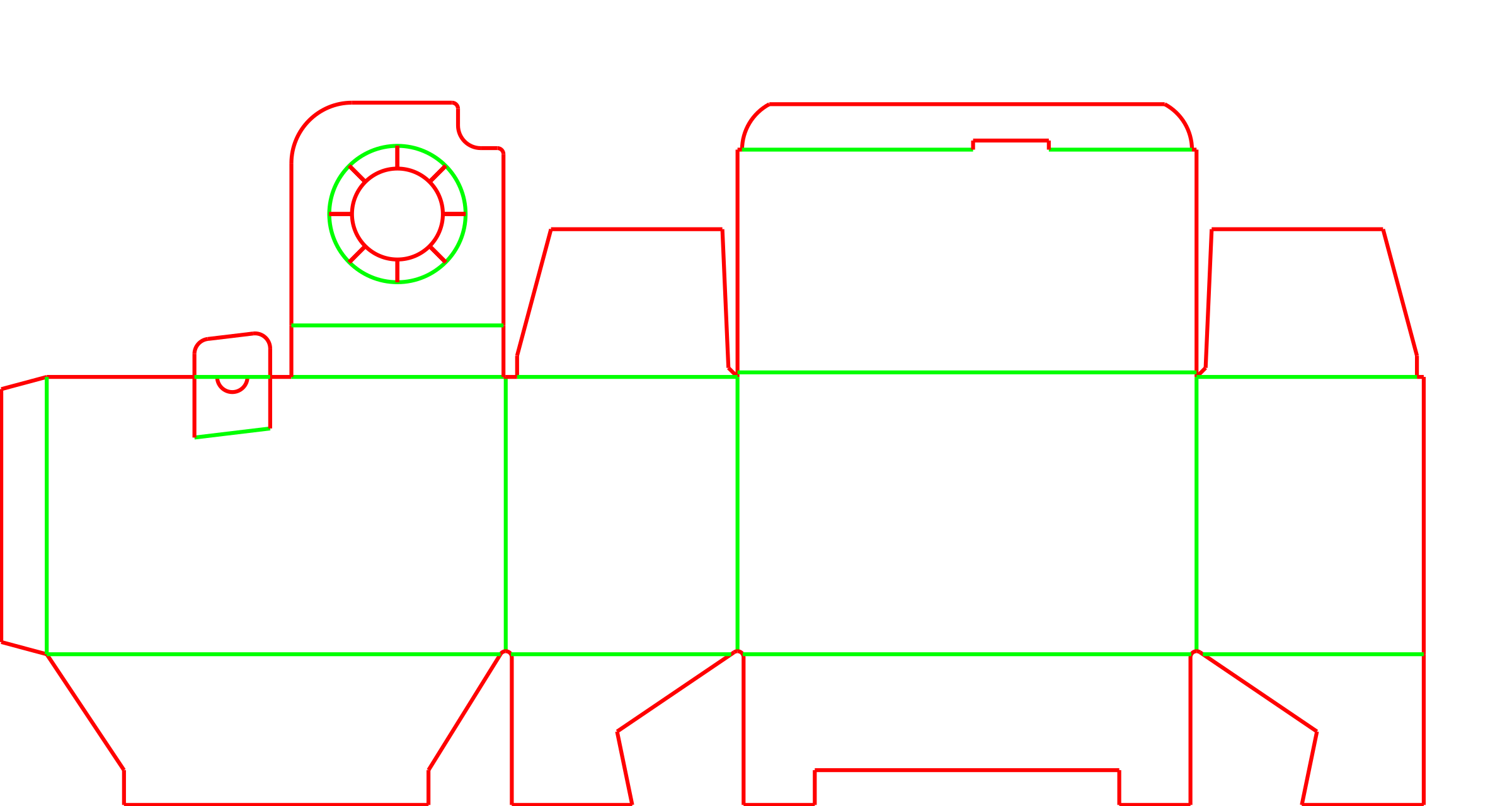

This single-piece corrugated box features an extended front panel that folds inward to create a suspended internal shelf. Designed to grip cylindrical or specific-profile products, it eliminates the need to order, store, and assemble separate custom inserts.

The top closes with a clean friction tuck and a small locking tongue that snaps into the front edge, providing a secure retail presentation. Because the internal shelf and the snap-lock bottom require deliberate manual folding, this box trades packing speed for a premium, single-piece unboxing experience.

Common uses

Retail cosmetics
Specialty jars and dropper bottles
Electronics and delicate components
Premium kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Box length

Box width

Box height

Product diameter

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of item will be held in the internal shelf?

How will the packed box be distributed?

Do you need flexible tabs around the cutout to grip the item?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Kitted Goods

Single-item retail presentation

The suspended shelf centers the product and holds it away from the outer walls, creating a clean display when the lid is opened. The tongue lock keeps the lid closed on the retail shelf without requiring clear wafer seals or adhesive.

Consolidated inventory for kitting

By building the insert directly into the box, fulfillment teams only need to manage one SKU per product size. This reduces storage space and simplifies procurement compared to buying a separate box and die-cut insert.

Subscription box programs

For programs featuring a single hero item, the integrated shelf provides a premium unboxing experience while keeping the product firmly in place during transit within an outer mailer.

Fragile component shipping

The internal shelf creates a horizontal strut across the center of the box. This keeps delicate components suspended and protected from minor side impacts, provided the box is packed inside a suitable outer shipper.

Product Types That Benefit from Built-In Retention

Cosmetics, jars, and bottled goods

The die-cut hole and flexible radial cuts can be sized to grip glass jars, dropper bottles, or heavy cosmetics, preventing them from rattling or shifting during handling.

Electronics and delicate components

The internal shelf keeps delicate components suspended and protected from minor side impacts.

Premium beverage and spirits

A single bottle can be held securely in the center of the box, offering a clean presentation for retail shelves or tasting kits.

When to Consider a Separate Insert or Simpler Box

High-volume automated packing

The 1-2-3 snap bottom and the multi-step folding sequence for the internal shelf require manual assembly. If packing speed is the primary goal, evaluate an auto-bottom box with a drop-in partition.

Direct-to-consumer parcel shipping

The tongue lock and snap bottom are designed for retail presentation and kitting. For direct-to-consumer shipping through mixed-carrier networks, this box should be placed inside a dedicated outer mailer, or a fully sealed shipper should be evaluated.

Heavy industrial parts

The snap-lock bottom may not support heavy point loads without additional reinforcement. For dense items, a full-overlap bottom or a taped closure may be a safer choice.

Clearance, Flute Choice, and Print Orientation

Flute thickness and folding behavior

This package relies on a 180-degree fold to form the shelf and a small tongue tab to lock the lid. E-flute (1.5mm) is strongly recommended. Thicker boards like B-flute or C-flute will cause the folds to bind and the locking tongue to tear.

Print orientation on the internal shelf

Because the shelf is formed by folding the extended front wall inward and backward, the exterior print surface will naturally appear on the top of the internal shelf. This allows for continuous branding inside the box without requiring two-sided printing.

Packing line assembly time

The 180-degree fold and snap bottom take more time to assemble than a standard auto-bottom box. This manual labor should be factored into fulfillment planning.

Product insertion clearance

The height of the shelf and the diameter of the hole must be matched to the exact product. The product needs enough clearance to sit flush without pushing the bottom flaps open.

Modifying the Shelf and Gripping Cuts

Hole diameter and radial cuts

The central cutout is tailored to the exact diameter of the product. Radial cuts around the edge can be added or adjusted to create flexible tabs that grip the item, accommodating slight variations in product size.

Shelf height positioning

The depth of the fold can be adjusted to suspend the product higher or lower in the box, depending on the item's height and where it needs to be gripped.

Tongue lock width and tension

The width of the friction tab can be modified to make the lid easier to open for consumers or tighter for better security on retail shelves.

Packing details

Die-cutting and stripping requirements

The radial cuts, central hole, and small tongue slit require flatbed die-cutting. This ensures clean edges and prevents hanging waste that could interfere with the locking mechanism or product insertion.

Additional notes

Clearance below the shelf

The height of the shelf can be adjusted to suspend the product in the middle of the box or allow it to rest on the bottom panels, depending on the weight and fragility of the item.

FAQs

Does this box require glue or tape to assemble?

The manufacturer glues the side seam before delivery. At the packing station, the bottom snaps together and the top locks with a friction tongue, so no tape or glue is needed for basic assembly.

How long does it take to fold the internal shelf?

The shelf requires a deliberate 180-degree inward fold, followed by a 90-degree horizontal fold before the product can be inserted. This makes assembly slower than a standard box, which should be factored into fulfillment planning.

Can the shelf hold square or rectangular products?

Yes. While often used for cylinders like bottles or jars, the central cutout can be modified to match the profile of square bottles, electronics, or custom components.

Do I need two-sided printing to have graphics on the inside shelf?

No. The shelf is an extension of the front wall that folds inside. Whatever artwork is printed on the outside of the box will naturally display on the top surface of the internal shelf.

Does the tongue lock require tape for parcel shipping?

The tongue lock provides a clean closure for retail shelves and master cartons. For rough parcel networks, the friction tab can catch and open. If shipping directly to a consumer, place this presentation box inside a protective outer shipper or apply a security seal.

Can this be made in thicker corrugated board for heavy items?

It is not recommended. Thicker boards like B-flute make the 180-degree shelf fold too bulky and can cause the small locking tongue to fail. E-flute or similar micro-flutes provide a better balance of strength and clean folding.

How is the box delivered to the packing facility?

The box is glued along the side seam by the manufacturer and delivered flat. It is popped open into a tube at the packing station before the bottom and shelf are folded.

Can the shelf height be adjusted for different products?

Yes. The depth of the fold determines where the shelf sits inside the box. It can be positioned higher or lower depending on the product's height and center of gravity.
