Corrugated Carrying Handle Box with Snap-Lock Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Built-in two-ply handle for retail carry-out
Manual 1-2-3 snap-lock base
Often paired with an outer shipper for parcel networks

About this product

This corrugated carry-out box features a built-in vertical handle, a clean flat roof, and a manual snap-lock base. It is designed for retail environments, promotional events, and grab-and-go kits where customer convenience and presentation are the priority.

Because the 1-2-3 bottom is folded manually at the packing bench, this style is often chosen for trial runs or lower-volume packing where a pre-glued auto-bottom is not required. The exposed handle and interlocking base mean it is typically palletized for retail distribution or placed inside a master carton if shipped through parcel networks.

Common uses

Retail kits
Beverage multi-packs
Heavy hardware carry-out
Event promo boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the packed box expected to be?

How will these boxes be shipped to their final destination?

What is your expected packing volume?

Do you need printing on the inside of the handle?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Carry-Out

Retail kits and promotional assortments

The flat roof and vertical handle create a premium presentation for multi-item kits, sample packs, and event giveaways. The flat top provides a clean surface for branding, while the handle makes it easy for attendees or shoppers to carry the assortment without a separate shopping bag.

Heavy grab-and-go retail items

For hardware, beverage multi-packs, or bulk retail goods, the two-ply corrugated handle provides a reliable grip. The snap-lock base supports significant weight when properly assembled, though the exact capacity depends on the chosen board grade and physical testing.

Beverage and specialty food multi-packs

The flat roof allows for clear labeling of contents, while the handle supports the weight of bottles or jars. If the products are fragile, internal dividers can be added to prevent glass-on-glass contact during transit.

Event giveaways and trade show kits

When handing out materials at an event, the built-in handle eliminates the need for secondary tote bags. The box ships flat to the venue and can be assembled on-site as needed.

Product Weight and Presentation Needs

Store-floor and event distribution

This box is designed to be handed directly to the end user. It ships flat to the store or event space, where staff pop it open, fold the bottom flaps, load the product, and lock the roof. The central tuck tongue keeps the roof securely closed even when the box is resting on a shelf or floor.

Hand-packing operations

Because the base requires a manual 1-2-3 folding sequence, this style fits well in fulfillment centers or retail backrooms where packing is done by hand rather than automated case erectors.

Multi-item kitting

The flat roof provides a stable closure over mixed items, keeping them contained before the handle is gripped. This makes it easier to stage packed boxes before they are handed to customers.

When to Consider Faster Packing or Parcel Shippers

High-volume fulfillment lines

If your packing team needs to assemble thousands of units per shift, the manual 1-2-3 folding sequence of the snap-lock base may become a bottleneck. In high-volume scenarios, a crash-lock (auto-bottom) handle box deploys faster when popped open.

Direct-to-consumer parcel shipping

This box is not designed as a standalone courier shipper. The handle can be crushed, and the snap-lock base can open if dropped. If shipping directly to consumers, plan to pack this box inside a standard corrugated shipper, or switch to a dedicated e-commerce mailer.

Board Choice, Handle Strength, and Master Shippers

Board grade and handle tear resistance

The handle extensions bear the entire weight of the product. While E-flute provides excellent print quality and crisp folds for the base, heavier products may require B-flute or specific high-strength linerboards to prevent the hand holes from tearing during transit.

Outer master cartons for distribution

Because the handle protrudes vertically, these boxes do not stack cleanly on top of one another unless the handles are folded flat or the boxes are placed inside a master shipper. Plan your pallet and distribution route before finalizing the dimensions.

Print surface and handle branding

The handle extensions fold upward and meet back-to-back. If you want the inside of the hand hole or the back of the handle to carry branding, the corrugated board will need to be printed on both sides.

Base closure security for heavy items

The snap-lock base relies on friction and overlapping flaps. For particularly dense or heavy items, testing the base with the actual product weight helps confirm whether the lock will hold or if a glued auto-bottom is a safer choice.

Handle Geometry and Lock Clearances

Hand hole sizing and ergonomics

The width and height of the hand holes can be adjusted to accommodate different grip clearances. If the product is heavy, leaving more corrugated material above the hand hole increases tear resistance.

Tuck tongue and slot clearances

The roof is secured by a central tuck tongue that slides into a receiving slot. If you change the board thickness (for example, moving from E-flute to B-flute), the depth of this slot must be updated to ensure the roof locks securely without binding.

Handle height and roof clearance

The vertical distance between the flat roof and the hand hole can be extended if the product requires more top clearance or if users wearing gloves will be carrying the box.

Packing details

Flatbed die-cutting requirements

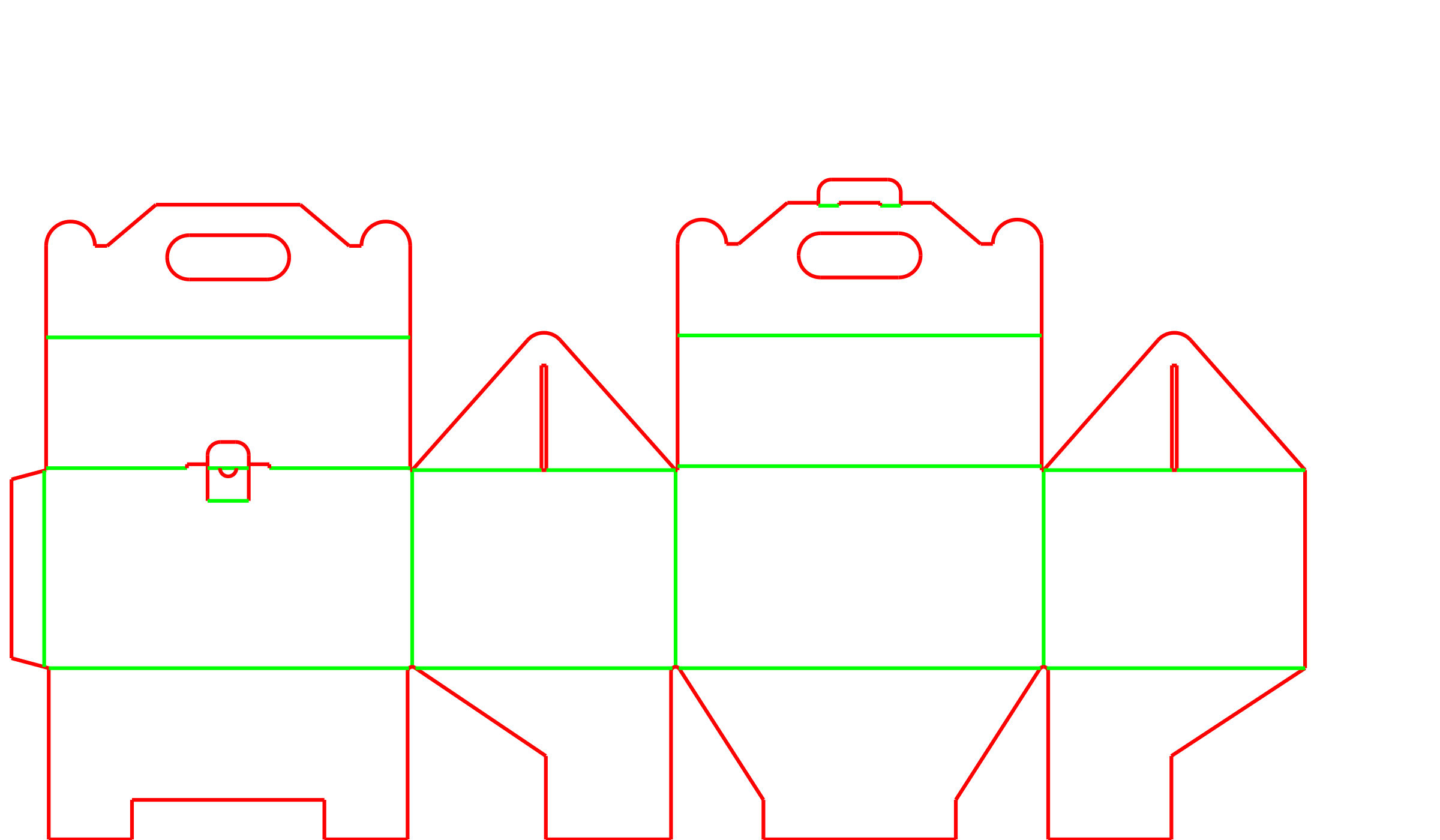

The complex profile of the handle, the hand holes, and the angled snap-lock flaps require flatbed die-cutting. This makes it highly customizable but means it is not produced on standard rotary slotting equipment.

Additional notes

Pallet stacking and vertical clearance

The vertical handle prevents these boxes from stacking flush against one another on a pallet. They are usually packed into master shippers or layered with protective slip sheets if distributed in bulk.

FAQs

Can this handle box be shipped through parcel networks?

Not on its own. The exposed handle is easily damaged by sorting equipment, and the snap-lock base can disengage if the box is dropped. For parcel shipping, this carry-out box is usually placed inside a standard outer shipper.

How long does it take to assemble the base?

The 1-2-3 snap-lock base requires the packer to manually fold and interlock four bottom flaps. It is straightforward but slower than an auto-bottom box. It is often chosen for low-to-medium volume packing or store-level assembly.

How much weight can the handle support?

Weight capacity depends entirely on the chosen board grade, flute profile, and the specific paper liners used. Heavy items require stronger board to prevent the hand holes from tearing. We recommend physical lift and drop testing with your actual product.

Can the handle area be printed on both sides?

Yes. Because the handle extensions fold upward and meet back-to-back, both the inside and outside of the corrugated board will be visible to the consumer. If you want a fully branded handle, the board must be printed on both sides.

Does the snap-lock bottom require tape?

No, the four bottom flaps interlock to form a secure floor without tape. However, if the product is exceptionally heavy, some packers add a strip of tape for extra security, though this slows down assembly.

What board flutes are common for this style?

E-flute is frequently used because it provides a smooth printing surface and allows the complex handle and lock folds to bend cleanly. B-flute can be used for heavier items, but the lock slot clearances must be adjusted to accommodate the thicker board.

How does the roof stay closed?

The flat roof is secured by a central tuck tongue that bridges the two handle halves. This tongue slides into a slot on the opposite panel, keeping the roof closed even when the box is resting on a surface and the handle is not being held.

Can the handle be folded flat for stacking?

This specific design features a rigid vertical handle that does not natively fold flat once assembled. If you need to stack these boxes on a pallet, they are typically packed into master shippers or layered with protective slip sheets.
