EVC11203

Corrugated Carry Box with Snap-Lock Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Built-in carrying handle with a secure tongue-and-slot lock
Tape-free 1-2-3 snap-lock base for manual assembly
Delivered flat (KD) with a pre-glued side seam

About this product

This corrugated carry box combines a built-in top handle with a tape-free snap-lock base, making it a strong choice for retail carry-out, promotional kits, and multi-packs. Delivered flat with a pre-glued side seam, it is designed for manual packing environments where presentation and consumer convenience matter.

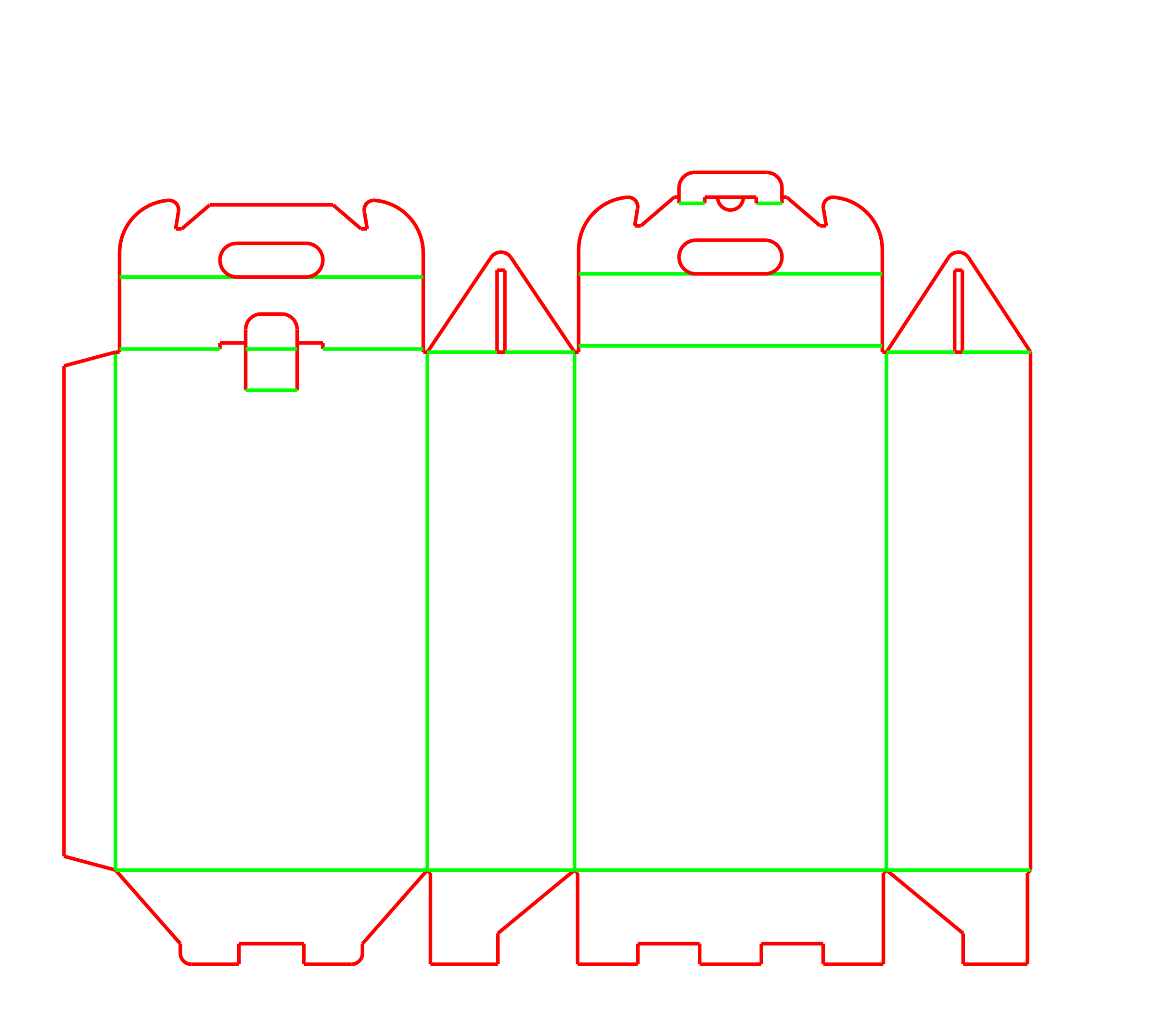

The top closure features two handle panels that meet and lock together via a tuck tongue and slot, while the bottom uses a 1-2-3 folding sequence that interlocks securely under the product's weight. Because the handles remain exposed, this package is intended for retail shelves, palletized transport, or master shippers, rather than direct parcel delivery.

Common uses

Beverage multi-packs
Promotional kits
Heavy retail items
Hardware kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the item going inside?

How will these boxes be shipped to their final destination?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Kit Packing Applications

Retail Carry-Out and Multi-Packs

The integrated handle makes this box a strong choice for heavy or bulky retail items, beverage multi-packs, and hardware kits that consumers need to carry comfortably from the store.

Promotional Kits and Sample Packs

The clean lines, large print panels, and tape-free closures provide a polished unboxing experience for promotional materials, onboarding kits, or event giveaways.

Heavy or Bulky Single Items

For products like small appliances or hardware tools, the integrated handle allows consumers to carry the item without needing an extra shopping bag.

Event and Trade Show Handouts

The clean presentation and easy carrying grip make this a practical choice for distributing materials or product samples at events.

Manual Assembly and Pallet Transit

Manual Packing Operations

The 1-2-3 snap-lock base and manual handle interlock are designed for hand-packing stations. They do not require tape or erecting equipment, making them highly flexible for varying fulfillment locations.

Master Shipper and Palletized Transit

Because the handles protrude from the top, these boxes are typically packed into larger master cartons or stacked carefully on pallets for distribution, rather than being shipped individually through courier networks.

Retail Shelf Display

The tall rectangular profile and large main panels offer excellent space for branding, allowing the box to act as its own display on retail shelves before being carried away.

When to Compare Other Handle Boxes

High-Volume Assembly

If your packing line needs to move very quickly, the manual folding sequence of a snap-lock base may become a bottleneck. An auto-bottom handle box is faster to erect, though it requires a different production route.

Direct Parcel Shipping

Exposed handles can snag on courier conveyor belts, and snap-lock bases can open if dropped heavily. If the box must ship individually through the mail, consider a standard mailer or an RSC, or plan to place this carry box inside a protective outer carton.

Board Thickness and Assembly Choices

Board Thickness and Handle Clearances

The top handle relies on a tuck tongue passing through a specific slot. Thinner boards allow this lock to engage smoothly. Thicker boards can make the lock difficult to close and may require adjustments to the slot width.

Target Product Weight

While the snap-lock base is secure, the ultimate weight capacity depends on the board grade and the tear resistance of the handle holes. Discussing the exact payload helps determine the right material and whether physical drop testing is necessary.

Packing Labor and Assembly Time

The 1-2-3 base requires a specific folding sequence by hand. If your volume is high, the labor time spent folding the base should be weighed against the higher factory gluing cost of an auto-bottom alternative.

Outer Shipper Requirements

Since this box is not intended for direct courier shipping, you will need to plan for master cartons or pallet configurations that protect the exposed handles during transit.

Handle and Lock Adjustments

Handle Height and Ergonomics

The height of the handle panels can be adjusted to provide more finger clearance or to change the overall profile of the box, though this affects the flat blank size.

Tuck Tongue Width

The locking tab on the handle can be widened for a firmer hold, provided the corresponding slot is adjusted to match the board thickness.

Handle Hole Dimensions

The size and shape of the finger holes can be modified to accommodate different hand sizes or to match specific ergonomic preferences.

Packing details

Print Panel Layout

The large main panels offer excellent space for branding. When planning artwork, ensure critical graphics avoid the handle creases, the locking slot, and the bottom interlocking flaps.

Additional notes

Master Shipper Planning

Because the handles protrude above the main rectangular body, stacking these boxes directly on top of one another can crush the handles. They are typically packed side-by-side in a master shipper for transit.

FAQs

Does the bottom require tape to stay closed?

The 1-2-3 snap-lock base interlocks mechanically to support the product without tape. However, if the box is particularly heavy or faces rough handling, a strip of tape can be added for extra security.

Is this box suitable for automated packing?

The folding sequence for the snap-lock base and the alignment required for the top handle lock are designed for manual assembly stations. If your facility uses automated erecting equipment, an auto-bottom or standard carton may be a better fit.

Can I ship this box directly in the mail?

It is not a good fit for direct parcel shipping. The exposed handle can catch on sorting equipment, and the un-taped base is vulnerable to drop impacts. It should be shipped inside a master carton or on a pallet.

What board thickness makes sense for this style?

Thinner profiles like E-flute or B-flute are usually preferred. They provide enough strength for carrying while allowing the handle's tuck tongue to pass cleanly through its locking slot.

How much weight can the handle support?

The capacity depends entirely on the chosen board grade and flute profile. For heavy items, we suggest physical testing to ensure the handle holes do not tear under lifting stress.

Can the handle shape be modified?

The height of the handle and the width of the locking tongue can be adjusted to suit different hand sizes or aesthetic preferences, as long as the locking mechanics remain aligned.

How is this box delivered?

It is delivered flat with a pre-glued side seam. The packer simply squares the box, folds the bottom flaps, loads the product, and interlocks the top handle.

Can the snap-lock base handle heavy items?

The interlocking flaps provide a strong floor, but the exact weight limit depends on the board grade. For very heavy products, testing the base under load is a good idea.
