EVC11230

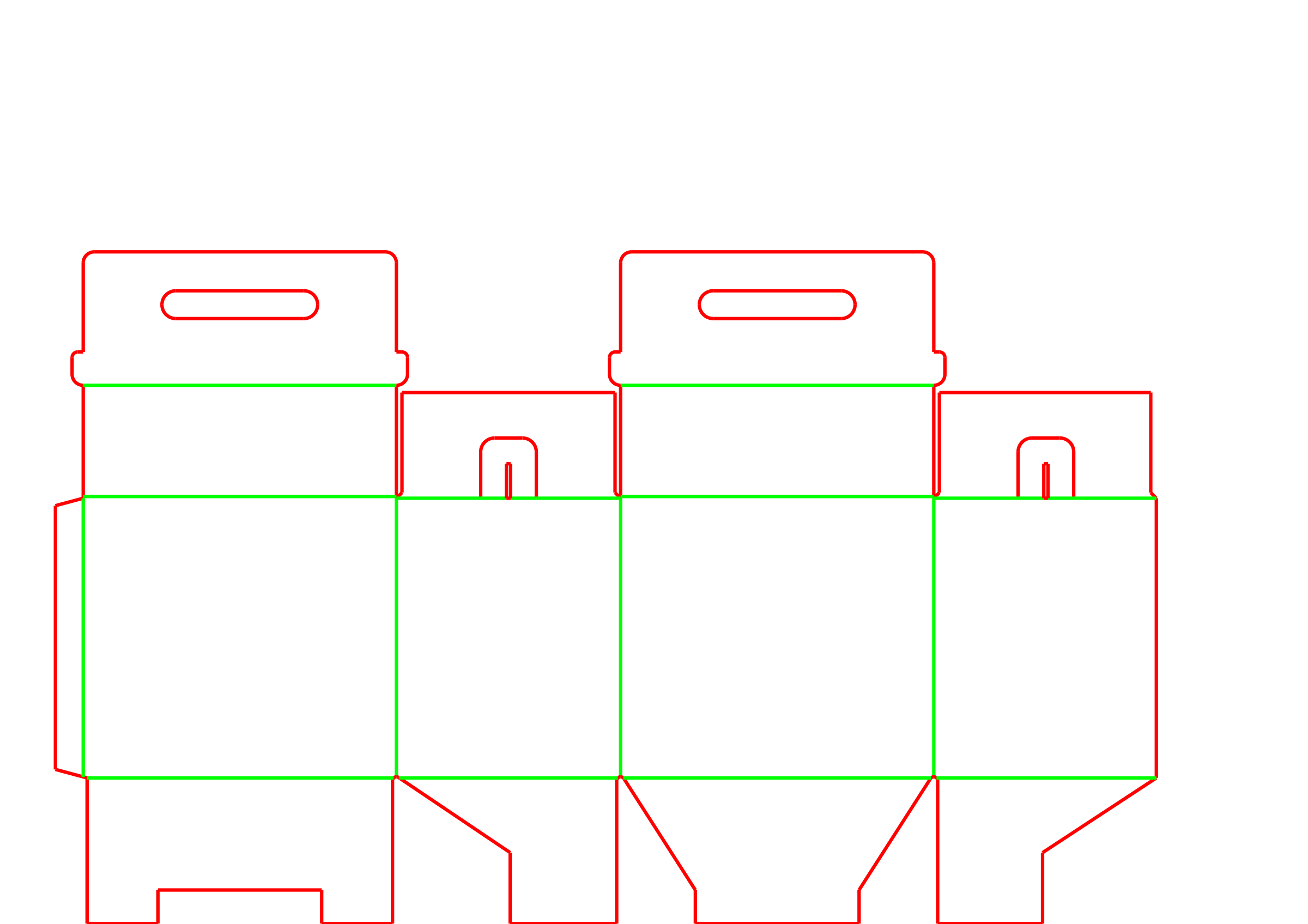

Corrugated Retail Carrier with Snap-Lock Bottom

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated handle locks together using side-flap tongues
Manual 1-2-3 snap-lock bottom closes without tape
Delivered flat with a pre-glued side seam

About this product

This corrugated carrier is built for retail presentation and consumer carry-out. It features an integrated top handle and a manual snap-lock bottom, allowing packers to assemble and close the box without tape or external adhesives.

Because the bottom involves manual folding and the handle protrudes from the top, this style is often chosen for store-level packing, promotional kitting, or local delivery rather than direct parcel shipping.

Common uses

Retail kits
Craft beverage packs
Heavy promotional items

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Usable inside height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What is the estimated weight of the items going inside?

How will the filled boxes be distributed?

How will these boxes be packed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Packing Jobs

Retail Carry-Out

The built-in handle and clean display panels make this a natural fit for retail environments where customers carry the product directly from the store.

Promotional Kits and Multi-Packs

The flat base and sturdy handle support heavier grouped items, provided the board grade is matched to the payload.

Craft Beverage Multi-Packs

The flat bottom and secure handle closure provide a stable carry option for grouped bottles or cans, though physical testing is suggested for heavy liquids.

Sample and Onboarding Kits

A clean presentation for distributing physical samples or employee onboarding materials, where the handle adds a premium feel and easy transport.

Retail, Kitting, and Beverage Channels

Store-Level Assembly

Retail staff can pop the flat tube open and fold the bottom flaps on demand, keeping storage space minimal behind the counter.

Manual Kitting Operations

For short to medium runs, the manual snap-lock bottom is often easier to source than pre-glued auto-bottom boxes, which typically require larger production runs to justify the gluing process.

Event and Trade Show Distribution

The built-in handle makes it easy for attendees to carry materials or products around an event floor without needing a separate bag.

When to Consider a Different Carrier Style

High-Volume Packing Lines

If your packing operation processes thousands of units per shift, the manual folding for a snap-lock bottom will slow down the line. Compare this with a crash-lock (auto-bottom) carrier, which pops open ready to load.

Direct-to-Consumer Ecommerce

The protruding handle and interlocking bottom are vulnerable to snagging and drop impacts in mixed courier networks. For parcel shipping, this carrier should be placed inside a separate outer shipping box.

Board, Fit, and Assembly Choices

Board Thickness and Handle Clearance

The vertical slots on the handle panels should be sized to accept the side locking tongues. If you specify a thicker corrugated board, the slot width should be adjusted so the tongues do not bind or crush during closure.

Weight Capacity and Testing

While the snap-lock bottom is secure for many retail applications, heavy point loads can cause the bottom flaps to bow and disengage. Physical testing with your actual product is suggested before a full production run.

Print Surface and Graphics

The four main vertical walls provide uninterrupted space for retail graphics, while the handle panels offer additional branding opportunities above the product.

Packing Labor vs. Order Volume

The manual 1-2-3 bottom takes longer to fold than a pre-glued crash-lock base. Buyers should weigh the labor time against the expected order volume when choosing between the two.

Handle and Profile Adjustments

Handle Ergonomics

The size and shape of the hand holes can be adjusted for comfort, though removing too much material can weaken the carrying grip.

Shoulder Profile

Depending on the length and height proportions, the top panels can form a flat shoulder or a pitched gable shape.

Locking Tongue Length

The side dust flaps feature tongues that secure the handle. Their length and shape can be modified to balance lock security with ease of opening.

Packing details

Flat Delivery and Storage

The converter glues the side seam and delivers the boxes flat. This keeps inbound freight efficient and reduces warehouse footprint before use.

Additional notes

Handle slot clearance

When using thicker board grades, the vertical slots on the handle panels should be widened to ensure the locking tongues pass through smoothly.

FAQs

Does this box need tape to stay closed?

The bottom uses a mechanical 1-2-3 snap-lock fold, and the top handle panels are secured by tongues on the side dust flaps that insert into vertical slots. No tape or glue is needed at the packing station.

Can this carrier be erected by automated machinery?

This specific template is designed for manual assembly. The snap-lock bottom and the tongue-and-slot handle closure are difficult for standard automated case erectors to process.

Can I ship this box through courier networks?

The exposed handle and the interlocking bottom flaps can catch on sorting equipment or fail during drops. To ship this through a parcel network, it should be packed inside a standard outer shipping box.

How much weight can the snap-lock bottom hold?

Weight capacity depends entirely on the chosen corrugated board grade and the distribution of the product's weight. Heavy, concentrated loads may need a different bottom style or a reinforcing insert. We suggest physical testing with your exact product.

What corrugated flutes are common for this design?

E-flute is a common choice, offering a good balance of printability and structural strength for retail. Thicker flutes like B or C provide more protection but benefit from careful adjustment of the handle locking slots to prevent the board from crushing when closed.

How is this box manufactured?

It uses flatbed die-cutting to create the precise handle slots and bottom flap angles, followed by straight-line gluing for the side seam. It is not typically produced on simple rotary slotting equipment.

How does the top handle lock together?

The two main handle panels fold up to meet in the center, and tongues on the side dust flaps insert through vertical slots in the handle panels to secure the closure.

Are prototypes suggested before a full production run?

Yes, especially for heavy retail items. A physical sample helps verify that the handle slots accommodate the board thickness without binding and that the bottom holds the intended weight.
