EVC11241

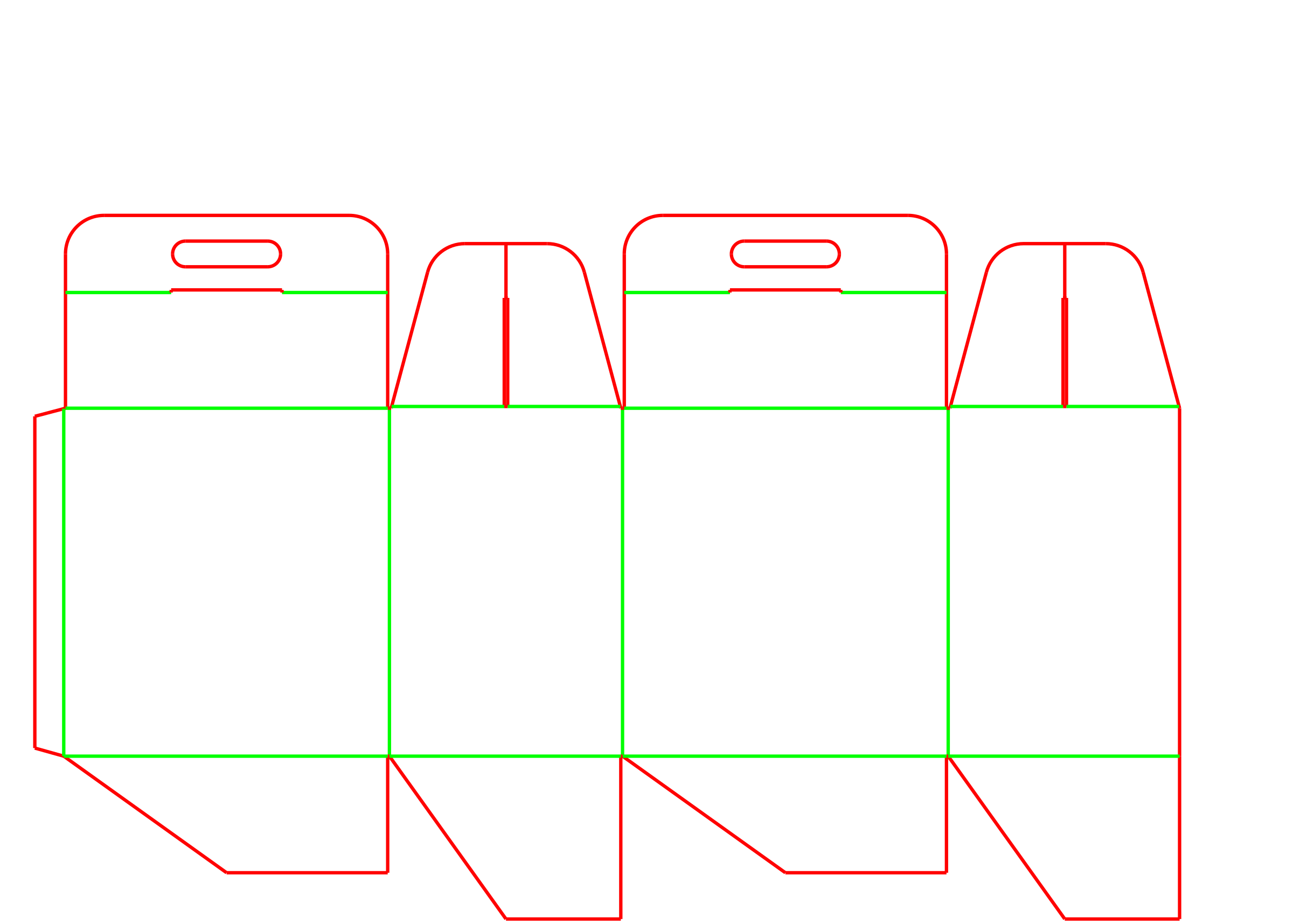

Corrugated Carry Box with Crash-Lock Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued crash-lock base speeds up manual assembly
Integrated double-thick handle for consumer carry-out
Often paired with an outer master carton for parcel shipping

About this product

This corrugated carry box combines an integrated top handle with a pre-glued crash-lock base, making it an efficient choice for manual packing. Delivered flat, the box folds open into a rigid rectangular shape with a simple push, removing the need to manually fold or seal the bottom.

Designed for retail grab-and-go products, promotional kits, and heavy single items, the top panels meet vertically to form a double-thick carrying handle. Because the handle protrudes, this box is built for consumer carry-out and retail display rather than direct parcel shipping.

Common uses

Retail grab-and-go kits
Heavy hardware or small appliances
Beverage multi-packs
Promotional giveaways

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the packed box?

How will this box reach the end user?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and promotional packing jobs

Retail grab-and-go kits

Strong fit for multi-packs, beverage kits, or bundled retail items where the consumer needs a convenient way to carry the purchase from the store. The integrated handle replaces a separate shopping bag.

Heavy single items

The glued crash-lock base provides a strong floor for hardware, small appliances, or bulk goods, while the handle transfers lifting force down the main walls.

Beverage multi-packs

Often used for craft beer, wine, or specialty drink bundles. The auto-bottom supports the weight of glass bottles, while the handle allows easy transport from the shelf to the home.

Promotional and event giveaways

Useful for trade show kits, onboarding boxes, or event merchandise. The fast assembly keeps event preparation moving quickly, and the handle makes it easy for attendees to carry the box throughout the day.

Retail, event, and fulfillment environments

Fast-paced fulfillment lines

Because the base is pre-glued, packers simply square the box and load the product. This reduces labor time compared to manually folding and sealing standard boxes, making it an efficient choice for repeat packing programs.

Brick-and-mortar retail

The gable top and prominent handle create a distinct silhouette on the shelf. The large main panels offer uninterrupted space for branding, helping the product stand out in crowded retail aisles.

Event and trade show distribution

When distributing hundreds of kits in a short time, the pre-glued base prevents bottlenecks at the packing station. The built-in handle ensures recipients can comfortably carry the materials.

When to consider snap-lock bases or standard shippers

Direct-to-consumer ecommerce

The protruding handle prevents clean stacking and may catch in courier sorting equipment. If the primary route is parcel delivery, evaluate a standard mailer or plan to pack this carry box inside a rectangular master shipper.

Short production runs

The crash-lock base relies on multi-point gluing during manufacturing. For very short runs or prototypes, a snap-lock (1-2-3) bottom may be more practical to produce, even though it takes slightly longer to pack.

Board thickness, handle clearance, and route planning

Flute profile and handle comfort

The handle is formed by two main panels meeting back-to-back, with grip flaps folding through the holes to lock them. E-flute provides a clean fold and a comfortable grip. Thicker boards like B-flute or C-flute make the handle very thick and require careful adjustment of the hole width to ensure the lock flaps can fold through.

Product weight and base glue

The crash-lock base relies on manufacturer-applied glue. Discussing the exact payload helps ensure the correct adhesive and board combination is specified for the base flaps to prevent drop-out.

Print surface and graphics

The large main walls and the vertical handle panels provide excellent surfaces for retail branding. Consider how the graphics will align across the side seam and the top handle folds.

Master shipper requirements

If these boxes need to be shipped to distribution centers or directly to consumers, they usually need an outer master carton. The dimensions of the carry box, including the protruding handle, will dictate the size of the outer shipper.

Handle profile and base adjustments

Handle height and width

The vertical height and width of the handle profile can be adjusted to accommodate different hand sizes or to change the visual proportion of the gable top.

Grip hole clearance

The width of the die-cut handle holes can be widened to account for thicker corrugated board, ensuring the locking flaps fold through smoothly without binding.

Base flap proportions

The angles and dimensions of the crash-lock bottom flaps can be fine-tuned to match specific folder-gluer equipment, ensuring the box folds flat and opens reliably.

Packing details

Flat delivery and storage

Despite the complex base and handle, the box is delivered knocked down (KD). The diagonal creases in the base allow it to fold completely flat, maximizing pallet efficiency before use.

Base and handle variations

EVC11241a glued bottom variant

Shares the same crash-lock base and fold-through handle lock, with minor adjustments to the handle profile and base flap proportions.

Additional notes

Print surfaces and branding

The large main walls and the prominent vertical handle panels provide excellent, uninterrupted surfaces for retail graphics and branding.

FAQs

Do I need to seal the bottom of this box?

No. The base is pre-glued by the manufacturer and locks into place automatically when opened. The top handle panels lock together using integrated fold-through grip flaps.

Can I ship this box through a courier network?

It is usually avoided for direct parcel shipping. The protruding handle prevents flat stacking and may snag on sorting belts. For ecommerce, this box is often placed inside a standard rectangular master carton.

Why is this box better for large volumes?

The crash-lock base relies on multi-point gluing to apply adhesive and fold the diagonal base flaps during manufacturing. This setup makes it efficient at scale but less practical for very short trial runs.

What board thickness is usually preferred for the handle?

Thinner profiles like E-flute are generally preferred. Because the handle is double-thick and requires small flaps to fold through the grip holes, thicker boards can make the handle uncomfortable to carry and difficult to lock.

Will the crash-lock base hold heavy items?

When properly specified, the interlocking glued flaps create a strong floor that resists dropping out. The exact weight capacity depends on the board grade and adhesive used.

Can the handle shape be modified?

Yes. The height, width, and grip hole dimensions can be adjusted to fit different hand sizes or to match specific branding requirements, provided the locking flaps still align.

How is the box delivered?

It arrives flat with the side seam and bottom flaps pre-glued. You simply push the corners to open the box and lock the base.

Can I stack these boxes on a pallet?

The protruding handle prevents flat stacking. If palletizing is required, the boxes are usually placed inside a larger master carton or stacked with specialized slip sheets.
