EVC11250

Corrugated Carry Box with Handle

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated top handle for consumer carry-out
Slotted bottom requires tape or adhesive sealing
Requires an outer shipper for palletizing or courier transit

About this product

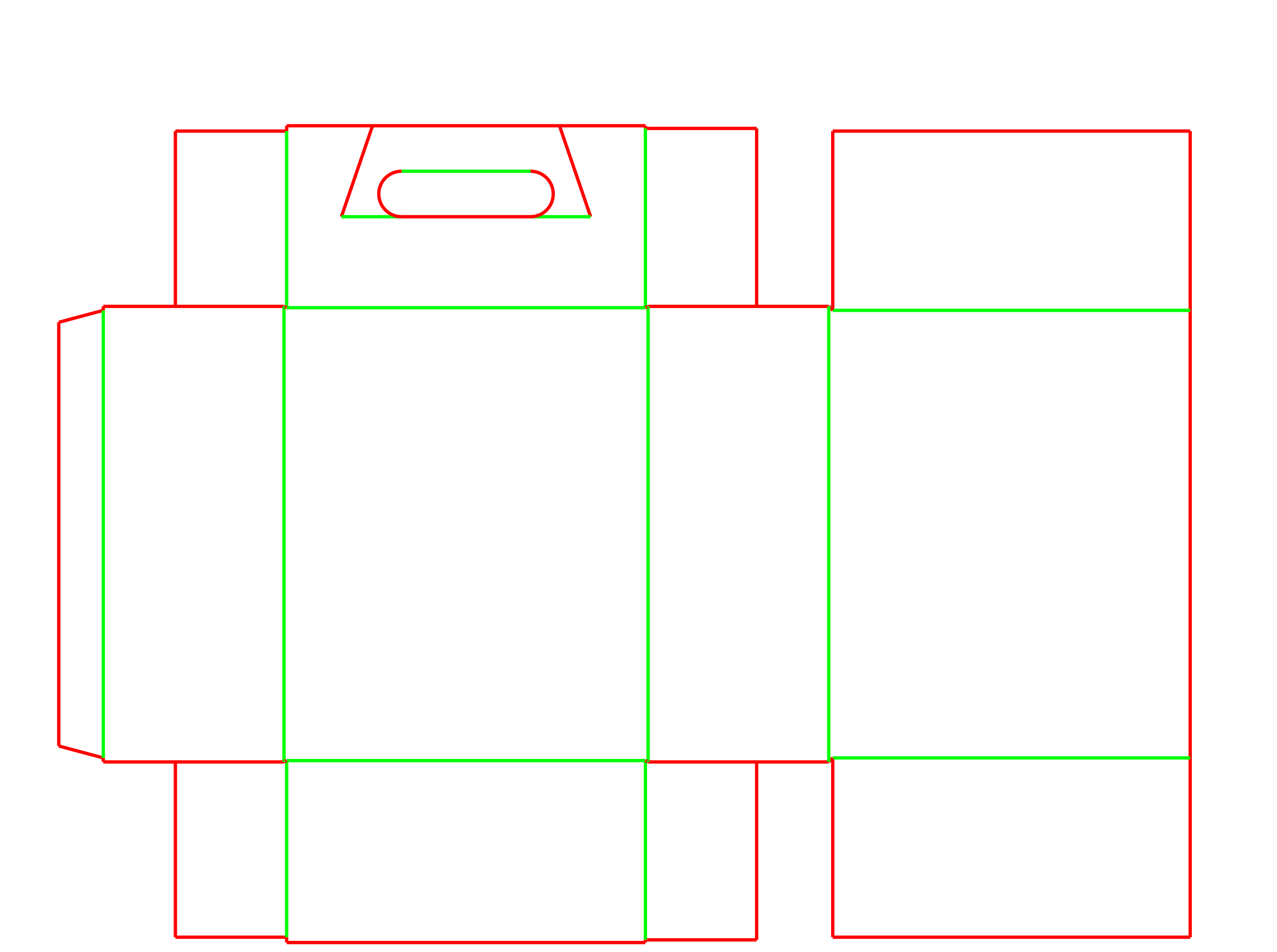

The EVC11250 is a corrugated carry box that combines a slotted base with an integrated top handle. Delivered flat with a glued side seam, it opens into a rectangular container ready for pack-station loading and sealing.

While the built-in handle provides immediate convenience for retail carry-out and promotional kits, the protruding top means it cannot be stacked flat or shipped through parcel networks without an outer master carton.

Common uses

Retail carry-out
Promotional kits
Heavy consumer goods
Beverage kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the item going inside?

How will you seal the bottom flaps?

How will the packed boxes be transported?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Carry-Out and Promotional Packing

Retail Carry-Out

The built-in handle provides immediate convenience for customers leaving a store. It accommodates heavier consumer goods, appliances, or multi-item purchases where a standard retail bag is insufficient.

Promotional Kits and Event Packs

For trade shows, onboarding kits, or event giveaways, the handle turns the packaging into a self-contained carrier. The flat side panels offer uninterrupted space for branding and event graphics.

Heavy Consumer Goods

When packing hardware, small appliances, or bulk items, the corrugated board provides protection while the handle makes the box easier to lift from a retail shelf to a vehicle.

Multi-Part Kitting

When bundling multiple bottles, jars, or specialty food items, the slotted bottom can be securely taped to handle the payload, while the top handle allows safe, upright carrying.

Consumer Goods and Event Distribution

Consumer Electronics and Appliances

Products that are heavy but compact benefit from a dedicated hand-hold. The handle allows buyers to transport the item easily without needing secondary bagging.

Beverage and Specialty Food Kitting

Kitting operations packing heavy glass or liquid containers can use the slotted base for payload support, relying on the top handle to keep the contents upright during consumer transport.

Trade Shows and Corporate Onboarding

Event distribution often requires attendees to carry materials throughout the day. The integrated handle eliminates the need for tote bags while providing large panels for corporate branding.

When to Compare Flat-Top or Pre-Glued Bases

High-Speed Packing Lines

Because the bottom flaps must be folded and sealed manually or with case-sealing equipment, this box takes more time to assemble than a pre-glued folding base. If pack-station speed is the priority, compare it to a pre-glued carrier.

Standalone Parcel Shipping

The protruding handle can catch on sorting equipment or crush under the weight of other packages. If the box must travel through a courier network, a standard flat-top shipping box is a safer choice unless an outer master carton is used.

Base Sealing, Handle Strength, and Transit Planning

Bottom Closure Method

The base of this box is slotted, meaning the bottom flaps do not lock automatically. You must decide whether your pack station will secure the bottom with packing tape or adhesive based on the product weight.

Payload and Handle Tear Strength

The handle must support the entire weight of the loaded box. Heavy payloads may require a thicker board grade or a reinforcing insert to prevent the hand-hole from tearing during dynamic lifting.

Master Shipper Requirements

Because the handle prevents flat stacking, these boxes require an outer shipping case for secure palletization and warehouse storage. Planning the master carton dimensions early helps optimize freight.

Board Grade and Flute Profile

Thicker double-wall boards provide excellent base strength but can make the top handle panels difficult to fold cleanly. Balancing base support with handle flexibility is a key decision.

Handle Clearance and Base Adjustments

Handle Width and Placement

The width of the handle can be adjusted to balance the lifting force across a wider section of the top panels, depending on the product's center of gravity.

Hand-Hole Dimensions

The size of the hand-hole cutout can be modified to accommodate different hand sizes or to allow clearance for users wearing work gloves.

Flap Overlap Adjustments

The slotted base can be modified to feature fully overlapping flaps, providing extra layers of corrugated board for heavier payloads.

Packing details

Palletization and Master Shippers

Because the handle prevents the top of the box from being flat, these boxes cannot be stacked directly on top of one another on a pallet. They must be packed into a larger master shipper for transit and warehousing.

Additional notes

Board thickness and handle folding

Thicker double-wall boards provide excellent base strength but can make the top handle panels difficult to fold cleanly. A physical sample helps verify that the handle aligns comfortably.

FAQs

Does the bottom of this box lock into place automatically?

No. The bottom features standard slotted flaps that must be sealed with tape or adhesive at the pack station before the box can be loaded.

Can I ship this box through a parcel courier?

Shipping this box on its own through a courier network is not recommended. The protruding handle can easily crush or catch on sorting equipment. It should be placed inside a master carton for transit.

How do I stack these boxes on a pallet?

Because the handle creates an uneven top surface, these boxes cannot be stacked directly on top of each other. They require an outer shipping case for secure palletization.

How much weight can the handle support?

Handle strength depends entirely on the chosen board grade, flute profile, and the dynamic lifting force. Heavy products should undergo physical lift testing to ensure the hand-hole does not tear.

How is the box delivered?

The box is delivered flat. The converter glues the side seam, creating a flattened tube that the packer opens into a rectangular shape before sealing the bottom.

Where can I print graphics on this box?

The four main side panels offer large, uninterrupted flat surfaces for branding, instructions, or retail graphics. The top panels and handle can also be printed.

Can the handle size be changed?

Yes. The width of the handle and the dimensions of the hand-hole cutout can be adjusted to fit different hand sizes or balance the load.

Does the handle fold flat for shipping?

The entire box ships flat as a glued tube. Once assembled and loaded, the handle protrudes above the top panels and does not fold flat, which is why an outer shipper is needed for stacking.
