Corrugated Retail Box with Plastic Handle Mount

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Designed for external snap-in plastic handles
Double-wall top closure for improved lifting strength
Manual 1-2-3 snap-lock bottom for quick bench assembly

About this product

The EVC11260 is a corrugated carrying carton engineered specifically to integrate with snap-in plastic handle hardware. It features a fast-folding snap-lock bottom and a specialized double-wall top closure that provides a secure mounting point for the handle while offering hand clearance beneath it.

Because the top closure relies on a tuck flap and an external handle, this design is an excellent fit for retail shelves and grab-and-go consumer products, but it generally requires an outer master carton for parcel or courier shipping.

Common uses

Electronics, small appliances, heavy retail kits, grab-and-go bulk items.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Do you already have the plastic handles for this box?

How will the handles be assembled?

How will these boxes be shipped?

What is the estimated weight of the product?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Grab-and-Go Applications

Heavy retail goods and electronics

The integrated handle mount makes this box a strong fit for consumer electronics, small appliances, or heavy retail kits that customers need to carry out of the store. The double-wall top helps distribute the lifting force, reducing the risk of the board tearing.

Grab-and-go bulk items

For bulk retail items sold in single units, the plastic handle provides a premium feel and convenience. The snap-lock bottom allows retail staff or fulfillment teams to erect the box quickly without tape.

Hardware and tool kits

Dense or heavy items that might tear through a standard die-cut hand hole often benefit from a dedicated plastic handle. The double-wall top panel provides the necessary reinforcement for these heavier payloads.

Promotional and sample kits

When presenting a premium sample kit or promotional package, the addition of a plastic handle elevates the unboxing experience and makes the package easier for recipients to transport from events or trade shows.

Product Types and Packing Environments

Manual packing lines

The 1-2-3 snap-lock bottom (also known as a Houghland bottom) is designed for manual assembly. It pops open and locks together quickly by hand, making it highly efficient for packing benches, but it is not suitable for automated erecting equipment.

Retail display versus parcel shipping

This package presents cleanly on a retail shelf. However, the external plastic handle and the front tuck-lock tab can catch on sorting equipment in mixed-courier networks. If the product will be shipped directly to consumers via parcel, an outer shipping carton is usually necessary.

Hardware procurement and assembly

Because this box relies on a separate plastic handle, buyers must account for the procurement of the hardware and the labor required to snap the handles into the corrugated board during the packing process.

When to Consider a Different Box Style

Automated fulfillment lines

If your packing operation relies on automated folder-gluers or case erectors, a standard glued auto-bottom (crash-lock) or a machine-erected tray will be more efficient than a manual snap-lock design.

Direct-to-consumer ecommerce

If the box must ship through a courier network without an outer shipper, consider a standard RSC or a mailer box that can be securely taped closed without protruding hardware.

Hardware, Board, and Route Decisions

Matching the plastic handle hardware

The most critical step before production is confirming the exact dimensions of your sourced plastic handle. The die-cut mounting holes on the outer lid must be sized and spaced perfectly to match the hardware clips.

Board grade and lifting strength

The weight of the product dictates the required board strength. While the double-wall top provides reinforcement, heavier items may require a thicker flute or a stronger liner to prevent the handle from pulling through the corrugated board.

Handle insertion labor

Consider whether the plastic handles will be inserted by the packaging manufacturer before the knocked-down boxes are delivered, or if your packing team will snap them in during final assembly.

Outer shipping requirements

Determine whether these carrying boxes will be palletized for retail distribution or shipped individually. If shipping individually, an outer master carton must be factored into the overall packaging plan.

Adjusting the Handle Mounts

Mounting hole sizing and placement

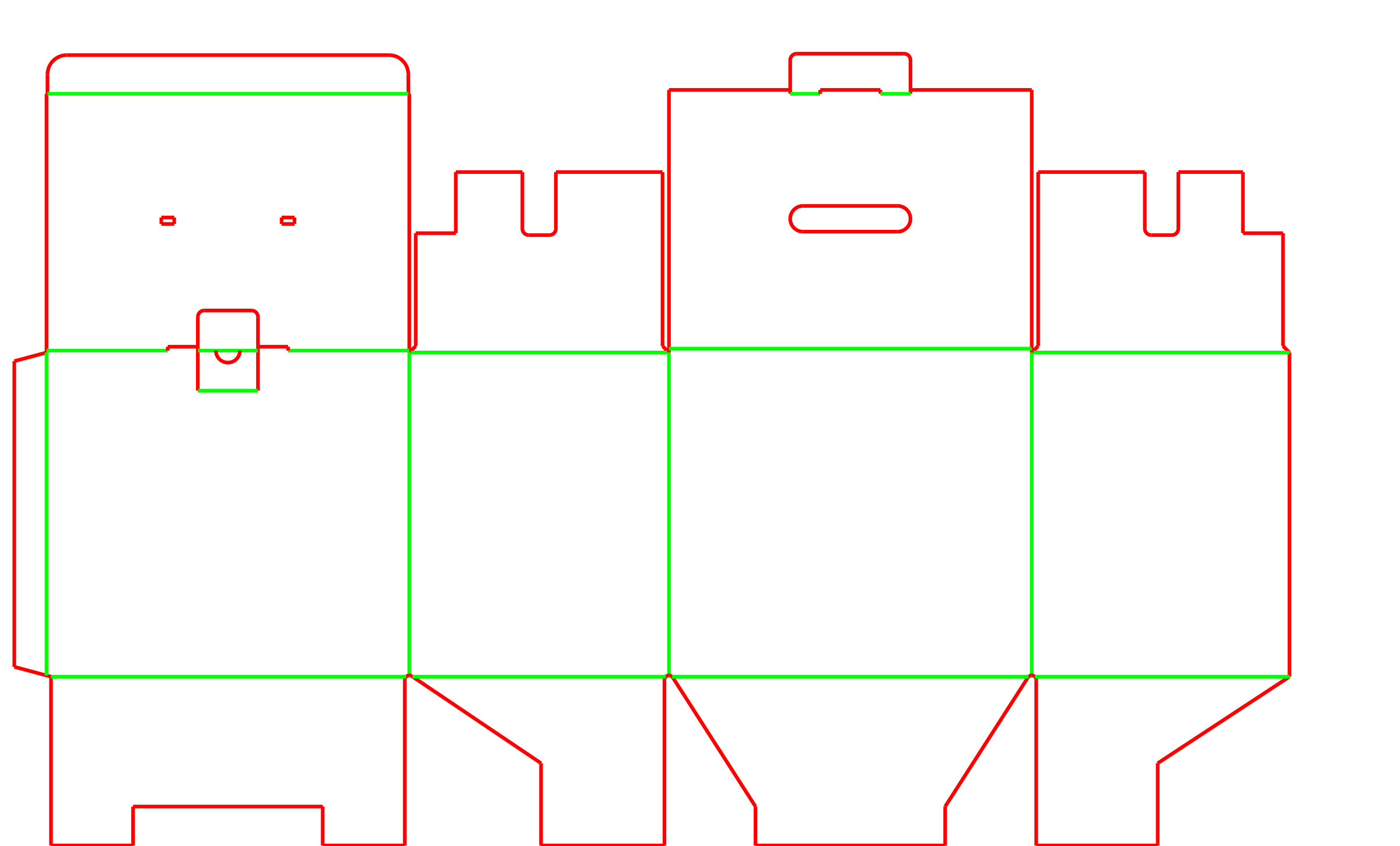

The template allows precise adjustments to the length, width, and spacing of the two mounting holes on the outer lid to accommodate different styles of plastic handles.
