EVC11284

Corrugated 4-Pack Can Carrier

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Holds four cans with an integrated top carrying handle
Unglued wrap-around assembly with a mechanical top lock
Delivered flat for dense storage and manual packing

About this product

This one-piece corrugated carrier wraps around four beverage cans to create a secure, retail-ready multi-pack. The flat board folds into a central A-frame divider that separates the cans, while the outer walls wrap upward to form an integrated carrying handle.

Because it relies on a mechanical tongue-and-slot lock at the top, the carrier assembles without adhesive. It is a strong choice for craft beverages, retail carry-out, and promotional multi-packs where presentation and consumer convenience matter most.

Common uses

craft beer
canned coffee
energy drinks
retail carry-out

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Can diameter

Can height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will the loaded carriers be refrigerated or stored in damp conditions?

What size cans are you packing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail And Carry-Out Beverage Packing

Retail shelf multi-packs

The carrier groups four loose cans into a single, easy-to-grab unit. The open sides keep the product visible, while the outer walls and handle provide a continuous surface for branding and labeling.

Carry-out and event sales

The integrated handle allows consumers to comfortably carry four full cans. The central A-frame divider keeps the cans separated, reducing metal-to-metal clinking during walking or transport.

Promotional kitting and mixed packs

When grouping different flavors or limited-edition releases, the wrap-around style allows teams to quickly assemble mixed packs on a fulfillment table without adhesive.

Tasting room and brewery sales

For operations packing by hand, this unglued design avoids the need for automated gluing. The flat blanks take up very little warehouse space before use.

Craft Beverage And Promotional Multi-Packs

Craft breweries and specialty drinks

Operations that pack manually or use automated wrap-around setups often prefer this style because it ships flat and assembles cleanly around the product.

Limited-edition product launches

The continuous outer surface provides a large billboard for high-graphic printing, making it easy to highlight special releases or seasonal flavors.

Retail merchandising programs

The open-sided design allows the primary can artwork to remain visible on the shelf, complementing the branding on the carrier itself.

When To Consider Glued Baskets Or Outer Shippers

Direct parcel shipping

This carrier leaves the sides of the cans exposed and the handle can catch on sorting belts. If shipping directly through a courier network, the carrier should be packed inside a separate corrugated outer box.

High-volume packing lines

The mechanical tongue-and-slot lock is designed for manual assembly or automated wrap-around setups. Operations using high-speed gluing lines should compare pre-glued basket carriers that arrive folded and open quickly for loading.

Board Choice, Condensation, And Handle Strength

Managing cold-chain condensation

If the cans will be refrigerated or moved through humid environments, standard corrugated board can absorb moisture and weaken. Discuss moisture-resistant board options to ensure the handle does not tear when lifted.

Board thickness and fold behavior

A thinner board profile is usually preferred. It allows the central A-frame to fold tightly between the cans and ensures the locking tongue fits smoothly into its receiving slot without binding.

Handle tear resistance

Four full beverage cans create concentrated weight at the handle roots. Specifying a high-tear-resistance board can improve durability and keep the package secure during consumer transport.

Packing labor and assembly speed

Because the carrier wraps around the cans and locks manually, it requires more handling time than dropping cans into a pre-glued basket. Buyers should test the assembly sequence to confirm it fits their packing workflow.

Can Sizing And Lock Geometry

Matching exact can dimensions

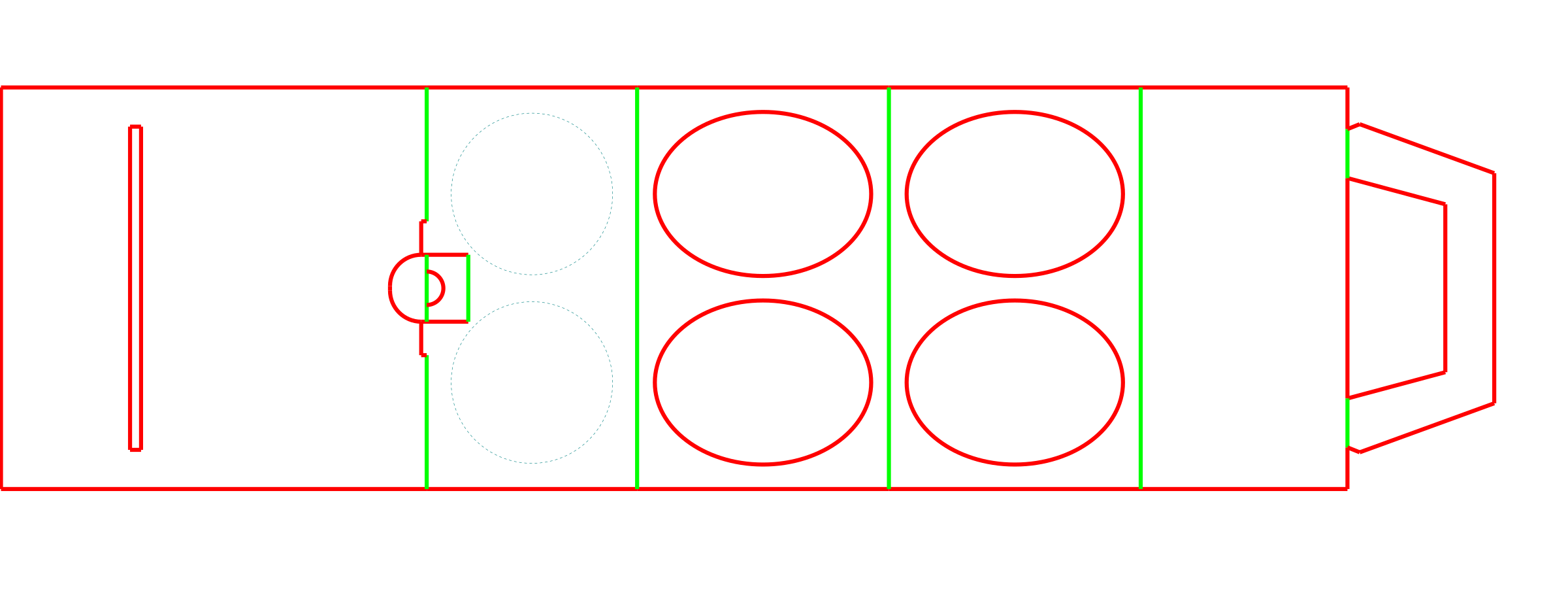

The elliptical cutouts and overall length are driven by the specific diameter and height of the cans being packed. The template scales to ensure the cutouts grip the can bases properly.

Handle ergonomics

The width and height of the grip hole can be adjusted to balance consumer comfort with the amount of material left to support the weight.

Lock tab geometry

The width and length of the locking tongue can be modified to change how tightly the closure engages, depending on the chosen board thickness.

Packing details

Assembly sequence and locking

Packers place the cans over the base cutouts, fold the center up into the A-frame, wrap the outer walls up the sides, thread the handle through the opposite slot, and engage the locking tab. This sequence should be tested with physical prototypes to confirm packing speed.

Handle And Lock Variants

Standard Lock (EVC11284)

Uses a single-crease handle base and a standard tuck tongue width for the top closure.

Double-Crease Handle (EVC11284_1)

Features an alternate lock geometry and a double-creased handle root, which can change how the handle feels and folds depending on the chosen board thickness.

Additional notes

Can diameter and cutout sizing

The base cutouts must be sized precisely to the physical cans. If the cutouts are too large, the cans may slip; if too small, the carrier will not wrap correctly.

FAQs

Does this carrier require adhesive?

The carrier is a single flat piece of corrugated board that wraps around the cans and secures at the top using a mechanical tongue-and-slot lock. No adhesive is needed for assembly.

Can I ship this carrier through a parcel courier?

The sides of the cans are exposed, and the handle can catch on sorting belts. For parcel delivery, the loaded carrier should be packed inside a separate corrugated shipping box.

Will the handle hold up if the cans are cold and sweating?

Condensation can weaken standard corrugated board, increasing the risk of the handle tearing. If the product will be refrigerated, the board should be specified with moisture-resistant properties.

How does the carrier keep the cans from falling out?

The base features elliptical cutouts that seat the bottom of the cans, while the central A-frame divider and tightly wrapped outer walls restrict lateral movement.

Does this shape require special tooling?

The elliptical cutouts, handle hole, and locking tabs require precise cutting, which usually means custom die-cutting rather than simple slotting. This is standard for shaped retail carriers.

What should we check when ordering a sample?

Test the assembly speed, verify that the elliptical cutouts fit your specific can diameter, and lift the fully loaded carrier to confirm the handle and lock feel secure.

Can the entire carrier be printed?

The outer walls and the handle area provide a continuous, flat surface for retail printing, making it easy to brand the multi-pack.

Is this carrier suitable for hand packing?

It is often used for manual packing operations. However, because it requires wrapping and locking, buyers should evaluate the labor time compared to pre-glued alternatives.
